Stone Crushing Equipment

Vanguard Machinery offers various stone crushing equipment at an affordable price for large, medium or small mining companies, especially for artisanal miners, junior miners, and amateur mining enthusiasts. For the production of building aggregates, VANGUARD provides such main crushers as the jaw crusher, impact crusher, cone crusher. So far, we have developed 10 series machines that include over 100 models that can be matched freely to meet various demands on capacity and all types of building aggregates.

Explore Our Products Here

Vanguard Machinery has a full coverage of coarse crushing, intermediate crushing, fine crushing and sand-making, sand-washing, feeding, sieving, conveying equipment.
We make each machine with great care to forge excellent quality.

Energy-saving Ball Mill

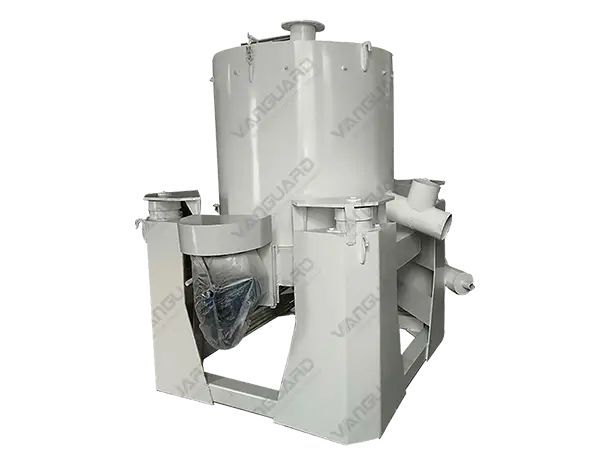

Centrifugal Gold Concentrator

Feed size:

Capacity:

Power:

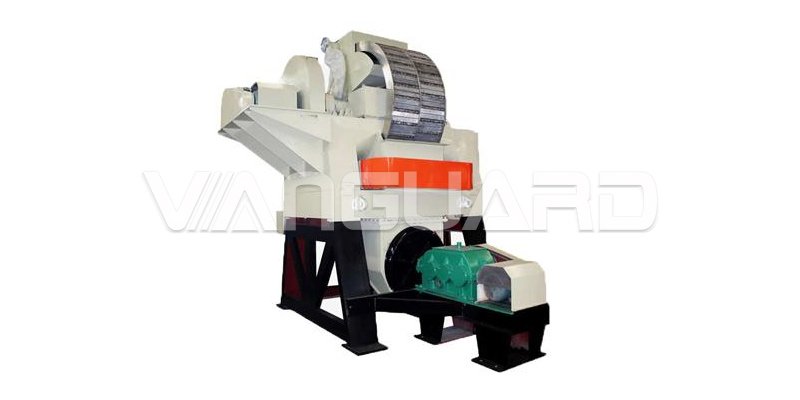

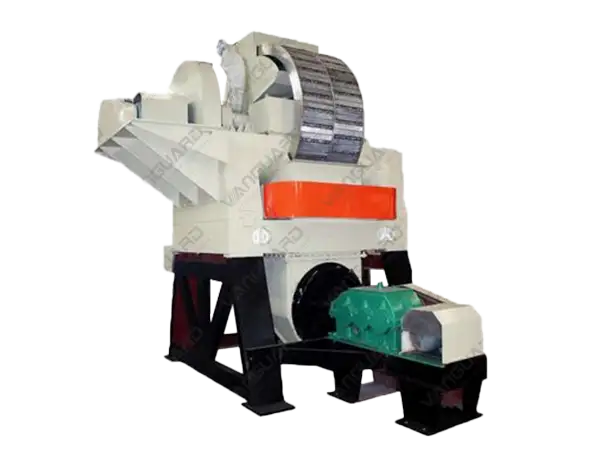

High Gradient Magnetic Separator

Raw Material

Vanguard Machinery stone crushers can process most ores, such as iron ore, gold ore, limestone, quartz, river pebble, granite, bauxite, molybdenum ore, talc, silica sand stone, gypsum, dolomite, manganese ore, clay, nickel ore, etc.

Learn More >>>

Metal Ore Crushing & Processing

Non-Metallic Ore Crushing & Processing

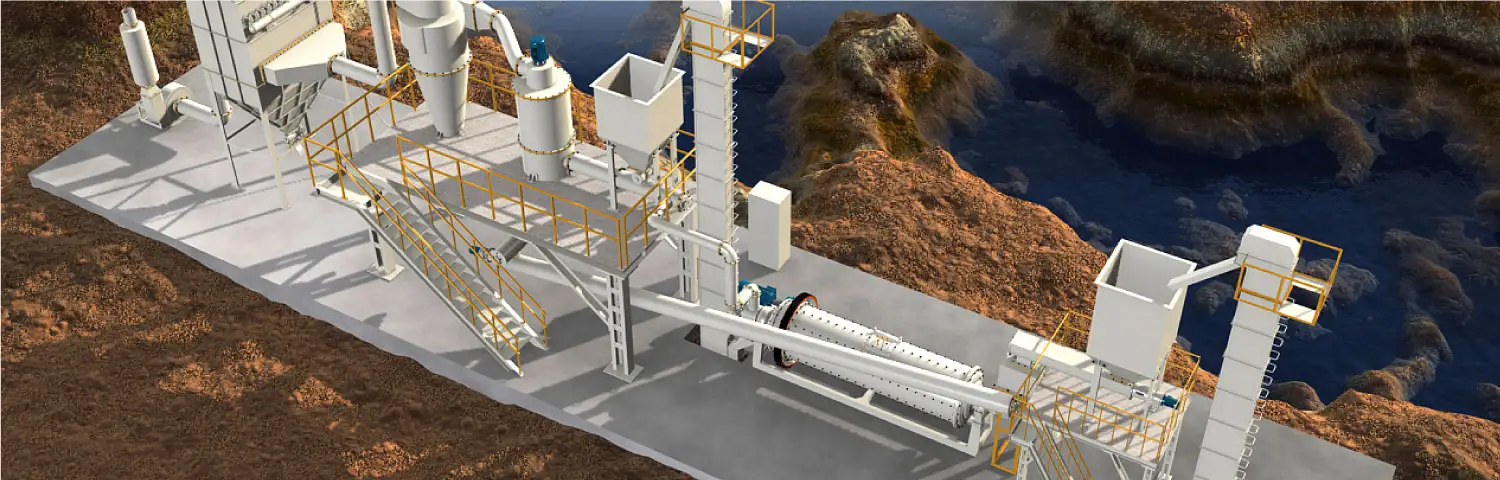

Stone Crushing Line Crushing & Processing

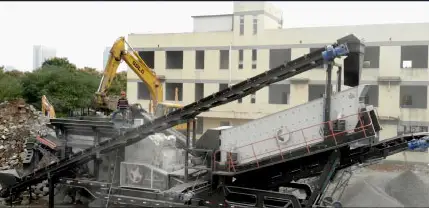

Construction Waste Crushing and Reuse

OUR CASE

From engineering stone, construction sand to engineering fine powder, Vanguard machinery and equipment maintain good performance under severe operating conditions, providing customers with comprehensive and thoughtful solutions, giving full play to the productivity and durability they deserve, and meeting the strict requirements of users for production indexes and product quality.

Nigeria 300t / D Gold Ore Dressing Project

Guangdong Quartz Sand Grinding Project

Morocco 500t / D Silver Ore Dressing Project

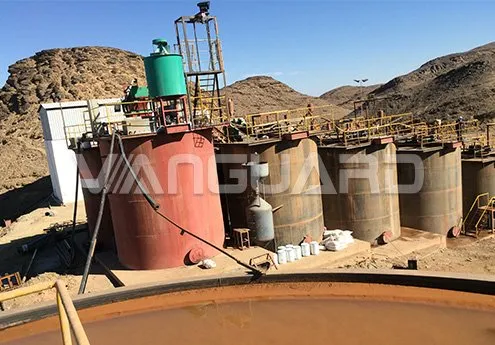

Indonesia 100t / D Gold Ore Dressing Project

Ball Mill
Wet Type Pan Mill

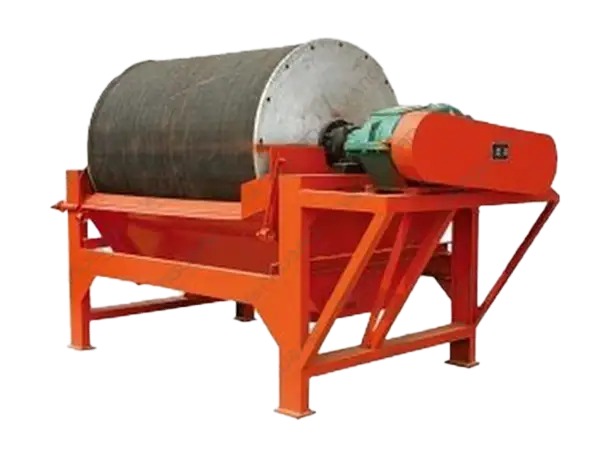

Magnetic Separator

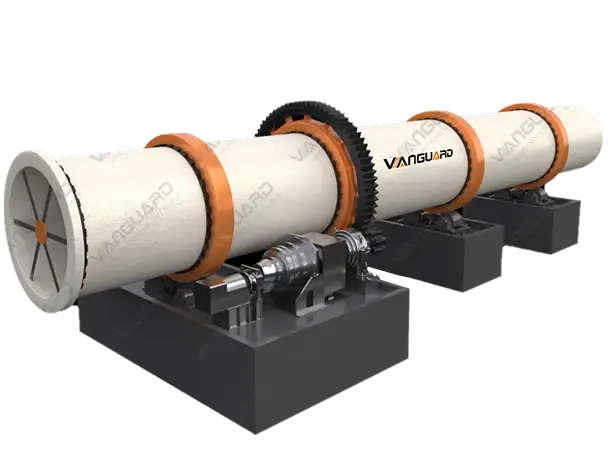

Rotary Kiln

Model	Rotary Speed(r/min)	Ball Weight(t)	Feeding Size(mm)	Output Size(mm)	Capacity(t/h)	Power(kw)	Weight(t)
φ900×3000	35.6	2.4	≤25	0.075~0.89	0.8- 2.5	22	5.3
φ1200×3000	32.4	4.5	≤25	0.074~0.4	1.6- 3	37	12.1
φ1200×4500	32.4	7	≤25	0.074~0.4	1.83- 3.9	55	13.1
φ1500×3000	29.7	7.5	≤25	0.074~0.4	2.8- 4	75	14.8
φ1500×4500	29.7	11	≤25	0.074~0.4	4.8- 7	110	19.9
φ1500×5700	29.7	14	≤25	0.074~0.4	5- 8	130	23.4
φ1500×7000	29.7	17	≤25	0.074~0.4	6- 8	155	27.5
φ1830×3000	25.4	11	≤25	0.074~0.4	4.5- 10.5	130	26.6
φ1830×4500	25.4	17	≤25	0.074~0.4	6.8- 11.5	155	30.4
φ1830×6400	25.4	24	≤25	0.074~0.4	7- 12	210	32.3
φ1830×7000	25.4	26	≤25	0.074~0.4	7.8- 13.8	245	34.2
φ2100×3000	24.9	15	≤25	0.074~0.4	5.8- 14	210	32.3
φ2100×4500	24.9	23	≤25	0.074~0.4	9.5- 18	245	40
φ2400×3000	20.8	20	≤25	0.074~0.4	7.8- 18	245	51.3
φ2400×4500	20.8	30	≤25	0.074~0.4	13.7- 28	380	63.7
φ2700×4000	19.5	34	≤25	0.074~0.4	15- 28	475	89
φ2700×4500	19.5	39	≤25	0.074~0.4	16.5- 36	475	97

Model	Specification	Feeding Size （cm）	Power （Kw）	Spinning Speed （r∕min）	Weight（t）
1600A	1600×400×200×500±20	≤25	6-30	20-22	14.5
1500A	1500×350×200×460±20	≤25	6-22	20-22	13.3
1500B	1500×350×150×460±20	≤25	6-22	20-22	12.3
1500C	1500×300×150×420±20	≤25	6-22	20-22	11.3
1400A	1400×250×150×350±20	≤25	6-18.5	16-18	8.5
1400B	1400×250×150×350±20	≤25	6-18.5	21-23	8.5
1350A	1350×250×150×350±20	≤25	6-18.5	16-18	8
1350B	1350×250×150×350±20	≤25	6-18.5	21-23	8
1300A	1300×250×150×350±20	≤25	6-15	16-18	7.5
1300B	1300×250×150×350±20	≤25	4-15	21-23	7.5
1200A	1200×220×80×270±20	≤25	6-7.5	17-19	7.5
1200B	1200×200×80×250±20	≤25	6-7.5	23-25	7.5
1100A	1100×220×80×250±20	≤25	4-7.5	17-19	5
1100B	1100×220×80×250±20	≤25	4-7.5	23-25	5
1000	1000×200×80×250±20	≤25	4-7.5	13-15	4.5

Model	Rotating Speed （r / min）	Slope（％）	Speed mRatio of Reducer	Motor Power（kw）	Motor Rotating Speed （r / min）	Support number	Weight （t）	Note
Φ1.9/ 1.6×36	0.53-1.59	4	48.58	30	1200/400	3	53
Φ2.1/ 1.8×36	0.5-1.51	4	163.36	30/10	1410/470	3	75
Φ1.2×25	0.5-1.6	3	40.17	22	1200/120	3	34
Φ1.6×32	0.158-0.258	3	48.57	15	1200/120	3	46.82
Φ1.8×45	0.66-1.98	4	163.36	30/10	1410/470	3	80
Φ2.2×50	0.125-1.25	3.5	157	30	1320/132	3	130.71
Φ2.5×50	0.516-1.549	3.5	99.96	55	1320/440	3	167.5
Φ3×48	0.3309-3.309	3.5	32.11	90	1000/100	3	237	Decomposition outside the kiln
Φ3.2×50	0.398-3.975	3.5	40.85	190	1500/150	3	263	Decomposition outside the kiln
Φ3.3×52	0.391-3.91	3.5	27.707	190	1000/100	3	280.8	Decomposition outside the kiln
Φ4×60	0.396-3.96	3.5	34.601	315	1000/100	3	487.5	Decomposition outside the kiln
Φ4.2×60	0.4165-4.165	3.5	35.526	420	1000/100	3	576.1	Decomposition outside the kiln
Φ4.3×62	0.398-3.98	3.5	35.714	420	1000/100	3	598.5	Decomposition outside the kiln
Φ4.8×74	0.35-4	4	42.226	630	1000/100	3	849	Decomposition outside the kiln

Our Services

VANGUARD Machinery's "7×24 service commitment" establishes a closed matrix covering the whole life cycle of the equipment from service efficiency, service speed, maintenance cost and quality standard, and integrate the service behaviors from before the customer purchases the machine to the equipment acquisition and after the equipment operation into a value chain oriented to the customer's needs so that you can enjoy the whole process without worrying about the maximum added value; no matter where you are, we will escort your choice with strength and concentration.

Pre-sales
recommendations

Tailor-made

Installation
and commissioning

Regular visits

Genuine Accessories

Create a
full cycle profile

REQUEST A QUOTE !

Thank you for your interest in Vanguard Machinery. If you want to know more about our crushers and industrial grinding equipment.
Contact us now to find out what we can do for you!
