Ultrafine Vertical Mill
Input size
LUMUltrafine Vertical Mill

Product introduction:LUM ultra-fine vertical mill is a large-scale high-fine vertical mill on the basis of LM vertical mill that developed by our company for reference to advanced technology at home and abroad, and suitable for non-metallic minerals with a large-scale ultra-fine processing.

Technical Features
  • Higher Capacity Rate

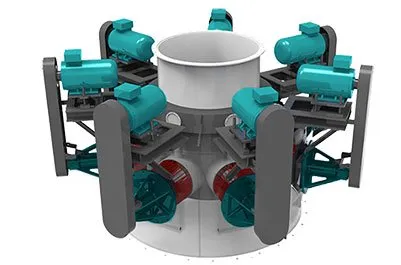

  • Multi-Head Classifier
  • Digitalized Processing
  • Higher Precision
  • Worry-Free Operation
  • ● VANGUARD adopted PLC control system and multi-head powder separating technology in this grinding mill which completely solve two problems i.e. "high-precision and accurate cutting powder diameter and fast switch of different production demands".

    ● Users can accurately control the grinding pressure revolving speed and other equipment working parameters. Compared with common grinding mills this grinding mill reduces the energy consumption by 30%-50%.

    Ultrafine Vertical Mill
  • ● The material stays in the mill for a short time reducing repeated grinding easy to detect and control the particle size and chemical composition of the product and stabilizing the product quality.

    ● This design is easier to generate material layer and can realize high rate of finished products by once powder milling which can greatly enhance the working efficiency of grinding mill and improve the whiteness and cleanliness of finished products.

  • ●There are tens of lines of numerical controlling machine tools for steel plates cutting, bending, planing, milling and paint spraying.

  • ● VANGUARD whose businesses cover manufacturer and sales takes responsibility for every machine manufactured by ourselves.

  • ● We can provide technical services about products and original spare parts for customers to ensure the worry-free operation.

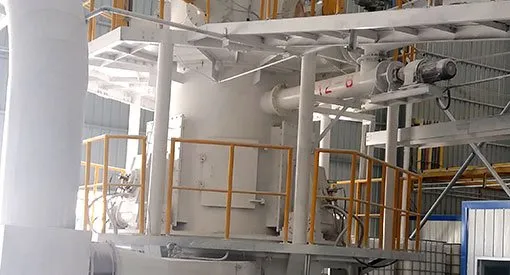

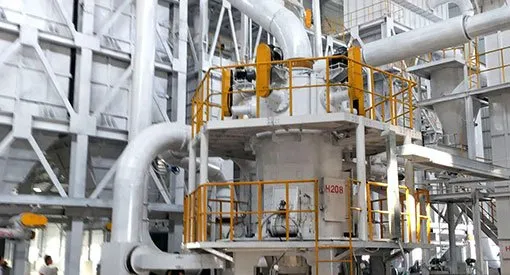

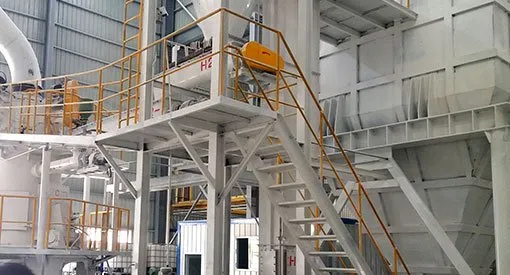

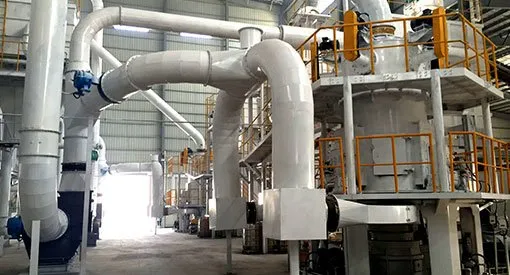

Product Gallery
Ultrafine Vertical Mill
Ultrafine Vertical Mill
Ultrafine Vertical Mill
Ultrafine Vertical Mill
Ultrafine Vertical Mill

Performance parameter
Model LUM1125 LUM1232 LUM1436
Disc diameter(mm) 1100 1200 1400
Grinding roller (pcs.) 3 3 3
The size of input raw material(mm)
<10 <10 <10
Max feed size(mm) <15 <18 <20
Capacity(t/h) 5-14 7-16 9-18
The size of product
One-time production 0.038-0.02, with double classifier0.005
Power(kw) 250 315 355
Classifier power× Qty 15KWX5 15KWX7 15KWX7
