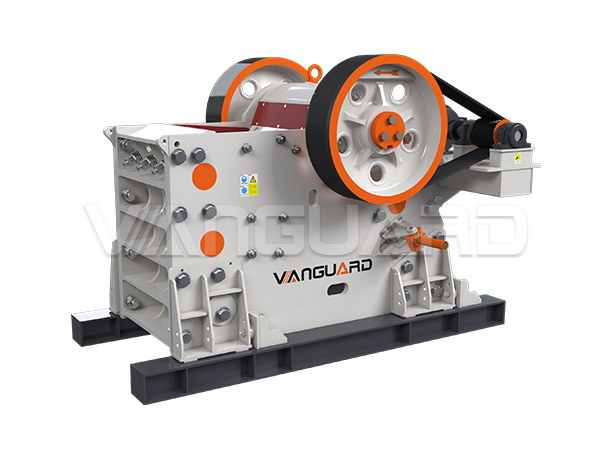

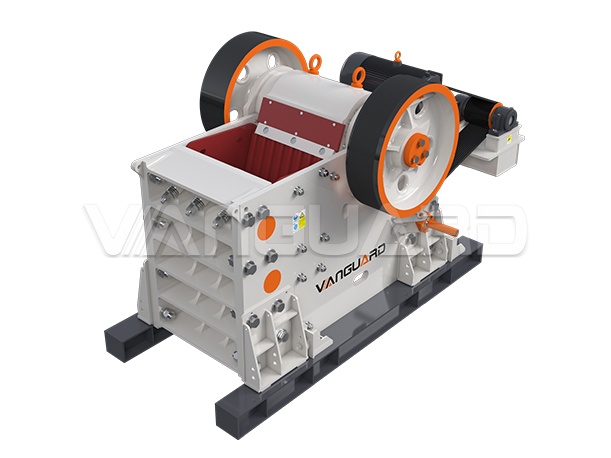

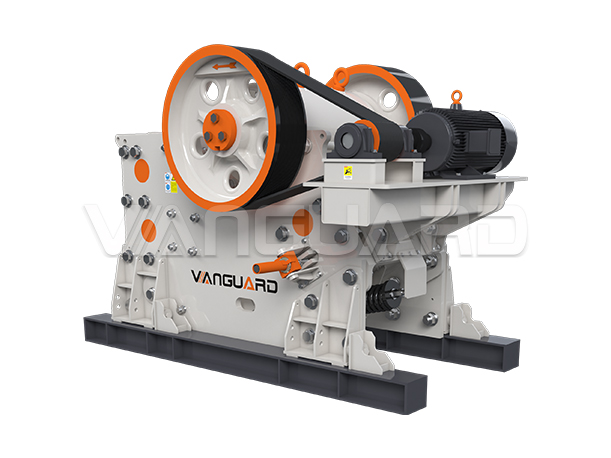

Series European Type Jaw Crusher
Feed size
0-1280mm
Capacity
160-1510t/h
Power
75-250kw

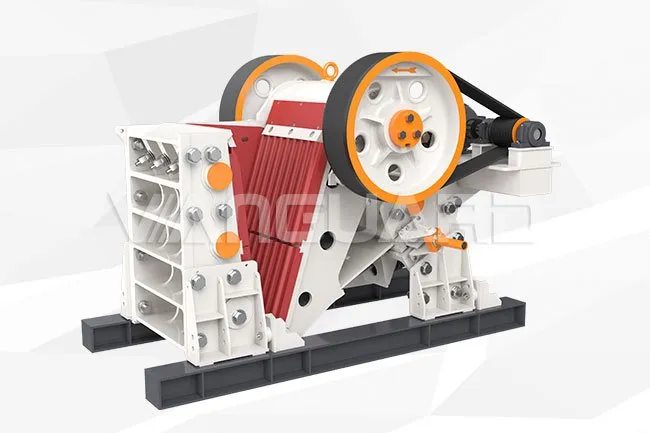

6CXSeries European Type Jaw Crusher

Product introduction:6CX series Jaw Crusher has adopted the world's most advanced crushing technology and research achievement. It is the new type of crushers with the world s advanced level which was successfully developed by using the finite element analysis method based on years of experience in jaw crusher design and manufacture.

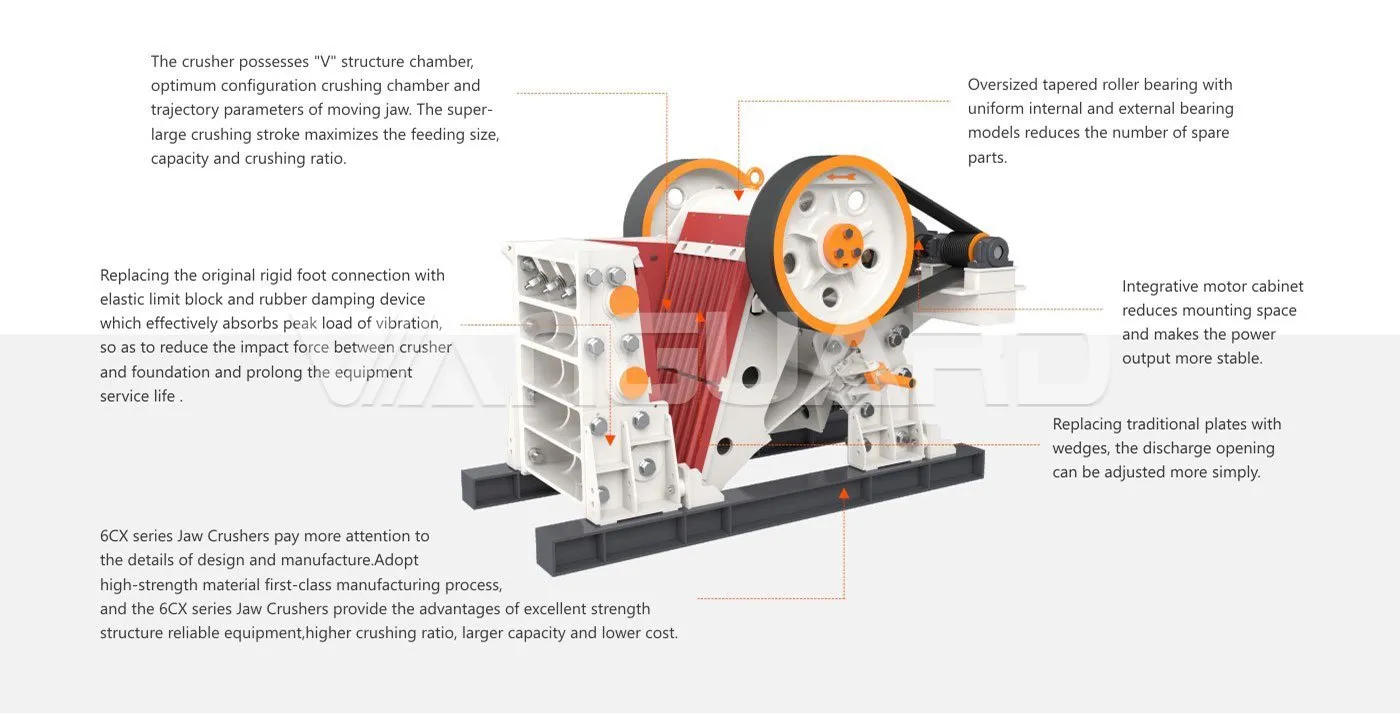

Technical Features

● 6CX Jaw Crusher boasts more reasonable moment of inertia and greater crushing strokes through optimization of the equipment structure crushing cavity and movable jaw's motion trail and speed.
● It is able to achieve higher crushing efficiency at the same power consumption and thus offer customers a larger rate of return on investment.
● In order to ensure stable and efficient production during crushing hard materials.
● 6CX Jaw Crusher is equipped with such core rotating components as high-quality casting movable jaw body.

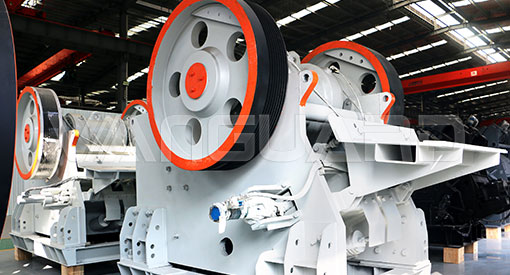

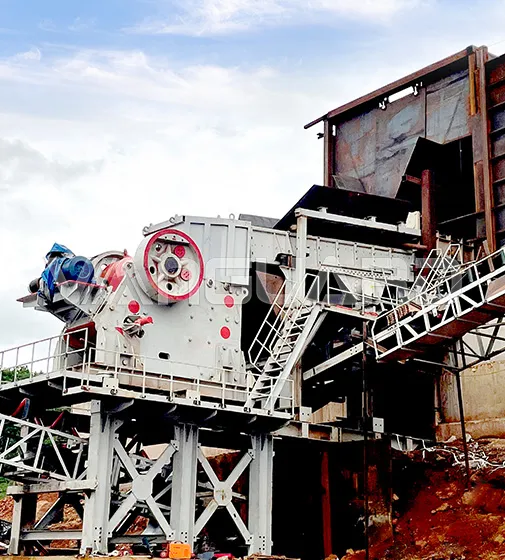

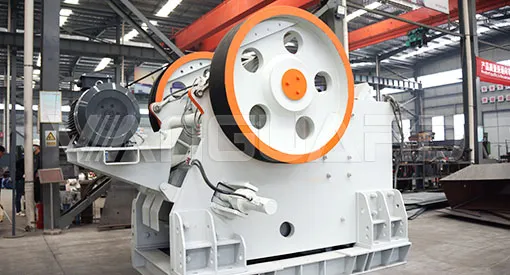

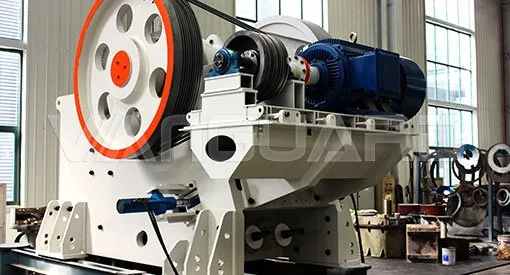

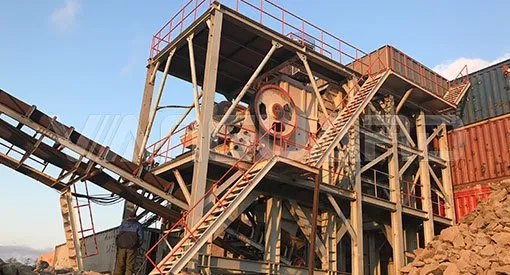

Product Gallery

Performance parameter
Model 6CX80 6CX100 6CX106 6CX110 6CX125 6CX140 6CX145 6CX160
The feeding mouth(mm) 800×510 1000×760 1060×700 1100×850 1250×950 1400×1070 1400×1100 1600×1200
Motor power(kw) 75 110(90) 110 132(160) 160(132) 200(160) 200 250(200)
Speed(rpm) 350 260 280 230 220 220 220 220
Fixed Jaw lenght(mm) 1100 1600 1450 1800 2000 2100 2300 2500

    Maintenance maximum weight(kg)

    (without the flywheel jaw assembly)

2870 7060 4020 9000 12960 15950 18600 21380

    Total weight(kg)

    (Do not include motor and accessories)

7520 20100 13500 25060 36700 45300 53800 68600
Width of feeding port(mm) 800 1000 1060 1100 1250 1400 1400 1600
Feed depth(mm) 510 760 700 850 950 1070 1100 1200
Product size(mm) Tight edge discharge port(mm) Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly
0-30 20
0-35 25
0-45 30
0-60 40 65-85
0-75 50 80-95
0-90 60 95-125
0-105 70 115-150 150-210 155-200 190-250
0-120 80 130-170 170-225 175-230 210-275
0-135 90 150-195 190-245 200-260 235-305
0-150 100 165-215 215-280 220-290 255-330 290-380
0-185 125 210-275 265-345 280-365 310-405 350-455 385-500 400-520
0-225 150 250-325 315-410 335-435 370-480 410-535 455-590 470-610 520-675
0-260 175 290-380 370-480 390-510 425-550 470-610 520-675 540-700 595-775
0-300 200   420-545 445-580 480-625 530-690 590-765 610-795 675-880
0-340 225         590-770 655-850 680-885 750-975
0-375 250         650-845 725-945 750-975 825-1070
0-410 275             820-1070 900-1170
0-450 300
