Series Mobile Crushing Plant
Feed size
70-200mm
Capacity
70-285 T/H
Power
189.5kw

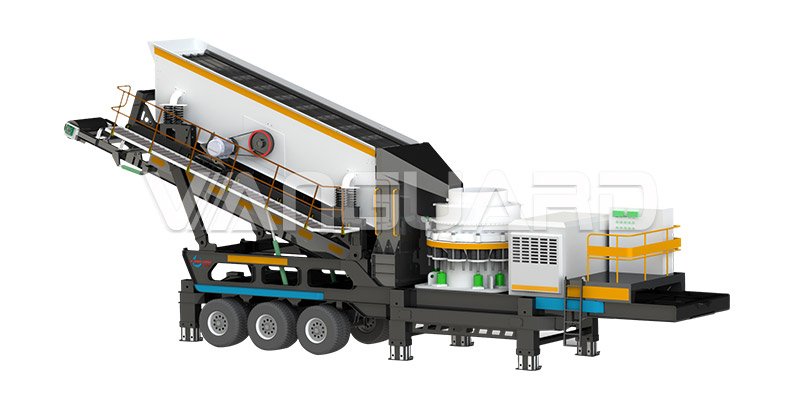

VPCSeries Mobile Crushing Plant

Product introduction:The mobile cone crushing plant is a series of new rock crushing equipment developed by our company which greatly expands the conceptual field of coarse crushing and fine crushing operations. Its design philosophy is to stand in the customer's position to eliminate the obstacles of crushing ground and environment and complex infrastructure configuration. Truly provide customers with simple efficient and low-cost project operation hardware facilities.

Technical Features

Great Mobility

Different crushing equipemet is separately installed. Its short wheelbase and tight turning radius mean they can be transported on highway and moved at crushing site.

Hydraulic Lift Mode

Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.

Unique Design of Conveyor

It adopts automatic portable conveyor for return material providing customer with convenience of field installation.

Good Performance

Working well on intermediate crushing and particel shape which used for medium hardness stone crushing.

Performance parameter

Model


Crusher  Model


Vibrating Screen


Main Conveyor


Frame Chassis


Capacity (t/h)

Dimension(L*W*H)
(mm)

Hydraulic  System

VPCS75

CS75

3YA1848

1

Triaxial

180-270

18000×3900×6900

 Hydraulic  lifter

VPCS160

CS160

3YA2160

1

Triaxial

132-253

18000×4200×6900

Hydraulic  lifter

VPCH200

CH820

3YA1848

1

Double Axle

70-160

12600×3000×4500

Hydraulic  lifter

VPCH300

CH830

3YA1860

1

Triaxial

90-285

13800×3000×4500

 Hydraulic  lifter
