Rotary Kiln
Rotary Kiln

Product introduction:Rotary kiln refers to rotary calcining kiln which belongs to building materials equipment category. According to the appearance it can be divided into variable diameter rotary kiln and diameter rotary kiln.

Technical Features
  • Seismic Resistance
  • High Efficient Heat Insulation
  • High Efficient Heat Insulation
  • Support Device
  • Easy To Operate
  • ● The kiln type of the rotary kiln with ZG45 and ZG42CrMO materials can guarantee strength and toughness to support the barrel.

  • ● The kiln type has high quenching hardness and toughness and uniformity material by double medium quenching.

  • ● It can be used in all kinds of bad working environments by good wear resistance.

  • ● Advanced shaft structure, automatic temperature measuring device, and electrical heating.

  • ● Simple structure and easy to adjust and maintenance.

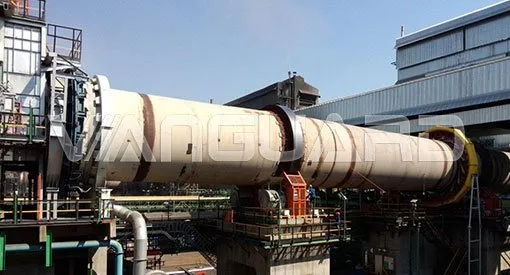

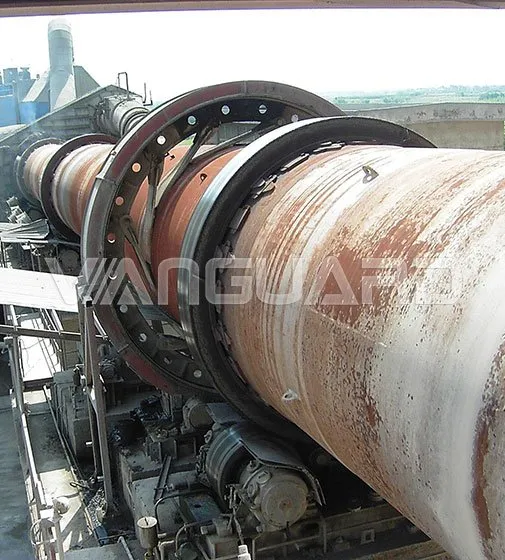

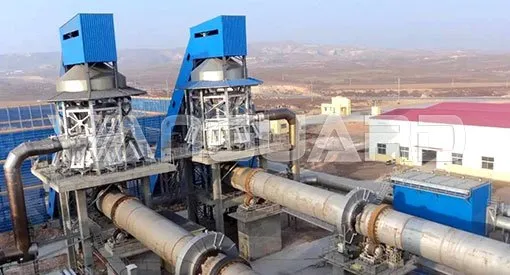

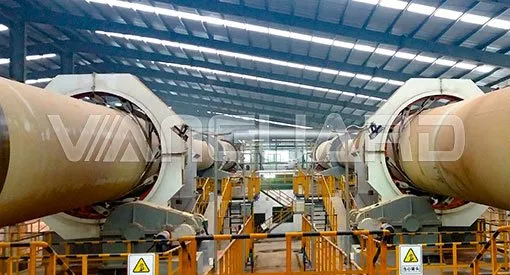

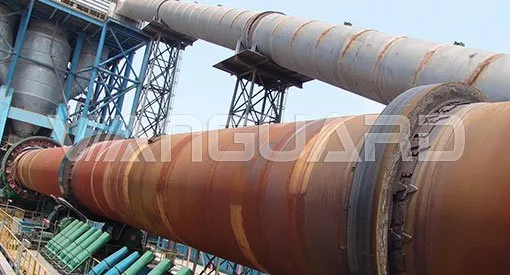

Product Gallery

Performance parameter

Model Rotating Speed
(r / min)
Slope(%) Capacity(t / h)
Speed mRatio of Reducer
Motor Power(kw) Motor Rotating Speed
(r / min)
Support
number
Weight
(t)
Note
Φ1.9/ 1.6×36 0.53-1.59 4 2.5-3 48.58 30 1200/400 3 53
Φ2.1/ 1.8×36 0.5-1.51 4 4 163.36 30/10 1410/470 3 75
Φ1.2×25 0.5-1.6 3 0.5-1.2 40.17 22 1200/120 3 34
Φ1.6×32 0.158-0.258 3 1.5-2.5 48.57 15 1200/120 3 46.82
Φ1.8×45 0.66-1.98 4 3.5 163.36 30/10 1410/470 3 80
Φ2.2×50 0.125-1.25 3.5 4 157 30 1320/132 3 130.71
Φ2.5×50 0.516-1.549 3.5 5.5 99.96 55 1320/440 3 167.5
Φ3×48 0.3309-3.309 3.5 35 32.11 90 1000/100 3 237 Decomposition outside the kiln
Φ3.2×50 0.398-3.975 3.5 50 40.85 190 1500/150 3 263 Decomposition outside the kiln
Φ3.3×52 0.391-3.91 3.5 50 27.707 190 1000/100 3 280.8 Decomposition outside the kiln
Φ4×60 0.396-3.96 3.5 104 34.601 315 1000/100 3 487.5 Decomposition outside the kiln
Φ4.2×60 0.4165-4.165 3.5 116 35.526 420 1000/100 3 576.1 Decomposition outside the kiln
Φ4.3×62 0.398-3.98 3.5 125 35.714 420 1000/100 3 598.5 Decomposition outside the kiln
Φ4.8×74 0.35-4 4 208 42.226 630 1000/100 3 849 Decomposition outside the kiln
