CrawlerType Mobile Impact Crushing Plant

Chat Online
+86 13333811995
  • 80-360T/H
    Capacity
  • ≤650mm
    Feed size
  • 一
    Power

VideoVideo

ParameterParameter

CaseCase

RecommendedRecommended

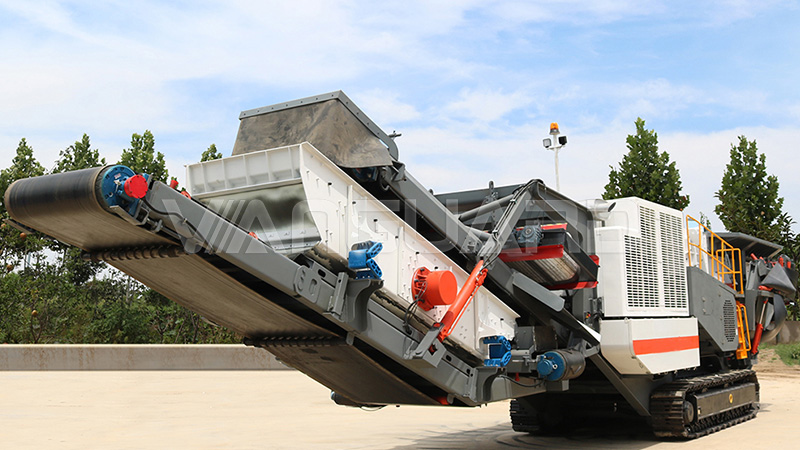

CrawlerType Mobile Impact Crushing Plant

It is equipped with a hydraulic impact crusher, which not only has the advantages of high crushing capacity, low cost, high versatility, and adjustable particle size of the finished product. It can also ensure the excellent particle size and cleanliness of the finished product and meet the high standards of construction aggregates. It is equipped with a vibrating screen, which can realize the crushing and screening of materials in one stop. It can also be combined with other equipment to complete the crushing and screening of materials in a mobile and efficient manner.

Technical Features
Crawler mobile crushing station is a series of rock and construction waste crushing equipment, which greatly expands the concept of coarse and fine crushing. Its design concept is to stand on the customer's standpoint and eliminate the obstacles to the crushing operation brought to the customer by the crushing site, environment, complicated basic configuration and complicated logistics as the primary solution.

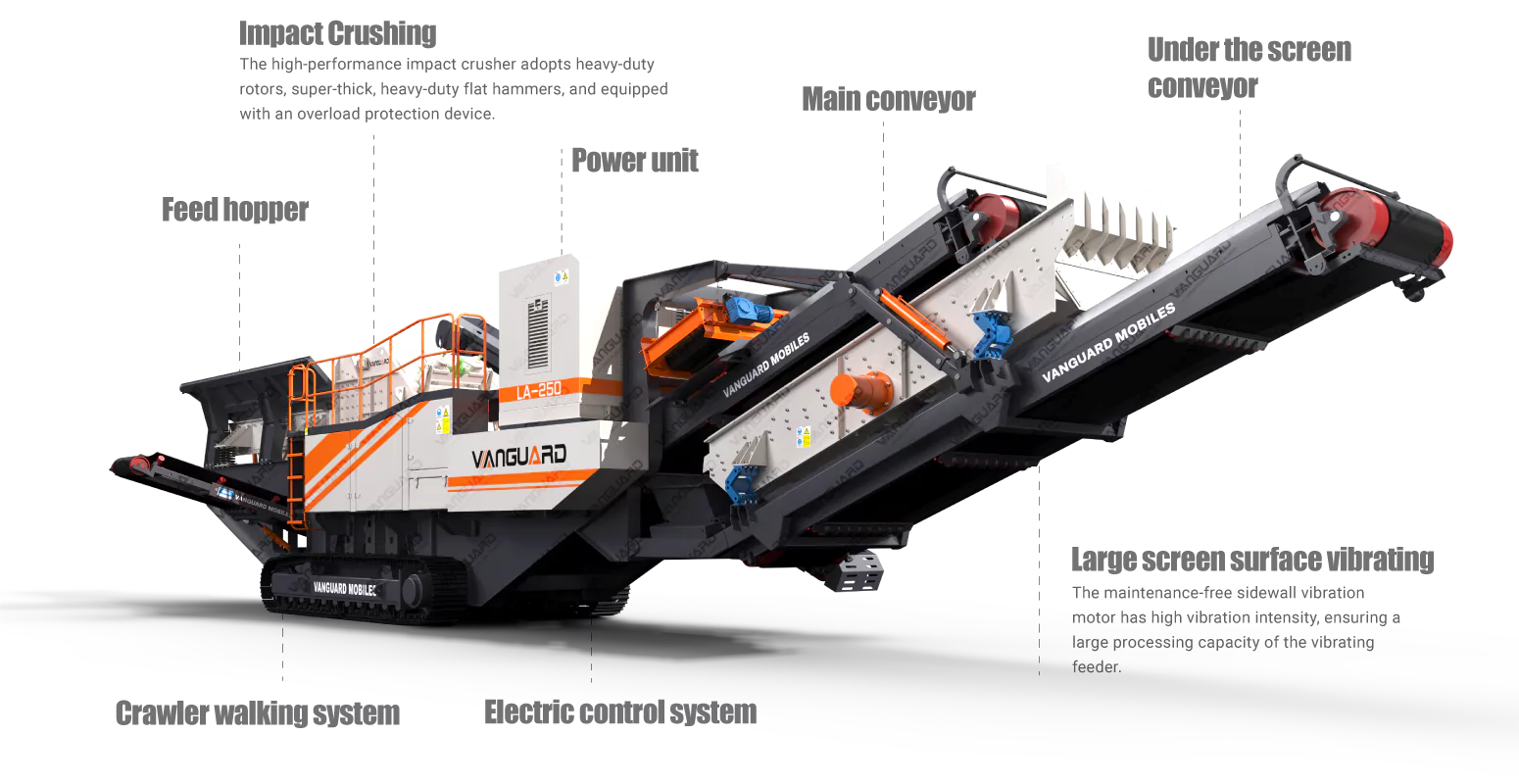

Main conveyor
Power unit
Under the screen conveyor
Electric control system
Large screen surface vibrating
The maintenance-free sidewall vibration motor has high vibration intensity, ensuring a large processing capacity of the vibrating feeder.
Crawler walking system
Feed hopper

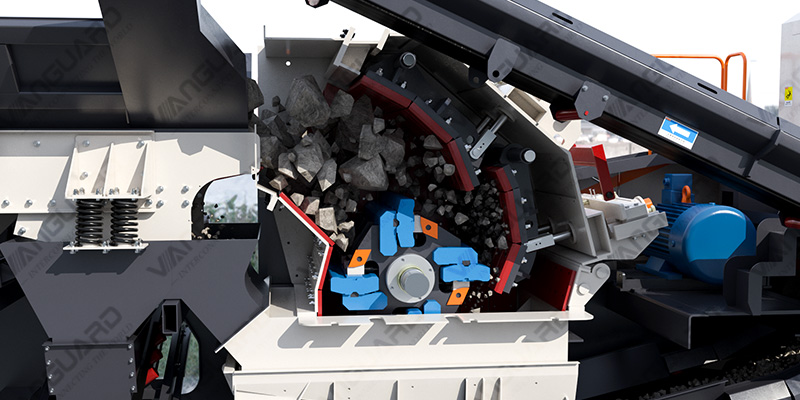

Impact Crushing
The high-performance impact crusher adopts heavy-duty rotors, super-thick, heavy-duty flat hammers, and equipped with an overload protection device.
case

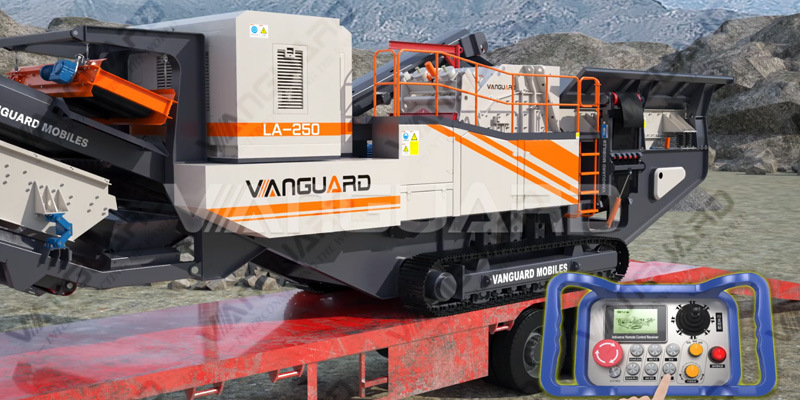

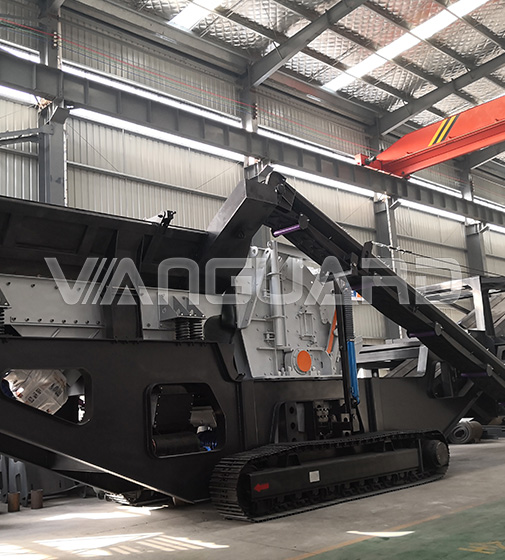

Easy to move, suitable for complex terrain

Tracked chassis, adapt to more terrain；flexible movement, faster and more efficient transition, saving time and maximizing revenue.

Chat Online
case
Crushing host

Impact Crusher uses multifunctional hydraulic operational system which boasts high adjustment precision and high velocity. Adopt a heavy-duty rotor design to make it have greater rotational inertia;

Chat Online
case

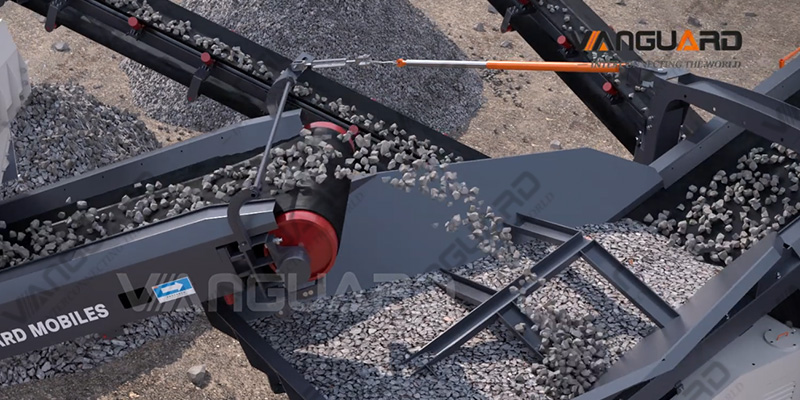

Vehicle Conveyor

The wide and strong main belt has a discharge height of 4M, the maximizes the discharge height is conducive to stacking;

Chat Online
case

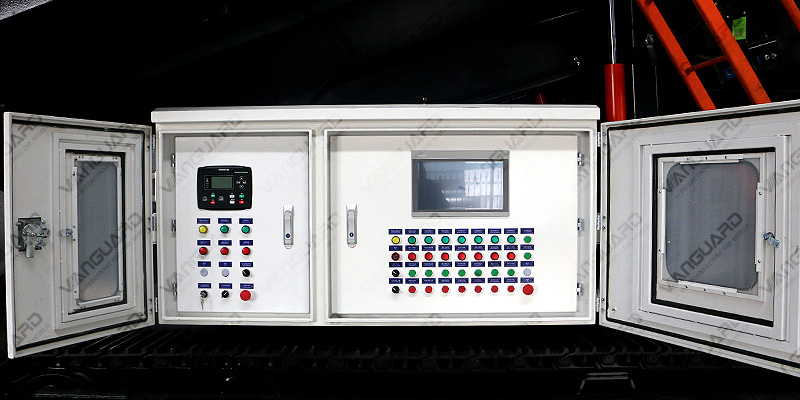

Intelligent PLC electric control operation

Intelligent PLC display operation electronic control system, humanized operation interface, one-key start real-time monitoring, which is convenient for on-site maintenance and diagnosis.

Chat Online

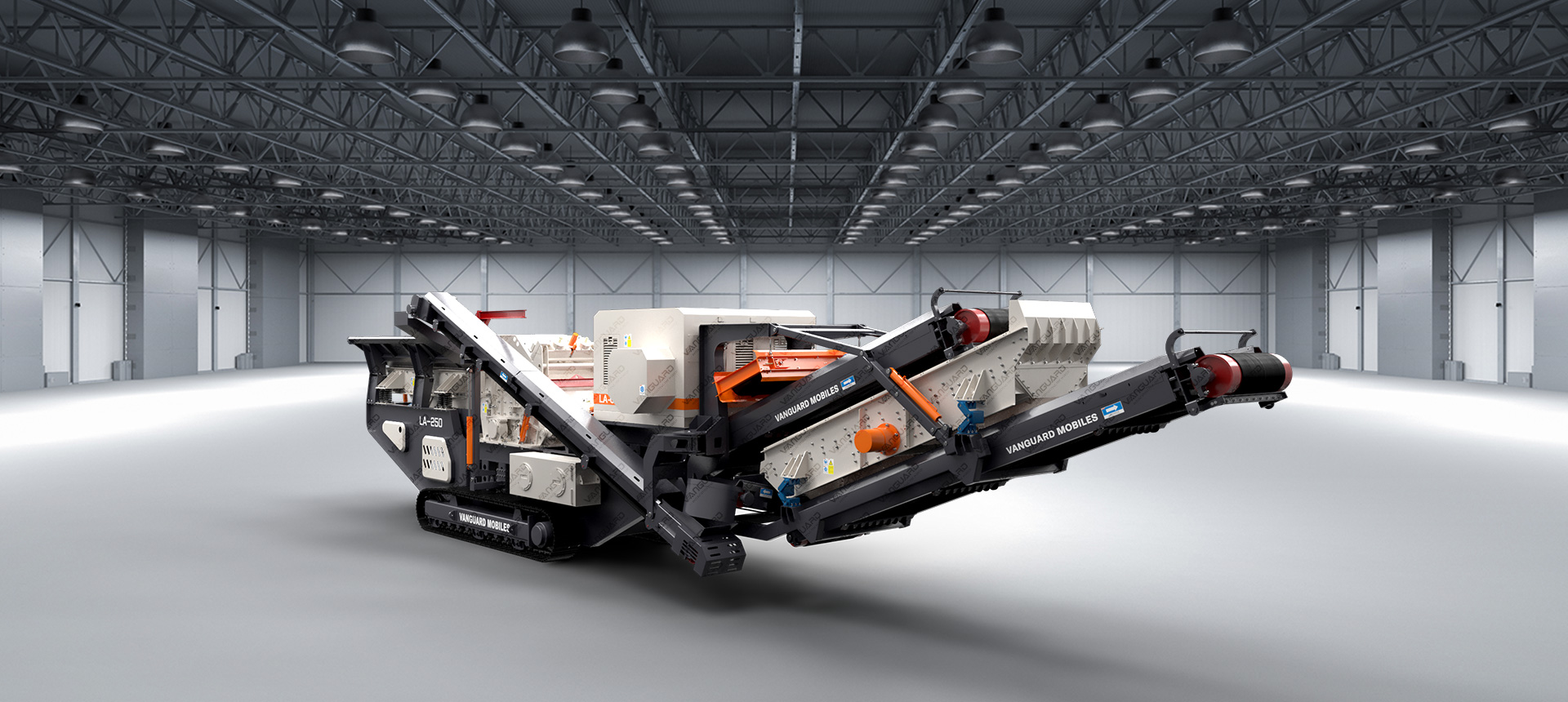

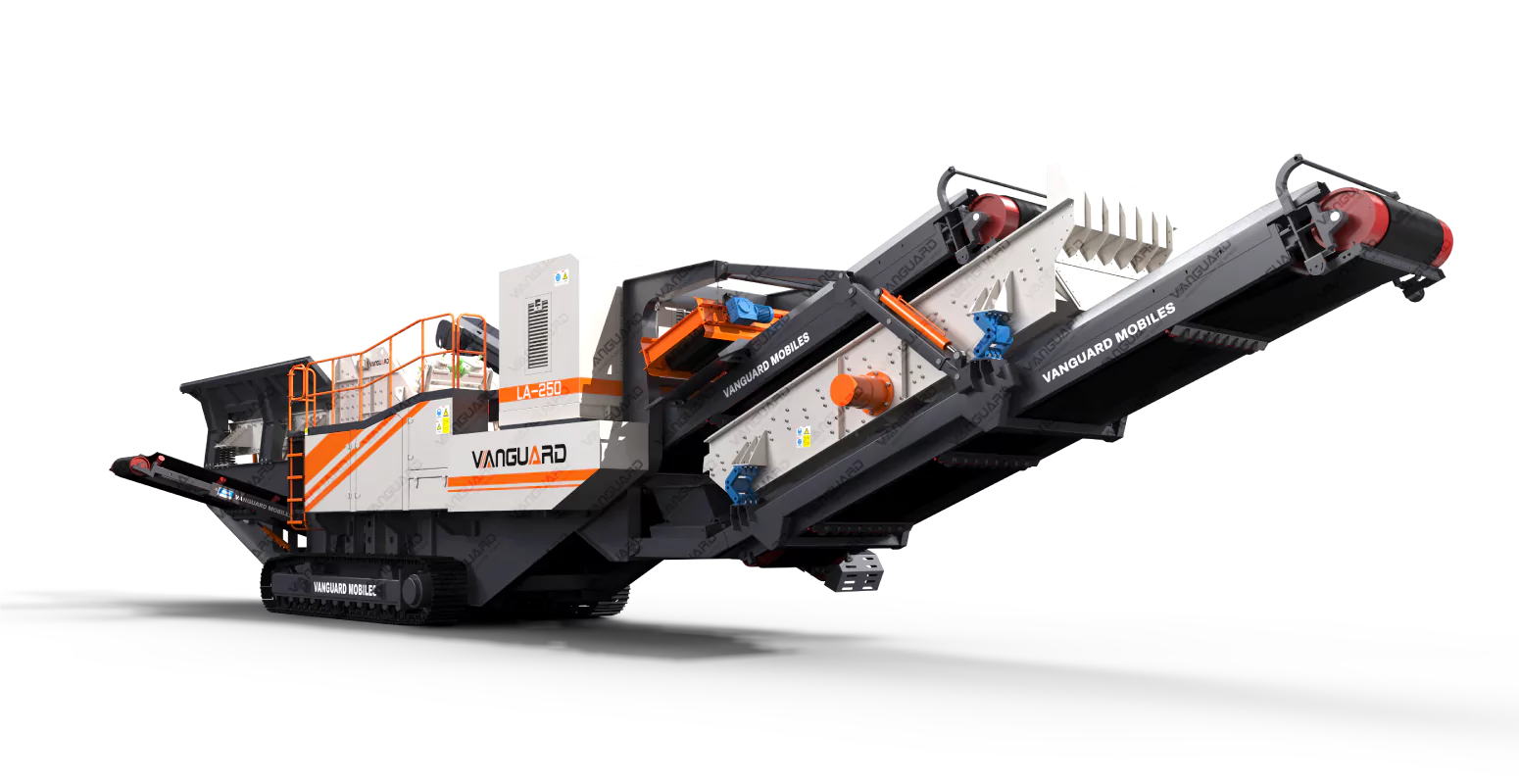

Product Exhibition

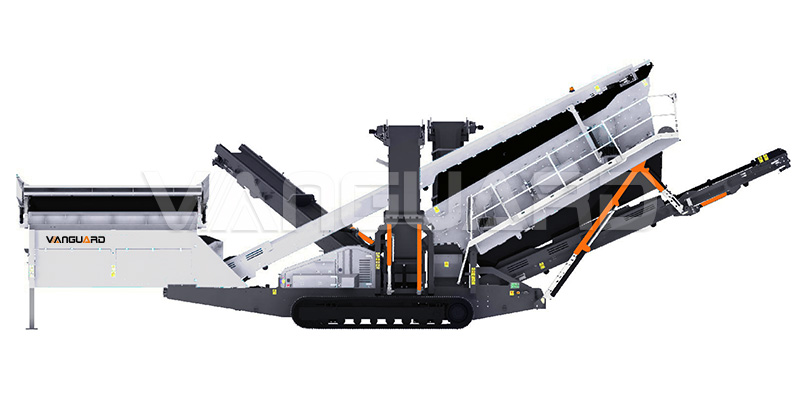

Mobile Cone Crusher
Mobile Cone Crusher

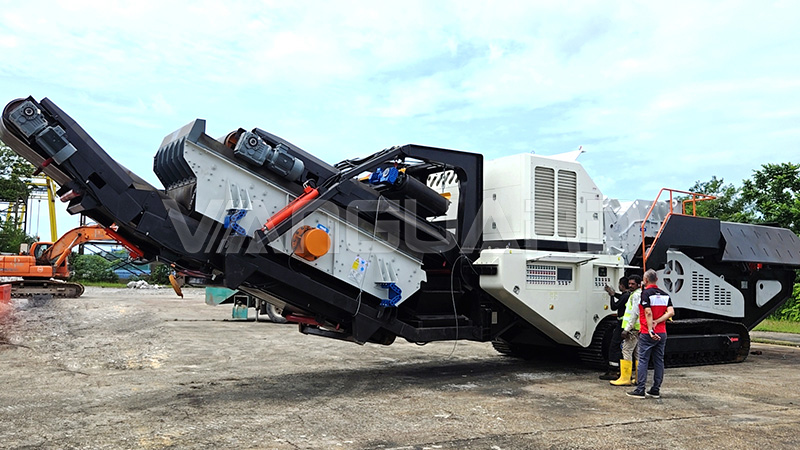

150 T/H crawler-type mobile impact crushing plant production line in Singapore

Capacity:150 t/h

Max. Input size: ≤400mm

Output size: 0-30 mm

Processing materials： construction waste, concrete

Project advantages： The high degree of intelligent integrated dual-power integrated design makes it easy to move. It can be quickly transferred and put into production, achieving the goal of building a sand and gravel production line quickly, efficiently and economically!

Learn more
Get a quotation
Performance parameter
LA150 CRAWLER MOBILE IMPACT CRUSHING PLANT
Model Items and specifications Power (kw) Quantity(set)
Feeding equipment Equipment GZDT3895 / 1
Vibration motor Standard 5.5 2
Crushing equipment Equipment LF150 / 1
Triangle belt Standard /
Motor Standard 160 1
Return screen Equipment 1536 / 1
Vibration motor Standard 3.06 2
Frame Hydraulic crawler chassis Standard / 1
Boat frame
/ 1
Main conveyor Specification B1000*11m 11 1
Drive method Electric drum drive / 1
Side out conveyor Specification B650*4m 3 1
Drive method Electric drum drive / 1
Under the screen conveyor Specification B1000*6m 7.5 1
Drive method Electric drum drive / 1
Transfer conveyor Specification B650*2m 3 1
Drive method Electric drum drive / 1
Return conveyor Specification B500*8m 5.5 1
Drive method Electric drum drive / 1
magnetic separator Specification RCYQ-10 2.2 1
Drive method Reducer / 1
Single power system Walking engine Yuchai diesel engine 106 1
Dual power system Generator set Yuchai diesel engine 300 1
Electrical System Electric control cabinet Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1
Matching Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size16.5*5.3*4.3 Transport size16.5*3.5*3.8
Weight(t) Single-power model:≈45t ,Dual-power models:≈47t
Power (kw) Single-power model 209.32kw (not including walking engine power) Dual-power models209.32kw (not including generator set power)
LA250 CRAWLER MOBILE IMPACT CRUSHING PLANT
Model Items and specifications Power (kw) Quantity(set)
Feeding equipment Equipment GZDT1145 / 1
Vibration motor Standard 7.5 2
Feeding equipment Equipment GZDT1525 / 1
Vibration motor Standard 3.2 2
Crushing equipment Equipment LF250 / 1
Triangle belt SPC-7200 / 10
Motor 4 200 Dual power 1
Motor Standard 250 Dual power 1
Return screen Equipment 1542 / 1
Vibration motor Standard 3.06 2
Frame Hydraulic crawler chassis Standard / 1
Boat frame
/ 1
Main conveyor Specification B1200*10m 11 1
Drive method Electric drum drive / 1
Side out conveyor Specification B650*4m 3 1
Drive method Electric drum drive / 1
Under the screen conveyor Specification B1200*6.2m 7.5 1
Drive method Electric drum drive / 1
Transfer conveyor Specification B650*2m 3 1
Drive method Electric drum drive / 1
Return conveyor Specification B500*8.7m 5.5 1
Drive method Electric drum drive / 1
magnetic separator Specification RCYQ-10 2.2 1
Drive method Reducer / 1
Single power system Walking engine Yuchai diesel engine 80 1
Dual power system Generator set Yuchai diesel engine 400 1
Electrical System Electric control cabinet Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1
Matching Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size19.5*5.6*4.6 Transport size19.5*3.7*4.3
Weight(t) Single-power model58t Dual-power models60t
Power (kw) Single-power model 311kw (not including walking engine power) Dual-power models311kw (not including generator set power)
LA350 CRAWLER MOBILE IMPACT CRUSHING PLANT
Model Items and specifications Power (kw) Quantity(set)
Feeding equipment Equipment GZDT1245 / 1
Vibration motor Standard 9 2
Crushing equipment Equipment LF350 / 1
Triangle belt Standard /
Motor Standard 315 1
Frame Hydraulic crawler chassis Standard / 1
Boat frame
/ 1
Main conveyor Specification B1200*10m 11 1
Drive method Electric drum drive / 1
Side out conveyor Specification B650*4m 3 1
Drive method Electric drum drive / 1
Under the screen conveyor Specification B1200*6.2m 7.5 1
Drive method Electric drum drive / 1
Transfer conveyor Specification B650*2m 3 1
Drive method Electric drum drive / 1
Return conveyor Specification B650*8.7m 5.5 1
Drive method Electric drum drive / 1
magnetic separator Specification RCYQ-10 2.2 1
Drive method Reducer / 1
Single power system Walking engine Yuchai diesel engine 145 1
Electrical System Electric control cabinet Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1
Matching Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size20.2*5.6*4.6 Transport size20.2*3.7*4.3
Weight(t) Single-power model62t
Power (kw) Single-power model 365kw (not including walking engine power)
