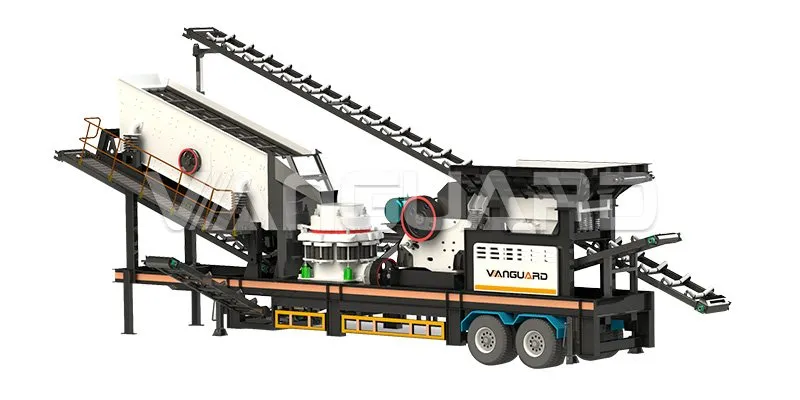

Series Combined Mobile Crushing Plant
Feed size
≤400mm
Capacity
50-120(T/H)
Power
VPM-4Series Combined Mobile Crushing Plant

Product introduction:

The mobile crushing plant greatly breaks the limited way of coarse and fine crushing operations. Its design philosophy is to stand in the customer's position to eliminate the obstacles in crushing process such as the unfixed crushing ground poor production environment and complex basic configuration. Combination of crushing and sieving can be flexibly configured to meet different needs of customers.

Technical Features

Iron-removal Protection System

Overload and iron-removal protection system can protect machine from damage.

Hydraulic Lifting and Descending Design

Hydraulic lifing and desending design can reduce workload.

Folded Bunker

Folded bunker reduces the height of crushing staion and increases passing rate of construction materials.

Preliminary Screening Design

Preliminary screening design removes muck and impurities from material effectively.

Product Gallery

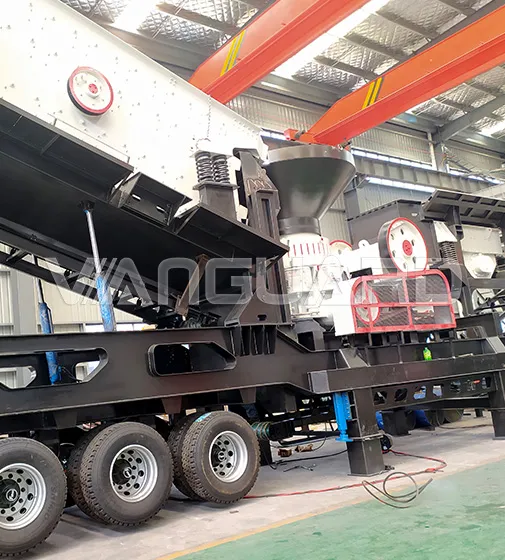

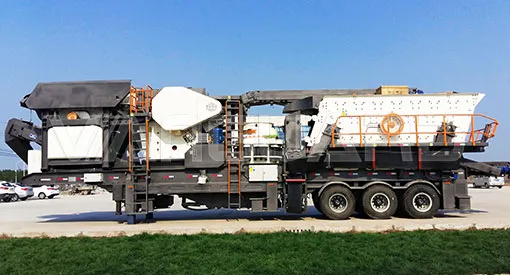

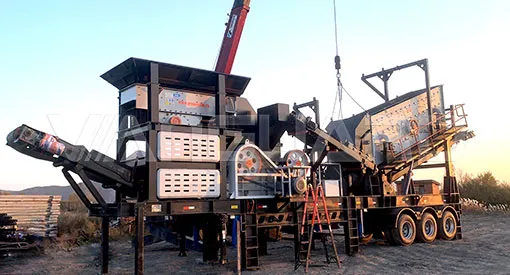

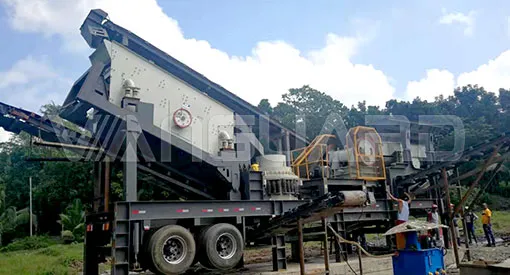

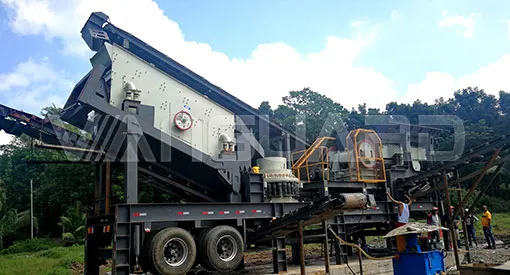

Mobile Crusher
Mobile Crusher
Mobile Crusher
Mobile Crusher
Mobile Crusher
Performance parameter
Model Vibrating Feeder Primary Crusher Secondary Crusher Vibrating Screen Max Feed Size(mm) Number of Axles Main Conveyor Capacity(t/h) Transportation Dimension (mm)
VPM4 PY600 ZSW3090 PE400×600 PY600 YA1237 ≤340 2 B650 16-65 15500x2800x4200
VPM4 PY900 ZSW3090 PE400×600 PY900 YA1548 ≤340 3 B650 16-65 16500x2850x4200
VPM4 CSV110 ZSW3090 PE500×750 CSV110 YA1848 ≤425 3 B800 50-100 16500x2950x4200
VPM4 PY900 ZSW3090 PE500×750 PY900 YA1848 ≤425 3 B650 50-100 16500x2950x4200
VPM4 PF1010 ZSW3090 PE400×600 PF1010 YA1548 ≤340 3 B650 16-65 15500x2800x4200
VPM4 PF1210 ZSW3090 PE500×750 PF1210 YA1848 ≤425 3 B800 50-100 16500x2850x4200
VPM4 PF1214 ZSW3896 PE600×900 PF1214 YA1848 ≤500 3 B1200 60-160 16500x2950x4200
