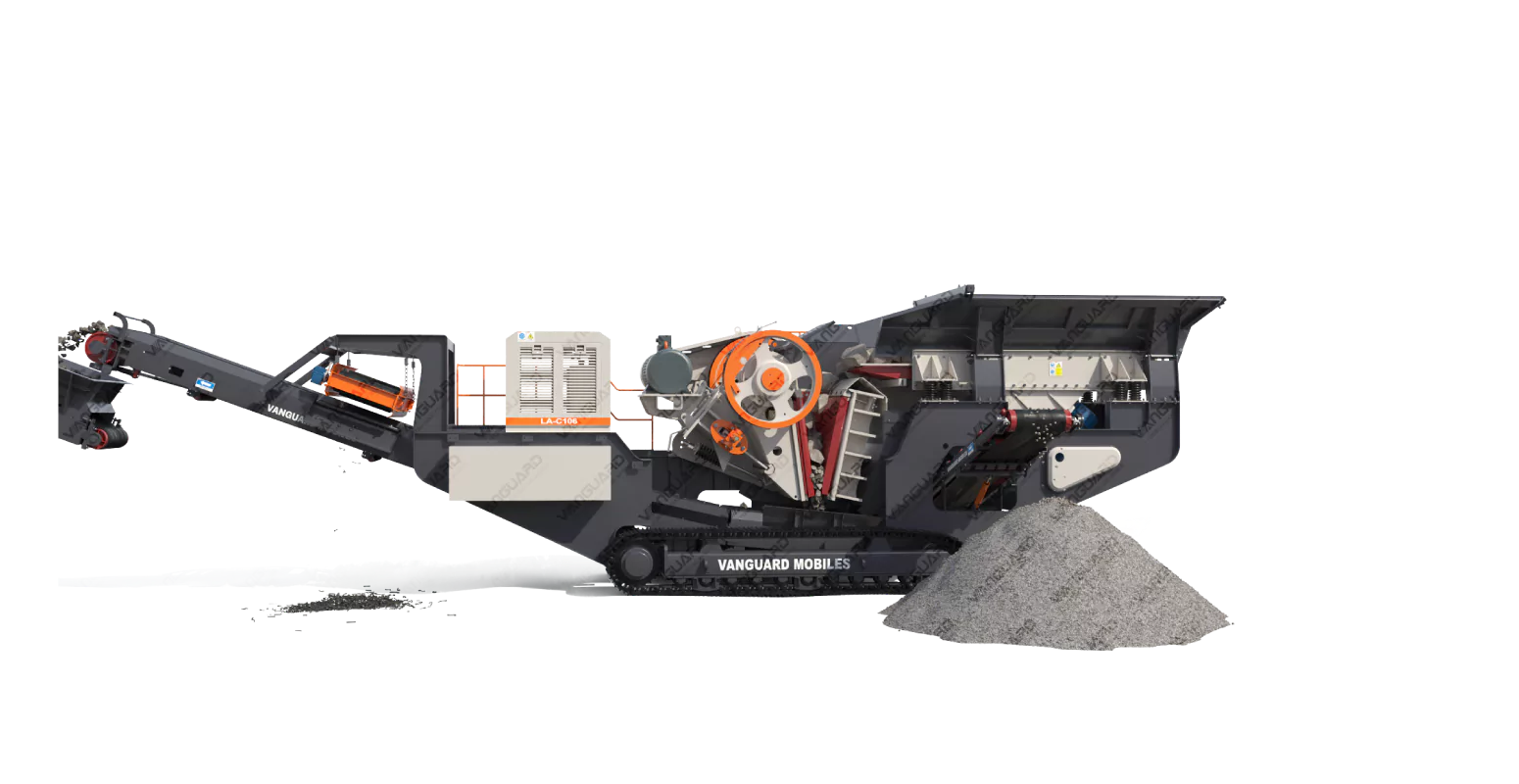

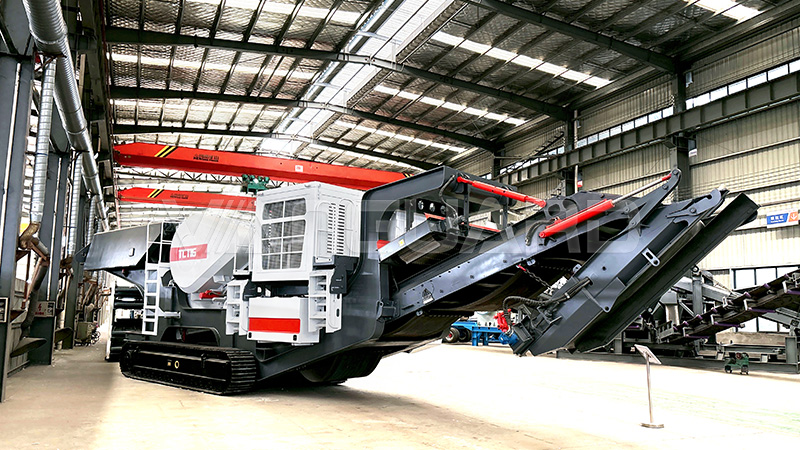

CrawlerType Mobile Jaw Crushing Plant

Product introduction：

It adopts crawler-type vehicle chassis, fully hydraulic drive, equipped with large reduction ratio jaw crusher, feeder, belt conveyor, and other auxiliary equipment, forming an integrated group operation mode, a one-stop solution to the problem of materials coarse crushing. Vanguard Machinery crawler-type mobile crushing plant has high reliability and adaptability, whether narrow terrain and harsh environments, and are widely used in road and bridge construction, urban construction, metallurgy, energy, and other fields.

Application field：
Get a free quote
info@vanguardtec.com
Crawler Series
Technical Features

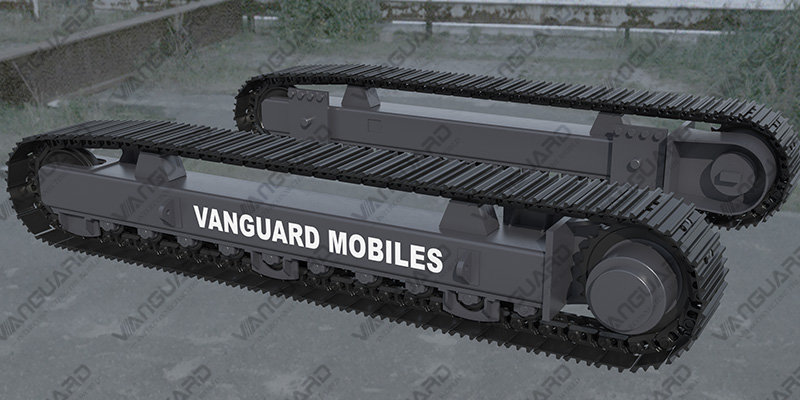

The intellectualization, modularization and integration of Crawler type mobile crushing plant ensure that it has a strong passability in the construction site.After special optimization treatment, now it has more excellent rock crushing,aggregate production, open-pit mining crushing performance.

According to different requirements, different models can be combined with each other to form a strong crushing line.

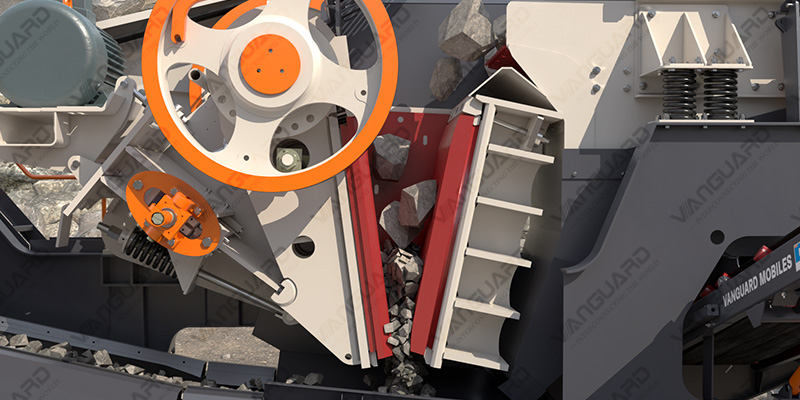

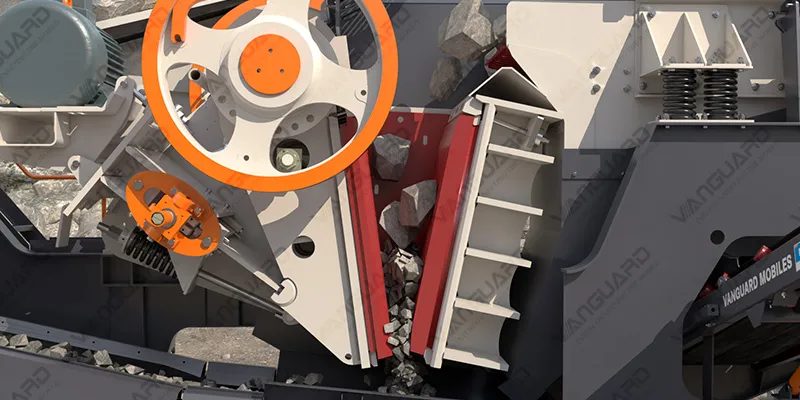

The crusher possesses V structure chamber, optimum configuration crushing chamber and trajectory parameters of moving jaw. The super- large crushing stroke maximizes the feeding size, capacity and crushing ratio.

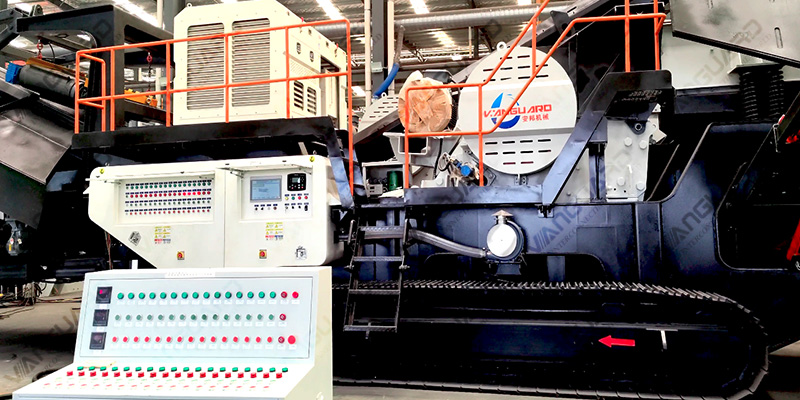

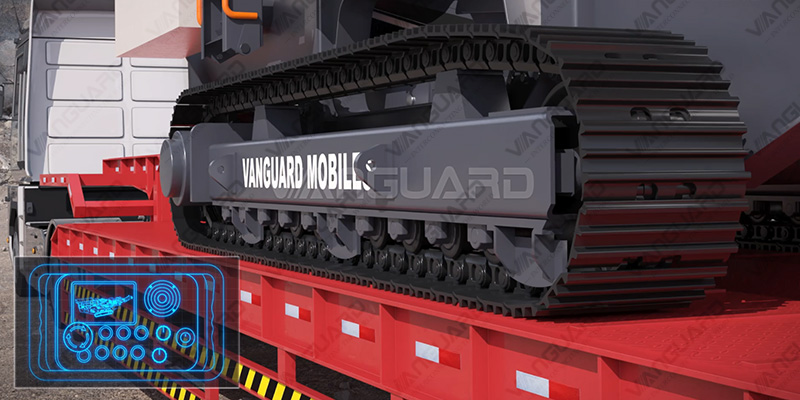

Which can remote control operation, it has a smaller turning radius, flexible driving in the work area, while it is maneuverable and flexibly maintaining a safe working distance.

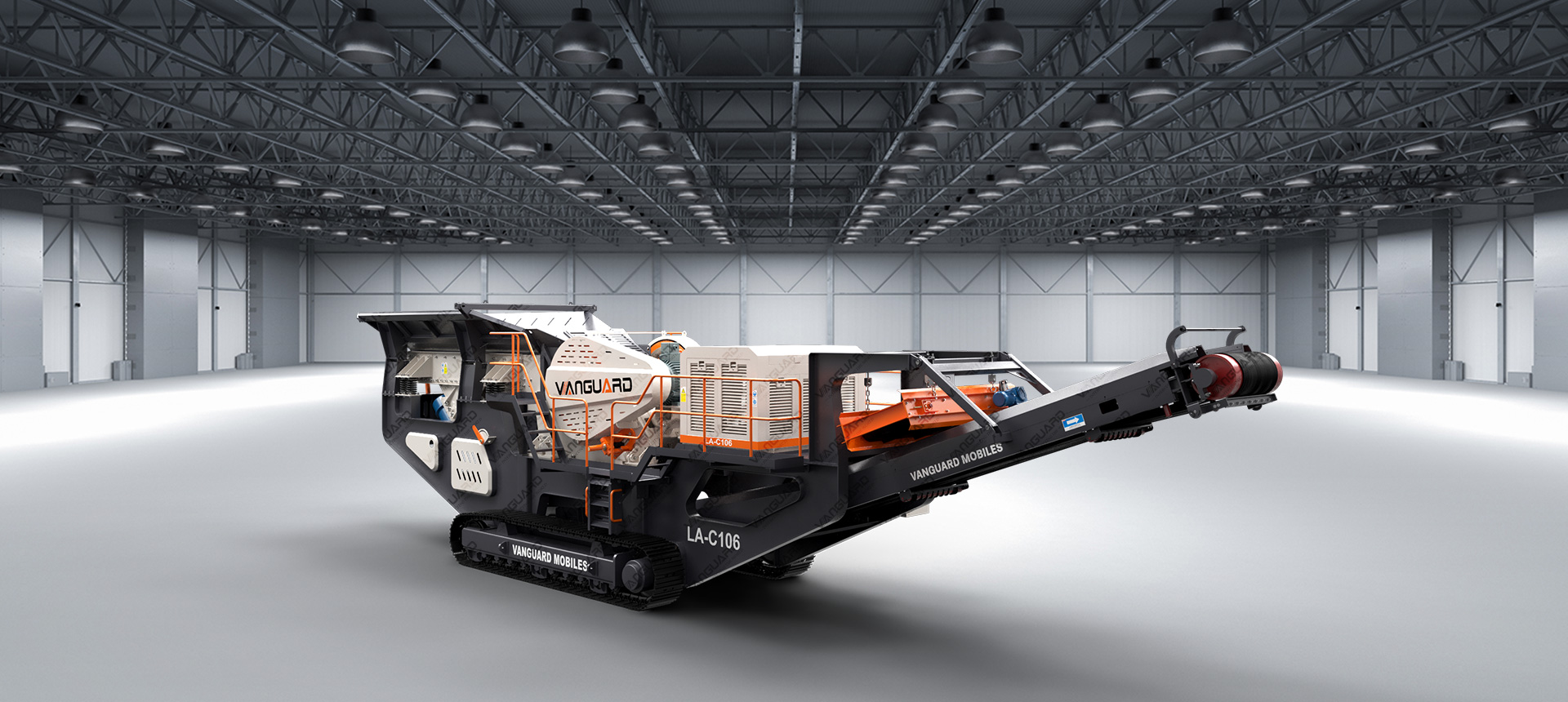

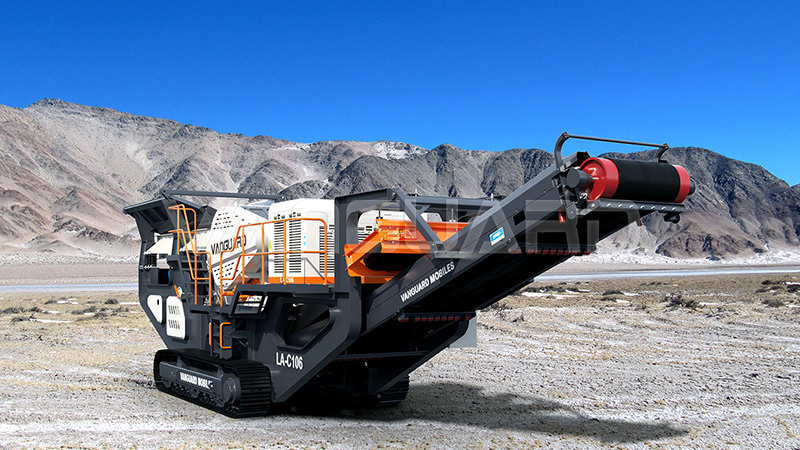

Product Gallery

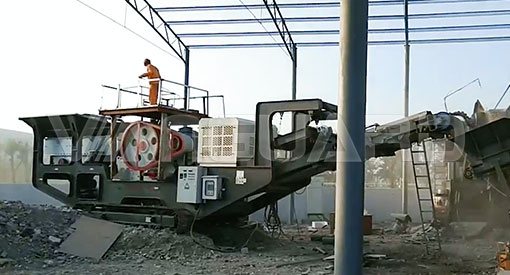

履带颚破1
Performance parameter
Crawler type mobile jaw crushing plant C96 crawler type mobile jaw crushing plant C106 crawler type mobile jaw crushing plant C116 crawler type mobile jaw crushing plant
Model Items and specifications power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set)
Feeding equipment Model GZDT3895 / 1 GZDT1145 / 1 GZDT1145 / 1
Vibration motor Standard 5.5 2 Standard 7.5 2 Standard 7.5 2
Crushing equipment Equipment C96 / 1 C106 / 1 C116 / 1
Triangle belt SPC-5600 / 8 SPC-5560 / 11 SPC-6300 / 8
Motor 6 75 1 Y315L1-6 110 1 Y315L1-6 132 1
Frame Hydraulic crawler chassis Standard / 1 Standard / 1 Standard / 1
Boat frame plate thickness=12-20mm / 1 plate thickness=12-20mm
 / 1 plate thickness=12-20mm
 / 1
Main conveyor Specification B800*12m 7.5 1 B1000*12m 11 1 B1200*12m 15 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Side out conveyor Specification B650*4m 3 1 B650*4m 3 1 B650*4m 3 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Magnetic separator Specification RCYQ-8 1.5 1 RCYQ-10 2.2 1 RCYQ-12 3 1
Drive method Reducer / 1 Reducer / 1 Reducer / 1
Single power system Walking engine Yuchai diesel engine 80 1 Yuchai diesel engine 80 1 Yuchai diesel engine 80 1
Dual power system Generator set Yuchai diesel engine 160 1 Yuchai diesel engine 200 1 Yuchai diesel engine 250 1
Electrical System Electric control cabinet Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1 Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1 Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1
Matching Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size14*5*3.8 Transport size14*3.2*3.5 Working size16.5*5.6*4.1 Transport size16.5*3.3*3.8 Working size16.7*5.6*4.2 Transport size16.7*3.3*3.9
Weight (t) Single-power model:≈38t,Dual-power models:≈40t Single-power model:≈45t,Dual-power models:≈47t Single-power model:≈65t,Dual-power models:≈67t
Power (kw) Single-power model: 98kw(not including walking engine power),Dual-power models: 98kw(not including generator set power) Single-power model: 141.2kw(not including walking engine power),Dual-power models: 141.2kw(not including generator set power) Single-power model: 170.2kw(not including walking engine power),Dual-power models: 170.2kw(not including generator set power)
