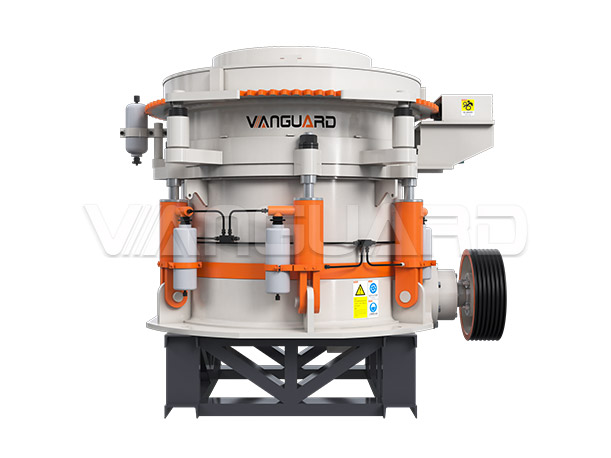

• aggregate hydraulic cone crusher

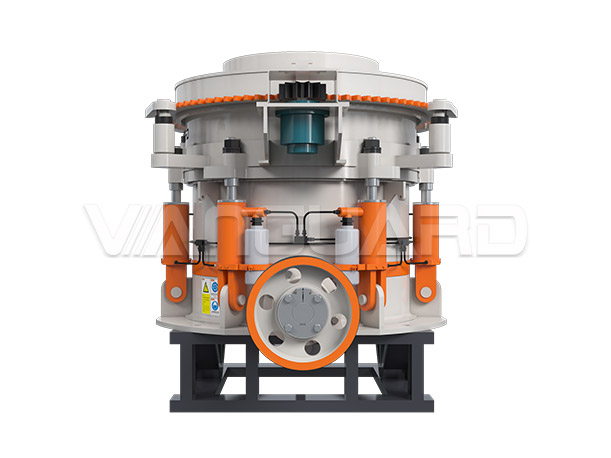

  • cone crusher

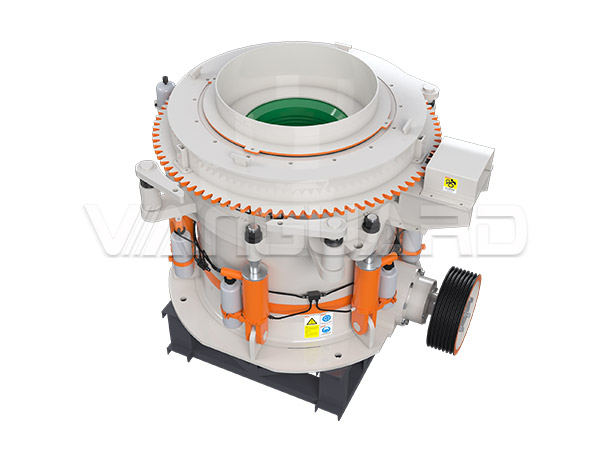

  • Cone Crusher Manufacturer
Series Multi-Cylinder Hydraulic Cone Crusher
Feed size
0-350mm
Capacity
55-550 t/h
Power
75-315kw
CPSeries Multi-Cylinder Hydraulic Cone Crusher

Product introduction:CP series multi-cylinder hydraulic cone crusher is mainly used for secondary crushing and tertiary crushing linked in metal ore and construction sand and stone processing. With strong crushing ability and large capacity, it is commonly used for crushing medium and hard materials.

Application field:

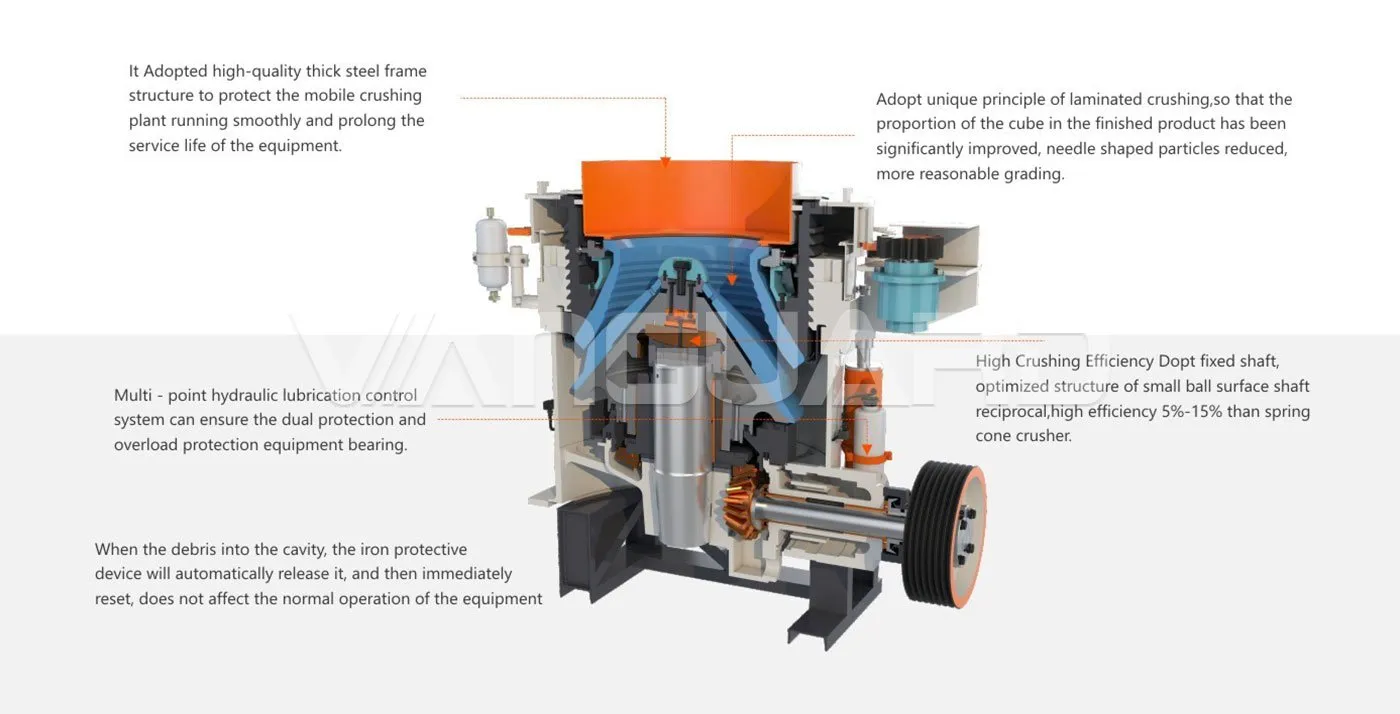

Technical Features
Multi-Cylinder Hydraulic Cone Crusher

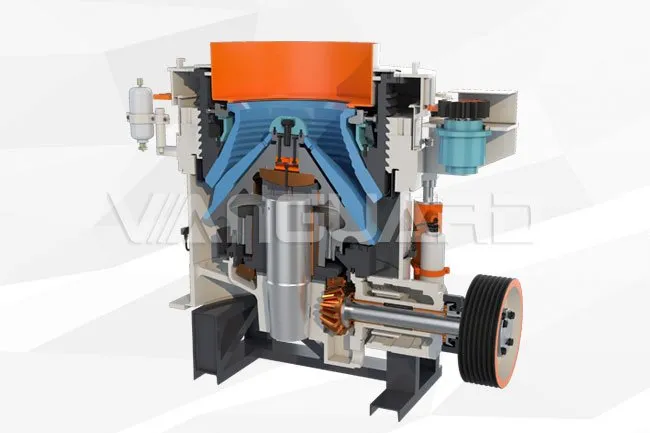

Cone Crusher

● Large Capacity 30-40% large than similar equipement.
● Good product grain shape uniform particle size.
● Heat-treated steel structure frame firm and durable. Equipped with hydraulic motor that can drive mantle and concave.
● automatic and accurate discharge port adjustment which isautomatically fixed by the locking hydraulic cylinder after adjustment.

Product Gallery

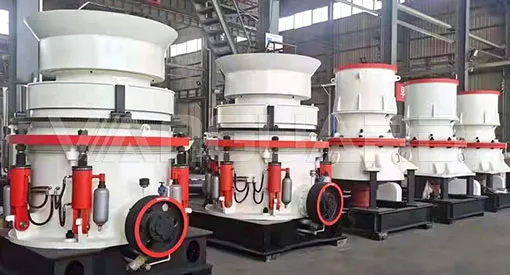

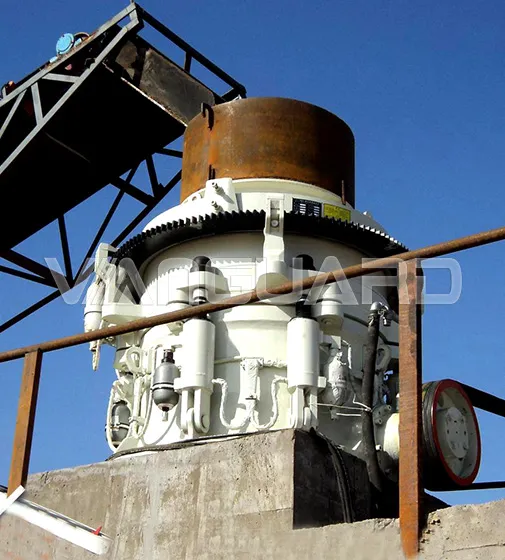

Multi-Cylinder Hydraulic Cone Crusher

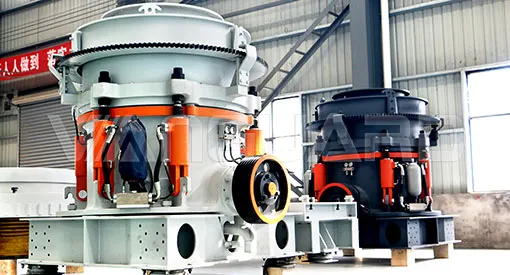

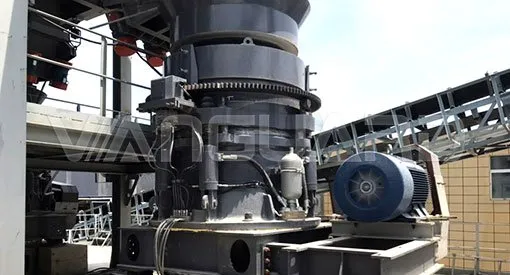

Multi-Cylinder Hydraulic Cone Crusher

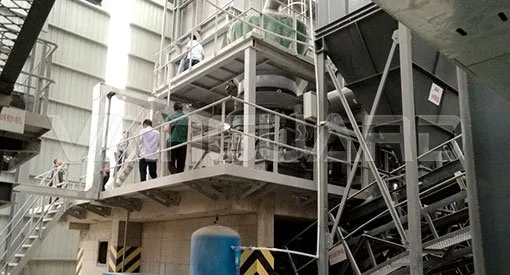

Multi-Cylinder Hydraulic Cone Crusher
Multi-Cylinder Hydraulic Cone Crusher
Multi-Cylinder Hydraulic Cone Crusher
Performance parameter
Model Cavity Open side feeding size(mm) Closed side feeding size(mm) Discharge Port Size(mm) Potencia del motor(kW) Production capacity under tight side discharge (CSS) (t/h)

6

mm

8

mm

10

mm

13

mm

16

mm

19mm

22

mm

25

mm

32

mm

38

mm

45

mm

51mm
CP200 C2 Coarse 235 190 19 160 60-75 70-90 85-115 115-145 135-175 145-185 155-195 165-215 185-230 205-245

M Middle 171 120
16
F1 Fine 150 95 13
F2 Extra fine
116 70 8
CP300 C1 Extra Coarse 265 230 25 220 75-95 100-130 110-140 145-180 170-215 190-230 220-260 225-275 245-320 300-375 345-430
C2 Coarse 240 210 20
M Middle 190 150 15
F1 Fine 145 105 11
F2 Extra fine 120 80 8
CP400 C1 Extra Coarse
360 290 30 315

105-140 135-170 180-225 215-275 250-320 275-345 285-365 315-425 350-480 400-540 455-615
C2 Coarse
310 250 25
M Middle
260 196 20
F1 Fine 182 110 13
F2 Extra fine 135 90 10
CP500 C1 Extra Coarse
370 330 38 400

135-170 170-220 225-290 270-345 310-400 340-425 360-450 400-530 425-585 500-670 560-770

C2

Coarse

320 290 28

M

Middle

245 210 22

F1

Fine

180 130 13

F2

Extra fine

150 95 10
CP800 C1 Extra Coarse
450 352 38 630


240-335 315-420 375-500 420-540 465-590 490-725 545-790 585-920 670-990 765-110 0
C2 Coarse
373 298 32
M Middle 340 275 25
F1 Fine 280 230 16
F2 Extra fine
235 150 10

The above capacity is based on 1.6T/m³ material density under open circular crushing plant.The capacity is related to physical properties of the crushing material, feeding size and its composition, and the actual capacity may be different due to different conditions.
