Dry Ball Mill
Dry Ball Mill

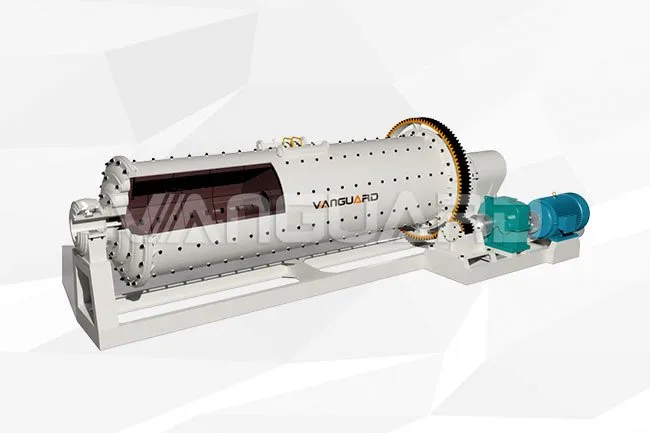

Product introduction:The dry ball mill is a cylindrical tube mill, adopting multiple-cabin, characterized by high grinding efficiency, large capacity of a single machine, low power consumption, and low dust pollution. It is commonly used as closed-circular milling and open flow milling, widely applied in for dry grinding production of various non-metallic materials such as cement and fly ash.

Technical Features

Strong adaptability to the material continuous production and easy to adjust the fineness of grinding product;

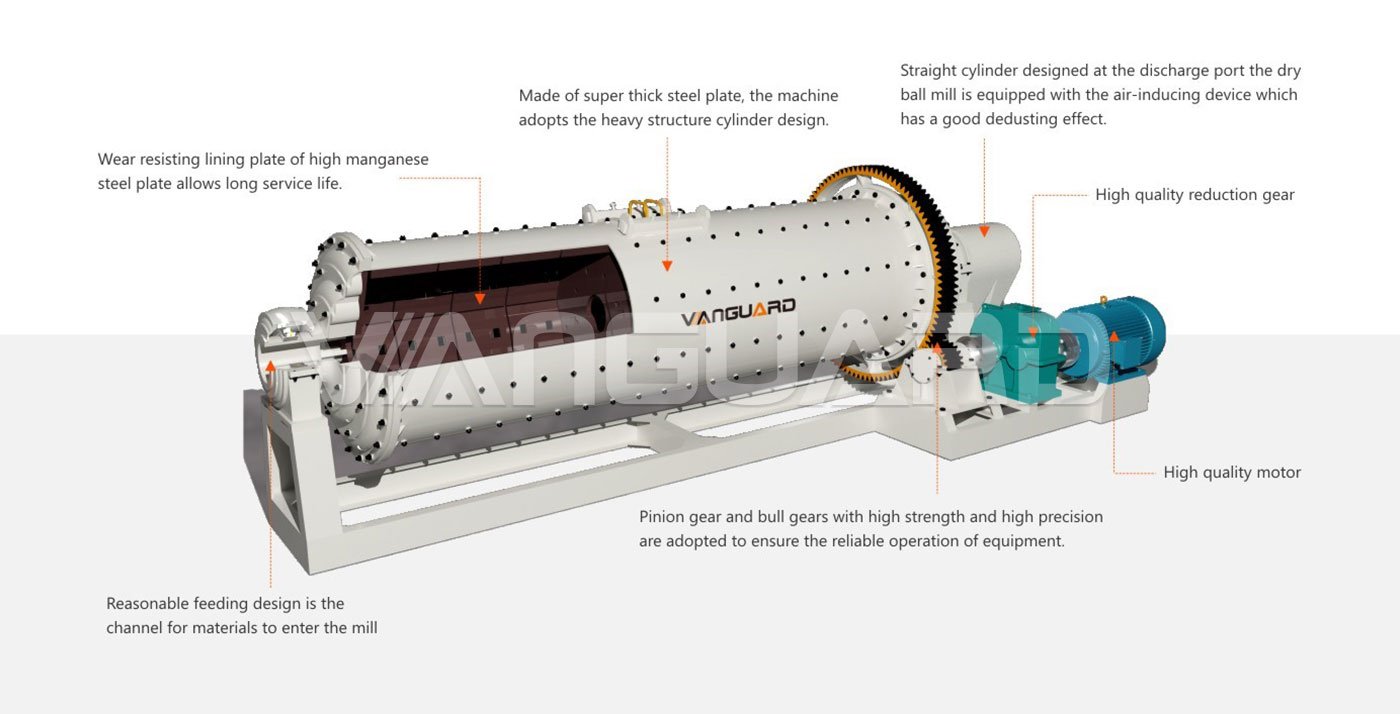

Straight cylinder designed at the discharge port the dry ball mill is equipped with the air-inducing device which has a good dedusting effect;

It can be used for open-flow grinding or circulating grinding consisting of a powder separator;

Overflow dry ball mill and grid dry ball mill can be selected according to the ore property and discharge way;

The output material of dry ball mill after the dry grinding is the qualified material;

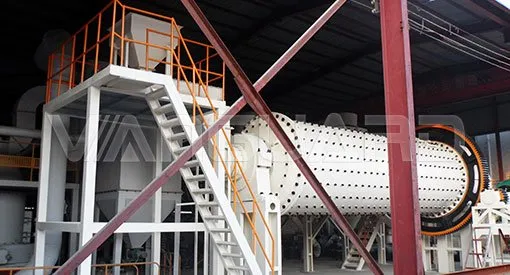

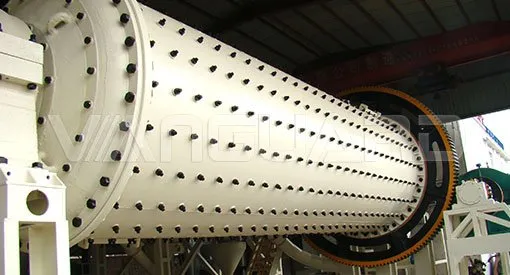

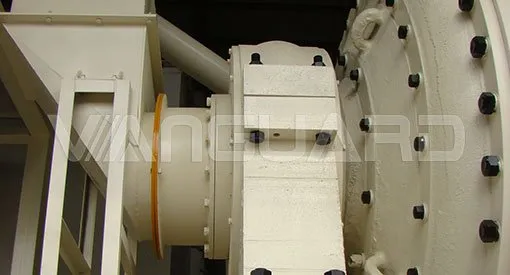

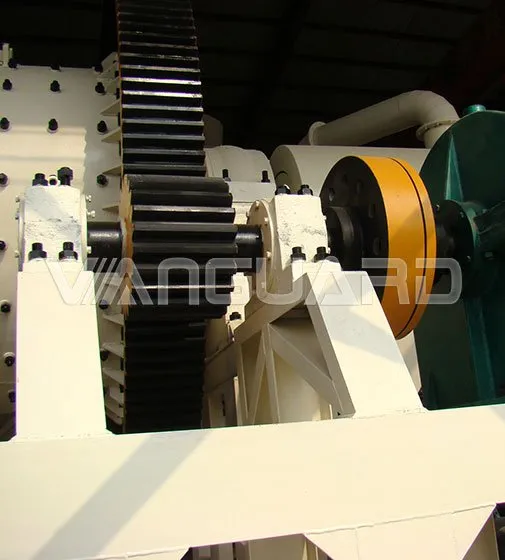

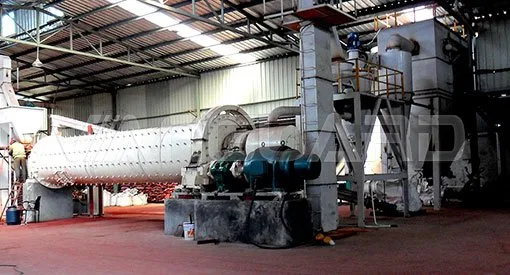

Product Gallery

Performance parameter
Model Effective Volume(m³) Ball Load (t) Feeding Size(mm) Capacity(t/h) Main Reducer Power(kw) Weight(t)
Φ1200×4500 4.7 6.5 ≤25 1.4-2 ZD30 45 13.1
Φ1500×5700 9.4 13 ≤25 3.5-4.5 ZD40 130 24
Φ1830×6400 15.7 21.6 ≤25 5.5-6.5 ZD60 210 38
Φ1830×7000 17.1 23.5 ≤25 6—7 ZD60 210 43
Φ2200×6500 23 31.5 ≤25 8—10 ZD70 380 50.2
Φ2200×7500 26.5 36 ≤25 10—11 ZD70 380 53.2
Φ2200×8000 28.3 39 ≤25 10—12 ZD70 380 55
Φ2200×9500 33.6 46 ≤25 14—16 ZD80 475 65
Φ2400×10000 42.1 58 ≤25 18—20 ZD80 680 94.5
Φ2400×11000 46.3 64 ≤25 19—21 ZD80 680 99.2
Φ2400×13000 54.7 75.5 ≤25 21—23 MBY710 800 115.2
Φ2600×13000 88.6 122 ≤25 28—32 MBY800 1000 148
Φ3000×12000 78.9 109 ≤25 32—35 MBY900 1250 168.6
Φ3000×13000 85.5 118 ≤25 34—37 MBY900 1400 172.3
Φ3200×13000 134.2 185 ≤25 45—50 MBY1000 1600 218
Φ3800×13000 137.1 189 ≤25 60—62 MFYX250 2500 286
Φ4200×13000 167.5 231 ≤25 85—87 MFX355 3550 320
