Rotary Drum Dryers
Rotary Drum Dryers

Product introduction:Rotary drum dryers have many names in the industry. They are often called drum drying equipment or drum dryers. Cylindrical drying equipment is commonly and widely used drying equipment in mining equipment which mainly suitable for drying metals and non-metals material.

Technical Features
  • High Drying Strength
  • Easy Installation And Maintenance
  • Smooth And Reliable Operation
  • Wear-resisting Improved
  • Less Wear And High-efficiency
  • ● The drying strength is high and the materials are highly dispersed in the gas stream, so the entire surface of the particles is dried effectively.

  • ● The air dryer has a simple structure easy to install and maintain.

  • ● For a large amount of processing with high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%.

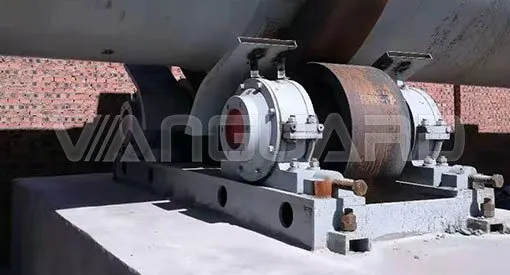

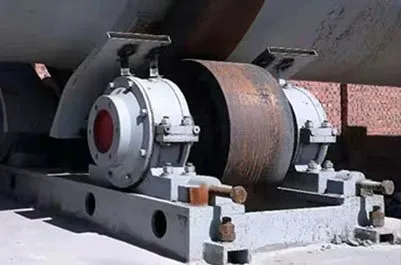

  • ● The dryer adopts an aligning roller device so that the support of the roller and the roller will always be in linear contact, reducing wear and power loss greatly.

  • ● WZ roller bearing has a military quality with first-class performance, easy maintenance, and high efficiency.

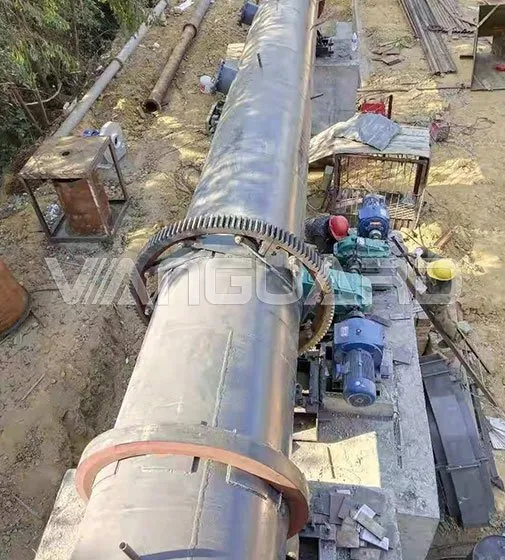

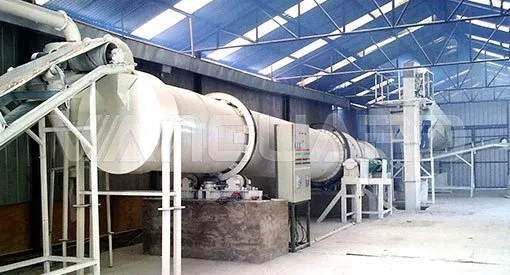

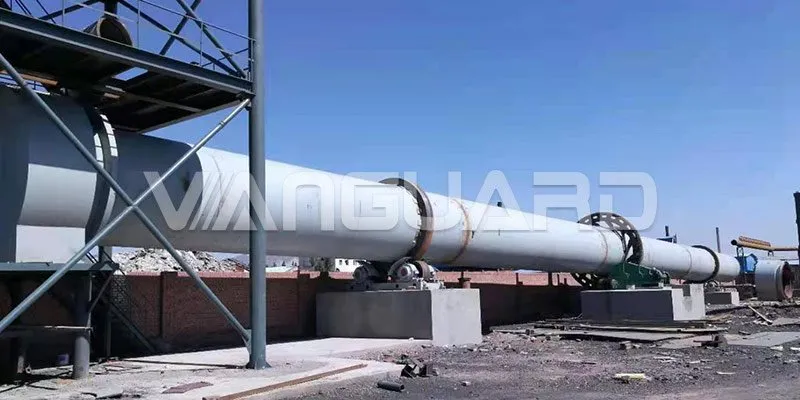

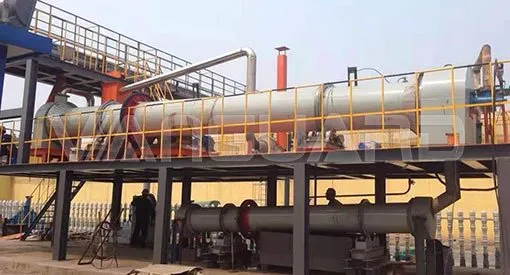

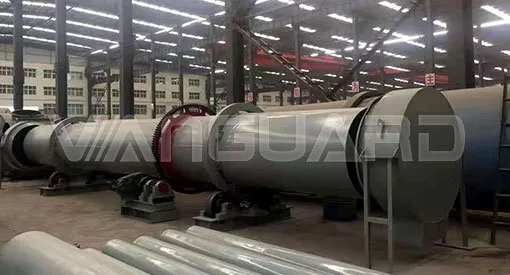

Product Gallery

Performance parameter
Model Cylinder Volume(m³) Capacity(t/h) Installation Slope (%) Maximum Intake Air Temperature(℃) Main Motor(kw) Total Weight(t)
Φ0.6×8.0 2.2 0.4~0.6 3~5 700~850 3 3.2
Φ0.8×10 5 1.0~1.3 3~5 700~850 4 4.4
Φ1.0×10 7.8 1.5~2.0 3~5 700~850 5.5 5.3
Φ1.2×10 11.3 2.4~3.0 3~5 700~850 7.5 8.1
Φ1.2×12 13.5 2.7~3.4 3~5 700~850 11 9.1
Φ1.5×12 21.2 4.5~5.7 3~5 700~850 15 14.6
Φ1.5×15 26.5 5.7~7.1 3~5 700~850 15 16.5
Φ1.8×12 30.5 6.5~8.1 3~5 700~850 18.5 21.90
Φ1.8×18 45.8 9.0~11 3~5 700~850 18.5 26.6
Φ2.0×20 62.8 12~16 3~5 700~850 22 36.50
Φ2.2×22 83.6 17~21 3~5 700~850 30 43.90
Φ2.4×22 99.5 21~27 3~5 700~850 45 53.10
Φ2.5×25 122.7 24~30 3~5 700~850 45 62.00
Φ2.6×24 127.4 27~34 3~5 700~850 45 63.00
Φ2.8×28 172.4 34~43 3~5 700~850 45 85.00
Φ3.0×25 176.6 36~47 3~5 700~850 75 89.00
Φ3.2×25 201 40~54 3~5 700~850 90 95.00
Φ3.4×28 254 51~64 3~5 700~850 110 122.00
Φ3.6×28 285 57~76 3~5 700~850 160 129.00
