CrawlerType Mobile Screening Plant

  • 80-500T/H
    Capacity
  • ≤200mm
    Feed size
  • Power

VideoVideo

ParameterParameter

CaseCase

RecommendedRecommended

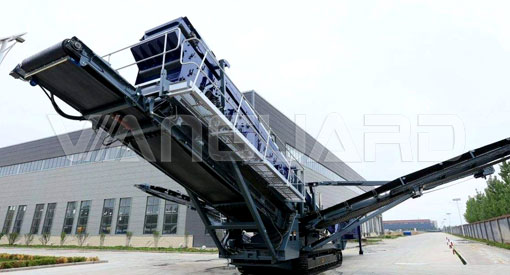

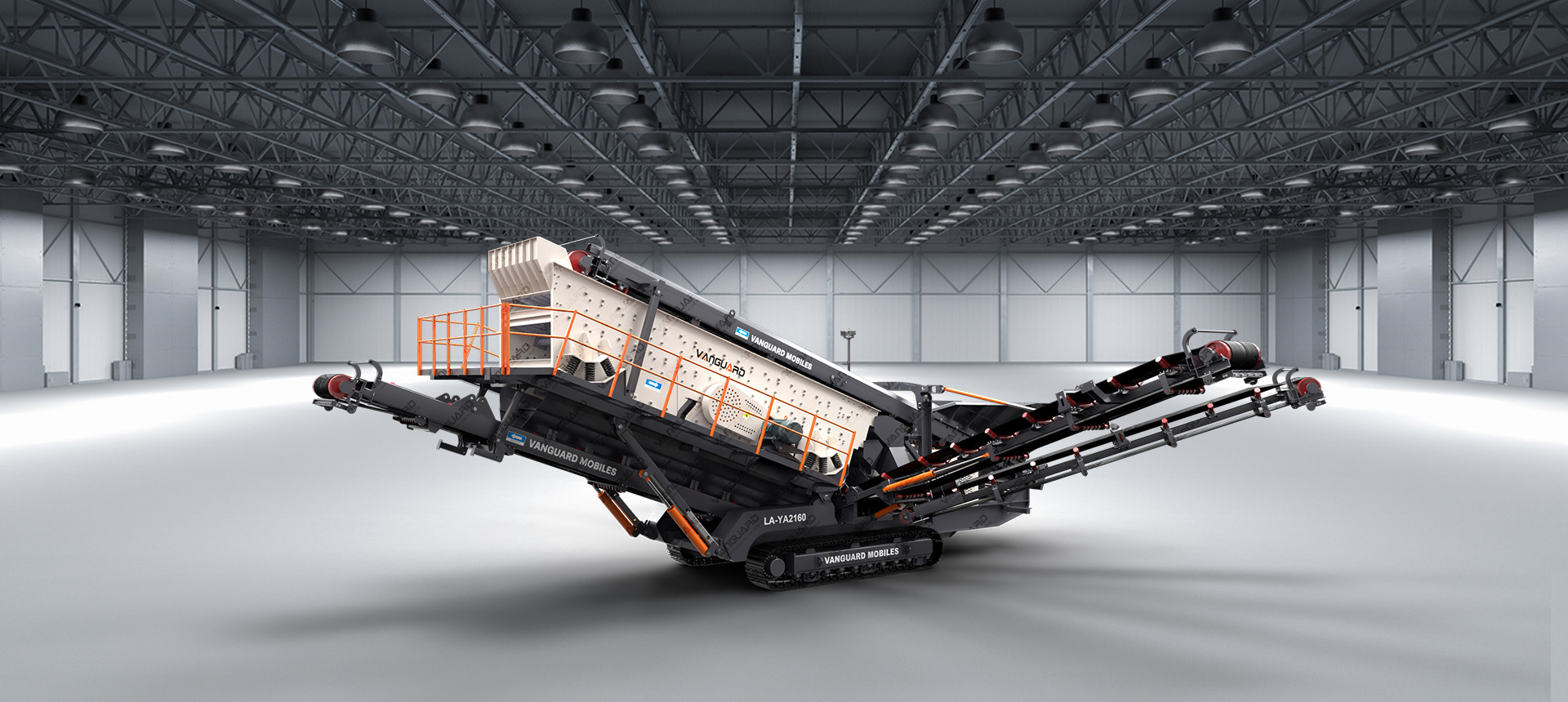

CrawlerType Mobile Screening Plant
Vanguard Machinery crawler mobile screening equipment adopts the most advanced design concept in the world and is meticulously built with scientific production technology.It has high efficiency and large output and is suitable for various screening operations such as heavy, medium and fine screening.
Technical Features
Crawler mobile crushing station is a series of rock and construction waste crushing equipment, which greatly expands the concept of coarse and fine crushing. Its design concept is to stand on the customer's standpoint and eliminate the obstacles to the crushing operation brought to the customer by the crushing site, environment, complicated basic configuration and complicated logistics as the primary solution.

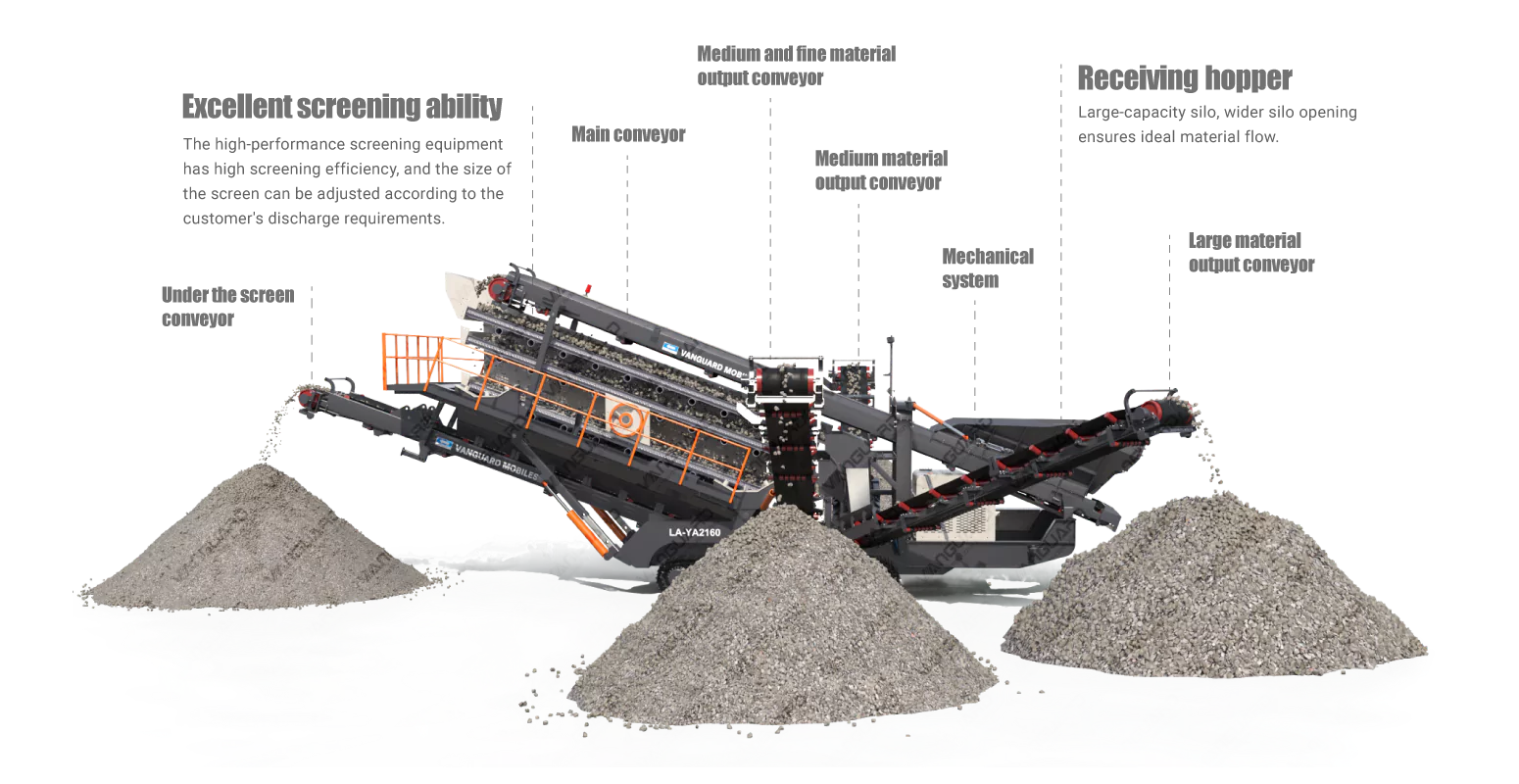

Medium material output conveyor
Medium and fine material output conveyor
Mechanical system

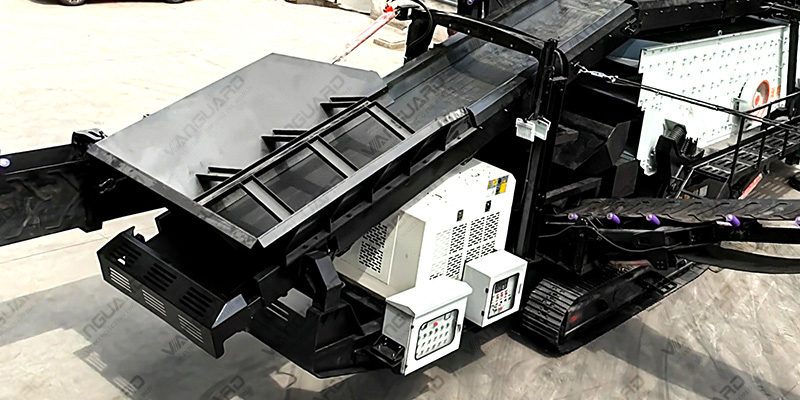

Receiving hopper
Large-capacity silo, wider silo opening ensures ideal material flow.
Large material output conveyor
Main conveyor

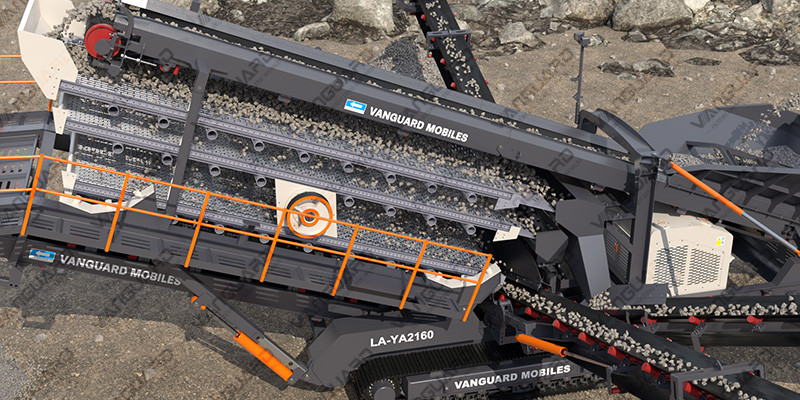

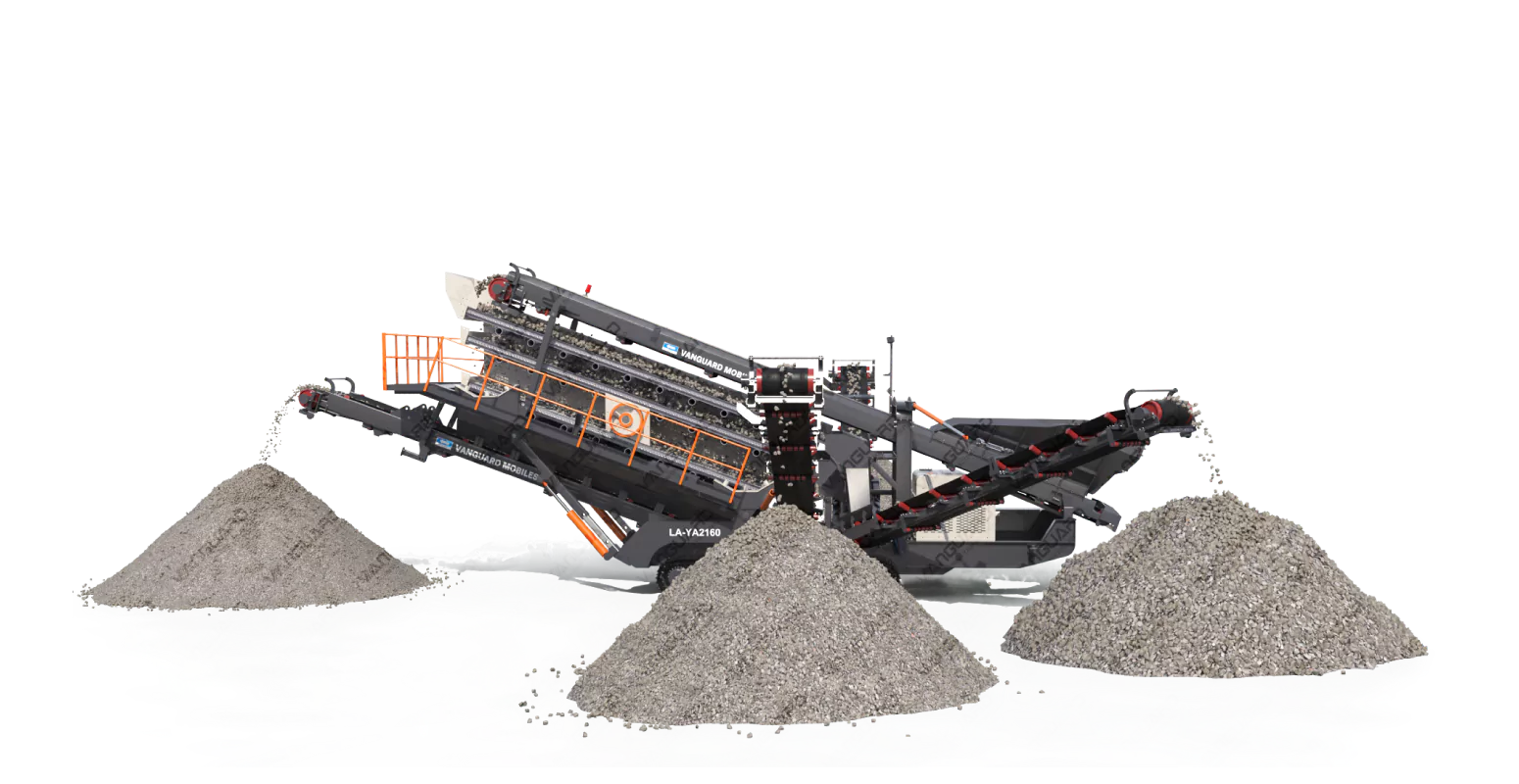

Excellent screening ability
The high-performance screening equipment has high screening efficiency, and the size of the screen can be adjusted according to the customer's discharge requirements.
Under the screen conveyor

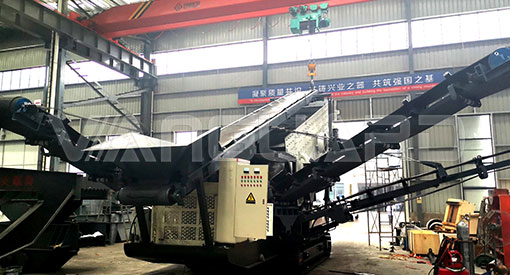

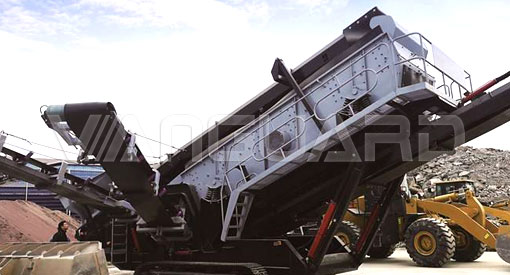

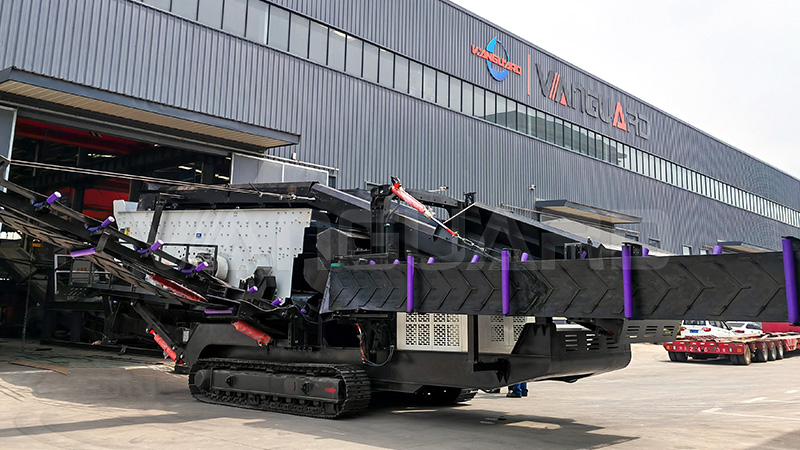

Product Exhibition
Mobile Cone Crusher
Mobile Cone Crusher

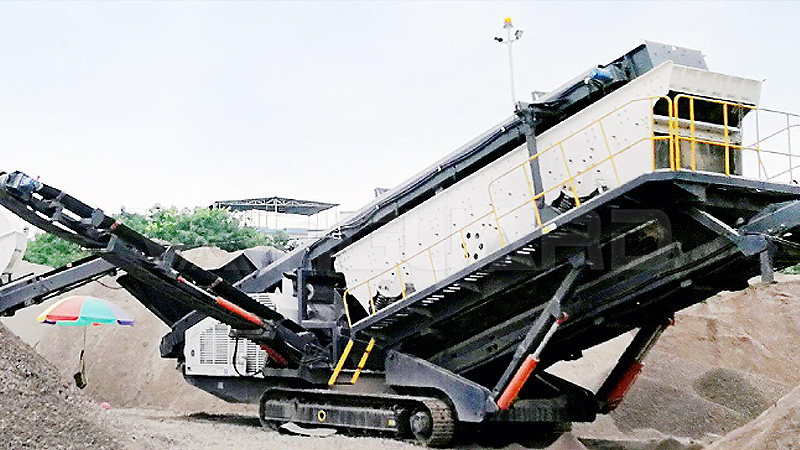

450 T/H crawler-type mobile screening plant production line in Singapore

Capacity: 450 t/h

Max. Input size: ≤600mm

Output size: 0-50 mm,50-102 mm,102 mm

Processing materials: construction waste

Project advantages: The mobile plant production line is used to crush construction waste, turning waste into treasure, in line with the concept of green building materials, one machine can be used for multiple purposes to screen various specifications of fine aggregates, the entire line installation and commissioning production only takes about 3 days, reducing the failure rate of the production line in the later stage.

Performance parameter
Crawler-type mobile screening and crushing plant 2YA1860 crawler-type mobile screening and crushing plant 2YA2160 crawler-type mobile screening and crushing plant 3YA1860 crawler-type mobile screening and crushing plant 3YA2160 crawler-type mobile screening and crushing plant
Model Items and specifications power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set) Items and specifications
Power (kw)
Quantity(set)
Items and specifications Power (kw) Quantity(set)
Vibrating Screen Equipment 2YA1860 / 1 2YA2160
/ 1 3YA1860
/
1
3YA2160 / 1
Motor 4 22
1 4 30

4
22
1
Y200L-4 30

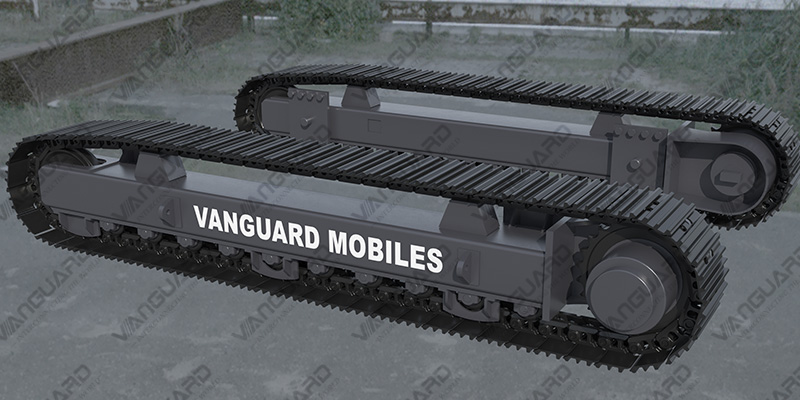

Frame Hydraulic crawler chassis Standard / 1
Standard /
Standard
/

Standard /
Boat frame plate thickness=12-20mm / 1 plate thickness=12-20mm / 1 plate thickness=12-20mm /
1
plate thickness=12-20mm /
1
Main conveyor Specification B800*11.5m 75
1
B1200*11.5m 11 1 B800*11.5m
7.5

B1200*11.5m 11 1
Drive method Electric drum drive /
1
Electric drum drive / 1 Electric drum drive
/

Electric drum drive / 1
Large material conveyor Specification B650*7m 5.5
1 B650*7m 5.5
1 B650*7m
5.5
1
B650*7m 5.5
1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive
/
1
Electric drum drive / 1
 Medium material conveyor
Specification B650*9.5m 5.5
1 B650*9.5m 5.5 1 B650*9.5m
5.5
1
B650*9.5m 5.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive
/
1
Electric drum drive / 1
Under the screen conveyor Specification B800*8.5m 7.5 1 B1000*8.5m 7.5 1 B800*8.5m
7.5
1
B1000*8.5m 7.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive
/
1
Electric drum drive / 1
 Medium and fine material conveyor
Specification / / / / / / B650*9.5m
5.5
1
B650*9.5m
5.5
1
Drive method / / / / / / Electric drum drive
/
1
Electric drum drive
/
1
Single power system Walking engine Yuchai diesel engine 80
1 Yuchai diesel engine 80
1 Yuchai diesel engine
80
1
Yuchai diesel engine 80 1
Dual power system Generator set Yuchai diesel engine 120 1 Yuchai diesel engine 120 1 Yuchai diesel engine
120
1
Yuchai diesel engine 120 1

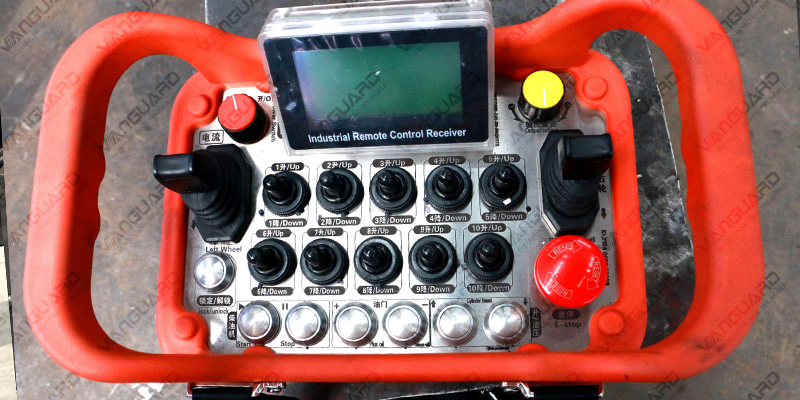

Electrical System Electric control cabinet Host soft-start, CHINT electrical components. / 1 Host soft-start, CHINT electrical components. / 1 Host soft-start, CHINT electrical components.
/
1
Host soft-start, CHINT electrical components. / 1
Matching Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder
1
Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories
1
Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size15.3*17*5.8 Transport size18*4*3.9 Working size15.3*17.2*6 Transport size18*4.1*4.1 Working size:15.3*17*6
Transport size18*4*4.1
Working size15*17.2*6 Transport size18*4.1*4.1
Weight (t) Single-power model30tDual-power models31t Single-power model32tDual-power models33t Single-power mode:30t Dual-power models:31t
Single-power model33t Dual-power models34t
Power (kw) Single-power model: 48kw(not including walking engine power),Dual-power models: 48kw(not including generator set power) Single-power model: 59.5kw(not including walking engine power),Dual-power models: 59.5kw(not including generator set power) Single-power model53.5kw (not including walking engine power) Dual-power models53.5kw (not including generator set power)
Single-power model 65kw (not including walking engine power) Dual-power models65kw (not including generator set power)
