Stone Crushing Equipment

Vanguard Machinery offers various stone crushing equipment at an affordable price for large, medium or small mining companies, especially for artisanal miners, junior miners, and amateur mining enthusiasts. For the production of building aggregates, VANGUARD provides such main crushers as the jaw crusher, impact crusher, cone crusher. So far, we have developed 10 series machines that include over 100 models that can be matched freely to meet various demands on capacity and all types of building aggregates.

Explore Our Products Here

Vanguard Machinery has a full coverage of coarse crushing, intermediate crushing, fine crushing and sand-making, sand-washing, feeding, sieving, conveying equipment.
We make each machine with great care to forge excellent quality.

HGM Three-ring Grinding Mill

YGM High Pressure Grinding Mill

LM Vertical Roller Mill

LUM Ultrafine Vertical Mill

Raw Material

Vanguard Machinery stone crushers can process most ores, such as iron ore, gold ore, limestone, quartz, river pebble, granite, bauxite, molybdenum ore, talc, silica sand stone, gypsum, dolomite, manganese ore, clay, nickel ore, etc.

Learn More >>>

Metal Ore Crushing & Processing

Non-Metallic Ore Crushing & Processing

Stone Crushing Line Crushing & Processing

Construction Waste Crushing and Reuse

Refractories

Barite

Desulphurization in power plant

OUR CASE

From engineering stone, construction sand to engineering fine powder, Vanguard machinery and equipment maintain good performance under severe operating conditions, providing customers with comprehensive and thoughtful solutions, giving full play to the productivity and durability they deserve, and meeting the strict requirements of users for production indexes and product quality.

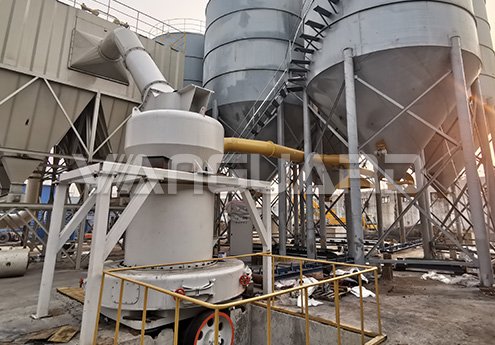

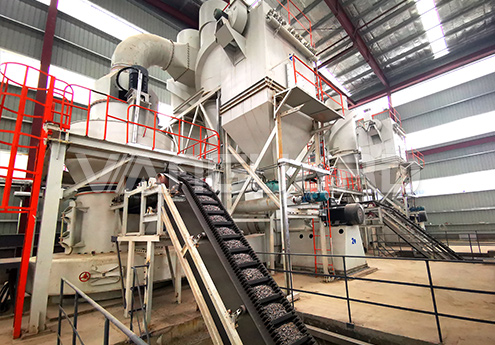

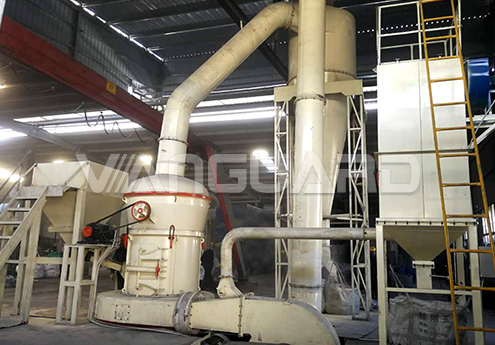

YGM2200-Q4 superfine grinding mill in Guangxi

YGM1400-Q4 High Pressure Grinding Mill in Liaoning

YGM1750-Q4 European Ultrafine Grinding Mill in Pakistan

HGM 100 Three-ring Grinding Mill in Guiyang

YGM2200-Q4 superfine grinding mill in Guangxi

190 ultra fine vertical mill in Ningxia

YGM1100-Q4 High Pressure Grinding Mill

HGM three ring micro powder grinding mill in Bangladesh

Three-ring Grinding Mill
High Pressure Grinding Mill
Vertical Roller Mill
Ultrafine Vertical Mill

Model		HGM68	HGM86	HGM198	HGM318
No.of Roller and Ring	No.of Roller （Pcs）	21	21	28	34
No.of Roller and Ring	No.of Ring （Pcs）	3	3	4	4
The Feeding Size(mm)		≤10	≤10	≤10	≤10
The Final Size	Mesh	325- 2500	325- 3000	200- 2500	200- 2500
The Final Size	Micron	5- 45μm	3.5- 45μm	5- 50μm	5- 50μm
Capacity(Kg/h)		500-2500	500- 4000	800-7000	1700-12000
Installed Capacity（KW）	Main Mill	37	75	132	185-200
	Classifier	15	18.5- 22	30	55-75
	Air Blower	30	45-55	55-75	132
	Screw Conveyor	3	3	3	3-6
	Feeder：	1.5-3	1.5-3	1.5-3	3
Compressde Air Used（m3）		13-23	23	23	23
Overall Dimension (LengthWidthHeight)(M)		9.2×31×5.6	12×3.1×5.9	14×3.8 ×6.2	15.8×5.8×7.3

Main Specification

Model	Ring Diameter×h(mm)	Rollers Diameter×h(mm	SpeedofMainMill(r/min)	Max.Feeding Size(mm)	The Final Size(mesh)	Capacity(t/h)	ExternalDimension(mm)
YGM1100- Q4	φ1100	φ320×170	132	≤25	80- 800	0.5- 6.5	7350×5900×7900
YGM1400- Q4	φ1400	φ430×210	106	≤30	80- 600	2- 13.8	8000×8550×9700
YGM1500- Q4	φ1500	φ460×230	105	≤30	80- 600	2.9- 17.5	9700×8500×10200
YGM1750- Q4	φ1750	φ520×270	92	≤30	80- 425	5- 25	9230×10116×10510
YGM2000- Q4	φ2000	φ600×300	78	≤35	80- 425	6.5- 32	9368×11500×11000
YGM2200- Q4	φ2200	φ630×320	72	≤35	80- 425	8.4- 40	10465×11372×11500

PowerSpecification

Model	Main frame Power(KW)	Power of Air Blower(KW)	Power of Classifier(KW)	Model of Pulse Dust Collector	DustCatcher(kw)Blower+AirCompressor	Power of Frequencyfeader(kw)
YGM1100- Q4	37	30- 37	5.5- 11	DMC36	3+4	0.15
YGM1400- Q4	75- 90	75- 90	18.5- 22	DMC36	3+4	3
YGM1500- Q4	90- 110	110- 132	22- 30	DMC48	3+4	4
YGM1750- Q4	132- 160	160- 200	30- 37	DMC64	5.5+5.5	5.5
YGM2000- Q4	185- 200	200- 220	37- 45	DMC96	7.5+7.5	5.5
YGM2200- Q4	220- 250	220- 250	45- 55	DMC96	7.5+7.5	5.5

Basic technical parameters of LM vertical roller mill (non-metallic mining industry)

Model		LM1300K	LM1500K	LM1700K	LM1900K	LM2200K	LM2400K	LM2800K	LM3400K	LM3700K
Capacity (t/h)		10-40	13-50	18-70	23-85	36-135	41-164	50-196	70-260	90-320
The size of product	μm	170-33	170-33	170-33	170-33	170-33	170-33	170-33	170-33	170-33
The size of product	mesh	80-425	80-425	80-425	80-425	80-425	80-425	80-425	80-425	80-425
The best moisture content for input raw material		≤1%	≤1%	≤1%	≤1%	≤1%	≤1%	≤1%	≤1%	≤1%
The size of input raw material（mm）		＜38	＜40	＜42	＜45	＜50	＜55	＜58	＜62	＜65
The best moisture content for input raw material		＜4%	＜4%	＜4%	＜4%	＜4%	＜4%	＜4%	＜4%	＜4%
Input moisture (drying required)		＜15%	＜15%	＜15%	＜15%	＜15%	＜15%	＜15%	＜15%	＜15%
Inlet air temperature (℃)		＜350	＜350	＜350	＜350	＜350	＜350	＜350	＜350	＜350
Outlet air temperature (℃)		70-95	70-95	70-95	70-95	70-95	70-95	70-95	70-95	70-95
Power（kw）		200	280	400	500	800	900	1120	1800	2240

Parameters of LMLM vertical pulverized coal mill (medium speed coal mill) (high-efficiency pulverized coal boiler, blast furnace injection, coal chemical industry, lime kiln, rotary kiln, metallurgy, electric power, cement and other industries)

Model	LM880M	LM1150M	LM1300M	LM1500M	LM1700M	LM1900M	LM2200M	LM2400M	LM2800M
The size of input raw material (mm)	<20	<20	<38	<40	<42	<45	<50	<50	<50
Best input moisture	<15%
Coal powder fineness	R0.08=5-20% (200mesh，80- 95% passing)
Coal powder moisture	≤1%- 5%
Inlet air temperature (℃)	<350
Outlet air temperature (℃)	<350
Raw coal Hardgrove grindability index	>55
Capacity(t/h)	4~6	7~10	10~17	16~22	20~30	26~40	35~50	45~60	65~100
Power(KW)	45~75	90~110	185~220	220~280	280~355	355~450	450~560	500~630	900~1120

LM type slag vertical mill parameters

Model	LM17-2N	LM19-2N	LM21-2N	LM24-2N	LM28-2N	LM35-3N	LM46-4N
Capacity (t/h)	7-11	9-13	11-15	14-20	22-26	48-55	90-100
Moisture of slag	<12%
Product specific surface area	≥420 m2 /kg
Product moisture	≤1%
Power (KW)	200	280	400	500	800	1120	2240

Model	LUM1125	LUM1232	LUM1436
Disc diameter（mm）	1100	1200	1400
Grinding roller (pcs.)	3	3	3
The size of input raw material（mm）	<10	<10	<10
Max feed size（mm）	＜15	＜18	＜20
Capacity（t/h）	5-14	7-16	9-18
The size of product	One-time production 0.038-0.02, with double classifier0.005
Power（kw）	250	315	355
Classifier power× Qty	15KWX5	15KWX7	15KWX7
