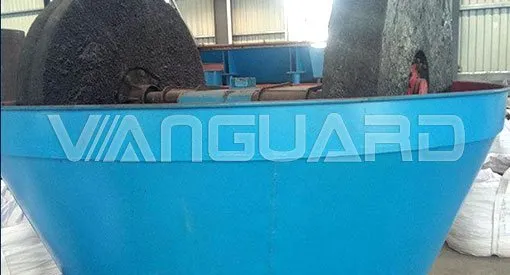

Wet Type Pan Mill
Wet Type Pan Mill

Product introduction：The full name of wet pan mill is wet type pan mill. According to the different operation methods it is divided into gold mill amalgamation mill iron mill and electric mill. While according to the different structures it is divided into wheel mill double roller mill and three roller mill.

Application field：
Get a free quote
info@vanguardtec.com
Technical Features
  • High Quality Motor
  • Strictly Control The Casting Quality
  • Good Quality Of Grinding Roller
  • Wear-resisting Improve
  • Easy Maintenance

  • ● The motor is the core component of the wet pan mill, and the service life of the wet pan mill determines by the high-quality motor. Electric Leakage is dangerous, so the wet pan mill is equipped with the Siemens motor, a well-known brand motor.

  • ● The roller and the basin are the key operating parts of the wet pan mill. The most common problem is basin cracking. For castings, the mechanical properties of parts are determined by the casting process. We have our own foundry with more than 1000 square meters of workshop and 10 skilled workers. Strictly control the quality of casting strong and durable weld.

  • ● The surface of the grinding roller is designed to be smooth to avoid small gold pieces entering cracks and holes. The weight of each grinding roller is 1.5 tIn.

  • ● Eight wheel hub bores four more than the peers' Introduction of core technology Wear-resisting improve more than 130%.

    Wet Type Pan Mill

  • ● WZ roller bearing with Military quality first-class performance, easy maintenance, and high efficiency.

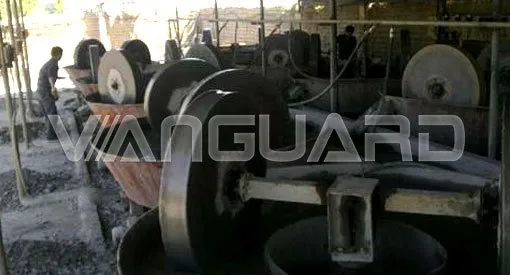

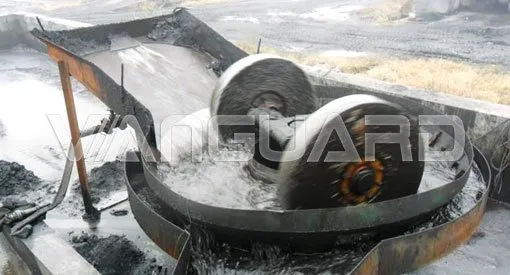

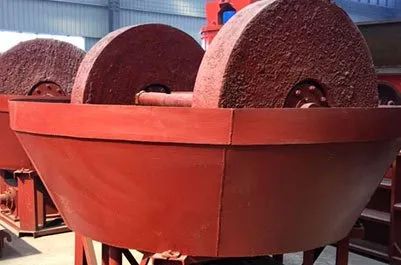

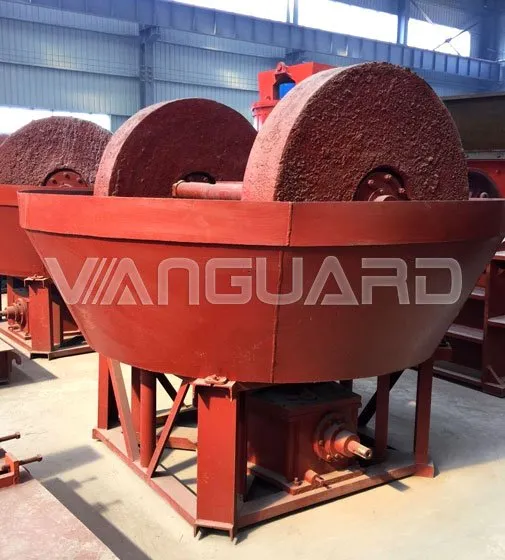

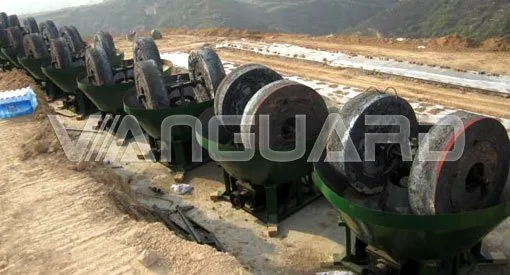

Product Gallery
Wet Type Pan Mill
Wet Type Pan Mill
Wet Type Pan Mill
Wet Type Pan Mill
Wet Type Pan Mill

Performance parameter
Model Specification Feeding Size （cm） Power （Kw） Spinning Speed （r∕min） Weight（t）
1600A 1600×400×200×500±20 ≤25 6-30 20-22 14.5
1500A 1500×350×200×460±20 ≤25 6-22 20-22 13.3
1500B 1500×350×150×460±20 ≤25 6-22 20-22 12.3
1500C 1500×300×150×420±20 ≤25 6-22 20-22 11.3
1400A 1400×250×150×350±20 ≤25 6-18.5 16-18 8.5
1400B 1400×250×150×350±20 ≤25 6-18.5 21-23 8.5
1350A 1350×250×150×350±20 ≤25 6-18.5 16-18 8
1350B 1350×250×150×350±20 ≤25 6-18.5 21-23 8
1300A 1300×250×150×350±20 ≤25 6-15 16-18 7.5
1300B 1300×250×150×350±20 ≤25 4-15 21-23 7.5
1200A 1200×220×80×270±20 ≤25 6-7.5 17-19 7.5
1200B 1200×200×80×250±20 ≤25 6-7.5 23-25 7.5
1100A 1100×220×80×250±20 ≤25 4-7.5 17-19 5
1100B 1100×220×80×250±20 ≤25 4-7.5 23-25 5
1000 1000×200×80×250±20 ≤25 4-7.5 13-15 4.5
