High Pressure Grinding Mill
Capacity
0.5-55 T/H
Power
37-132kw
Feed size
0-35mm

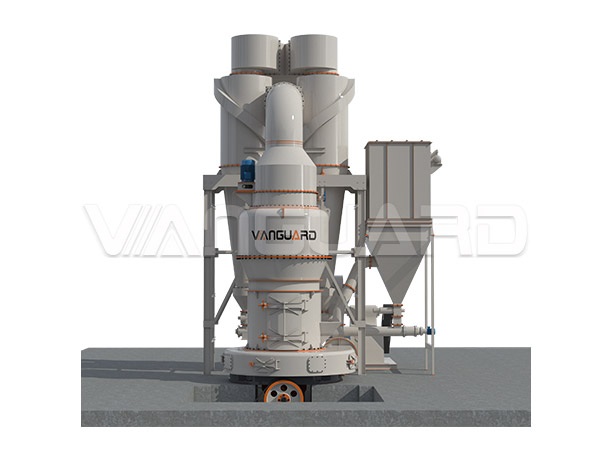

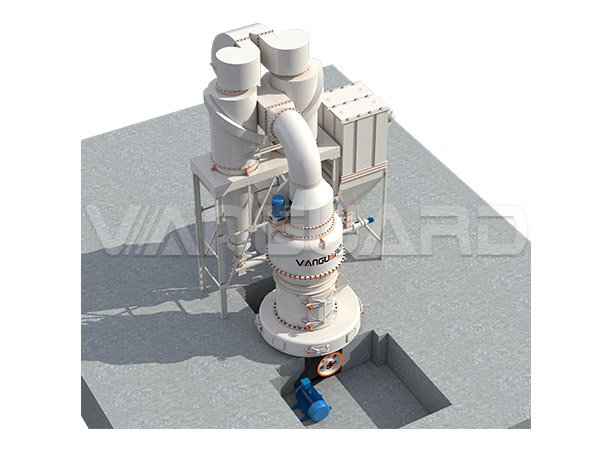

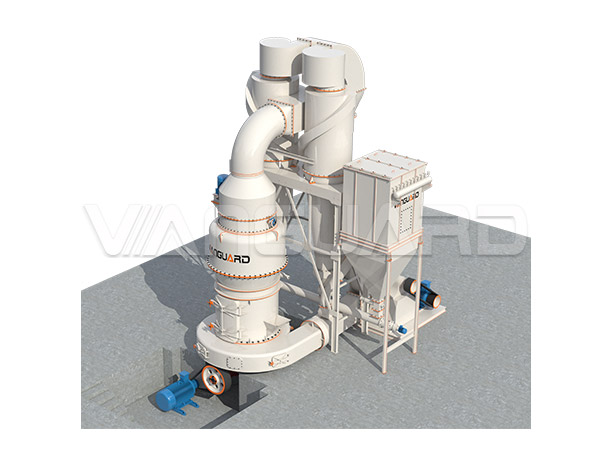

YGMHigh Pressure Grinding Mill

Product introduction:YGM high pressure micro powder mill is referred to as micro powder mill or super fine grinding mill. The high pressure micro grinder is mainly used for the ultra-fine powder processing of more than 500 kinds of materials such as feldspar talc barite marble limestone carbon black and clay.

Technical Features
  • Inheritance of Classical Design
  • Lower Electricity Consumption
  • Higher Efficiency
  • lower energy consumption
  • Worry-free Operation
  • ● YGM Medium-speed Grinding Mill adopts the classical pendulum rollers of Raymond Mill on the one hand and change the spring connection structure innovatively on the other hand.

    ● which can not only avoid the terrible impact of large materials on the axis and bearings but also enhance the crushing strength of grinding rollers so as to increase the yielding.

  • ● Under an ideal circumstance YGM Medium-speed Grinding Mill consumes 1.02kW/h when yielding a ton of materials and 1.48kW/h when feeding a ton of materials.

    ● Its electricity consumption is lower than that of ball grinding mill of the same level by over 60%.

  • ● VANGUARD adopts the high-efficiency impeller energy-saving fan and the working efficiency of which can reach 85% or above while traditional grinding mills equipped with straight blade fan can reach only 62% of air inducing efficiency. Under the equivalent production requirements MTM Medium-speed Grinding Mill can realize better powder separating and lower power consumption.

  • ● YGM Medium-speed Grinding Mill uses the cambered air duct with low resistance.

  • ● We can offer customers technical services about products and original spare parts to ensure the worry-free operation.

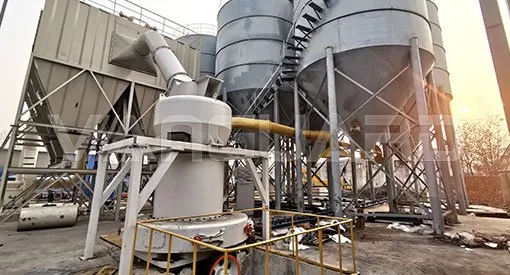

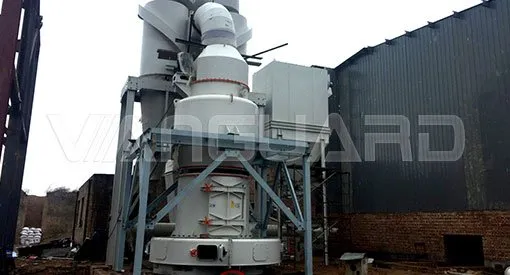

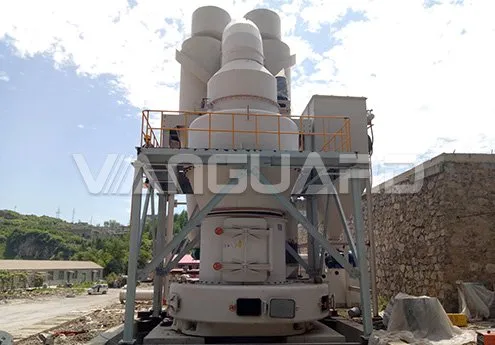

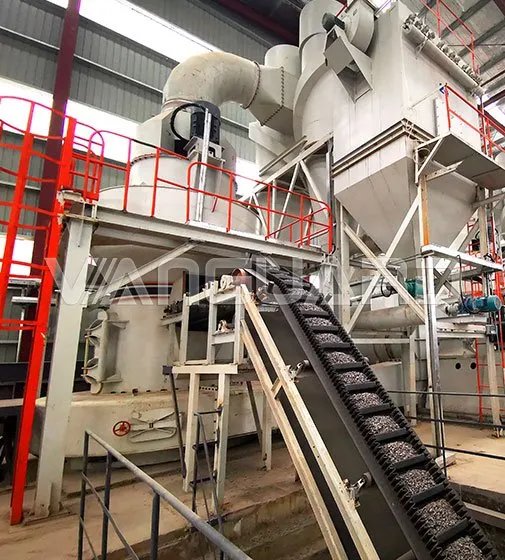

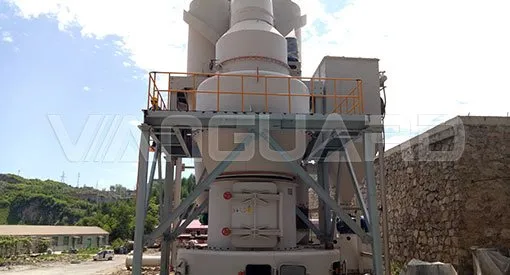

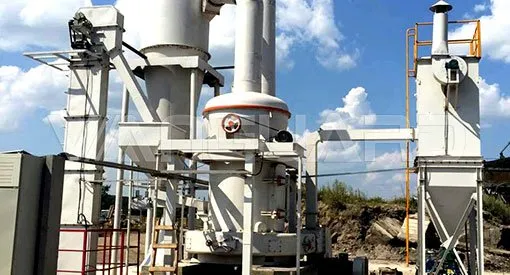

Product Gallery

Performance parameter

Main Specification

Model Ring Diameter×h(mm) Rollers Diameter×h(mm SpeedofMainMill(r/min) Max.Feeding Size(mm) The Final Size(mesh) Capacity(t/h) ExternalDimension(mm)
YGM1100- Q4 φ1100 φ320×170 132 ≤25 80- 800 0.5- 6.5 7350×5900×7900
YGM1400- Q4 φ1400 φ430×210 106 ≤30 80- 600 2- 13.8 8000×8550×9700
YGM1500- Q4 φ1500 φ480×230 105 ≤30 80- 600 2.9- 17.5 9700×8500×10200
YGM1750- Q4 φ1750 φ520×270 92 ≤30 80- 425 5- 25 9230×10116×10510
YGM2000- Q4 φ2000 φ620×300 78 ≤35 80- 425 6.5- 32 9368×11500×11000
YGM2200- Q4 φ2200 φ630×320 72 ≤35 80- 425 8.4- 40 10465×11372×11500

PowerSpecification

Model Main frame Power(KW) Power of Air Blower(KW) Power of Classifier(KW) Model of Pulse Dust Collector DustCatcher(kw)Blower+AirCompressor Power of Frequencyfeader(kw)
YGM1100- Q4 37 30- 37 5.5- 11 DMC36 3+4 0.15
YGM1400- Q4 75- 90 75- 90 18.5- 22 DMC36 3+4 3
YGM1500- Q4 90- 110 110- 132 22- 30 DMC48 3+4 4
YGM1750- Q4 132- 160 160- 200 30- 37 DMC64 5.5+5.5 5.5
YGM2000- Q4 185- 200 200- 220 37- 45 DMC96 7.5+7.5 5.5
YGM2200- Q4 220- 250 220- 250 45- 55 DMC96 7.5+7.5 5.5

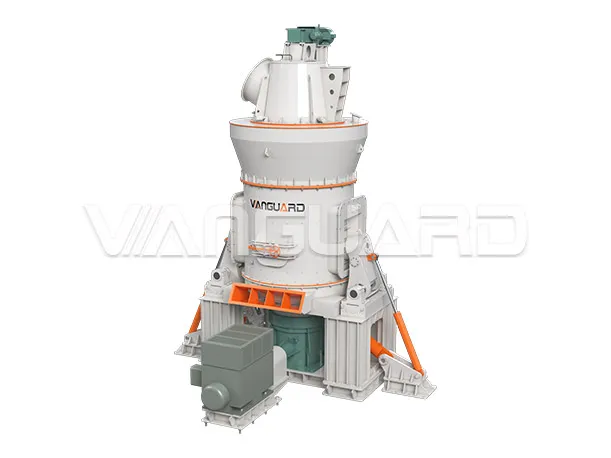

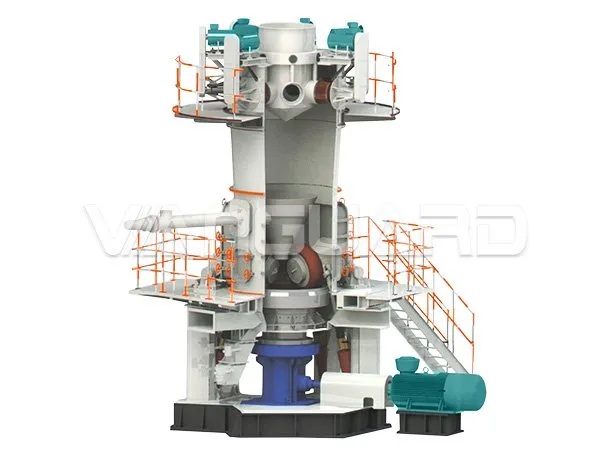

Similar Recommended
