Series Hydraulic Impact Crusher
Feed size
0-1000mm
Capacity
70-900t/h
Power
90-500kw

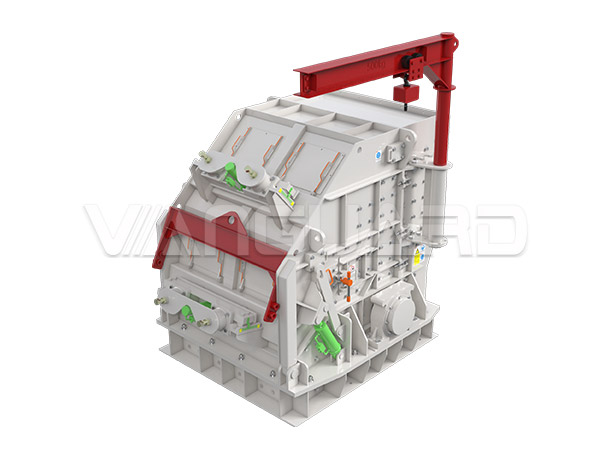

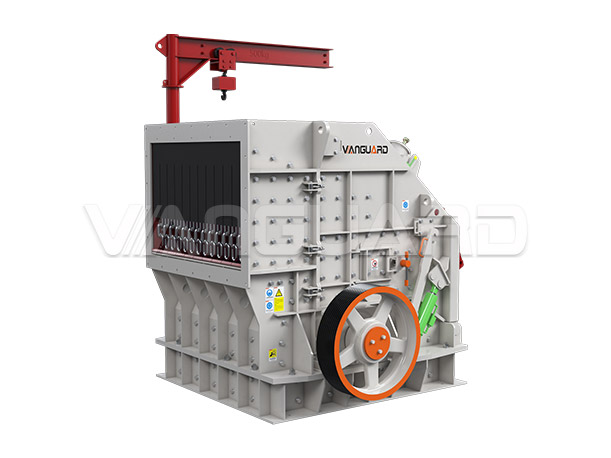

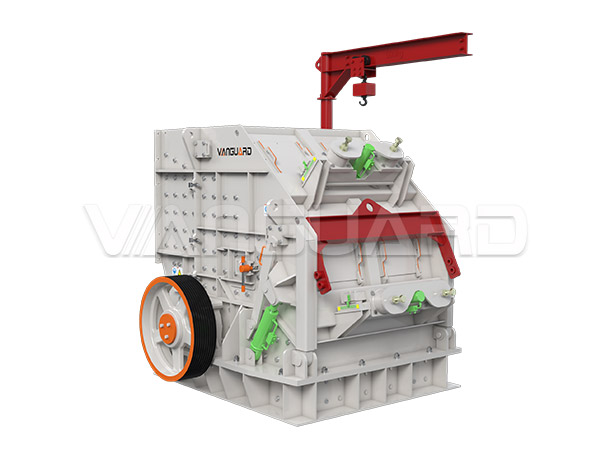

6FXSeries Hydraulic Impact Crusher

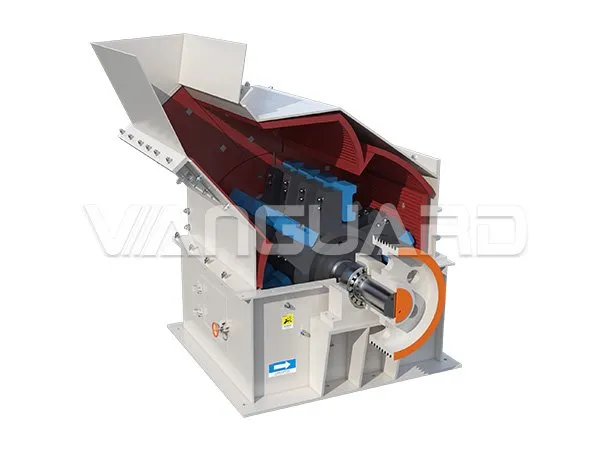

Product introduction:6FX Series Hydraulic Impact Crusher is another new breakthrough in the field of mine crushing equipment by Vanguard's technical engineers.The impact crusher are designed for crushing particle sizes less than 700mm and compression strength no more than 360MPa. Compared with traditional impact crusher its crushing ratio is greatly increased.

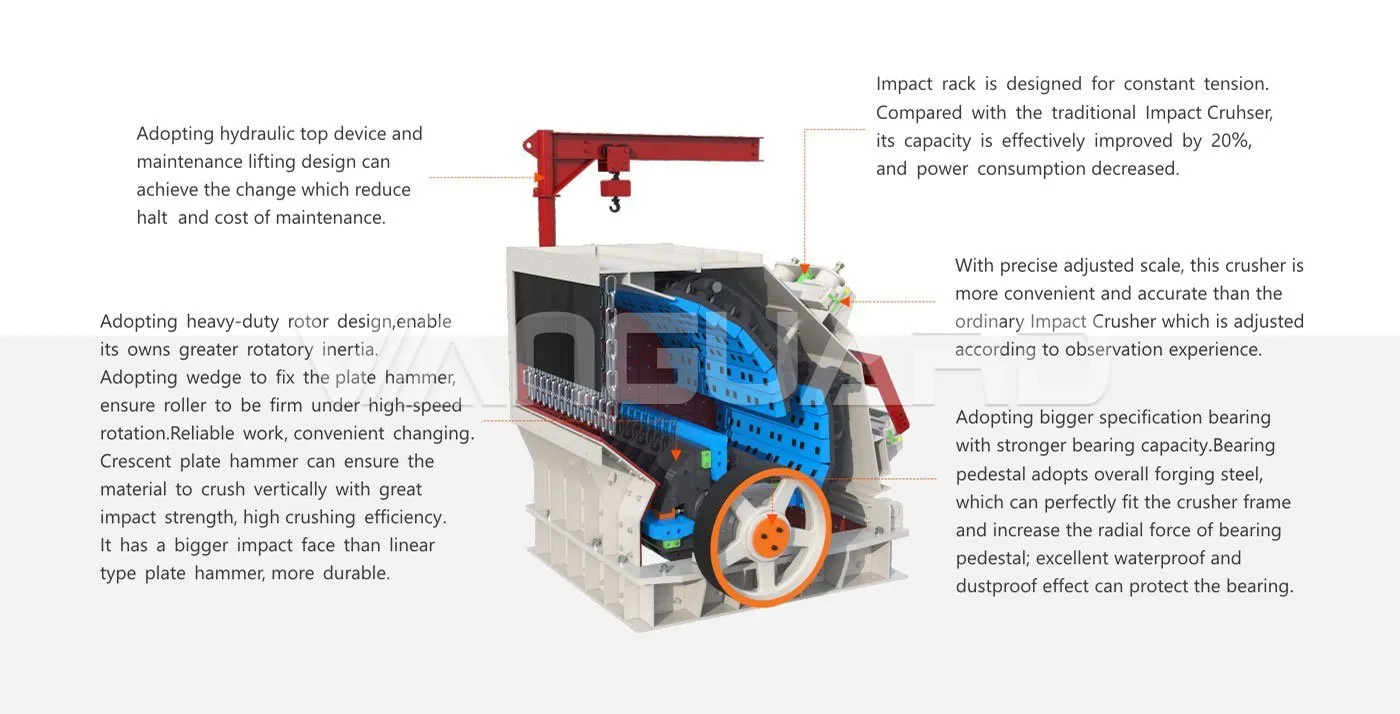

Technical Features
Hydraulic Impact Crusher
Hydraulic Impact Crusher

● Adopting full-automatic hydraulic adjuster between rotor and impact plate enable discharging size to be adjusted flexibly.
● 6FX Impact Crusher uses multifunctional hydraulic operational system which boasts high adjustment precision and high velocity.
● There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting bending planing milling and paint spraying are all controlled numerically.
● The machining precision is high especially for the core parts.

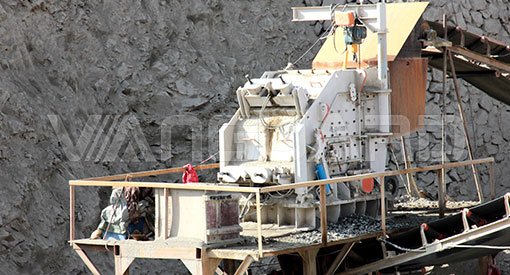

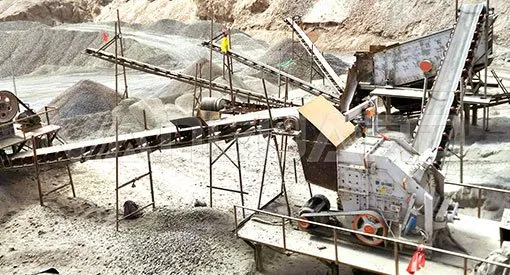

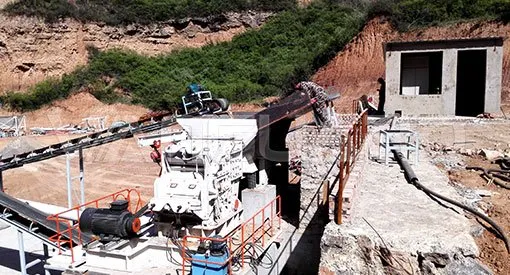

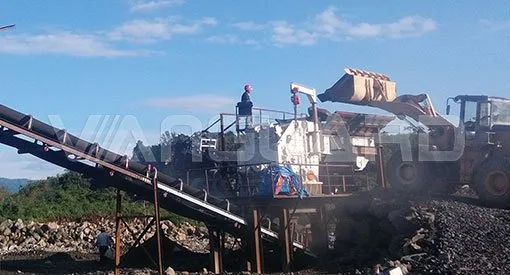

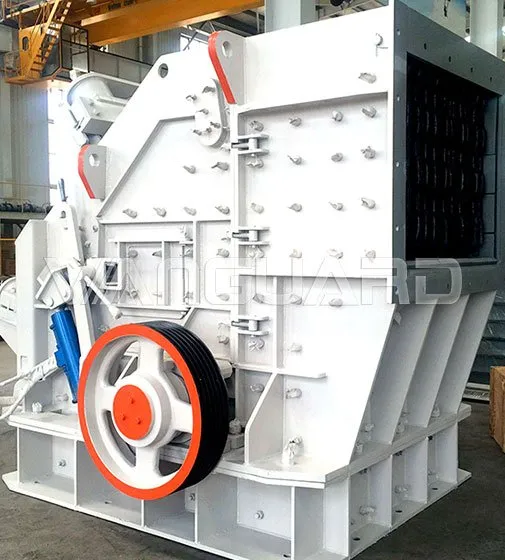

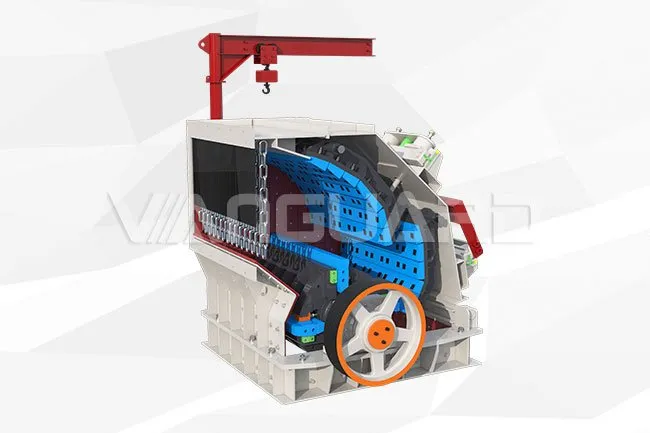

Product Gallery
Hydraulic Impact Crusher
Hydraulic Impact Crusher
Hydraulic Impact Crusher
Hydraulic Impact Crusher
Hydraulic Impact Crusher

Performance parameter

Model

Max. Feeding Size (mm)

Product Particle Size(mm)

Capacity (t/h)

Power(kW)

6FX1010

400×400×500

20-100

70-150

90-132

6FX1210

400×400×600

20-100

100-285

110-160

6FX1214

400×400×600

20-100

150-400

160-200

6FX1315

400×400×700

20-100

180-500

200-250

6FX1317

400×400×700

20-100

200-600

200-315

6FX1415

600×600×900

100-200

400-700

315-400

6FX1620

600×600×1000

100-200

600-900

400-500
