Type Mobile Cone Crushing Plant
Feed size
≤200mm
Capacity
95-350T/H
Power
一

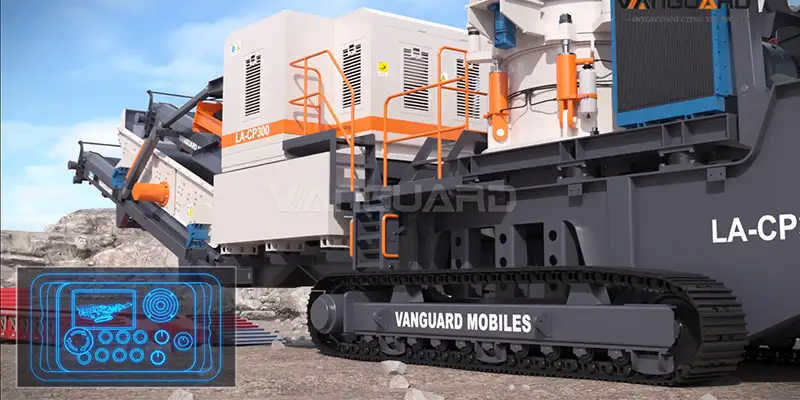

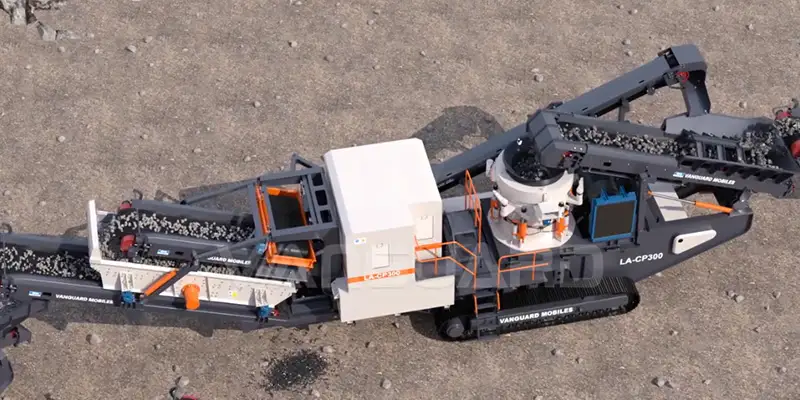

CrawlerType Mobile Cone Crushing Plant

Product introduction：

It integrates mechanical, hydraulic, electrical, automation, and other technologies, and it has many advantages such as high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent crushing product size. It is mainly used in secondary and tertiary crushing in metal mines and construction sand and stone processing. It is not afraid of narrow terrain and harsh environments, and it is the latest generation of products in the mining construction industry and metal mining industry.

Application field：
Get a free quote
info@vanguardtec.com
Crawler
Technical Features

Equipped with a cone crusher with excellent performance suitable for medium and fine crushing, special crushing wall and concave design, supplemented by curved cavity and hydraulic cavity clearing system, improve the crushing efficiency and effectively reduce the easy operation loss.

It adopts a fully automatic crushing control system, which quickly responds to iron (overload) and automatically releases reset protection to ensure continuous, stable, and efficient production.

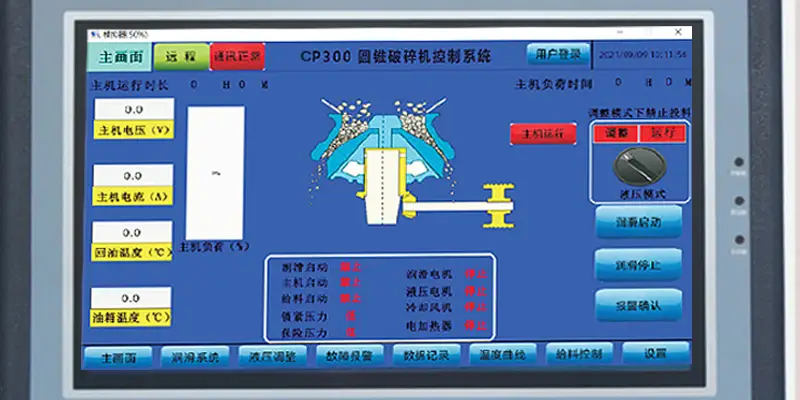

It is equipped with a PLC control system to keep full cavity continuous feeding, reasonable configuration, a smooth process, high production efficiency, good product shape, and the final product is a high-quality cube.

Large eccentricity, high swing  frequency, and layer compression crushing make the equipment has a high capacity, large reduction ratio, and a good grain shape.

Product Gallery

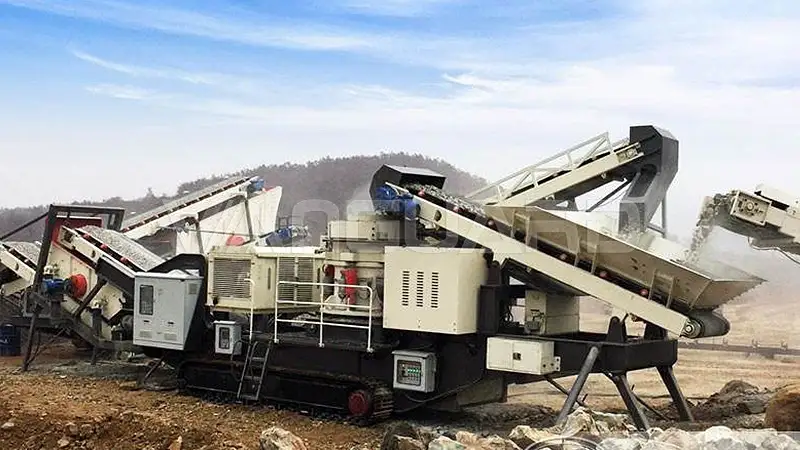

Mobile Cone Crusher

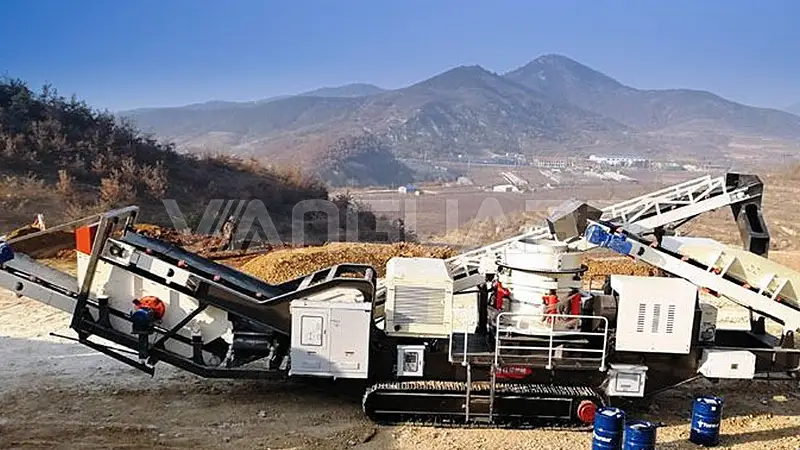

Mobile Cone Crusher
Mobile Cone Crusher
Mobile Cone Crusher
Mobile Cone Crusher
Performance parameter
Crawler type mobile cone crushing plant CP200 crawler type mobile cone crushing plant CP300 crawler type mobile cone crushing plant CP400 crawler type mobile cone crushing plant
Model Items and specifications power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set)
Crushing equipment Equipment  Model CP200 / 1 CP300 / 1 CP400 / 1
Triangle belt Standard / 1 25N-5100 / 7 Standard /
Motor Standard 160 1 Y355M2-4 220 1 Standard 315 1
Return screen Equipment 1536 / 1 1542 / 1 1542 / 1
Vibration motor Standard 3.06 2 Standard 3.7 2 Standard 3.06 2
Frame Hydraulic crawler chassis Standard / 1 Standard / 1 Standard / 1
Boat frame
/ 1 plate thickness=12-20mm / 1
/ 1
Upper sieve conveyor Specification B1000*6m 7.5 1 B1000*6m 7.5 1 B1200*6.5m 7.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Main conveyor Specification B1000*9m 11 1 B1000*10.5m 11 1 B1200*10m 11 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Under the screen conveyor Specification B1000*6m 7.5 1 B1200*6.2m 7.5 1 B1200*6.2m 7.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Transfer conveyor Specification B650*2m 3 1 B650*2m 3 1 B650*2m 3 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Return conveyor Specification B500*9m 5.5 1 B500*11m 5.5 1 B500*11m 7.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Single power system Walking engine Yuchai diesel engine 106 1 Yuchai diesel engine 80 1 Yuchai diesel engine 145 1
Dual power system Generator set Yuchai diesel engine 300 1 Yuchai diesel engine 400 1


Electrical System Electric control cabinet Host soft-start, CHINT electrical components. / 1 Host soft-start, CHINT electrical components. / 1 Host soft-start / 1
Matching Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size17*4.8*4.1 Transport size17*3.3*3.6 Working size18.5*4*5.1 Transport size19.8*3.6*4 Working size19.5*5.1*4.9 Transport size19.5*3.7*3.9
Weight (t) Single-power model:≈45t,Dual-power models:≈47t Single-power model:≈55t,Dual-power models:≈57t ≈65t
Power (kw) Single-power model: 200.62kw(not including walking engine power),Dual-power models: 200.32kw(not including generator set power) Single-power model: 264.1kw(not including walking engine power),Dual-power models: 264.1kw(not including generator set power) 357.62kw(not including generator set power)
