Three-ring Grinding Mill
Input size
0-20mm
Capacity
0.5-25t/h
Power
55-315kw
HGMThree-ring Grinding Mill

Product introduction：HGM series three-ring (four-ring) micro grinder is a new type of ultra-fine powder processing equipment which is based on many years of mill production experience absorbing Swedish advanced mechanical technology manufacturing technology after more than 20 tests and improvements. It is the latest product leading the world trend of grinder.

Application field：
Get a free quote
Service and support Dealer query Purchase accessories
info@vanguardtec.com
HGM Series
Technical Features
  • Higher Yielding
  • Adjustable Fineness
  • No Rolling Bearing
  • More Eco-friendly
  • Digitalized Processing

  • ● Newly designed grinding curves of grinding roller and grinding ring further enhance the grinding efficiency of HGM Ultrafine Grinding Mill.

    ● With the same fineness and power the production capacity is 40% higher than that of jet grinding mill and stirred grinding mill.

    ● and the yield is twice as large as that of ball grinding mill. However the system energy consumption is only 30% of the jet grinding mill.

  • ● HGM Ultrafine Grinding Mill's cage-type powder selector adopts German technologies which effectively increases the precision of powder separation.

    ● In addition multi-head cage-type powder selector can be configured according to the users' requirements on yield fineness and sieving rate.

  • ● here is no rolling bearing and screw inside the chamber of HGM Ultrafine Grinding Mill so users are free from worries about damages on bearing or its sealing parts and there is no machine damage problem caused by loose screws.

  • ● HGM Ultrafine Grinding Mill is equipped with efficient pulse dust collector so no dust pollution generates during operation of the entire milling system.

    ● Silencer and noise elimination room are configured to reduce noises. The production is organized fully according to the national environmental protection standards.

    Three-ring Grinding Mill

  • ● There are tens of lines of numerical controlling machine tools.

    ● Operations such as steel plates' cutting bending planing milling and paint spraying are all controlled numerically.


Product Gallery

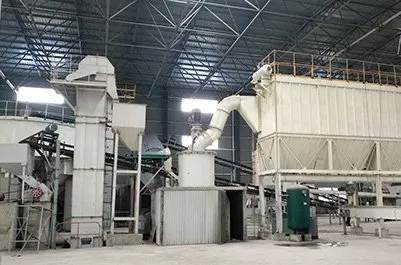

Three-ring Grinding Mill

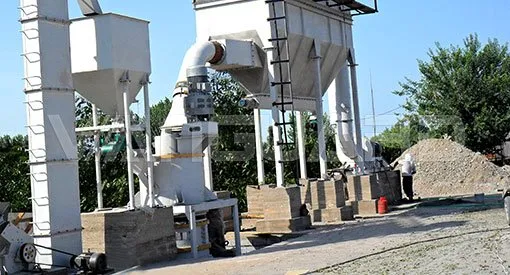

Three-ring Grinding Mill

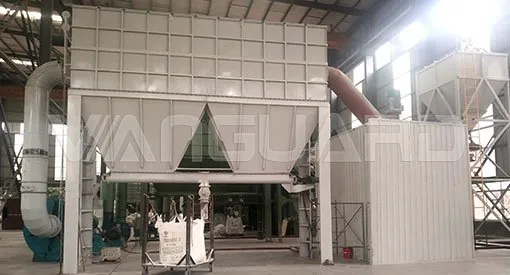

Three-ring Grinding Mill

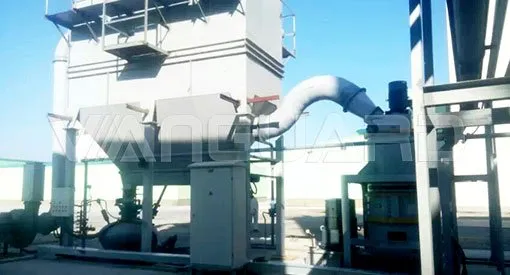

Three-ring Grinding Mill

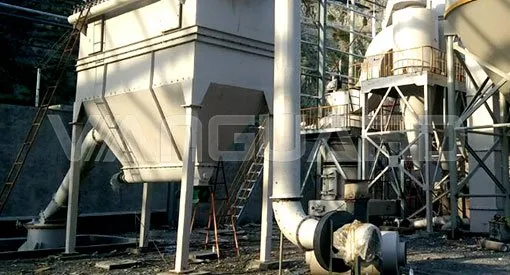

Three-ring Grinding Mill

Performance parameter
Model
 HGM68
 HGM86
 HGM198
 HGM318
No.of Roller and Ring
 No.of Roller （Pcs）
 21
 21
 28 34
No.of Ring （Pcs）
 3 3 4 4
The Feeding Size(mm)
 ≤10
 ≤10
 ≤10
 ≤10
The Final Size
 Mesh
 325- 2500
 325- 3000
 200- 2500
 200- 2500
Micron
 5- 45μm
 3.5- 45μm
 5- 50μm
 5- 50μm
Capacity(Kg/h)
 500-2500
 500- 4000
 800-7000 1700-12000
Installed Capacity（KW） Main Mill
 37 75
 132 185-200
Classifier
 15 18.5- 22
 30 55-75
Air Blower
 30 45-55
 55-75 132
Screw Conveyor
 3 3 3 3-6
Feeder：
 1.5-3 1.5-3
 1.5-3
 3
Compressde Air Used（m3）
 13-23
 23 23
 23
Overall Dimension (Length*Width*Height)(M)
 9.2×31×5.6
 12×3.1×5.9
 14×3.8 ×6.2
 15.8×5.8×7.3
