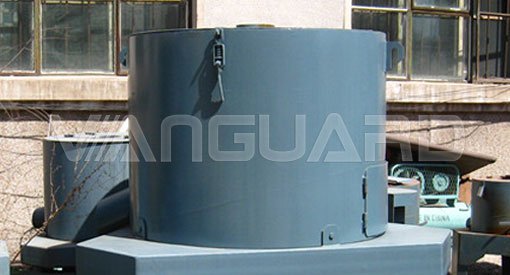

Centrifugal Gold Concentrator
Centrifugal Gold Concentrator

Product introduction:The centrifugal water jacket gold concentrator produced by VANGUARD is a new type of gravity mineral processing equipment that combines the domestic reality situation and absorbs the advantages of the same type of mineral processing in Canada and South Africa.

Technical Features
  • Recovery Rate
  • Large Capacity
  • Easy To Install
  • No Pollution
  • Easy To Operate
  • ● It has a good effect on the process of ultrafine ore slime, while the recovery rate is over 90% for 37-39 micron.

  • ● Under the action of centrifugal force, it strengthened the process of gravity and shortened the separation time. Therefore the capacity of the centrifugal concentrator is much bigger.

  • ● It's a full-line machine that only a small leveled place is required. Before starting it, we only need to connect the water pump and power.

  • ● This machine only consumes water and electric power and exhaust tailings and water. Low noise and no chemical agent involved.

  • ● After finishing the water pressure and feeding size adjustment, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine).

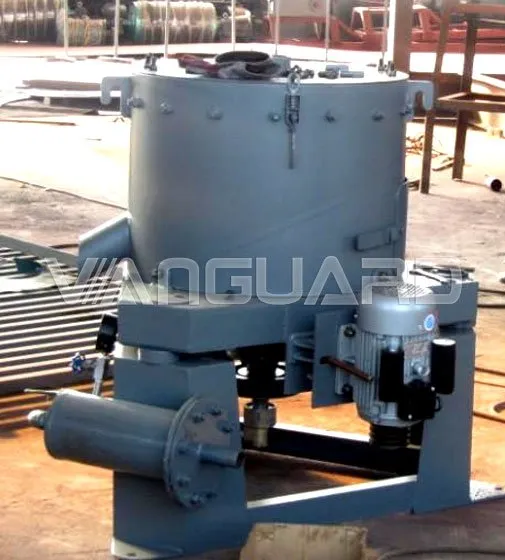

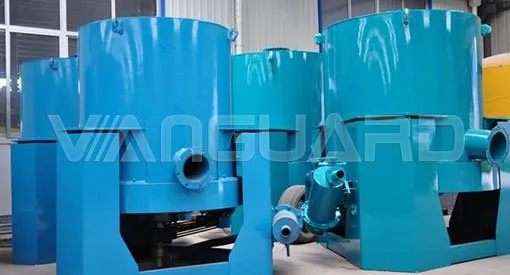

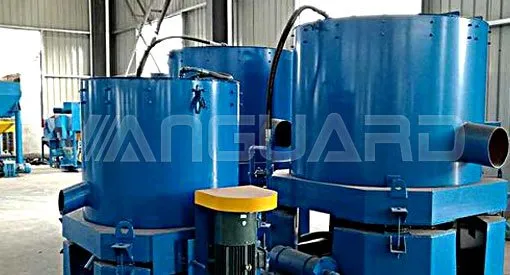

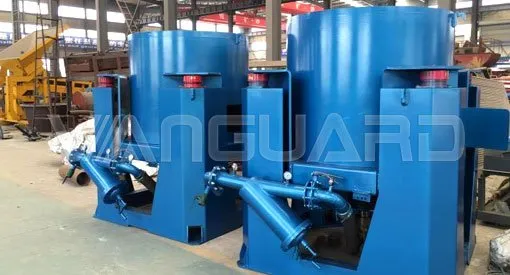

Product Gallery

Performance parameter
Model Capacity(t/h) Power(kw) Feed Size(mm) Slurry Density(%) Backlash Water Quantity(t/time) Concentrates Capacity(kg/time) Cone Rotation Speed(r/min) Pressure Water Required(mpa) Weight(t)
STL-30 3-5 3 0-4 0-50 6-8 10-20 600 0.05 0.5
STL-60 15-30 7.5 0-5 0-50 15-30 30-40 460 0.16 1.3
STL-80 40-60 11 0-6 0-50 25-35 60-70 400 0.18 1.8
STL-100 80-100 18.5 0-6 0-50 50-70 70-80 360 0.2 2.8

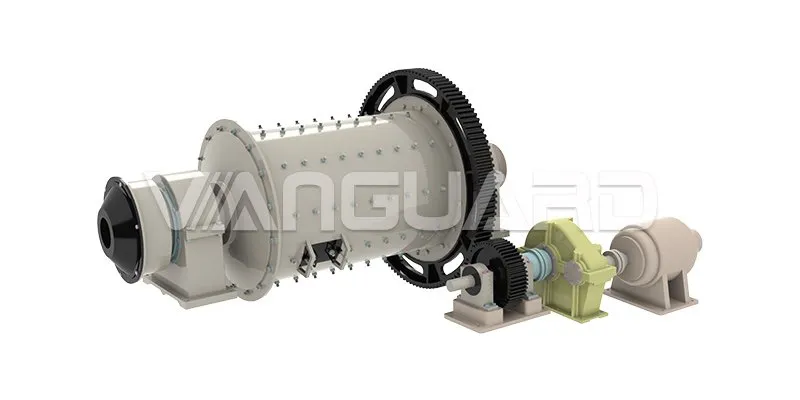

Similar Recommended
