High Gradient Magnetic Separator
High Gradient Magnetic Separator

Product introduction:High gradient magnetic separator is a kind of high-intensity magnetic separator used for screening weak magnetic minerals.

Video Case
Tile crushing production line customer site in Vietnam

Capacity: 30 – 60 t/h

Max. Input size: 210-340mm

Output size: 20-100mm

Processing materials: small scale processing concrete construction waste,limestone, granite etc.

Project advantages: Reasonable configuration, good grain shape of finished materials, and low operation cost.


Technical Features
  • High-frequency Vibration Mechanism
  • Not Easy To Block
  • High Magnetic Field Strength
  • High Grade Magnetic Concentrate
  • Wide Range of Feed Particle Size
  • ● The high-gradient magnetic separator adopts a rotating ring vertical rotation and recoil concentrate and is equipped with a high-frequency vibration mechanism.

  • ●It fundamentally solves the worldwide technical problem that the magnetic material of the flat ring strong magnetic separator and the flat ring high gradient magnetic separator are easy to block.

  • ●The magnetic field strength of this high-strength magnetic concentrator can reach 1200-16000 Gauss. If the mechanical iron in the ore is not selected the mechanical iron will affect the beneficiation effect of the high-strength magnetic concentrator in the actual beneficiation work.

  • ● Multi-Gradient Matrixes & Liquid Level Control System.These technologies improve the grade of magnetic concentrate and recovery.

    high gradient magnetic separation techniques
  • ● Wide Range of Feed Particle Size

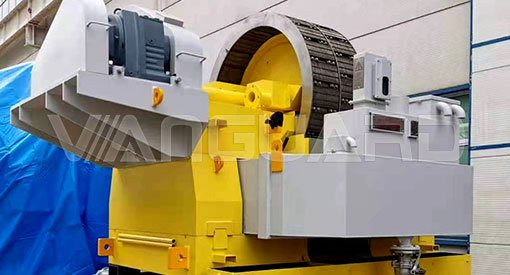

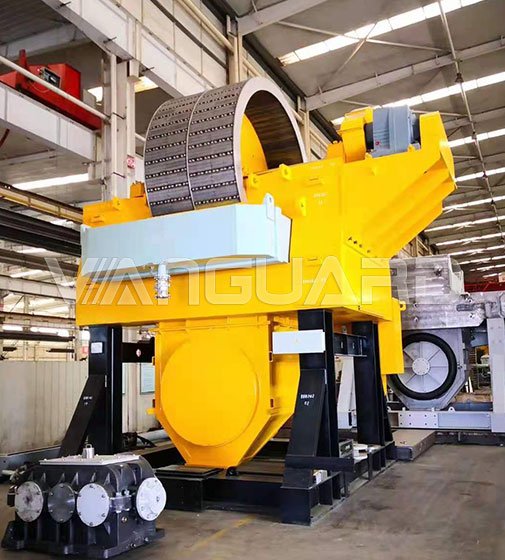

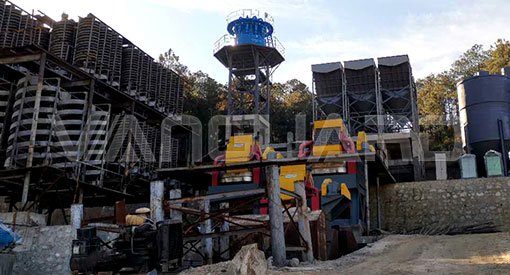

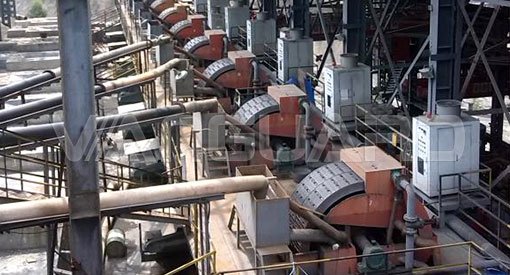

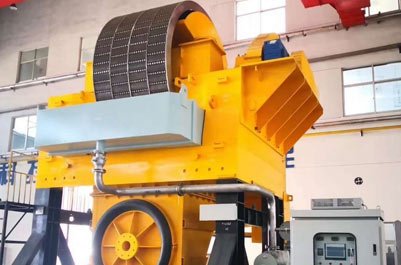

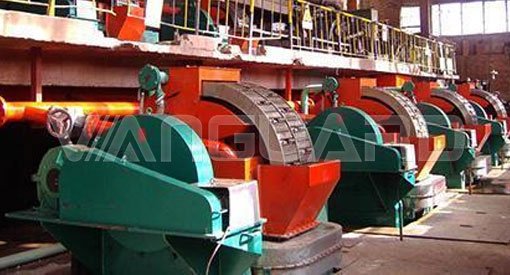

Product Gallery
High Gradient Magnetic Separator
High Gradient Magnetic Separator
High Gradient Magnetic Separator
High Gradient Magnetic Separator
High Gradient Magnetic Separator

Performance parameter
Model Ring Diameter(mm) Slurry throughput Ability(m³/h) Dry ore Handling Capacity(t/h) Rated Magnetizing Power(kw) Ring Motor Power(kw) Vibration Motor Power(kw) Main frame Weight(t) Overall Dimension(L×W×H)mm
Φ1000 1000 12.5-20 4-7 0-17 1.1 2.2 6 2700x2000x2400
Φ1250 1250 20-50 10-18 0-19 1.5 2.2 14 3200x2340x2700
Φ1500 1500 50-100 20-30 0-27 3 4 20 3600x2900x3200
Φ1750 1750 75-150 30-50 0-37 4 4 35 3900x3300x3800
Φ2000 2000 100-200 50-80 0-42 5.5 7.5 50 4200x3550x4200
