Product introduction：

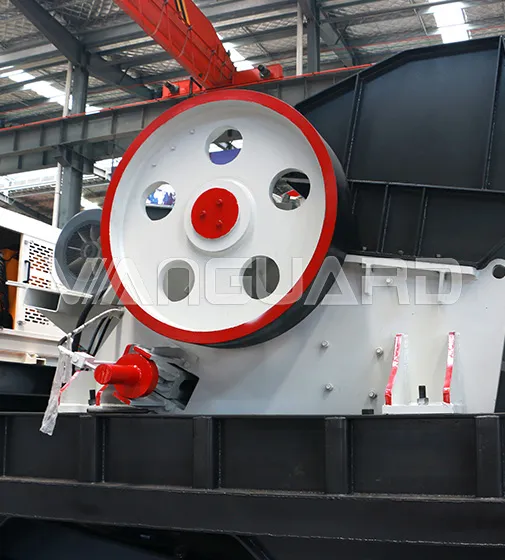

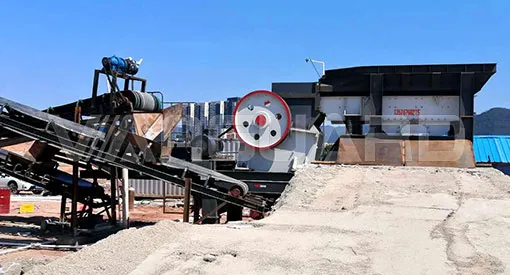

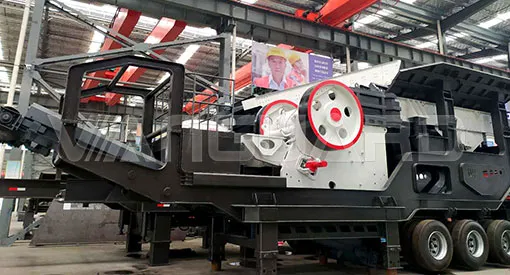

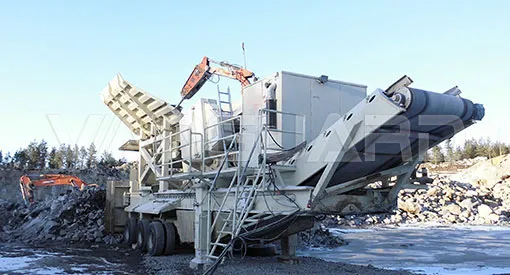

VPE Mobile Crusher Plant is a series of new rock crushing equipment developed by our company which can work in narrow and terrible conditions. It is convenient and flexible greatly increasing the coarse crushing in the fields of business ideas. It is mainly used for processing material in me
It crushes the material on site without transporting the material for off-site crushing so the material transportation cost is greatly reuced.
It has simple reasonable and compact structure. Multi-strict inspections guarantee the superior quality of each machine.
A few wear parts are made of ultra hard and wear-resisting materials with small size and light weight so it is easy to replace the parts.
It can be composed of two-stage plants or three-stage plants which is of high flexibility and can be used individually.
| Model | Vibrating Feeder | Crusher model | Max Feed Size (mm) | Number of Axles | Main Conveyor | Capacity (t/h) | Transportation Dimension(mm) |
| VPE57 | ZSW3090 | PE500×750 | ≤425 | 2 | B650 | 45-100 | 12500×2600×3950 |
| VPE69 | ZSW3896 | PE600×900 | ≤500 | 2 | B800 | 60-160 | 12150×2600×3950 |
| VPE750 | ZSW4211 | PE750×1060 | ≤630 | 3 | B1000 | 110-320 | 13270×2850×4200 |
| VPE96 | ZSW3896 | 6CX96 | ≤500 | 2 | B800 | 100-200 | 12150×2600×3950 |
| VPE110 | ZSW4211 | 6CX110 | ≤650 | 3 | B1200 | 250-500 | 13200×3000×4400 |
| VPP1310 | ZSW3896 | PCZ1310 | ≤600 | 2 | B800 | 100-160 | 11500x2300x4000 |
| VPP1410 | ZSW4211 | PCZ1410 | ≤700 | 3 | B1000 | 160-210 | 12700*2600*4300 |
| VPP1512 | ZSW4913 | PCZ1512 | ≤750 | 3 | B1200 | 250-320 | 13800*2800*4500 |
| VPFX1210 | ZSW3896 | 6FX1210 | ≤600 | 2 | B800 | 100-285 | 13270*2800x4200 |
| VPFX1214 | ZSW3896 | 6FX1214 | ≤600 | 2 | B800 | 150-400 | 14500x2900x4500 |
| VPFX1315 | ZSW4211 | 6FX1315 | ≤700 | 3 | B1000 | 180-500 | 15200x3000x4500 |
