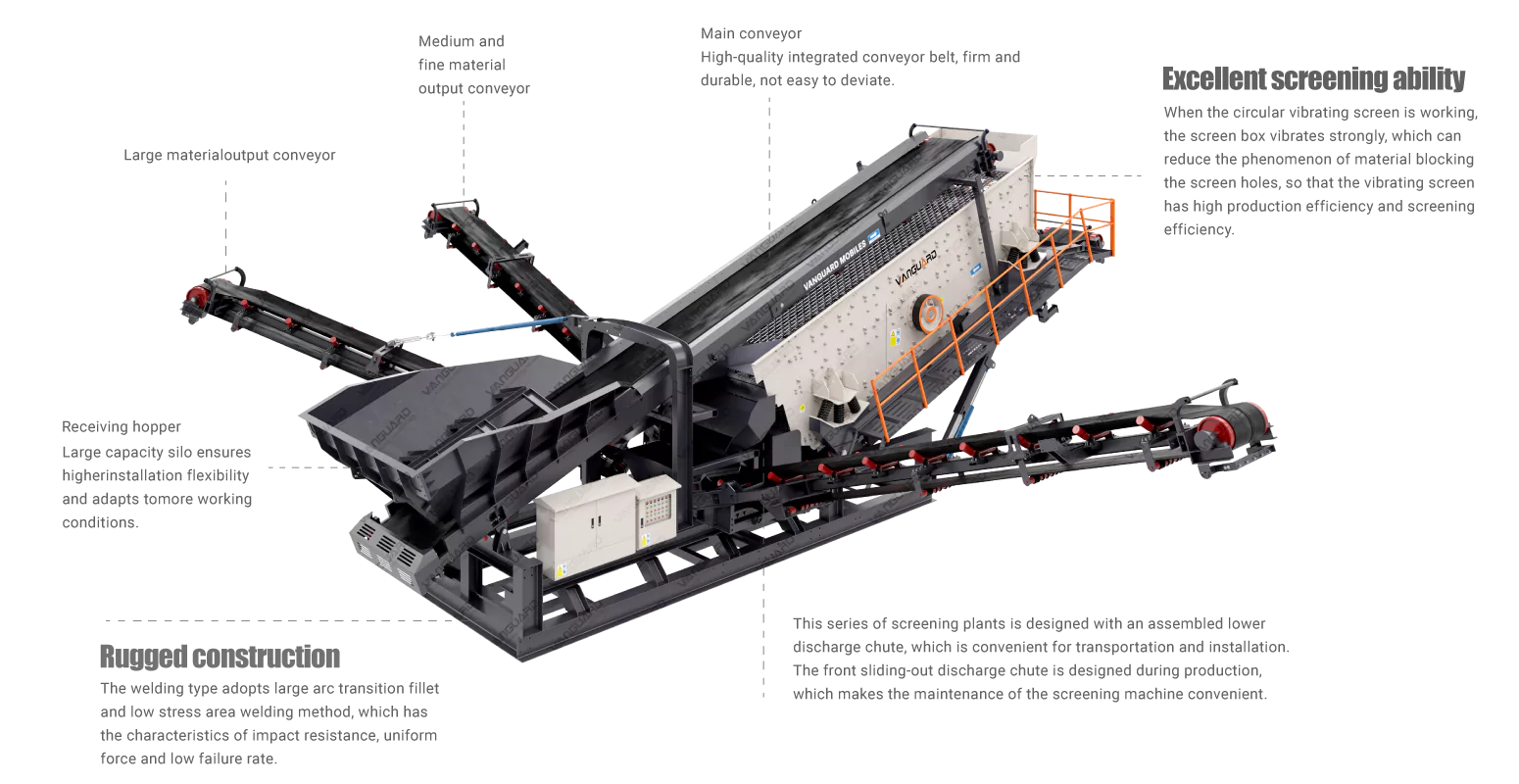

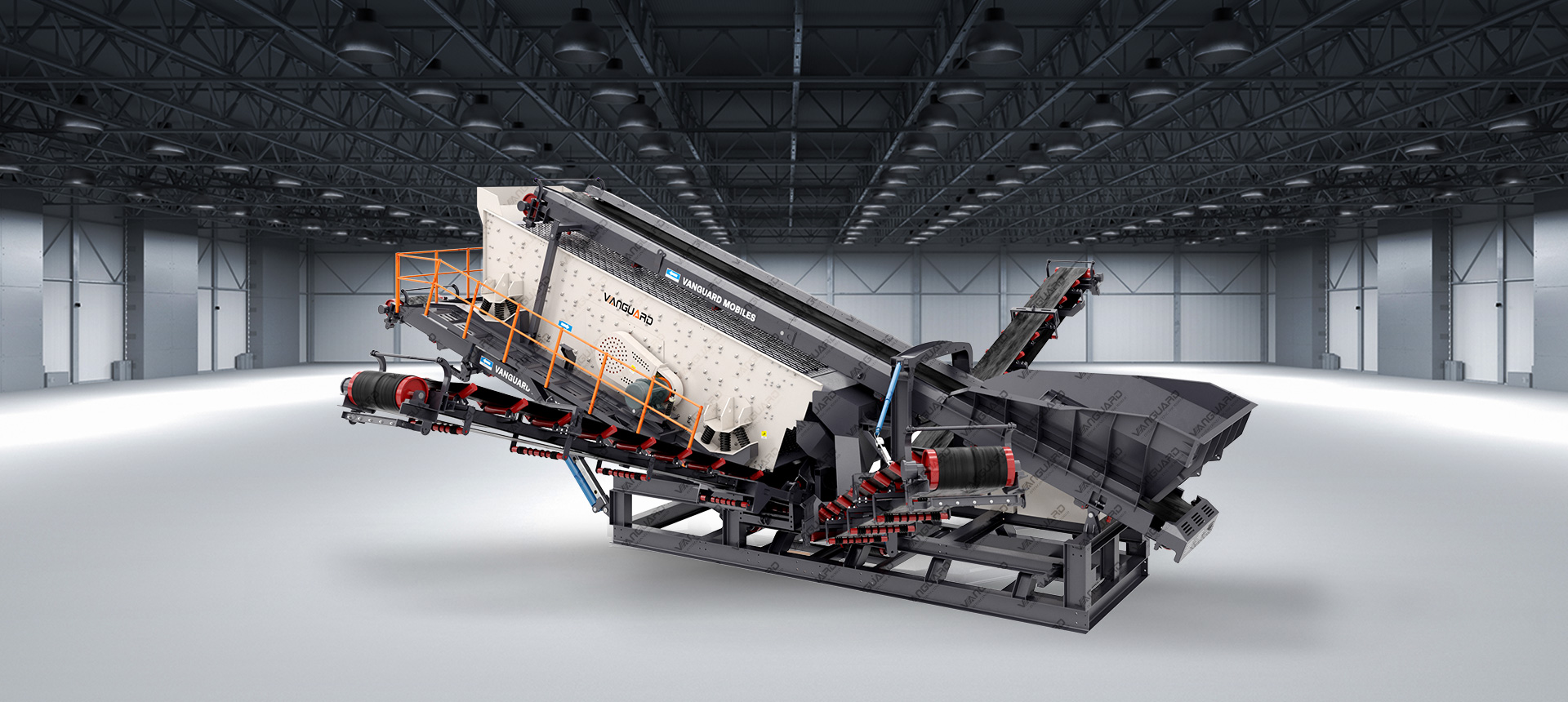

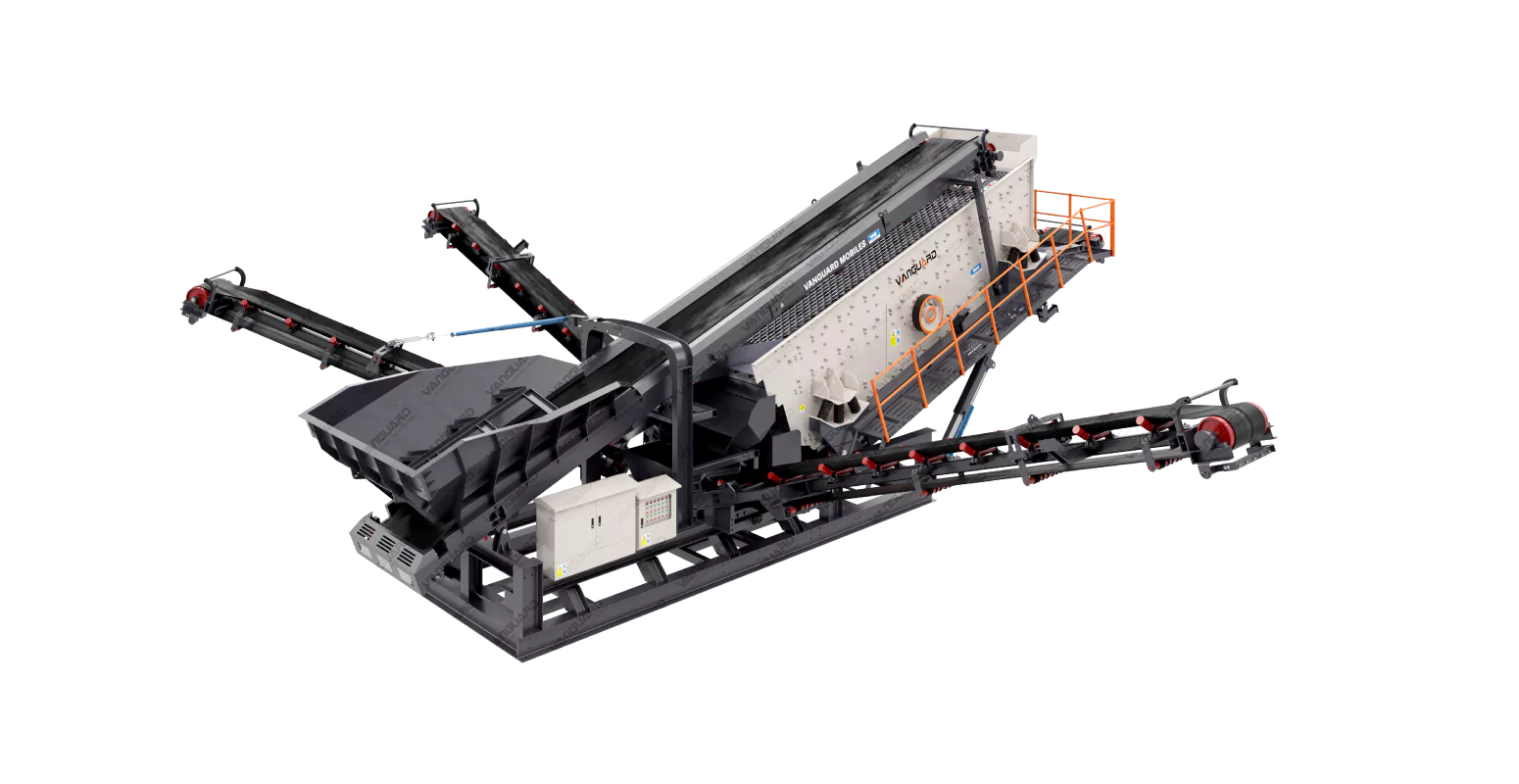

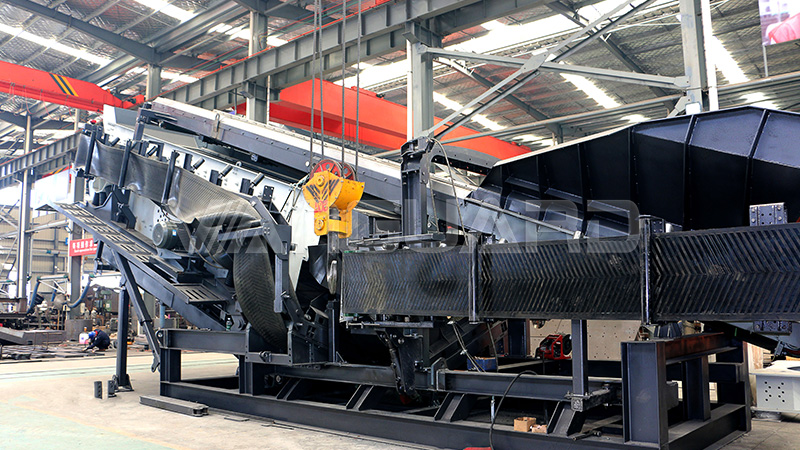

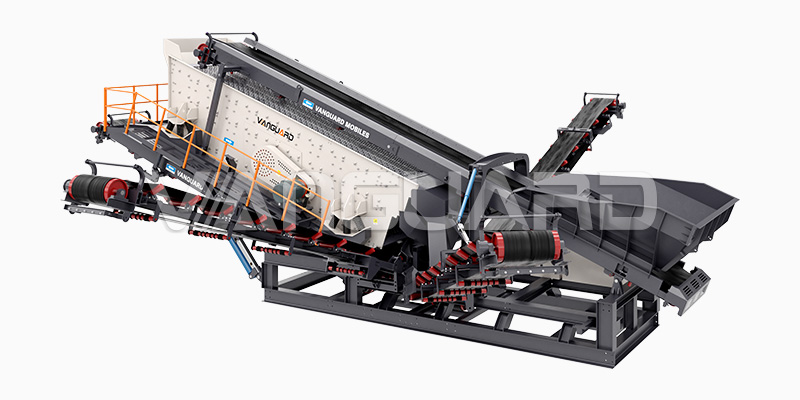

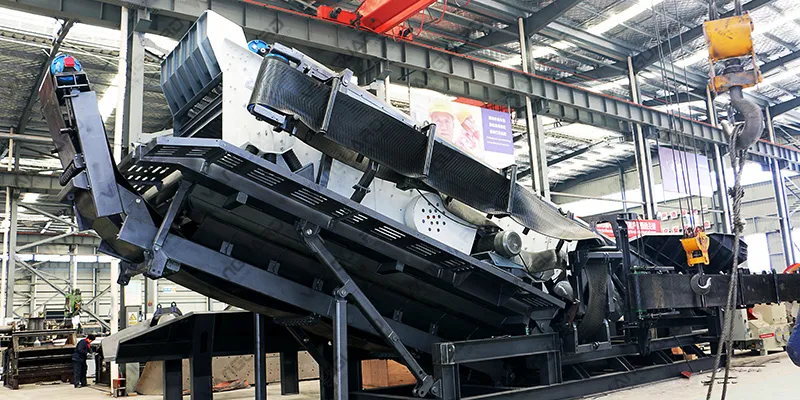

Product introduction：The MBP series of screening plant provide a wide and precise selection of the final product size to be screened. It is mainly used to match the coarse crushing module of jaw crusher and the medium and fine crushing module of cone crusher to screen and classify the crushed products.
| Project | Device Name | Models and Specifications | Power (kW) | Amount | |
|

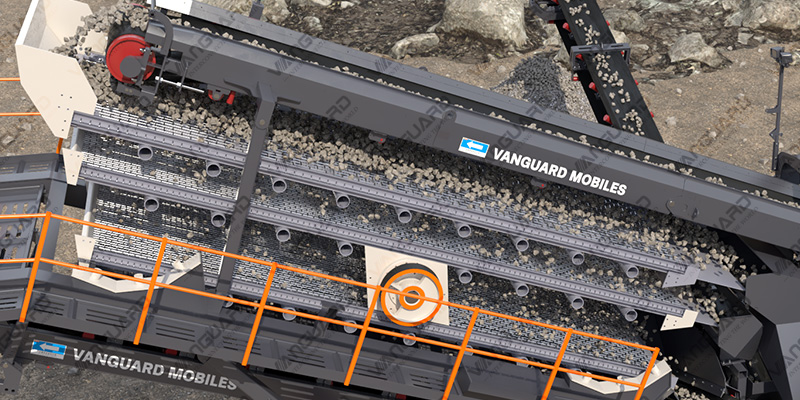

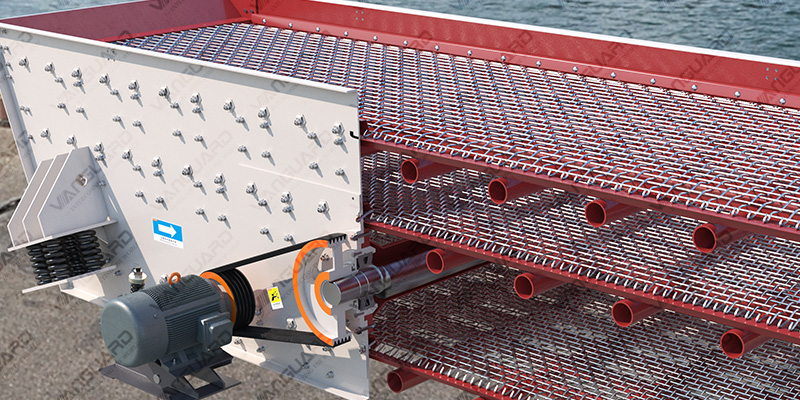

3YA2160 vibrating screen |
vibrating screen | equipment | 3YA2160 | / | 1 |
| triangle belt | Standard | / | 5 | ||
| motor | Standard | 30 | 1 | ||
| modular steel structure | Standard | / | 1 | ||
| main conveyor | Specification | B1200*11.5m | 11 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| underscreen conveyor | Specification | B1000*8.5m | 7.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| large material conveyor | Specification | B650 * 7m | 5.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| medium material conveyor | Specification | B650*9.5m | 5.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| medium and fine material conveyor | Specification | B650*9.5m | 5.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| Electrical System | Electric control cabinet | Host soft start, electrical components Chint | / | 1 set | |
| Belt conveyor folding cylinder | / | 1 set | |||
| Hydraulic Pumps, Valves, Stations and Tubing Accessories | / | 1 set | |||
| Total power 65KW | |||||
