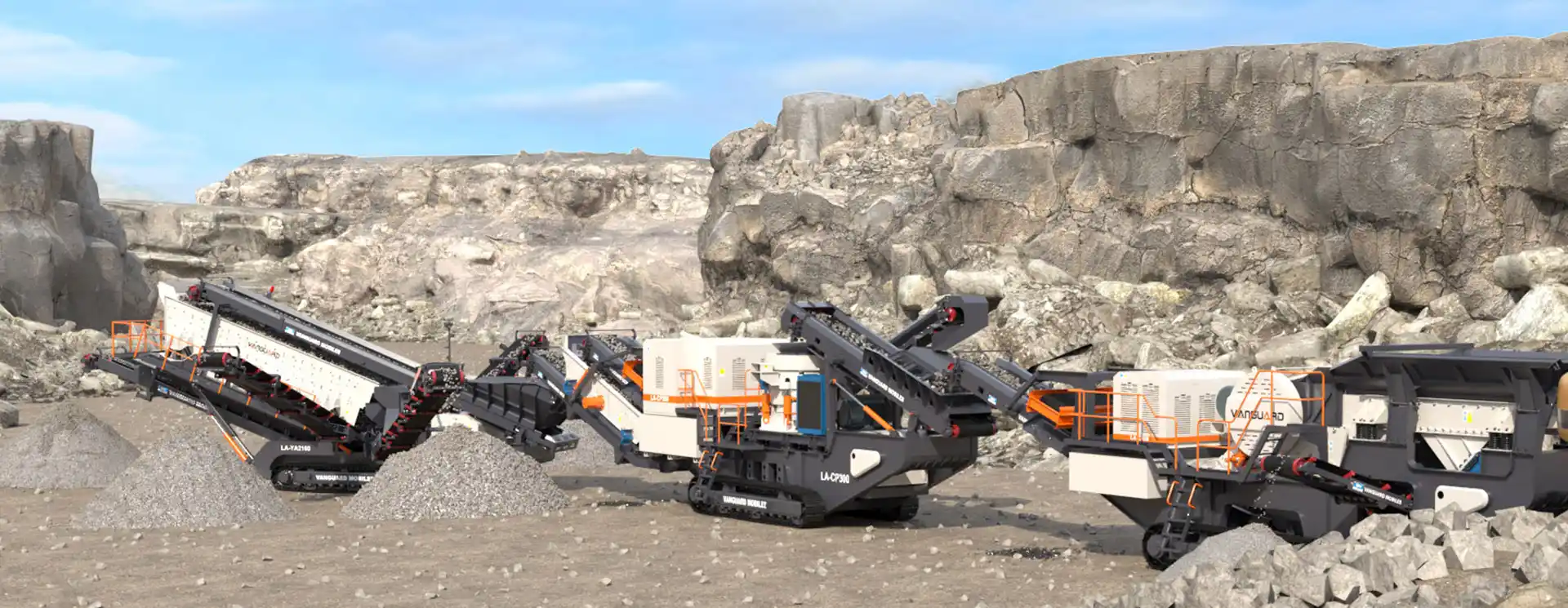

Mining
A large mine front-end mining increase revenue, B Mobile mining flexible production increase C Direct mining applications in small and medium-sized mines D Tailings recovery in mine greening project
Solid Waste Utilization
Including construction waste, used concrete blocks, tunnel slag, river cleaning
Capital Construction Project
The downstream is used for water stabilization station, commercial mixing station and asphalt station, etc., which can be used for road repair, bridge erection, hydropower project, building and so on

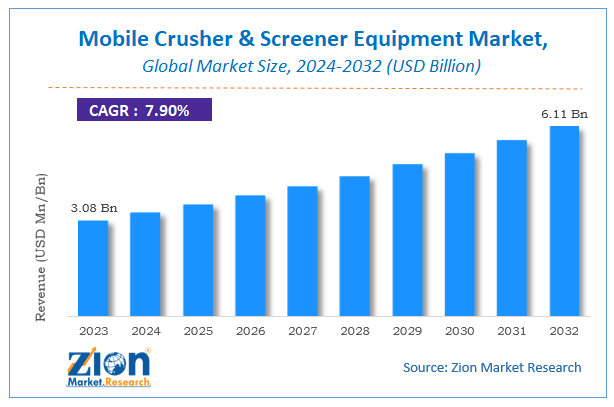

According to Zion Market Research, the global market size for mobile crushing and screening equipment is expected to grow to approximately $6['11'] billion by 2032, with a compound annual growth rate (CAGR) of about 7.9% from 2024 to 2032.
The rapid growth of the global construction industry is driving the expansion of the mobile crushing and screening plant market. The acceleration of infrastructure development and urbanization has increased the demand for efficient mobile crushing equipment. Additionally, the rise of manufactured sand further boosts market growth, as it serves as a cost-effective and environmentally friendly alternative to river sand.
Therefore, it is the best opportunity for you to own a mobile crusher plant for business and get considerable profits right now. And you can choose to invest in mobile crushing equipment from VANGUARD. Because we’re delivering real, measurable benefits to your project. Ready to see what sets us apart? Let’s dive into what you can benefit from VANGUARD mobile crushing plants.
Metal Ore Crushing & Processing
Non-Metallic Ore Crushing & Processing
Stone Crushing Line Crushing & Processing

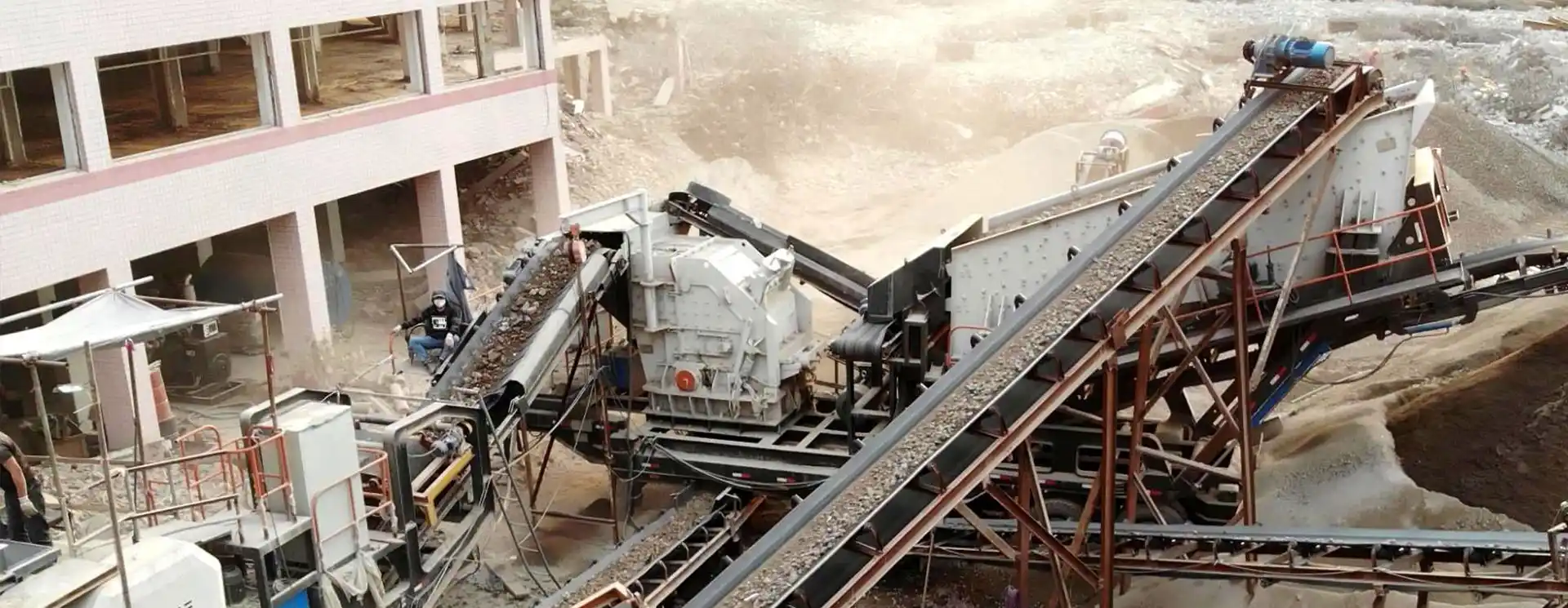

Construction Waste Crushing and Reuse

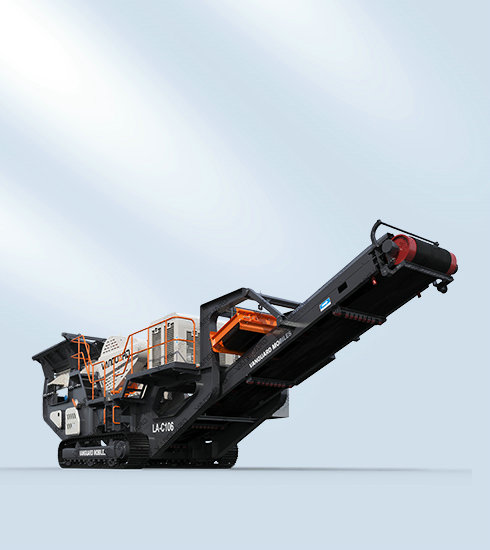

| Crawler type mobile jaw crushing plant | C96 crawler type mobile jaw crushing plant | C106 crawler type mobile jaw crushing plant | C116 crawler type mobile jaw crushing plant | |||||||
| Model | Items and specifications | power (kw) | Quantity(set) | Items and specifications | Power (kw) | Quantity(set) | Items and specifications | Power (kw) | Quantity(set) | |
| Feeding equipment | Model | GZDT3895 | / | 1 | GZDT1145 | / | 1 | GZDT1145 | / | 1 |
| Vibration motor | Standard | 5.5 | 2 | Standard | 7.5 | 2 | Standard | 7.5 | 2 | |
| Crushing equipment | Equipment | C96 | / | 1 | C106 | / | 1 | C116 | / | 1 |
| Triangle belt | SPC-5600 | / | 8 | SPC-5560 | / | 11 | SPC-6300 | / | 8 | |
| Motor | 6 | 75 | 1 | Y315L1-6 | 110 | 1 | Y315L1-6 | 132 | 1 | |
| Frame | Hydraulic crawler chassis | Standard | / | 1 | Standard | / | 1 | Standard | / | 1 |
| Boat frame | plate thickness=12-20mm | / | 1 |
plate thickness=12-20mm |
/ | 1 |
plate thickness=12-20mm |
/ | 1 | |
| Main conveyor | Specification | B800*12m | 7.5 | 1 | B1000*12m | 11 | 1 | B1200*12m | 15 | 1 |
| Drive method | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | |
| Side out conveyor | Specification | B650*4m | 3 | 1 | B650*4m | 3 | 1 | B650*4m | 3 | 1 |
| Drive method | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | |
| Magnetic separator | Specification | RCYQ-8 | 1.5 | 1 | RCYQ-10 | 2.2 | 1 | RCYQ-12 | 3 | 1 |
| Drive method | Reducer | / | 1 | Reducer | / | 1 | Reducer | / | 1 | |
| Single power system | Walking engine | Yuchai diesel engine | 80 | 1 | Yuchai diesel engine | 80 | 1 | Yuchai diesel engine | 80 | 1 |
| Dual power system | Generator set | Yuchai diesel engine | 160 | 1 | Yuchai diesel engine | 200 | 1 | Yuchai diesel engine | 250 | 1 |
| Electrical System | Electric control cabinet | Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. | / | 1 | Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. | / | 1 | Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. | / | 1 |
| Matching | Belt Conveyor Folding Cylinder | 1 | Belt Conveyor Folding Cylinder | 1 | Belt Conveyor Folding Cylinder | 1 | ||||
| Hydraulic pumps, valves, stations and tubing accessories | 1 | Hydraulic pumps, valves, stations and tubing accessories | 1 | Hydraulic pumps, valves, stations and tubing accessories | 1 | |||||
| Dimensions(m)L×W×H | Working size14*5*3.8 | Transport size14*3.2*3.5 | Working size16.5*5.6*4.1 | Transport size16.5*3.3*3.8 | Working size16.7*5.6*4.2 | Transport size16.7*3.3*3.9 | ||||
| Weight (t) | Single-power model:≈38t,Dual-power models:≈40t | Single-power model:≈45t,Dual-power models:≈47t | Single-power model:≈65t,Dual-power models:≈67t | |||||||
| Power (kw) | Single-power model: 98kw(not including walking engine power),Dual-power models: 98kw(not including generator set power) | Single-power model: 141.2kw(not including walking engine power),Dual-power models: 141.2kw(not including generator set power) | Single-power model: 170.2kw(not including walking engine power),Dual-power models: 170.2kw(not including generator set power) | |||||||
| Model | Vibrating Feeder | Crusher Model | Vibrating Screen | Max Feed Size(mm) | Number of Axles | Main Conveyor | Capacity (t/h) | Transportation Dimension(mm) |
| VPM-3 PCZ1310 | ZSW3896 | PCZ1310 | YA1848 | ≤400 | 3 | B650 | 120-380 | 1250×2600×3950 |
| VPM-3 PCZ1510 | ZSW4211 | PCZ1310 | YA2160 | ≤750 | 3 | B1000 | 250-320 | 16500x2950x4500 |
| VPM-3 PE57 | ZSW3090 | PE500×750 | YA1848 | ≤425 | 3 | B650 | 45-100 | 13000x2500x4500 |
| VPM-3 PE69 | ZSW3896 | PE600×900 | YA1860 | ≤500 | 3 | B800 | 60-160 | 15800x2550x4500 |
| VPM-3 CSV110 | ZSW3090 | CSV110 | YA1848 | ≤160 | 2 | B800 | 50-235 | 13000x2500x4500 |
| VPM-3 CSV132 | ZSW3090 | CSV132 | YA1848 | ≤180 | 3 | B800 | 60-260 | 15800x2550x4500 |
| VPM-3 FX1010 | ZSW3090 | 6FX1010 | YA1548 | ≤500 | 2 | B650 | 70-150 | 13000x2500x4500 |
| VPM-3 FX1210 | ZSW3896 | 6FX1210 | YA1848 | ≤600 | 2 | B800 | 100-285 | 15800x2550x4200 |
| VPM-3 FX1214 | ZSW3896 | 6FX1214 | YA1860 | ≤600 | 3 | B800 | 150-400 | 15800x2550x4500 |
| VPM-3 Fx1315 | ZSW4211 | 6FX1315 | YA2160 | ≤700 | 3 | B1000 | 180-500 | 16500x3000x4500 |
| VPM3 LF150 | ZSW3896 | LF150 | YA1848 | ≤550 | 2 | B800 | 100-200 | 15800x2550x4500 |
| VPM3 LF250 | ZSW4511 | LF250 | YA2160 | ≤600 | 3 | B1000 | 200-400 | 15800x2550x4500 |
| Model | Vibrating Feeder | Crusher model | Max Feed Size (mm) | Number of Axles | Main Conveyor | Capacity (t/h) | Transportation Dimension(mm) |
| VPE57 | ZSW3090 | PE500×750 | ≤425 | 2 | B650 | 45-100 | 12500×2600×3950 |
| VPE69 | ZSW3896 | PE600×900 | ≤500 | 2 | B800 | 60-160 | 12150×2600×3950 |
| VPE750 | ZSW4211 | PE750×1060 | ≤630 | 3 | B1000 | 110-320 | 13270×2850×4200 |
| VPE96 | ZSW3896 | 6CX96 | ≤500 | 2 | B800 | 100-200 | 12150×2600×3950 |
| VPE110 | ZSW4211 | 6CX110 | ≤650 | 3 | B1200 | 250-500 | 13200×3000×4400 |
| VPP1310 | ZSW3896 | PCZ1310 | ≤600 | 2 | B800 | 100-160 | 11500x2300x4000 |
| VPP1410 | ZSW4211 | PCZ1410 | ≤700 | 3 | B1000 | 160-210 | 12700*2600*4300 |
| VPP1512 | ZSW4913 | PCZ1512 | ≤750 | 3 | B1200 | 250-320 | 13800*2800*4500 |
| VPFX1210 | ZSW3896 | 6FX1210 | ≤600 | 2 | B800 | 100-285 | 13270*2800x4200 |
| VPFX1214 | ZSW3896 | 6FX1214 | ≤600 | 2 | B800 | 150-400 | 14500x2900x4500 |
| VPFX1315 | ZSW4211 | 6FX1315 | ≤700 | 3 | B1000 | 180-500 | 15200x3000x4500 |

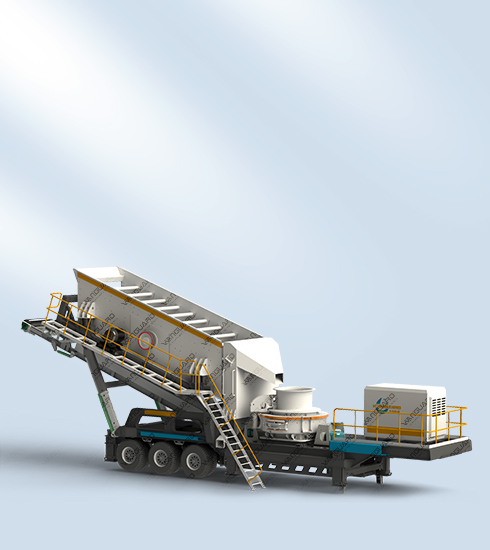

| Project | Device Name | Models and Specifications | Power (kW) | Amount | |
|
HP300 cone crusher + 1542 return screen |
cone crusher | equipment | HP300 | / | 1 |
| triangle belt | Standard | / | 7 | ||
| motor | Standard | 250 | 1 | ||
| return screen | equipment | 1542 | / | 1 | |
| vibration motor | Standard | 3.7 | 2 | ||
| modular steel structure | Standard | / | 1 | ||
| feeding conveyor | Specification | B1000*6m | 7.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| main conveyor | Specification | B1000 * 8.7m | 7.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| underscreen conveyor | Specification | B1200*6.2m | 7.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| transfer conveyor | Specification | B650*2m | 3 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| return conveyor | Specification | B500*9.5m | 5.5 | 1 | |
| drive mode | electric drum drive | / | 1 | ||
| Electrical System | Electric control cabinet | Host soft start, electrical components Chint | / | 1 set | |
| Belt conveyor folding cylinder | / | 1 set | |||
| Hydraulic Pumps, Valves, Stations and Tubing Accessories | / | 1 set | |||
| Total power 288.4KW | |||||
Why choose us
Design R & D
Benchmark first-line imported brands, combine the application characteristics of domestic industries, maintain model innovation, localize and customize functions and configurations, and take the design standard close to customer needs.
Intelligent optimization of production
Exhibition hall full display assembly, build dust-free workshop, adopt assembly design, partition manufacturing, help modular upgrade optimization, let customers apply to the latest update at any time, avoid using business to digest old technology, daily inventory.
Ultra-high equipment configuration
Modular optional function is realized, with various models, high configuration options such as full power scheme module, independent pre-screening module, ultrasonic material level sensing module, dust prevention and noise reduction accessories, etc. Purchased parts are directly collected by first-line quality factories at home and abroad, enriching customer choices.
Differentiation and service
Research and development innovation, model differences, the first to develop crawler mobile sand making station sand washing station, four-layer screen, double-stage screen, all kinds of oil-electric hybrid crushing and screening integrated machine, to provide customers with agency operation, processing and leasing services to meet the industry needs of different customers at different stages of development.
Professional tailor-made
The driving scheme can be selected according to the working conditions, and the full power schemes such as commercial power scheme, oil-electric hybrid and hydraulic pressure are accumulated in advanced research and development technical scheme. The model configuration can be freely selected according to the different working conditions of dealing with building solid waste and mining application, and the customer application feedback can be collected in all directions. There are rich optional configurations different from competing products to solve problems.
Extremely good value for money
The pursuit of inclusive benefits is to optimize design, increase scale, reduce costs, allow customers to purchase with low input to high configuration, and provide updated additional allocation free of charge to customer experience and share progress.
>
