Type Mobile Heavy-duty Hammer Crushing Plant
Feed size
≤750mm
Capacity
80-360T/H
Power
CrawlerType Mobile Heavy-duty Hammer Crushing Plant

Product introduction:

Mobile hammer crusher, also called mobile hammer crusher, is mainly to combine the hammer crusher and the mobile crawler frame ingeniously. It can be operated by remote control and has the advantage of "one- time crushing and forming".

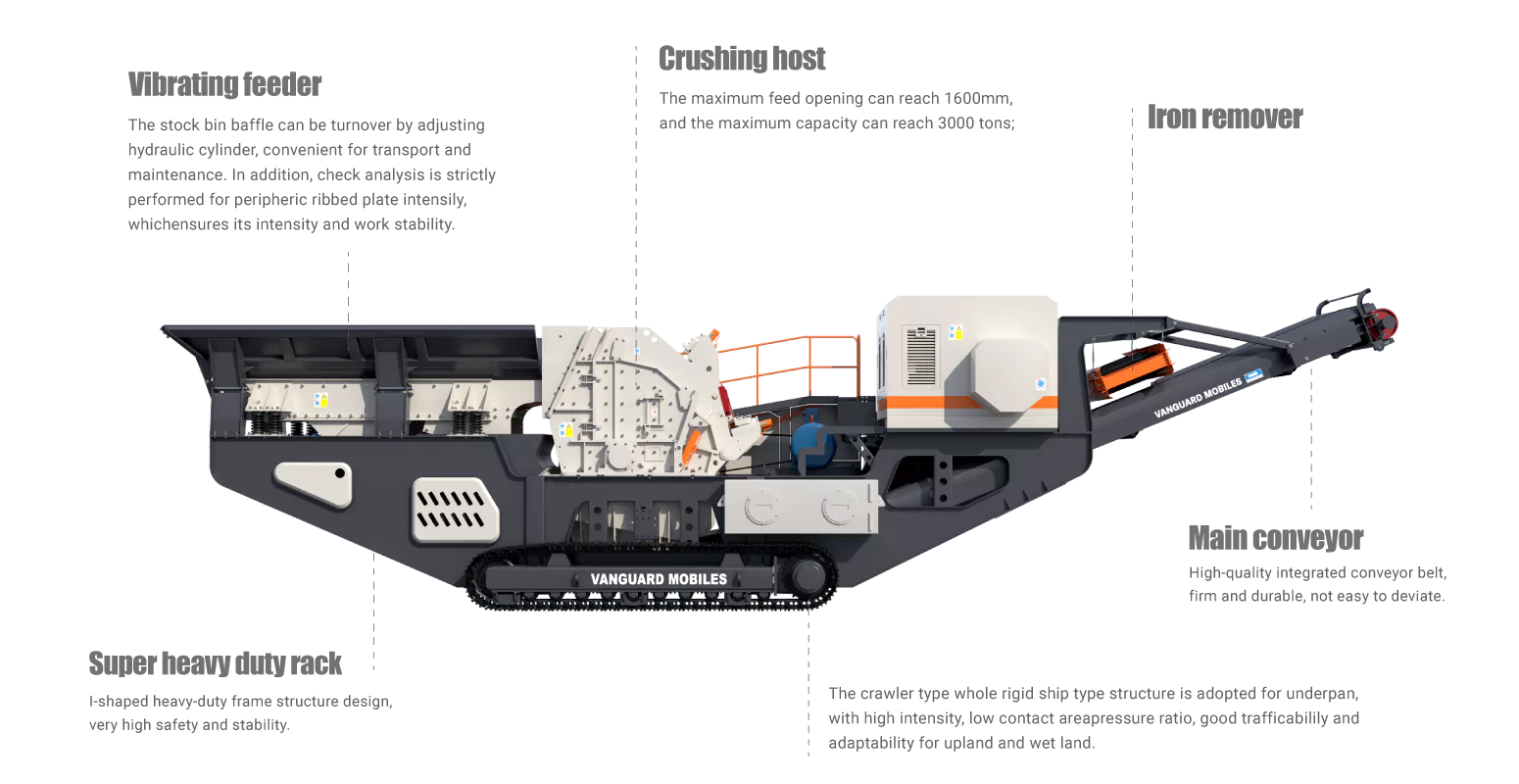

Technical Features

Tracked chassis, adapt to more terrain;flexible movement, faster and more efficient transition, saving time and maximizing revenue.

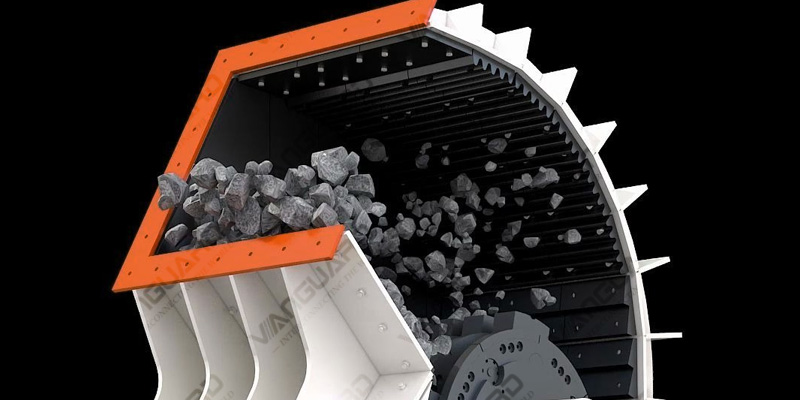

The feed inlet can be as large as 1600mm, and the output can reach 3000 tons at high time. The design of the crushing chamber conforms to the dynamic principle, which increases the throughput of materials and solves the problem of hammer breaking and clogging. It can crush wet materials and increase the output by 30% compared to similar products.

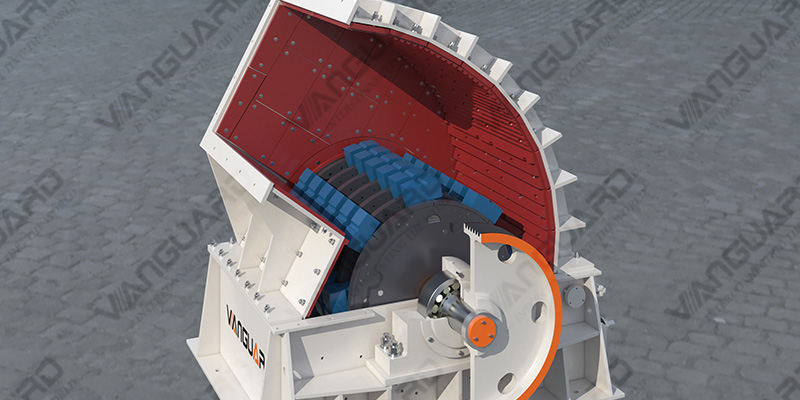

The heavy-duty hammer crusher can crush various hardness and brittle materials with a compressive strength of not less than 280Mpa and limestone with a calcium content of more than 40%. It can directly crush materials with a particle size of 600-1200mm to a coarser below 25mm at one time. material.

Which can remote control operation, it has a smaller turning radius, flexible driving in the work area, while it is maneuverable and flexibly maintaining a safe working distance.

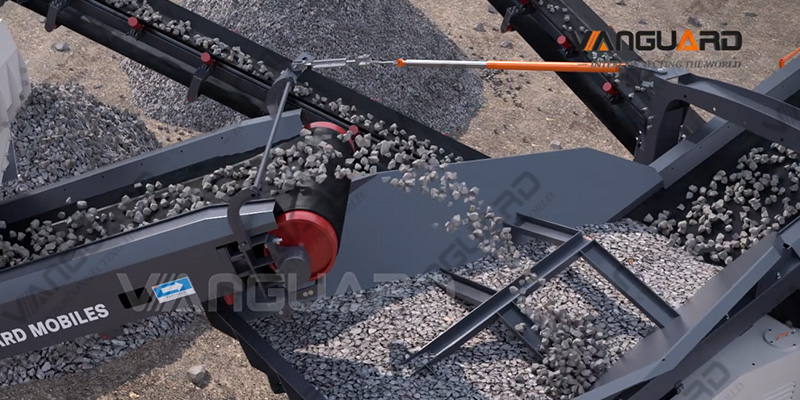

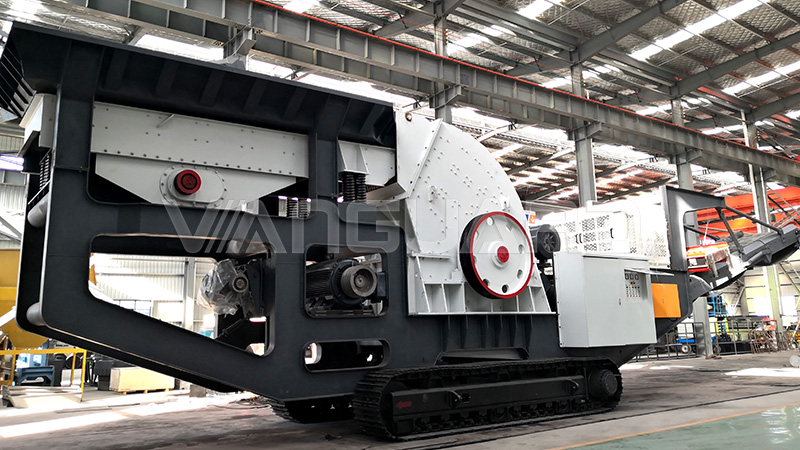

Product Gallery

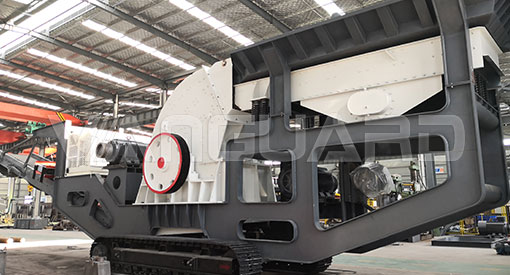

Mobile Heavy-duty Hammer Crusher

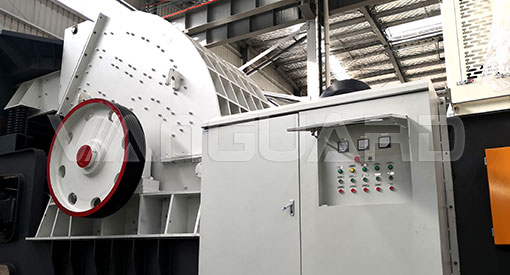

Mobile Heavy-duty Hammer Crusher

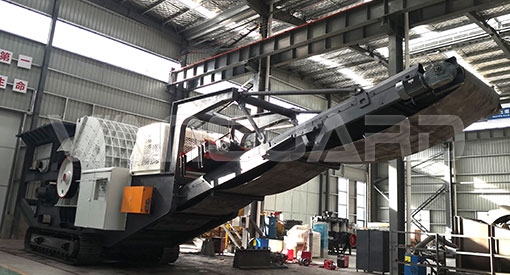

Mobile Heavy-duty Hammer Crusher

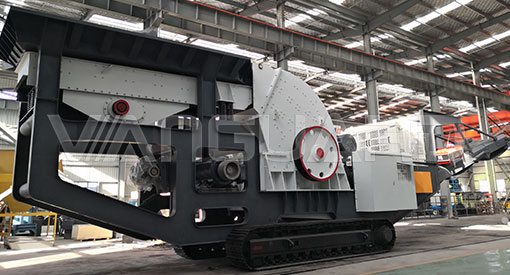

Mobile Heavy-duty Hammer Crusher

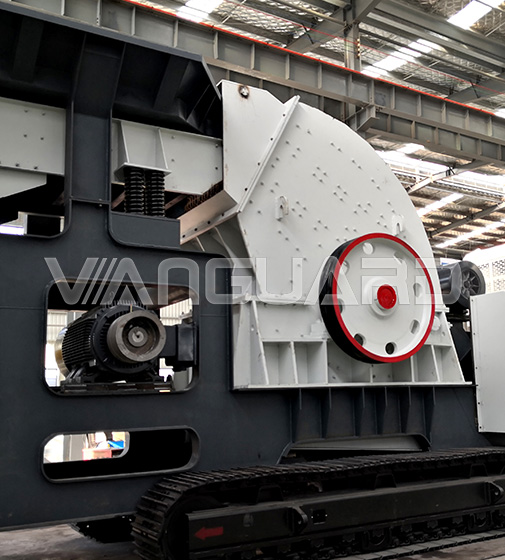

Mobile Heavy-duty Hammer Crusher
Performance parameter
Model LA-1615 LA-1512 LA-1308
Vibrating Feeder LD1245 LD1145 LD3895
Feed hopper capacity(m³) 6 5 5
Loading height(mm) 4300 4100 3900
Waste conveyor belt B1200 B1000 B800
Discharge height(mm) 3400 3200 3100
Crusher Model PCZ1615 PCZ1512 PCZ1308
Max Feed Size (mm) 750 700 600
Magnetic separator RCYD12 RCYD10 RCYD8
Diesel engine 132 106 96
Total power (kw) 350-380 300-350 162-200
Total Weight (t) 65 50 38
Transportation Dimension(mm) 15200X3200X3700 14900X3000X3600 14200x2900x3470
