  • 80-500T/H
    Capacity
  • ≤200mm
    Feed size
  • 59.5KW
    Power

VideoVideo

ParameterParameter

CaseCase

RecommendedRecommended

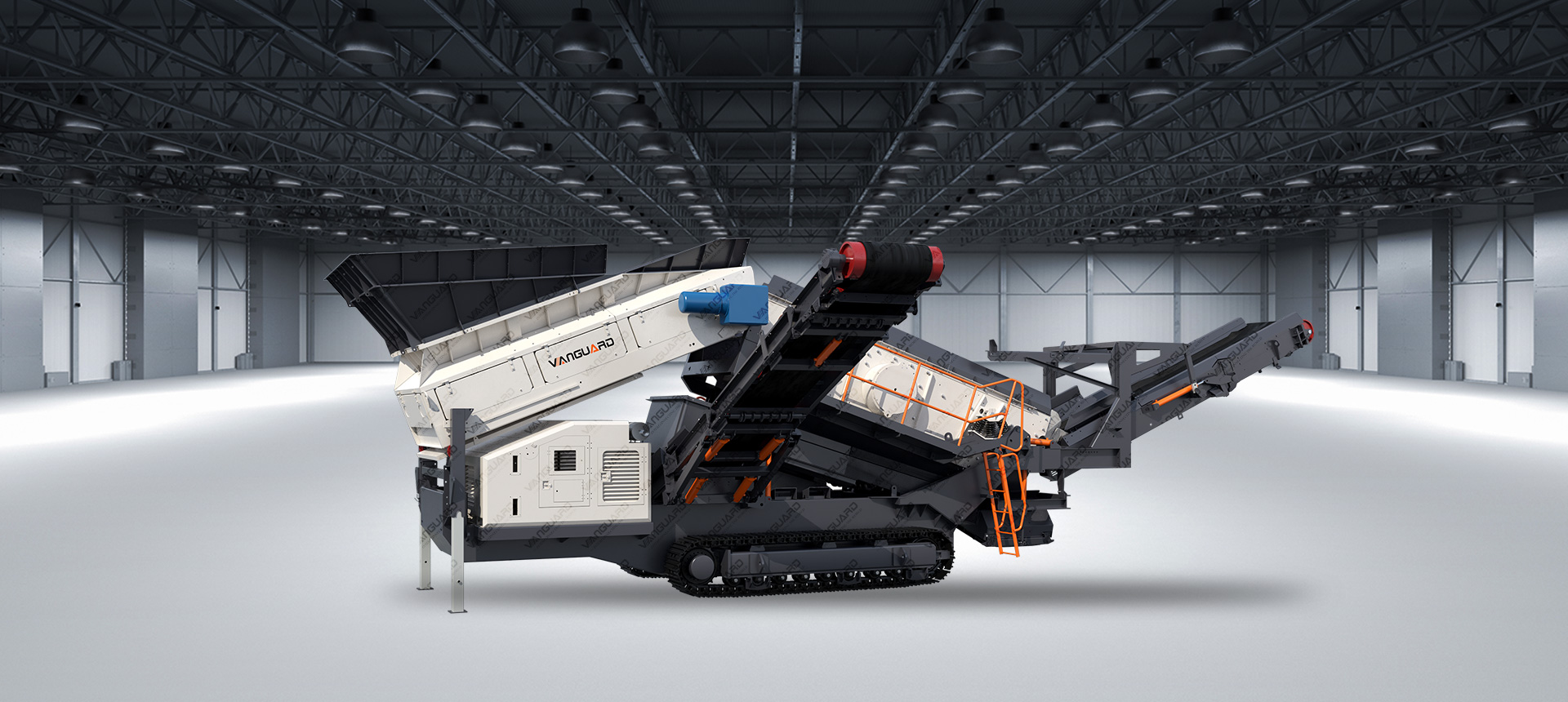

CrawlerType Mobile Heavy-Duty Screening
Vanguard Machinery Crawler Type Mobile Heavy-Duty Screening Station has extensive experience in various application conditions. Whether operating independently or as part of a production line, it can deliver high capacity and ultra-high stability. It is mainly used for sand and soil separation in quarries, surface soil treatment in the initial stage of mine construction, screening treatment of engineering waste residue and tailings, recycling of construction waste, cobblestone screening, coal mine screening, and aggregate screening.
Technical Features

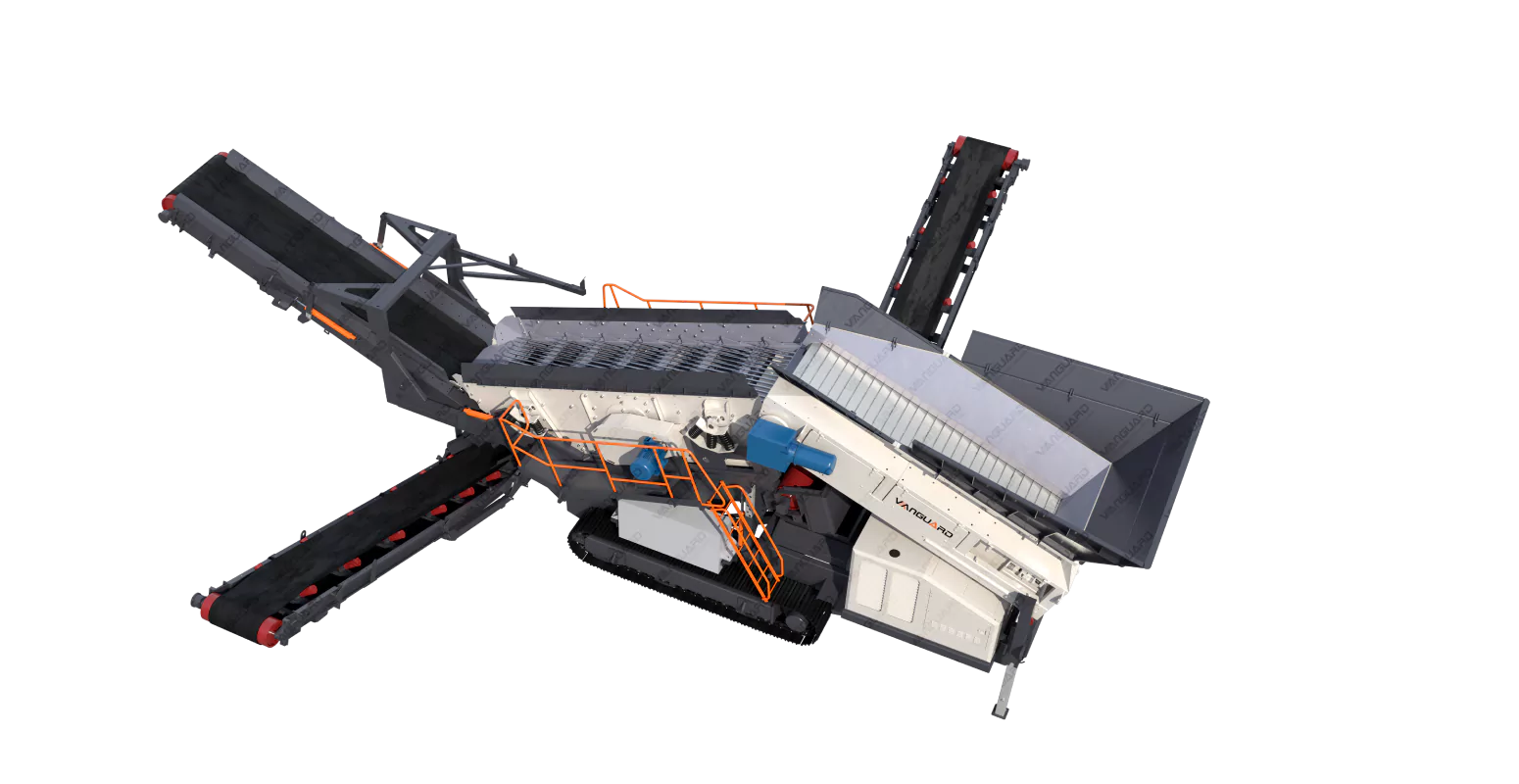

A high-performance vibrating screen is used as the main machine, with a motor or hydraulically driven vibrator generating high-frequency vibrations. The vibrations on the screen cause the material to continuously flip and loosen, allowing fine particles to pass through the mesh while larger particles are retained on the screen surface, thus achieving particle size classification. Tracked mobile re-screening stations are typically equipped with multiple layers of screens to separate aggregates of varying sizes according to user needs.

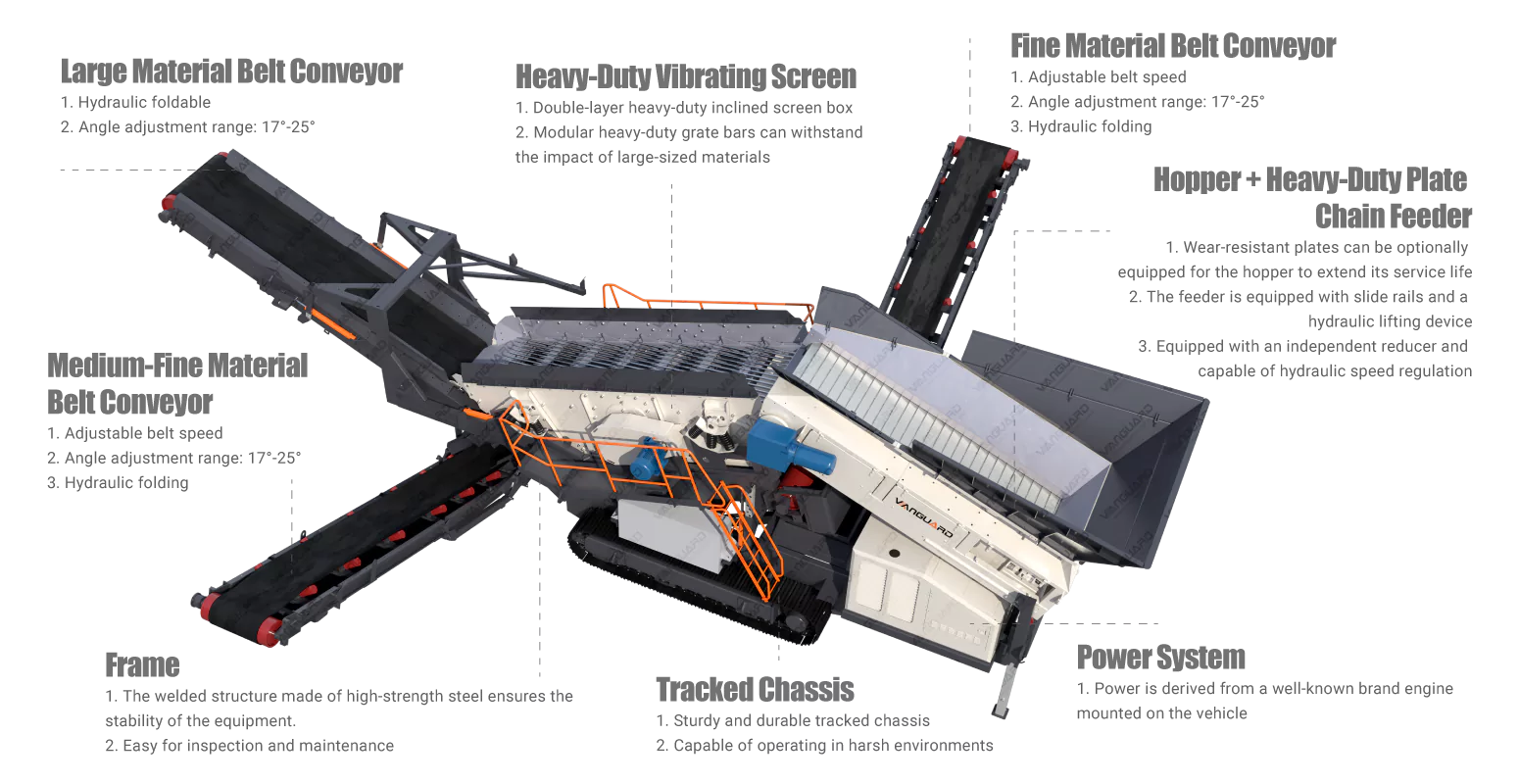

Heavy-Duty Vibrating Screen
1. Double-layer heavy-duty inclined screen box
2. Modular heavy-duty grate bars can withstand the impact of large-sized materials
Large Material Belt Conveyor
1. Hydraulic foldable
2. Angle adjustment range: 17°-25°
Tracked Chassis
1.Sturdy and durable tracked chassis
2.Capable of operating in harsh environments
Hopper + Heavy-Duty Plate Chain Feeder
1. Wear-resistant plates can be optionally equipped for the hopper to extend its service life
2. The feeder is equipped with slide rails and a hydraulic lifting device
3. Equipped with an independent reducer and capable of hydraulic speed regulation
Frame
1.The welded structure made of high-strength steel ensures the stability of the equipment.
2. Easy for inspection and maintenance
Medium-Fine Material Belt Conveyor
1.Adjustable belt speed
2.Angle adjustment range: 17°-25°
3.Hydraulic folding
Fine Material Belt Conveyor
1.Adjustable belt speed
2.Angle adjustment range: 17°-25°
3.Hydraulic folding
Power System
1.Power is derived from a well-known brand engine mounted on the vehicle
case

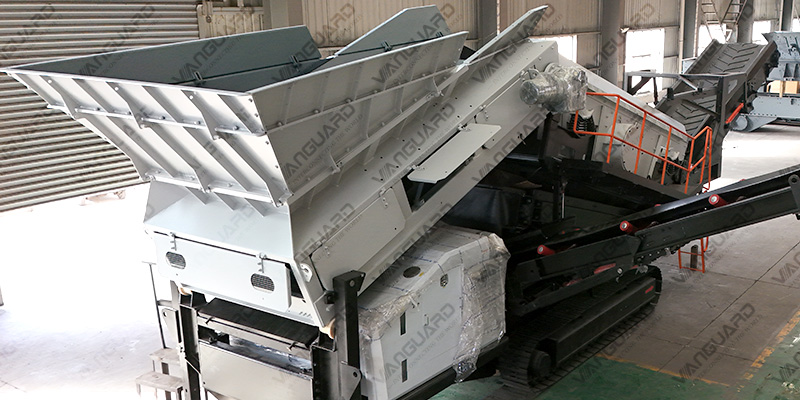

Feeding Device

It is equipped with a large-capacity hopper and a wider hopper opening to ensure optimal material flow.

Chat Online
case

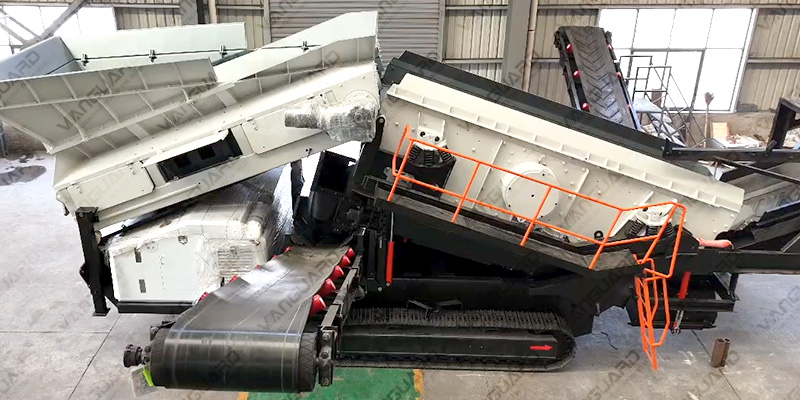

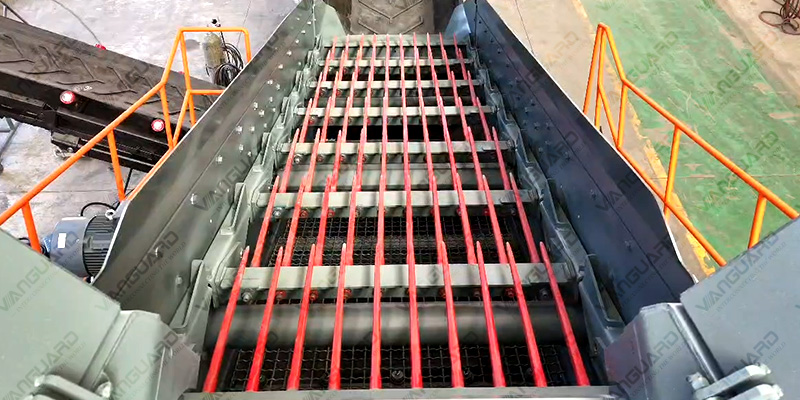

Heavy-Duty Vibrating Screen

The screen box angle, amplitude, and vibration intensity are all adjustable to meet different screening requirements.

Chat Online
case
Portable Design

Adopting a double-sided walkway design, it provides ample space, making operation and maintenance more convenient.

Chat Online
case
Well-Known Brand Engine

It features strong power, stable and reliable performance, and has experience in various complex application conditions.

Chat Online
Product Exhibition

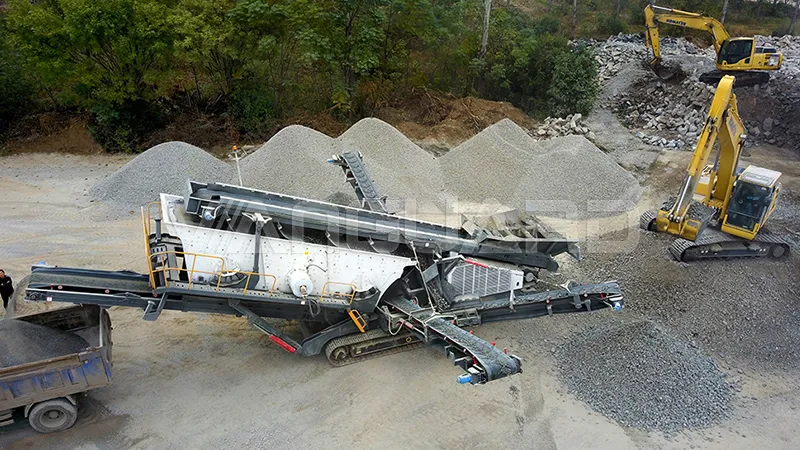

Mobile Cone Crusher
Mobile Cone Crusher

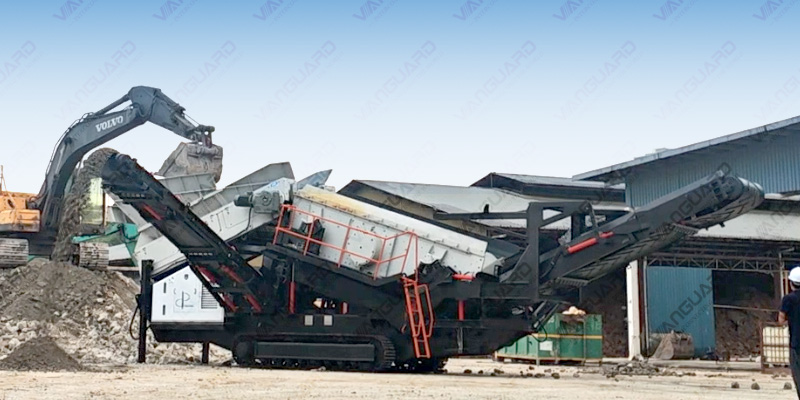

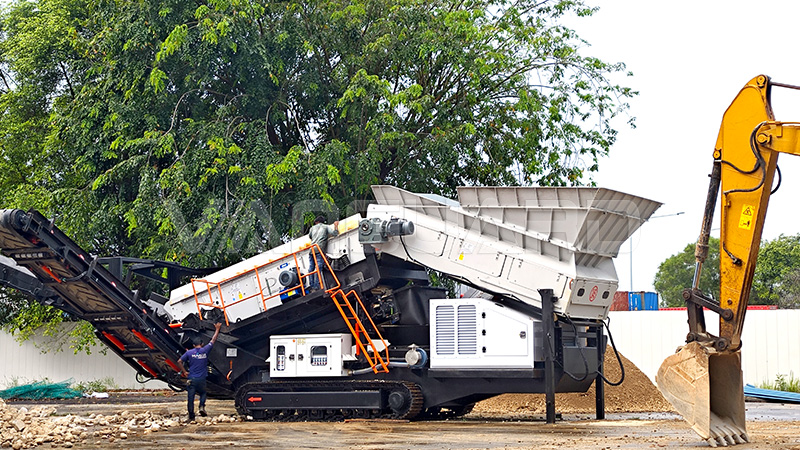

450 T/H crawler-type mobile screening plant production line in Singapore

Capacity: 450 t/h

Max. Input size: ≤600mm

Output size: 0-50 mm，50-102 mm，102 mm

Processing materials： construction waste

Project advantages： The mobile plant production line is used to crush construction waste, turning waste into treasure, in line with the concept of green building materials, one machine can be used for multiple purposes to screen various specifications of fine aggregates, the entire line installation and commissioning production only takes about 3 days, reducing the failure rate of the production line in the later stage.

Learn more
Get a quotation
Performance parameter
Item Model & Spec. Qty. Note
Plate chain conveyor Equipment BL1040 1 unit Brand: Vanguard
Motor 15KW 1 unit
Screening machine Equipment ZS1550 1 unit Brand: Vanguard
Vibration motor 7.5KW 2 unit Brand: Xinxiang Binhe
Frame Ship-type frame Plate thickness = 12-20mm 1 set Welded using Q345B
Ladder, guard, etc. Plate thickness = 6mm 1
Other components Plate thickness ≥ 8mm 1 Welded using Q345B
Hydraulic crawler chassis Track width 400mm 1 set Brand: Zhenjiang Shengde
Crawler chassis motor XZ-40000 1 set Brand: TILORMS
Heavy material conveyor Specifications B1200X5.5m/11KW 1 Brand: Qingdao Global
Drive type K series reducer transmission 1
Medium and fine material conveyor Specifications B800X8m/5.5KW 1 Brand: Qingdao Global
Drive type K series reducer transmission 1
Fine material conveyor Specifications B800X8m/5.5KW 1 Brand: Qingdao Global
Drive type K series reducer transmission 1
Transfer conveyor Specifications B1200X4.5m/7.5KW 1 Brand: Qingdao Global
Drive type K series reducer transmission 1
Electrical cabinet dust blower CX-75SA 0.4KW 1 Brand: Quanfeng Environmental Protection
Dual power system Generator set 90KW   1 Brand: Cummins
Electrical system Electrical Control Cabinet The main engine has a soft starter, and the main electrical components are Delixi or Omron brands. 1 set The electronic control system is suitable for environments with an altitude of no more than 2000 meters and a temperature of -20°C to +40°C.
Cable set Motor power cable set for on-board equipment 1 set
Hydraulic system Belt folding cylinder
1 set
Hydraulic pump, valves, station, and pipe accessories Load-sensing piston pump, electro-hydraulic proportional valve travel manifold 1 set
Travel remote control HTD30S2 1 set

Dimensions (L × W × H) 15015×12745×4700mm
Subject to the actual design drawing
Transport dimensions (L × W × H) 14775×3140×3610mm
Total weight Approximately 33 tons

Installed power Total power: 59.5 kW
Excluding generator set and pump station power
