CrawlerLA2100X3 Inclined Screening Machine

Chat Online

+86 13333811995

600T/H

Capacity
≤150mm

Feed size
一

Power

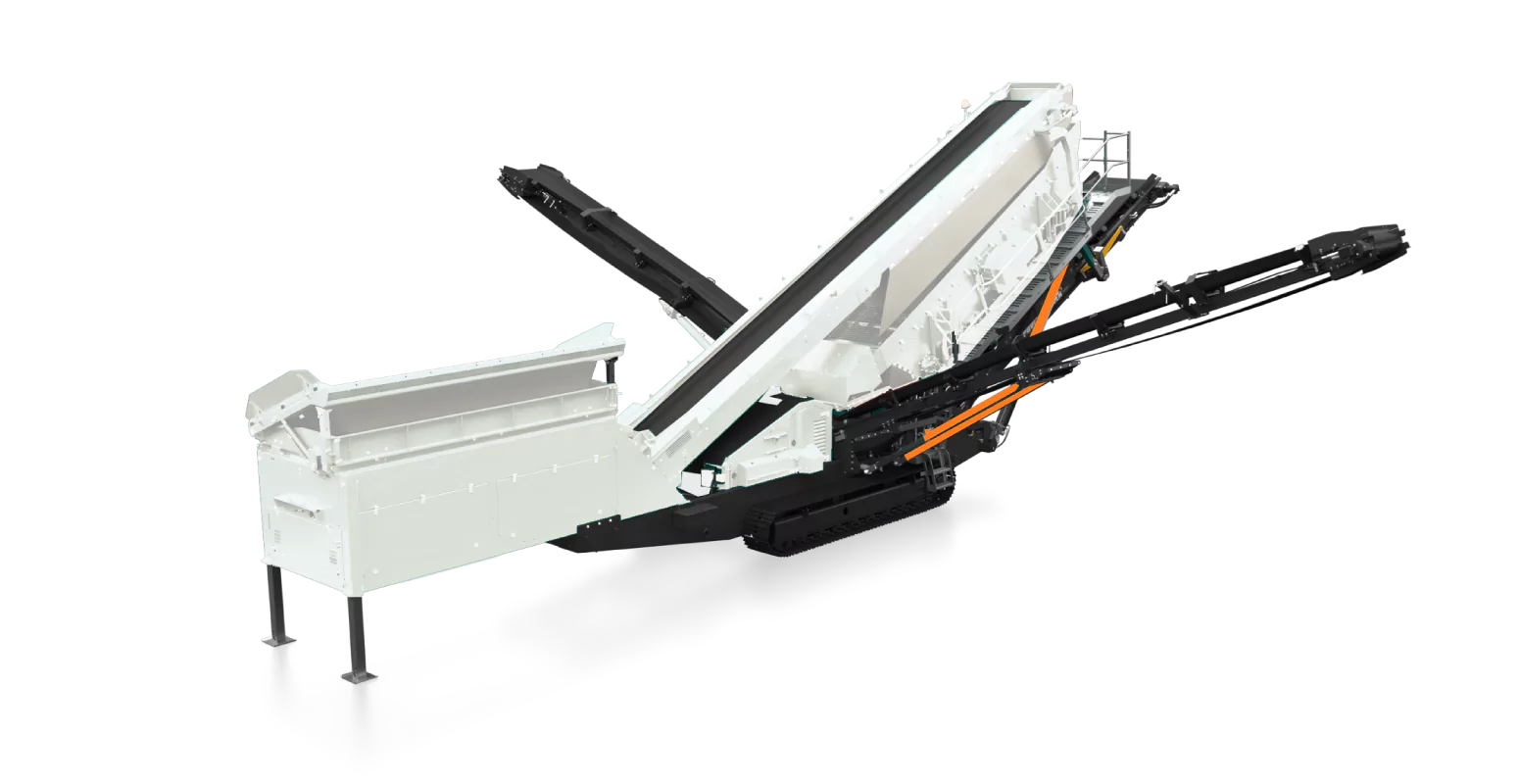

CrawlerLA2100X3 Inclined Screening Machine

Vanguard Machinery LA2100X3 Wheeled Trommel Screen is designed to offer unrivalled production throughput and application flexibility. The robust design with optional features such as a heavy duty tipping grid or double deck vibrating grid make the LA2100X3 the most versatile trommel on the market today.

Technical Features

Crawler mobile crushing station is a series of rock and construction waste crushing equipment, which greatly expands the concept of coarse and fine crushing. Its design concept is to stand on the customer's standpoint and eliminate the obstacles to the crushing operation brought to the customer by the crushing site, environment, complicated basic configuration and complicated logistics as the primary solution.

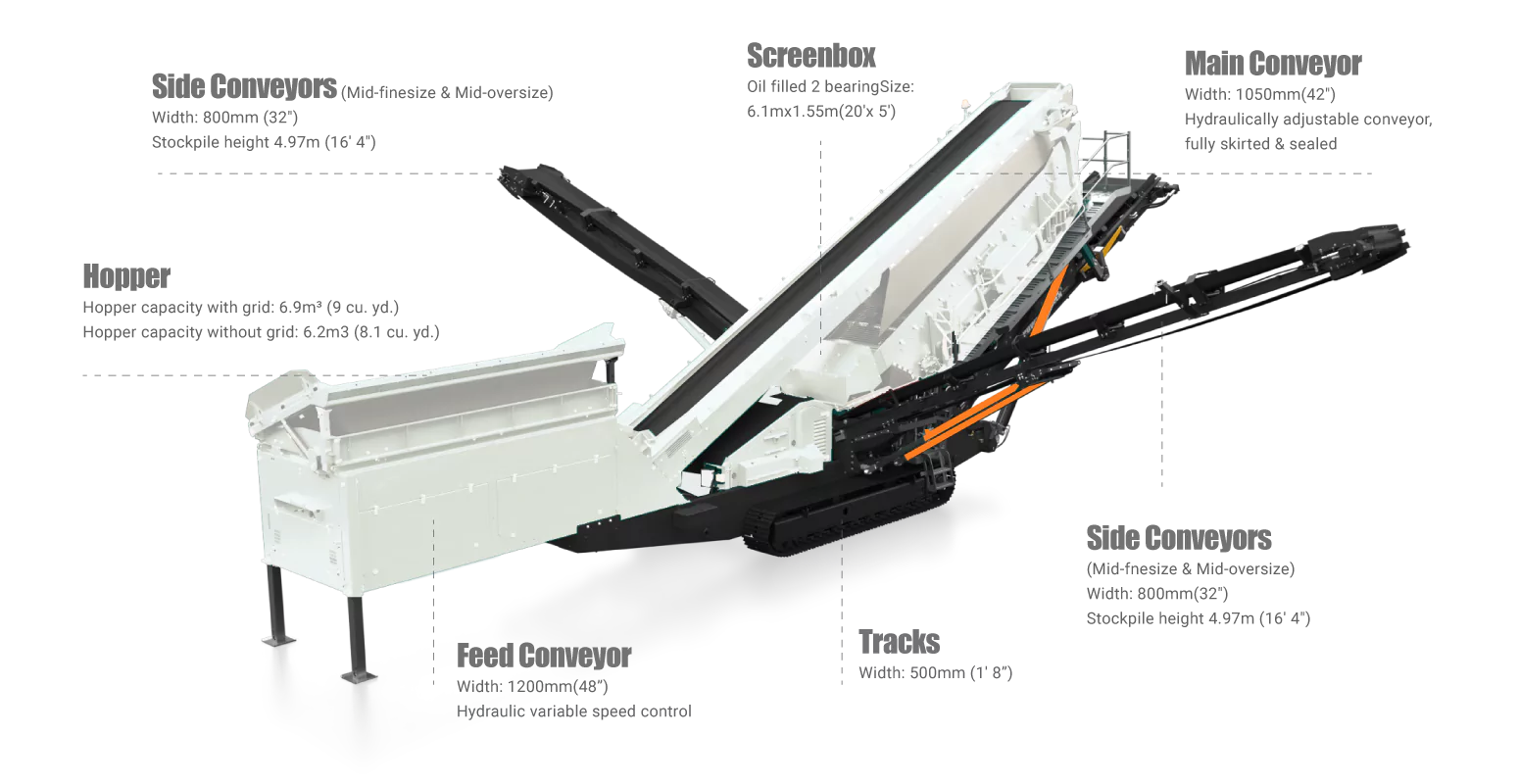

Feed Conveyor

Width: 1200mm(48”)
Hydraulic variable speed control

Feed Conveyor

Width: 1200mm(48”)
Hydraulic variable speed control

Conveyors

Tracks

Width: 500mm (1' 8”)

Tracks

Width: 500mm (1' 8”)

Main Conveyor

Width: 1050mm(42")
Hydraulically adjustable conveyor,
fully skirted & sealed

Main Conveyor

Width: 1050mm(42")
Hydraulically adjustable conveyor, fully skirted & sealed

Hopper

Hopper capacity with grid: 6.9m³ (9 cu. yd.)
Hopper capacity without grid: 6.2m3 (8.1 cu. yd.)

Hopper

Hopper capacity with grid: 6.9m³ (9 cu. yd.)
Hopper capacity without grid: 6.2m3 (8.1 cu. yd.)

Conveyors

Side Conveyors

(Mid-finesize & Mid-oversize)
Width: 800mm (32")
Stockpile height 4.97m (16′ 4")

Side Conveyors

(Mid-finesize & Mid-oversize)
Width: 800mm (32")
Stockpile height 4.97m (16′ 4")

High-Capacity Screening System

The processing capacity is up to 600 tons per hour (depending on the feed size, screen size, and feed).

Chat Online

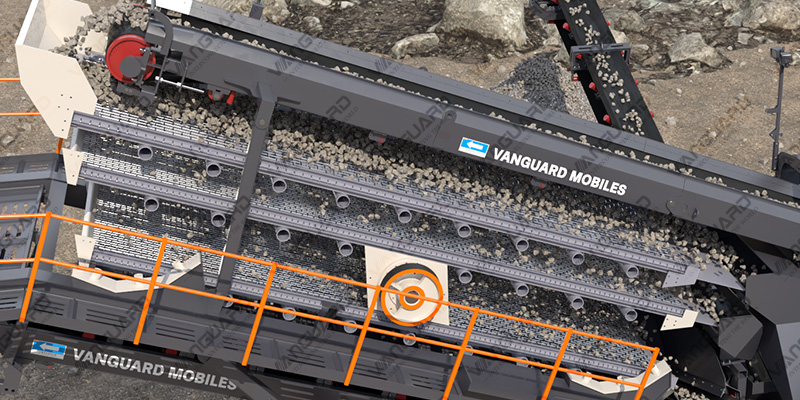

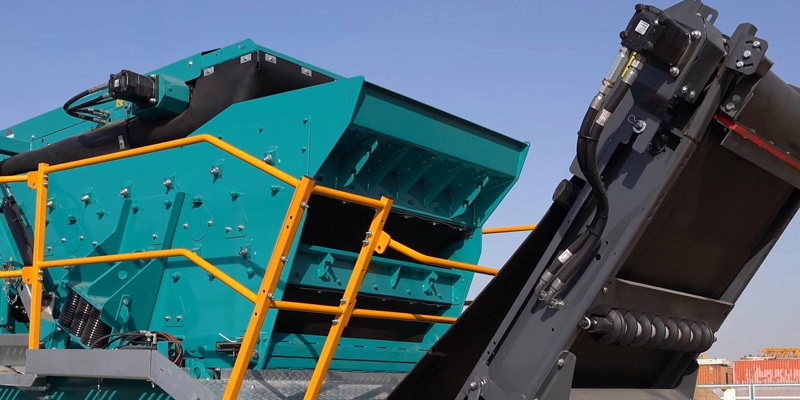

Adjustable Inclined Screen Box

Heavy-duty single-shaft inclined screen box, with adjustable angle, speed and amplitude. The screen access channel facilitates screen replacement.

Chat Online

High-Efficiency Hydraulic Cooling

High-performance hydraulic system - Both the cast iron hydraulic pump and hydraulic motor are equipped with hydraulic cooling devices. The engine is arranged transversely for easy access and maintenance.

Chat Online

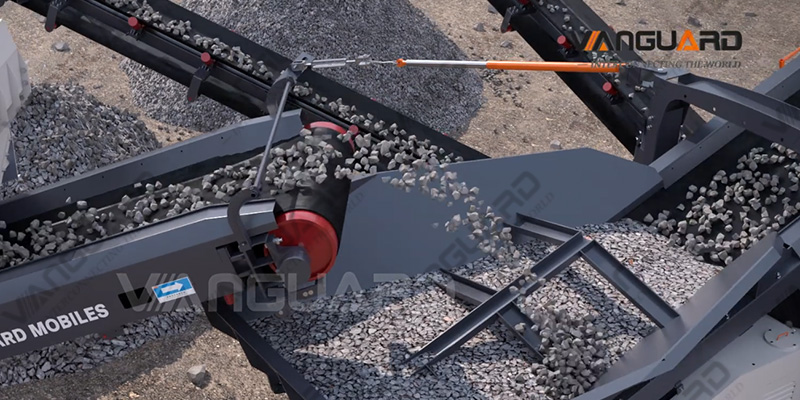

Foldable Conveyor Mechanism

Hydraulic folding conveyor for easy transportation; with descent control for the fine material conveyor, facilitating the replacement of the bottom screen.

Chat Online

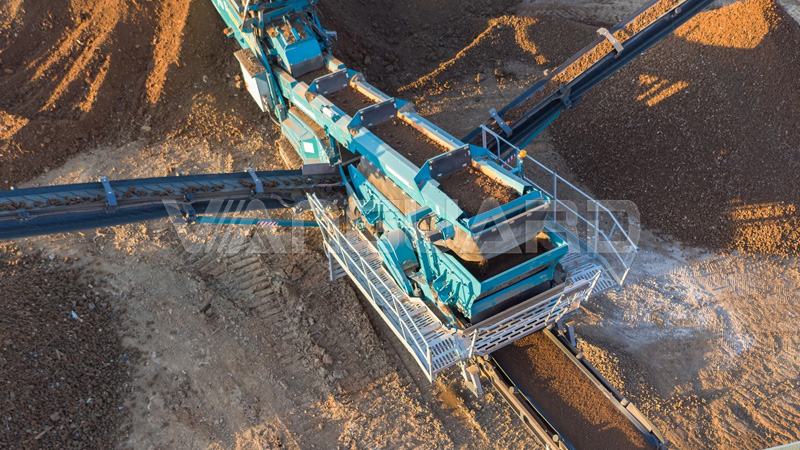

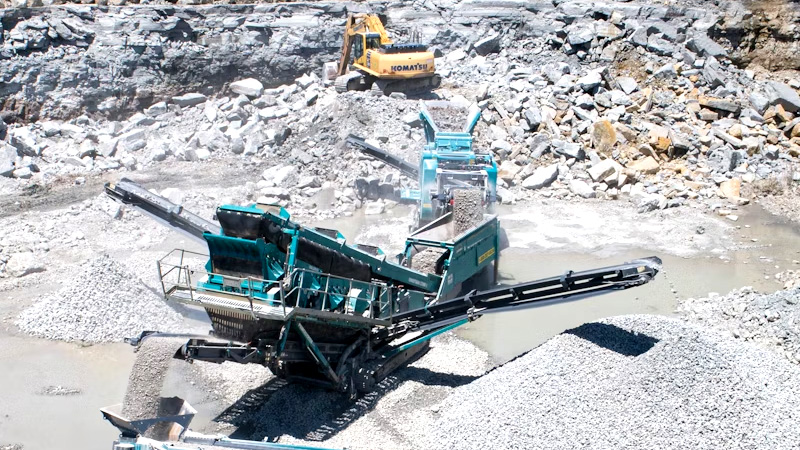

Product Exhibition

Performance parameter

Product Specifications		Hopper (with grid screen) Crawler	Hopper (with double-layer vibrating grid screen) Crawler
Weight		37, 400kg	41,400kg
Transport Dimensions	Length	19.06m	18.89m
	Width	3.0m	3.0m
	Height	3.47m	3.6m
Operating Dimensions	Length	19.47m	19.28m
	Width	18.3m	18.3m
	Height	6.29m	6.29m
Screen Box Unit		6.1×1.55m	6.1×1.55m
Power Unit		Diesel/Hydraulic	Diesel/Hydraulic
