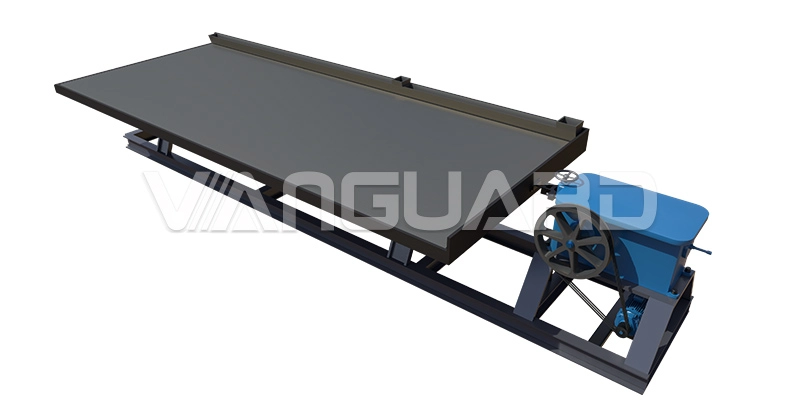

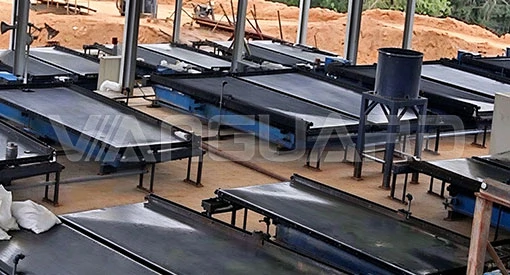

Product introduction：VANGUARD 6-S Shaking Table is designed for gravity separation of gold, tungsten, tin and other heavy minerals, featuring high separation efficiency, high recovery, adjustable operation and reliable performance.
| Model | Stroke(mm) | Frequency | Transverse slope of Deck(°) | Motor power(kw) | Deck size(mm) | Overall Dimension(mm) | Deck weight(kg) |
| 6-s | 10-30 | 240-360 | 0-5 | 1.1 | 152x1825x4500 | 5454x1825x1242 | 1012 |
| Raw material | Feeding size(mm) | Feeding density(%) | Water consumption(t/h) | Capacity(t/h) | |||
| Coarse sand | 2.0-0.5 | 20-30 | 0.7-1.0 | 1.0-1.8 | |||
| Fine sand | 0.5-0.074 | 18-25 | 0.7-1.0 | 0.5-1.0 | |||
| Slime | -0.074 | 15-20 | 0.4-0.7 | 0.3-0.5 | |||
