Maintenance Overview

I have seen too many stoppages, and eight of ten are the same neglect: bolts left loose, points left unlubricated, passages left uncleaned. The costliest was a Cebu impact crusher whose blow bar snapped, 8 hours down — that day's lost output would have bought half a year of wear parts. Make the lists below a habit and downtime drops sharply. Three things matter: track tension, lube points, screens and electrics.

Daily Checklist

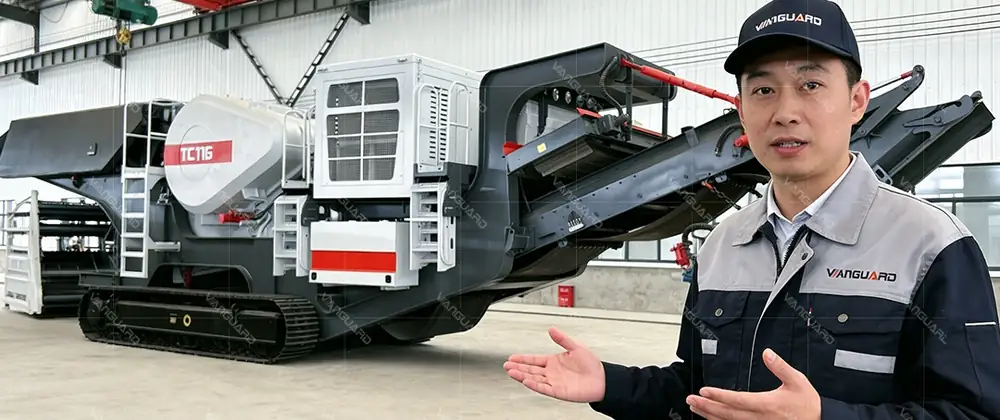

Crawler mobile crusher maintenance on site

- Walk-around before start: track, lines, bolts for anything abnormal; do not skip it, this round stops half the surprises. - Check oil and water: hydraulic, diesel, coolant within marks. - Listen: crusher, screen, belts for odd noise; a dulling sound often arrives before the alarm. - Clear oversize and debris from feed and chamber. - After rain, check cabinets and junction boxes for moisture; dampness is the number-one cause of electrical trips.

Weekly Checklist

- Re-tighten key bolts: swing jaw, impact rack, screen isolators; vibratory equipment loosens its own bolts.- Check track tension and roller wear; adjust if needed, too loose drops links, too tight eats rollers.- Grease lube points: bearings, pins, track rollers; use the specified grade, no mixing.- Check screen tension and damage, clear blockage; one torn screen breaks gradation at once.- Clean magnetic separator and return-belt buildup; iron in the chamber hurts more than clogging.

Monthly Checklist

- Sample hydraulic oil cleanliness; change or top filters; dirty oil is the silent killer of servo valves. - Trend main-shaft and bearing temperature; act early, do not wait for burnout. - Check chamber liner/blow-bar wear by scale; rotate blow bars to full life before replacing. - Calibrate electrical protection: overload, phase loss, ground; unchecked for three months it either trips false or fails to trip. - Back up control parameters; count wear-part stock so books match bin.

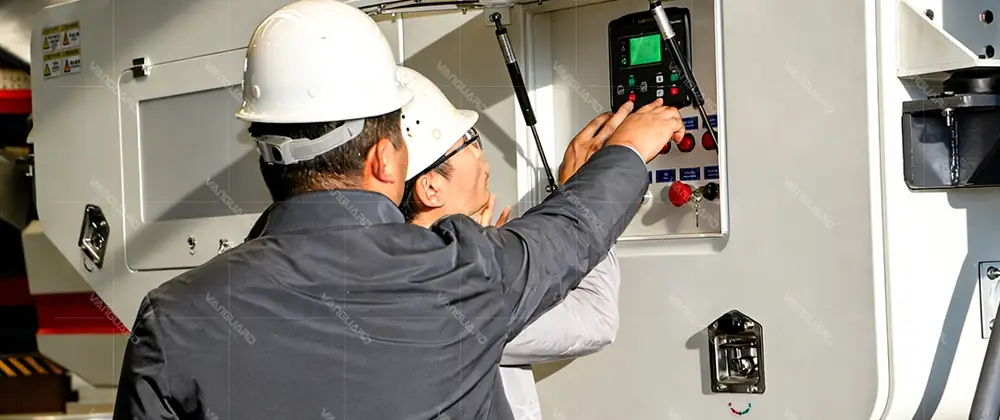

Hydraulic and electrical system inspection

Fault Quick Reference

Fault	Likely cause	Action
Low output	Uneven feed, clogged screen, worn liner	Even feed, clear screen, adjust/replace liner
Crusher noise	Loose bolt, foreign object, bad bearing	Tighten, clear chamber, replace bearing
Track no move	Low oil, stuck valve, motor fault	Refill, clean valve, inspect motor
Electrical trip	Moisture, bad ground, overload	Dry, check ground, reduce load
High return	CSS too large, torn screen	Reduce CSS, replace screen

Wear Parts and Lubrication

- Jaw: teeth plate, toggle, side liner; replace by scale, both sides together for balance, one-side swap causes uneven wear. - Impact: blow bars, impact plate, liner; rotate bars to full life, do not wait for the snap. - Screen: mesh, springs; replace on damage to avoid chain failure; spare mesh is far cheaper than a spare machine. - Track: links, rollers, tension cylinder; keep moderate tension, a daily glance beats a monthly repair. - Lubrication: central pump on timer, denser in rainy season; specified grease only, mixed grades clot and block the pump.

Life Extension

- Even feeding outperforms slam-feeding and spares liners; do not pile the hopper too high. - Pre-screen high clay to keep chamber clear and cut wear; the cheapest single move. - Raise cabinet protection to IP55 before rains; one dry day saves a stop, do not wait for the trip. - Stock two months of wear parts; slow sea resupply won't bite; confirm key parts can fly. - Keep a run log: output, oil temp, part consumption, downtime cause; act on trends, cheaper than firefighting.
