Jaw Crusher
Feed size
0-1020mm
Capacity
1-1100t/h
Power
5.5-280kw

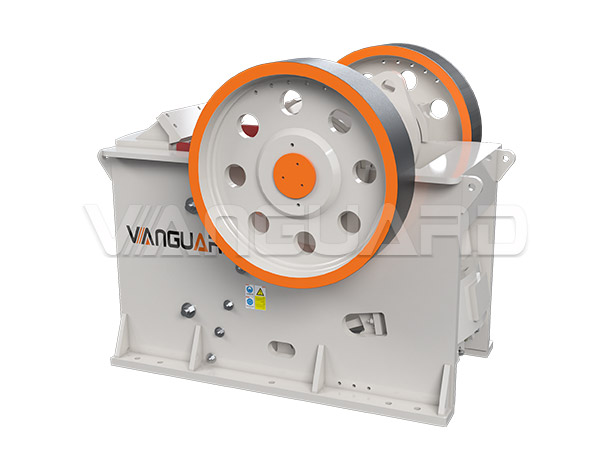

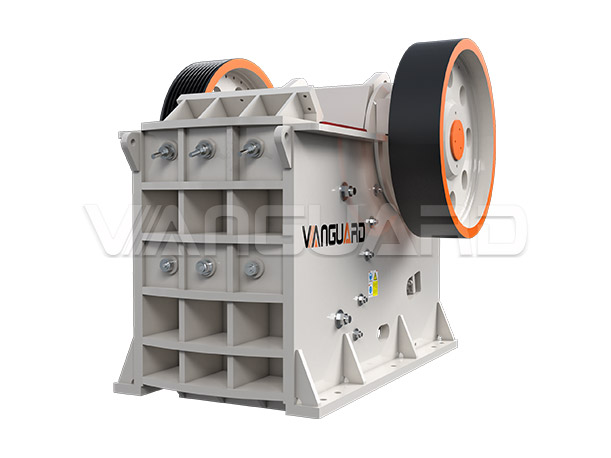

PE/PEXJaw Crusher

Product introduction:This jaw crusher could be widely used in mining smelting building material highway railway water conservancy and chemical industries which can crush varieties of materials with a compressive strength no more than 320MPa. The PE series is used for coarse crushing while PEX series for medium and fine crushing.

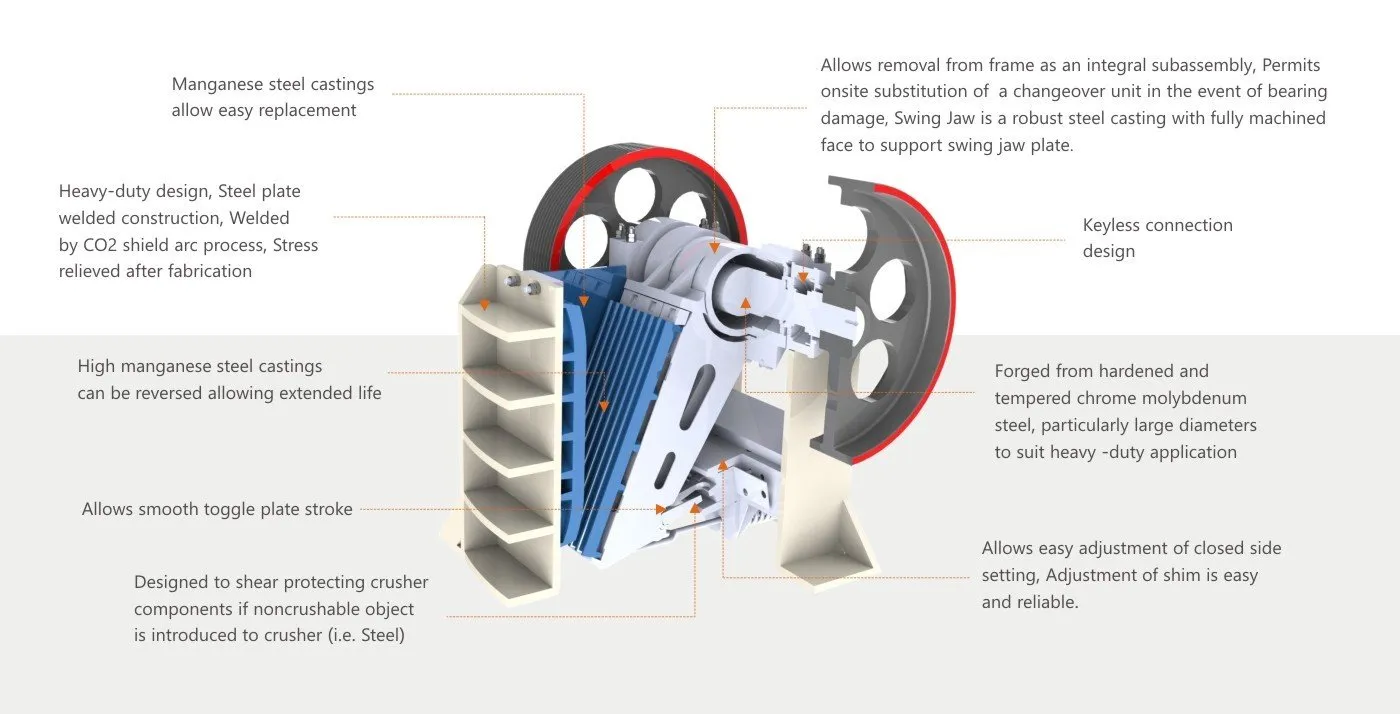

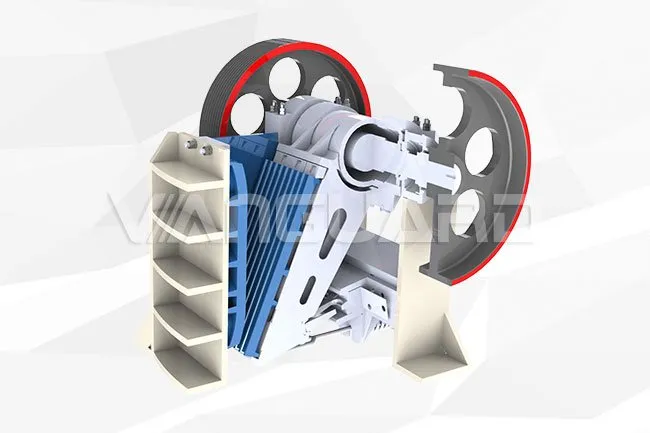

Technical Features

● VANGUARD's PE Jaw Crusher is developed based on century-old accumulations. So performances of PE Jaw Crusher is totally reliable.
● The elbow plate designed by VANGUARD can realize automatic fracturing and then stop the jaw crusher thus avoiding the damage of the entire machine and guaranteeing the production safety.
● When materials which cannot be crushed fall into the jaw crusher and the load of crushing machine exceeds the normal level
● very PE Jaw Crusher was to precise processed to guarantee the eccentric shaft to possess sufficient strength and rigidity.

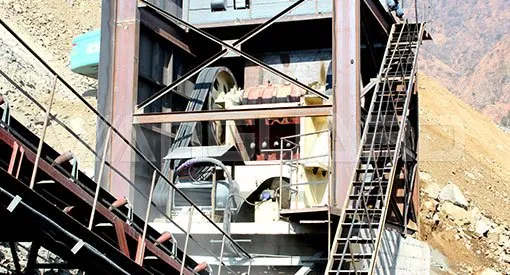

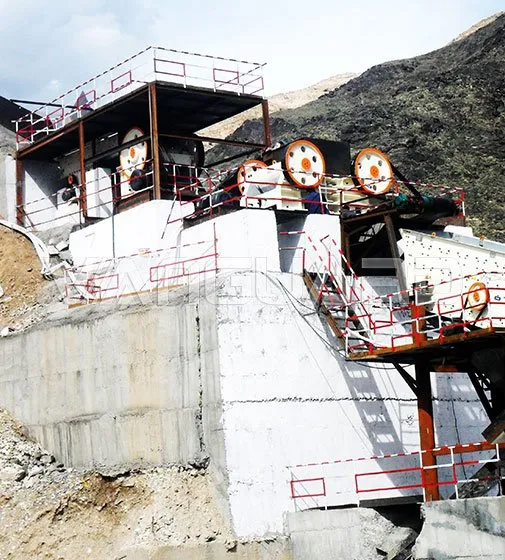

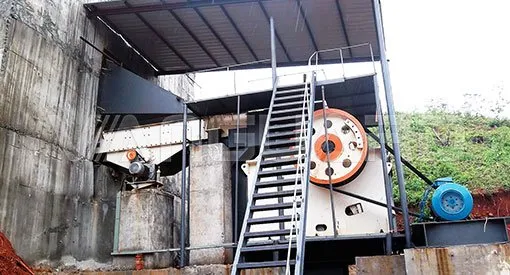

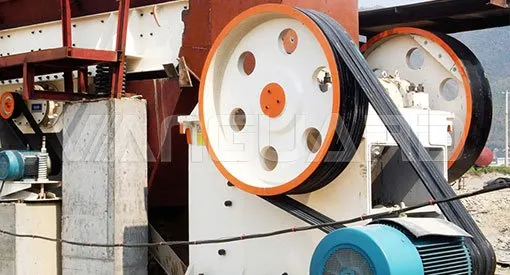

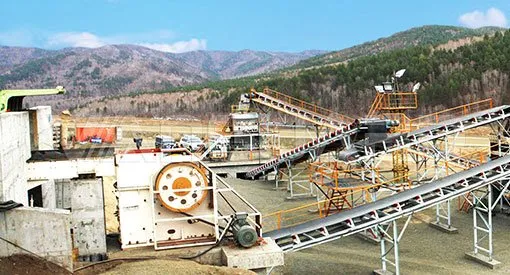

Product Gallery

Performance parameter

Model

Size of Feed

Opening(mm)

Max.Feeding Size

(mm)

Adjustable Size of

Discharge Opening(mm)

Capacity

(t/h)

Power

(kW)

PE150×250

150×250

125

10-40

1-3

5.5

PE150×750

150×750

125

18-48

8-25

15

PE250×400

250×400

210

20-60

5-20

15

PE400×600

400×600

340

40-100

16-65

30

PE500×750

500×750

425

50-100

45-100

55

PE600×900

600×900

500

65-160

60-160

75

PE750×1060

750×1060

630

80-160

110-320

110

PE800×1060

800×1060

640

130-190

130-330

110

PE900×1200

900×1200

750

95-210

220-450

132

PE1000×1200

1000×1200

850

200-300

280-560

160

PE1200×1500

1200×1500

1020

150-300

400-800

220

PE1500×1800

1500×1800

1200

210-360

520-1100

280

PEX250×750

250×750

210

25-60

13-35

22

PEX250×1000

250×1000

210

25-60

16-52

30

PEX250×1200

250×1200

210

25-60

20-65

37

PEX300×1300

300×1300

250

20-90

30-105

55

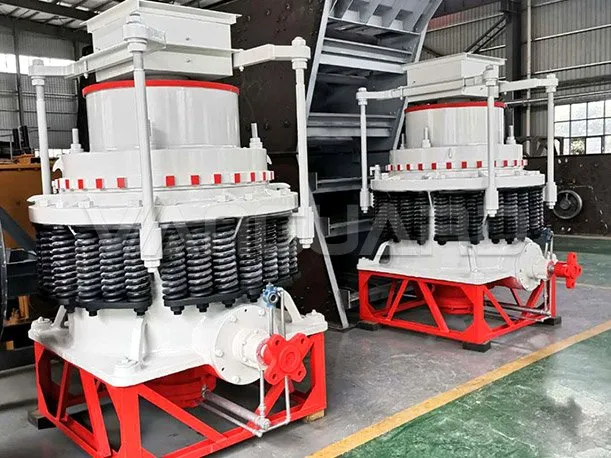

Similar Recommended
