Series Sand Making Machine Crusher
Feed size
0-50mm
Capacity
70-640t/h
Power
150-440kw
5XSeries Sand Making Machine Crusher

Product introduction:5X series new sand making machine (centrifugal impact crusher) is suitable for medium and fine crushing all kinds of ores and rocks with different hardness such as bauxite quartz sand oxide perlite basalt and other high hardness materials.

Technical Features
  • Optimized Impeller
  • Hydraulic Device
  • Split-Type Structure
  • Brand New Feed Mode
  • Digitalized Processing
  • ● Through systematic mechanical analysis and verification VANGUARD optimized the structures of the impeller and vulnerable parts.

    ● Compared with the traditional sand makers 5X Sand Maker obviously increases the material throughput and ratio of crushing and enhances the working efficiency by 30%-60%.

    ● The wear costs of vulnerable parts reduce by more than 40%.

  • ● In consideration of the maintenance and part replacement during the production of the sand maker VANGUARD introduced a semi-automatic hydraulic system.

    ● Users can open the top cover of the machine to start the following operations by pressing a button.

    ● So this system greatly saves labor costs and enhances service efficiency.

  • ● We found that some spare parts like the periphery guard board and impact block always wear terribly at some specific points based on the actual situations of production.

    ● To avoid this phenomenon VANGUARD adopts the split-type structure when designing quick-wear parts which not only greatly extends the service life of quick-wear parts but also reduces their using costs a lot.

  • ● In consideration that customers may have two production demands (i.e. sand making and shaping) which require the switch between central feeding and fall feeding

  • ● There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting bending planing milling and paint spraying are all controlled numerically.

    ● The machining precision is high especially for the core parts.

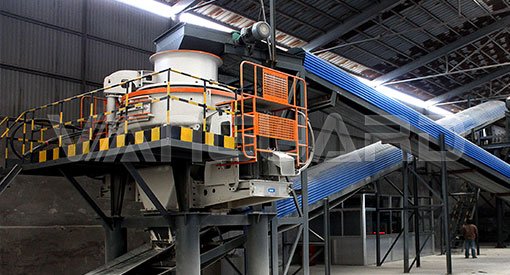

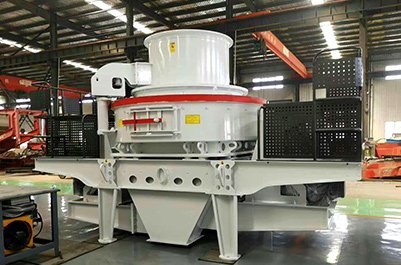

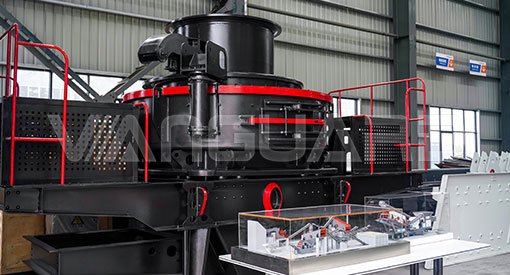

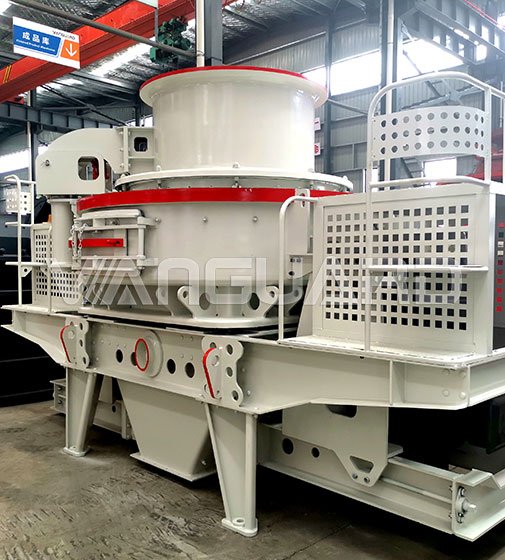

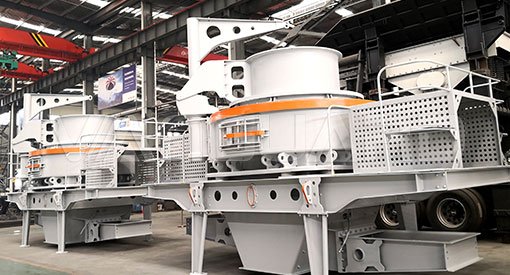

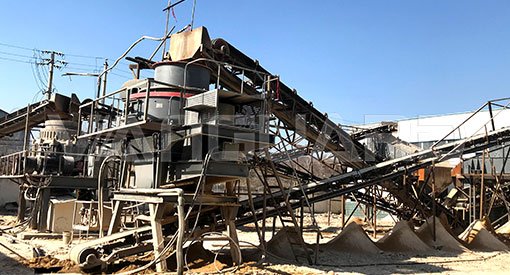

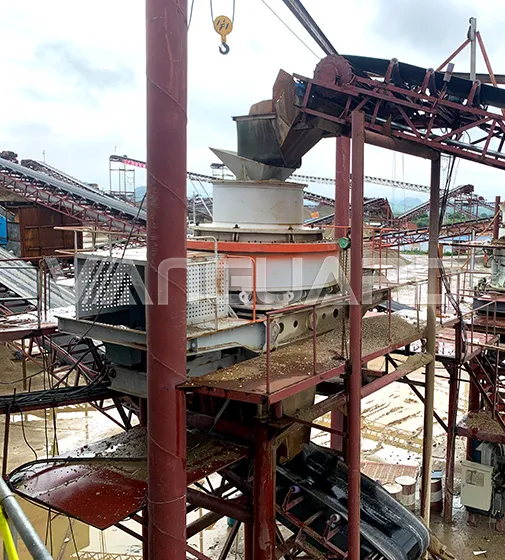

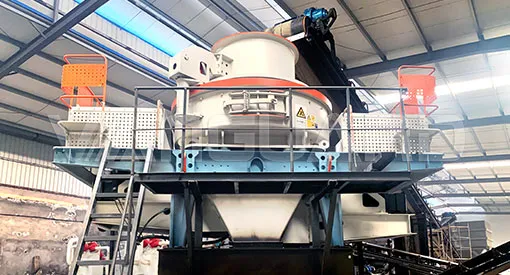

Product Gallery

Performance parameter

Model

5X7615

5X8522

5X9532

5X1145

Capacity (t/h)

Central Feeding
with Circular Cascade Feeding


150~280

240~380

350~540

500~640

Fully Central Feeding

70~140

120~200

180~280

250~360



Max. Feeding Size (mm)



Soft Material

<35

<40

<45

<50

Hard Material

<30

<35

<40

<45

Rotation Speed (r/min)

1700~1900

1500~1700

1300~1510

1100~1310

Double Motor Power (kW)

150

220

320

440

Overall Dimension LxWxH (mm)

4100×2300×2300

4140×2500×2700

4560×2600×2900

5100×2790×3320

Power Supply

380V,50Hz

Double Oil Oumps Motor’s Power (kW)

2x0.31

Thin Oil Lubrication Station

 Safty Assurance

Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure;

Air cooling system /water cooling system available; preheating-start engine adopted.

Power of Oil Tank Heater(kW)

2
