Series Sand Washer
Feed size
≤10mm
Capacity
20-150t/h
Power
7.5-18.5kw

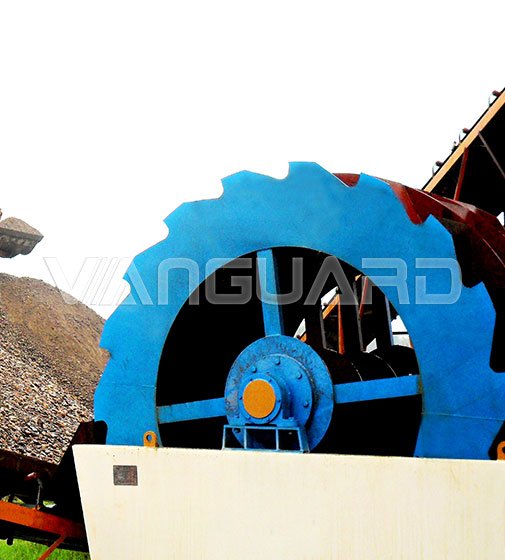

XSDSeries Sand Washer

Product introduction：The transmission part of XSD Sand Washing Machine is separated from water and sand and the failure rate is much lower than other sand washing machines. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It has the characteristics of reasonable structure large capacity and low power consumption. It is an ideal sand washing equipment in sand and stone industry.

Application field：
Get a free quote
Service and support Dealer query Purchase accessories
info@vanguardtec.com
XSD Series
Technical Features
  • Large Capacity
  • Simple Structure
  • Dewatering And Grading
  • Long Service Life
  • Higher Precision

  • ● The capacity of a XSD Sand Washer can reach 180t/h which satisfies most sand washing requirements.

    ● The sand-washer is of small investment and low power consumption. So the production cost can be saved a lot.

  • ● The XSD Sand Washer is of simple and reasonable structure.

    ● The impeller drive bearing device is separated from the water and materials exposed to water.

    ● The new sealing structure and totally enclosed oil bath-type transmission device greatly avoid the occurrence of bearing damages caused by water soaking sand and pollutants.

  • ● The XSD Sand Washer possesses washing dewatering and grading functions. When working the aggregate will grind mutually under the driving of impeller to remove the sundries covering on the aggregate surfaces and destroy the water vapor layer covering the sand.

  • ● XSD Sand Maker has good structural layout and effective sealing design allowing it to operate for a long term without maintenance (i.e. it is durable.).

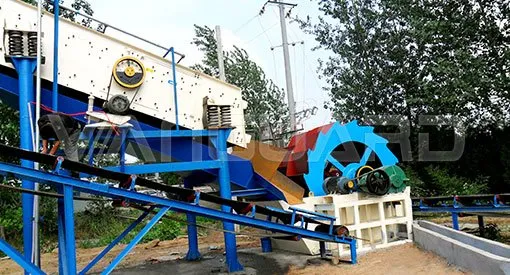

    sand washer plant

  • ● VANGUARD has dozens of CNC (Computer numerical control) machine production lines. From steel plates' cutting bending planning to final painting all steps can be controlled numerically.


Product Gallery

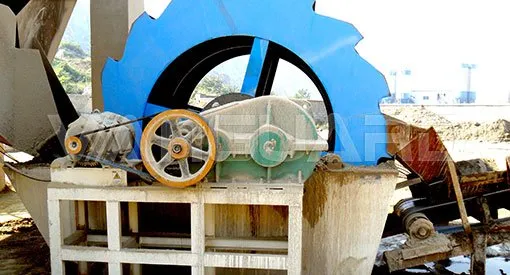

sand washer machine
sand washer machine

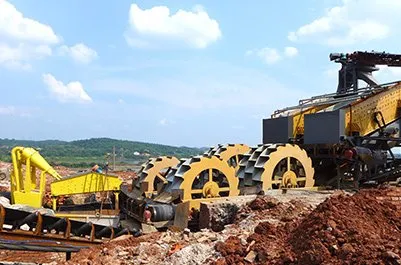

sand washer plant

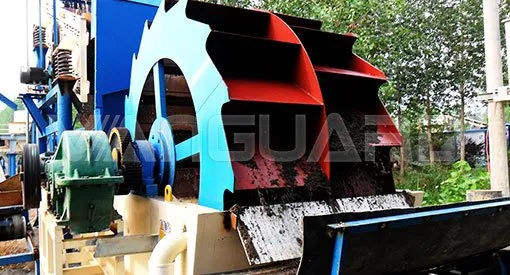

sand washer

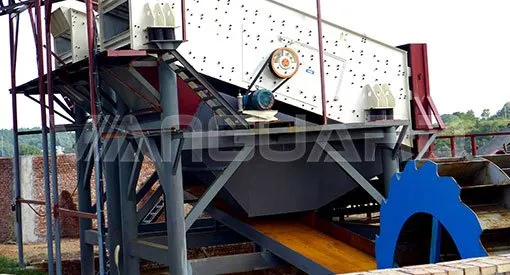

sand washer plant

Performance parameter

Model

XSD2610

XSD2816

XSD3016

XSD3620

Impeller of Diameter(mm)

2600

2800

3000

3600

Feeding Size(mm)

≤10

≤10

≤10

≤10

Capacity(t/h)

20~60

30~60

70~120

80~160

Model of Motor

Y160L-8

Y180L-8

Y200L-8

Y225S-8

Power(kW)

7.5

11

15

18.5

Water Requirement(t/h)

10-30

10-40

10-60

20-110

Weight(t)

2.7

5.5

6.1

9.7

Dimension(L×W×H)(mm)

3254×2060×2622

3810×2820×2883

3810×2820×3083

4624×3443×3680
