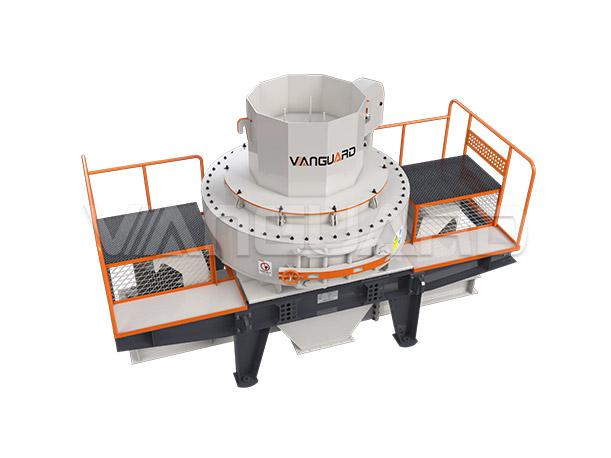

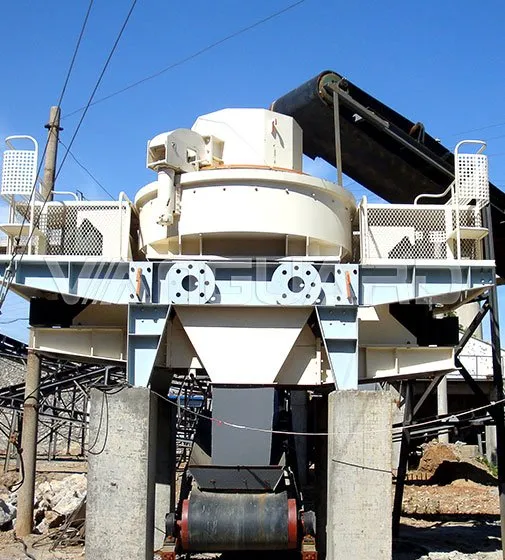

Vertical Shaft Impact Crusher
Feed size
0-50mm
Capacity
60-520t/h
Power
110-400kw
VSIVertical Shaft Impact Crusher

Product introduction:VSI Series Vertical Shaft Impact Crusher is a new generation of crushing and sand making equipment developed by our company according to the actual working conditions of VSI Series Vertical Shaft Impact Crusher combined with advanced technology at home and abroad and according to the actual situation of domestic building materials.

Technical Features

● The biggest throughput capacity can reach 520 tons per hour.
● Compared with traditional equipment under the same power the yielding of VSI Sand Maker increases by 30%.
● Besides the finished aggregates have excellent cubic shape reasonable granularity and adjustable fineness modulus exceptionally suitable for artificial sand production and aggregate shaping.
● The VSI Sand Maker is light and has several installation manners. Its operation is easy and simple.

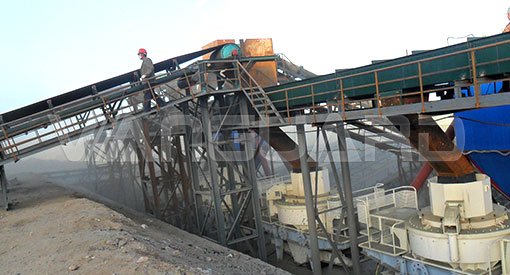

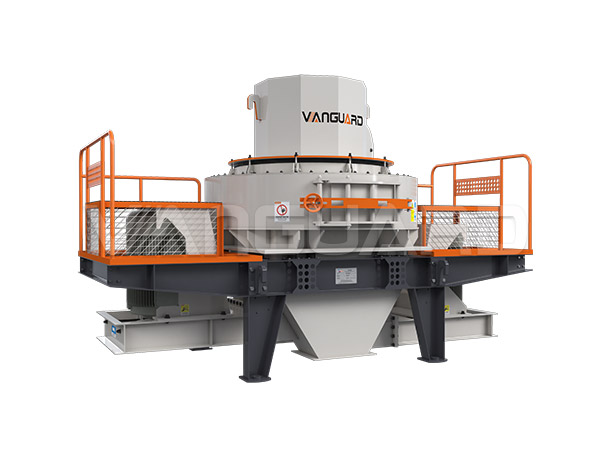

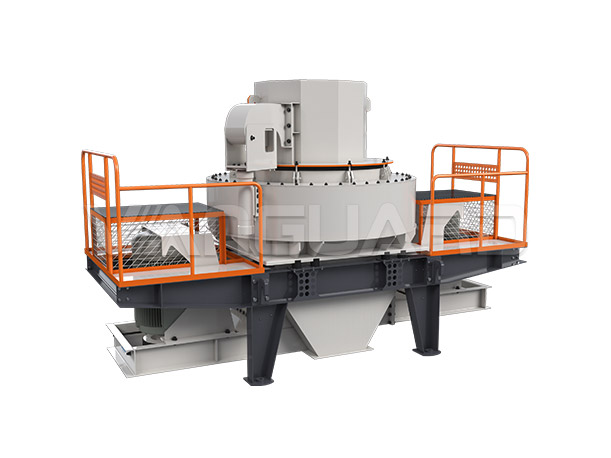

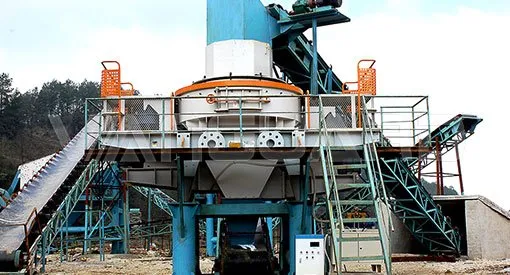

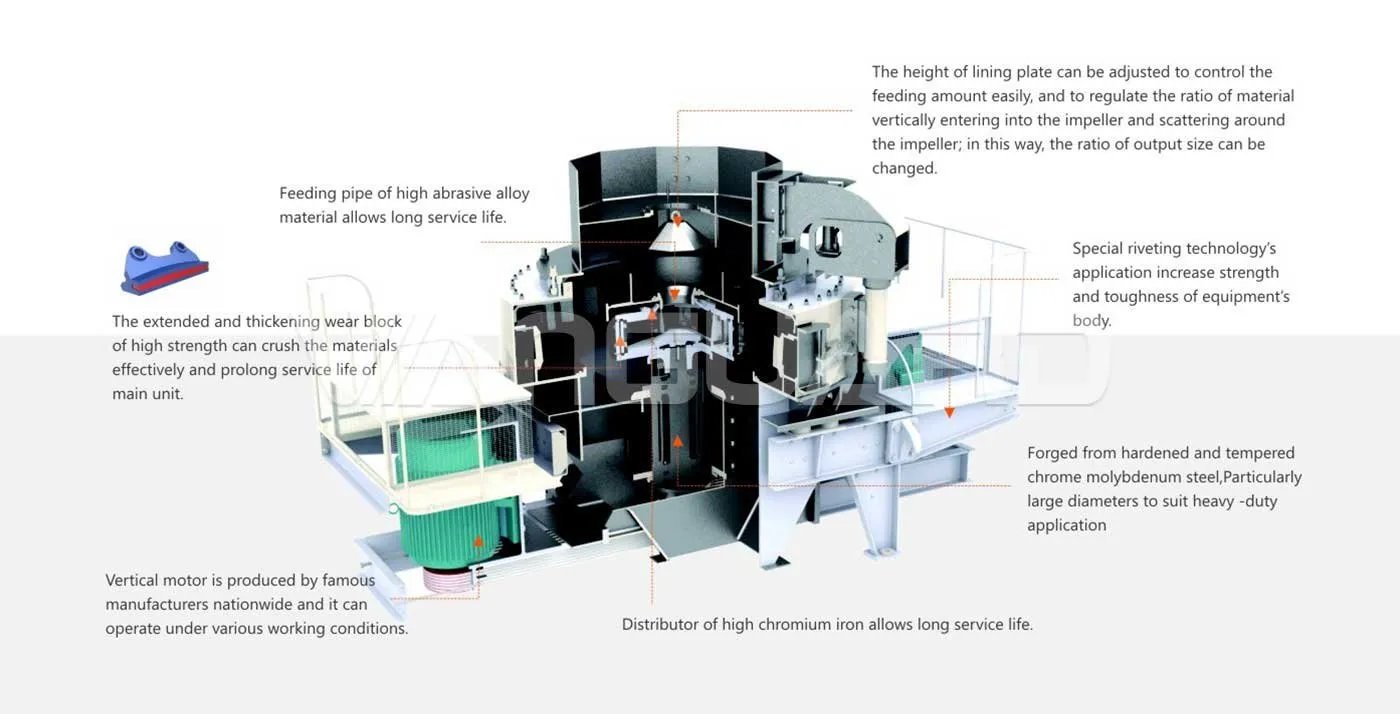

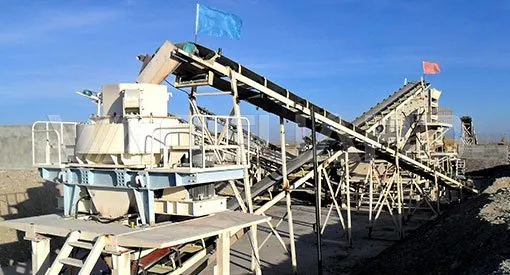

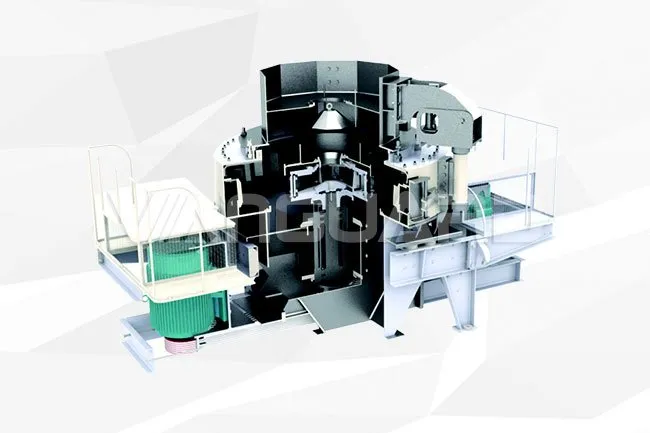

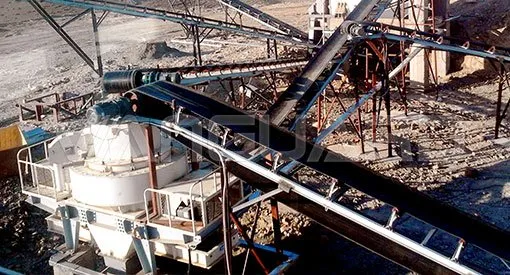

Product Gallery

Performance parameter
Model VSI7611 VSI8518 VSI9526 VSI1140
Capacity(t/h) Cascade and Central Feeding 120~180 200~260 300~380 450~520
Fully Central Feeding 60~90 100~130 150~190 220~260
Max. Feeding
Size(mm)
Soft Material <35 <40 <45 <50
Hard Material <30 <35 <40 <45
Rotation Speed(r/min) 1700~1890 1520~1690 1360~1510 1180~1310
Double Motor Power(kW) 110 180 264 400
Overall Dimension L×W×H(mm) 3700×2150×2100 4140×2280×2425 4560×2447×2778 5000×2700×3300
Weight (t) 11.8 14.5 17.8 25.6
Thin Oil
Lubrication
Station
Double Oil Pumps Motor's Power (kW) 2×0.25
Safty Assurance Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure;
air cooling system /water cooling system available; preheating-start engine adopted.
Overall Dimension L×W×H(mm) 820×520×1270
Power of Oil Tank Heater(kW) 2
