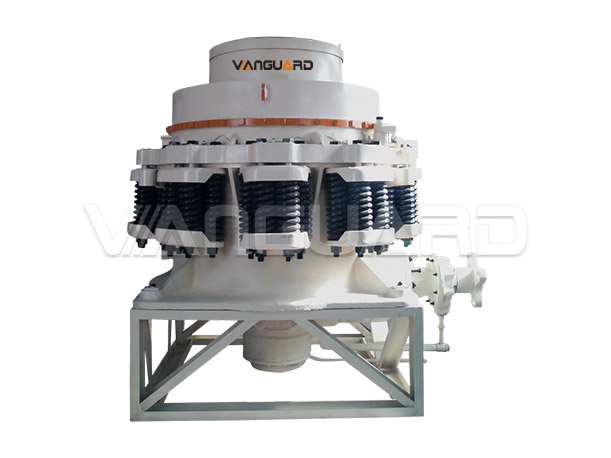

Spring Cone Crusher
Feed size
0-178mm
Capacity
20-300t/h
Power
30-260kw

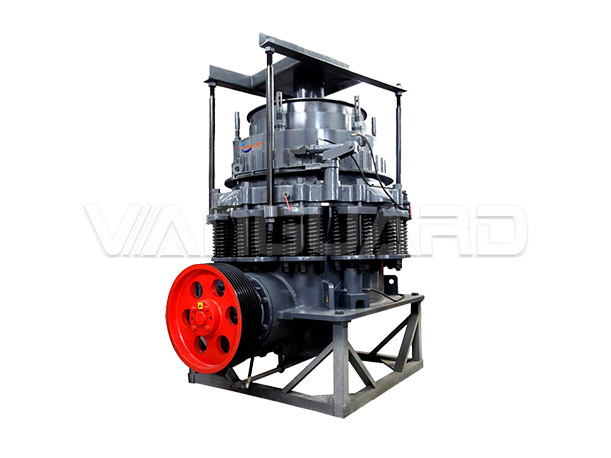

PYSpring Cone Crusher

Product introduction:Spring Cone Crusher is early equipment. According to different applications there are three kinds of crushing chamber can be chose. Cone crusher with standard type chamber is used for medium crushing medium type chamber is used for fine crushing and short head type is used for ultra-fine crushing.

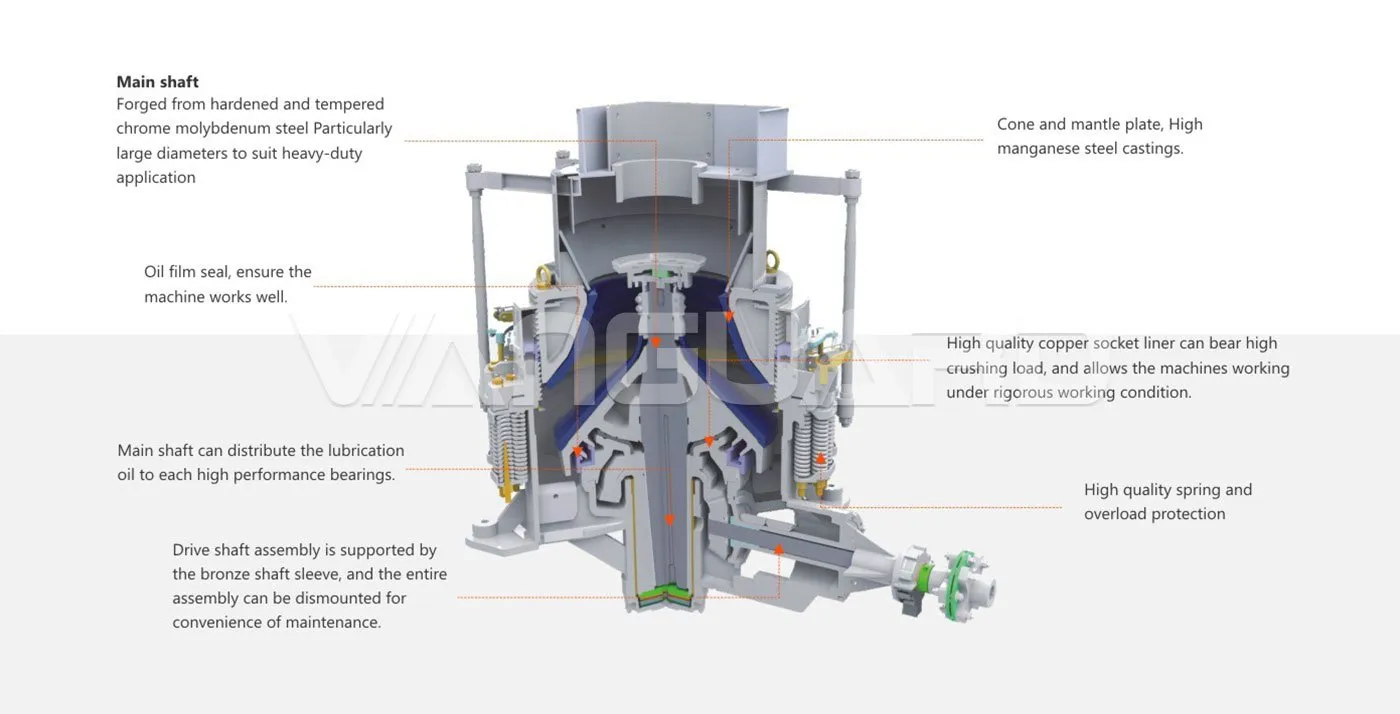

Technical Features

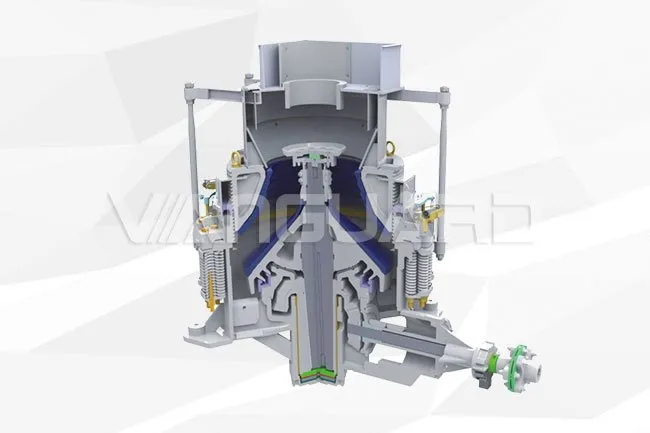

Increasing or reducing the number of spacer to adjust chew clearance and suspension point height. Adding spacer could change the position of cone lining and principal axis to adjust the gap.
Material is in the gap of cones to get squeezed, curved and sheared to make process easier and low energy consumption.
Overload protection could lengthen service life of machine.
Higher speed of operation, even size of final product, cube shape of product, high capacity.

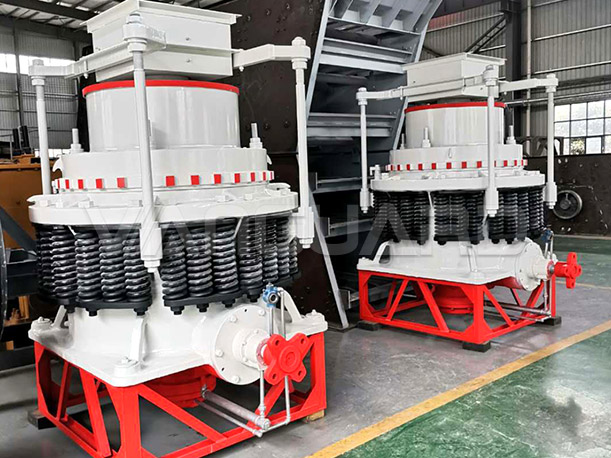

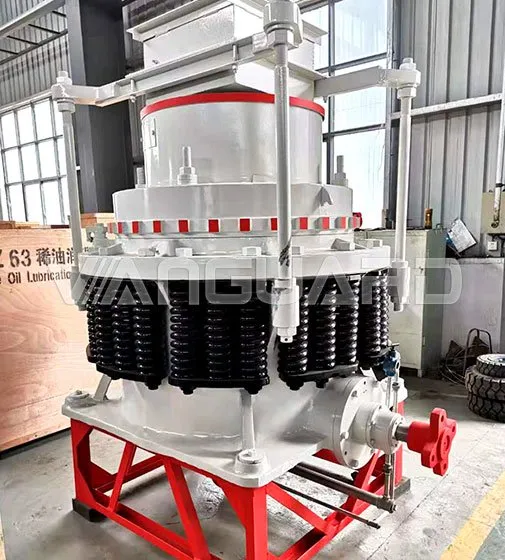

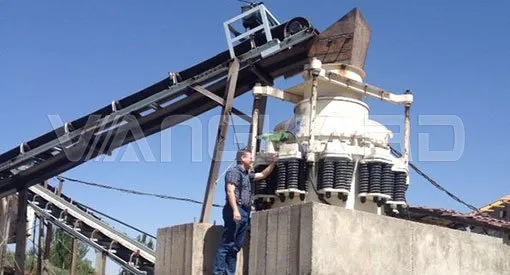

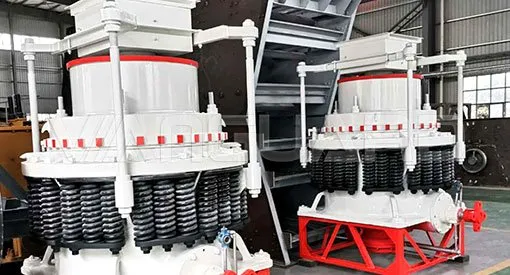

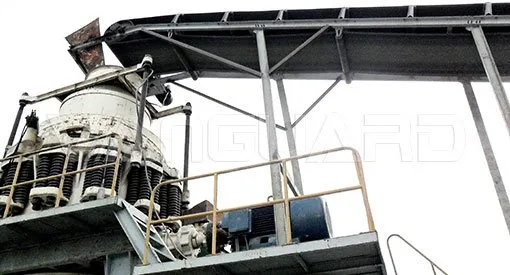

Product Gallery

Performance parameter
Model Diameter of Bottom End of Conical Crushing Head(mm) Max Feeding Size(mm) Adjustable Range of Discharge Opening(mm) Capacity(t/h) Motor Power(kw) Rev.of Eccentric Shaft(r/min) Weight(t) Dimension (L×W×H)(mm)
PYB600 Φ600 75 12-15 20-40 8P-30 356 5 2234×1370×1675
PYD600 Φ600 35 3-13 12-23 8P-30 356 5.5 2234×1370×1675
PYB900 Φ900 115 15-50 50-90 8P-55 333 11.2 2692×1640×2350
PYZ900 Φ900 60 5-20 20-65 8P-55 333 11.2 2692×1640×2350
PYD900 Φ900 50 3-13 15-50 8P-55 333 11.3 2692×1640×2350
PYB1200 Φ1200 145 20-50 110-168 8P-110 300 24.7 2790×1878×2844
PYZ1200 Φ1200 100 8-25 42-135 8P-110 300 25 2790×1878×2844
PYD1200 Φ1200 50 3-15 18-108 8P-110 300 25.3 2790×1878×2844
PYB1750 Φ1750 215 25-50 280-480 8P-160 245 50.3 3910×2894×3809
PYZ1750 Φ1750 185 10-30 115-320 8P-160 245 50.3 3910×2894×3809
PYD1750 Φ1750 85 5-13 75-230 8P-160 245 50.2 3910×2894×3809
PYB2200 Φ2200 300 30-60 590-1000 8P-(260-280) 220 80 4622×3302×4470
PYZ2200 Φ2200 230 10-30 200-580 8P-(260-280) 220 80 4622×3302×4470
PYD2200 Φ2200 100 5-15 120-340 8P-(260-280) 220 80  4622×3302×4470
