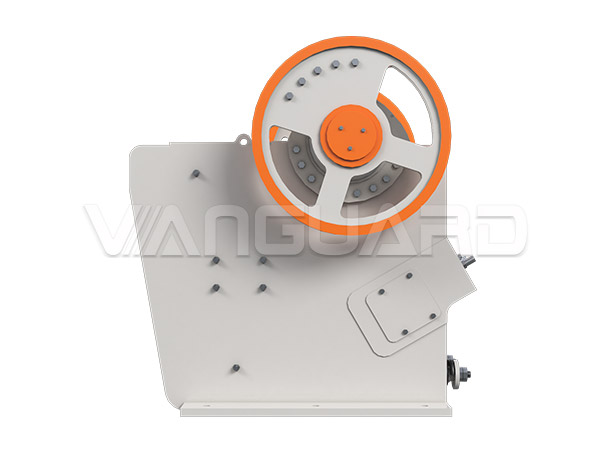

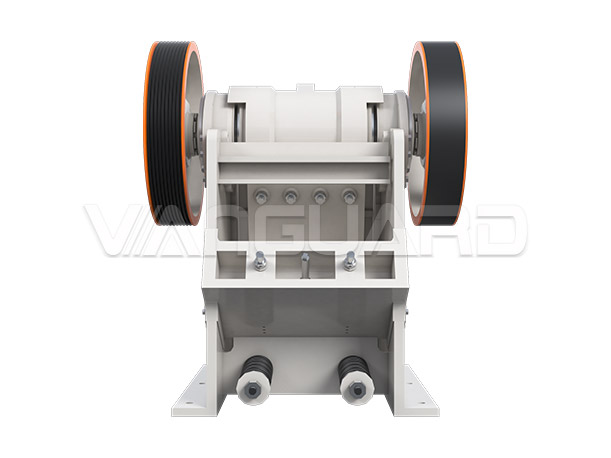

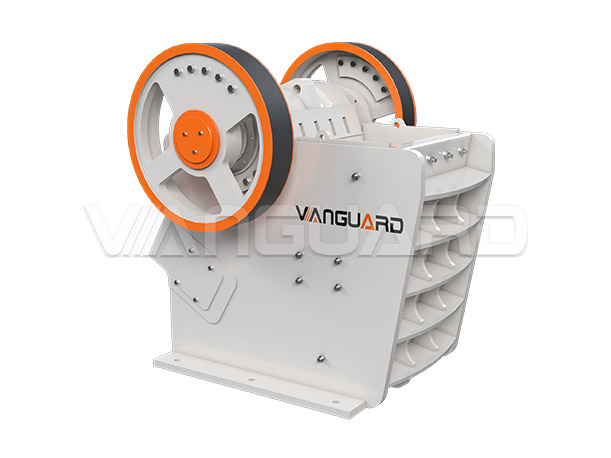

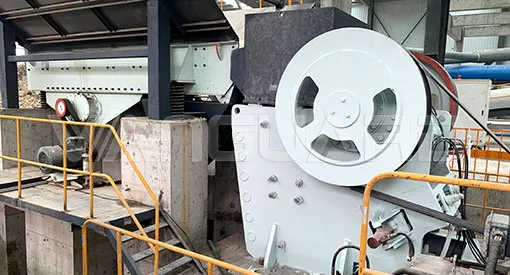

Series Hydraulic Jaw Crusher
Feed size
0-930mm
Capacity
12-650t/h
Power
30-185kw
PEWSeries Hydraulic Jaw Crusher

Product introduction:The PEW series hydraulic jaw crusher is a new equipment for crushing hard or abrasive stones. The PEW series hydraulic jaw crushers are sold well in the market because of the disassembly frame without welding structure double wedge adjusting device elastic limit damping device and integrated motor base.

Technical Features
  • Reliable Performance
  • Convenient Maintenance
  • High Capacity
  • Security
  • Hydraulic Control
  • ● VANGUARD uses high-quality steel castings for core load bearing parts of jaw crusher i.e. moving jaw and bearing block.

    ● this technology not only guarantees the perfect fitting and seamless connection of crusher rack but also enhances the radial strengths of the parts thus realizing more reliable performance and higher durability of the jaw crusher.

  • ● The eccentric shaft is forged by alloy steel and subjected to finish turning so that its bearing capacity is high.

    ● Due to the adoption of high-quality bearings and thin oil for lubrication it has the advantages of long service life smooth operation and convenient maintenance.

  • ● Because a deep-cavity design is adopted and the rotary speed is reasonably matched with the optimized nip angle the maximum output is guaranteed.

    ● Because the material-discharging port is hydraulically adjusted the operation and the maintenance are convenient and quick and the productivity is improved.

  • ● Toggle plate is not necessary to lubricate that can protect the main machine in case of overload and ensure the complete machine.

  • ● Operations such as steel plates' cutting bending planing milling and paint spraying are all controlled numerically. The machining precision is high especially for the core parts.

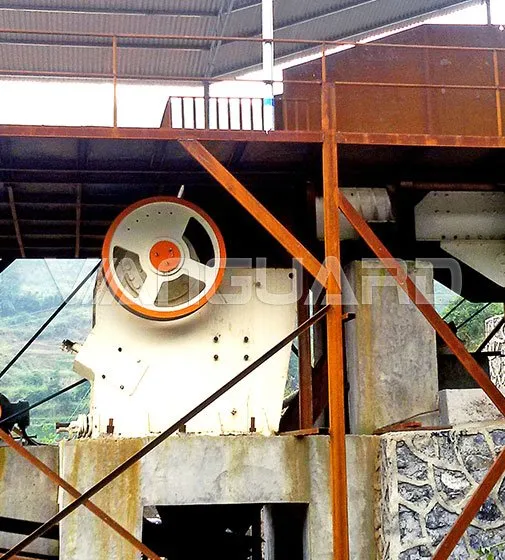

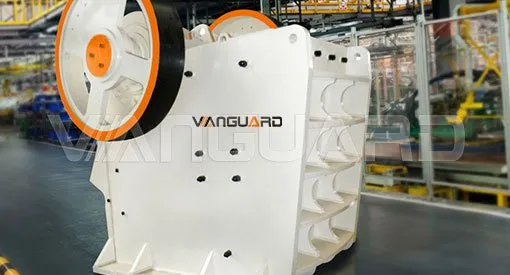

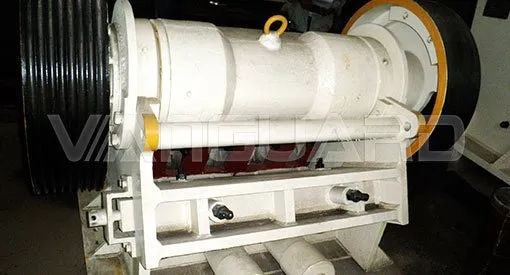

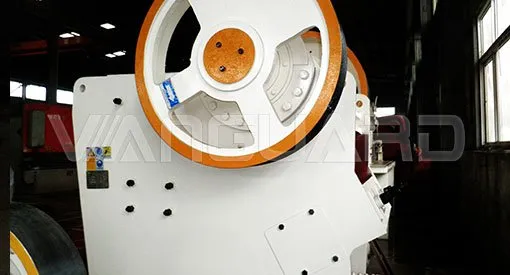

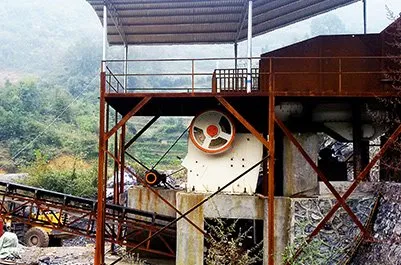

Product Gallery

Performance parameter
Model PEW860 PEW1100 PEW200×1300 PEW250×1000 PEW250×1200 PEW400×600
Feeding Opening(mm) 860×1100 1100×1200 200×1300 250×1000 250×1200 400×600
Feeding Size(mm) ≤720 ≤930 ≤180 ≤220 ≤220 ≤350
Discharge Setting(mm) 100-225 150-275 10-30 20-40 20-40 35-85
Eccentric Shaft Rotation Speed(rpm) 240 210 320 330 330 250
Capacity(t/h) 200-500 300-650 12-35 15-50 20-50 15-70
Electric Motor Power(kW) 132~160 185~200 30~37 30~37 37~45 37~45
Rotation Speed(rpm) 985 740 980 980 980 980
Overall Dimension(L×W×H)(mm) 3300×2320×3120 4140×2660×3560 1320×2150×1175 1400×1850×1310 1400×2050×1310 1920×1460×1840
Weight(kg) 32000 59200 7500 6800 7800 8000
