Series Vibrating Screen
Feed size
0-400mm
Capacity
22-1300t/h
Power
15-37kw
YASeries Vibrating Screen

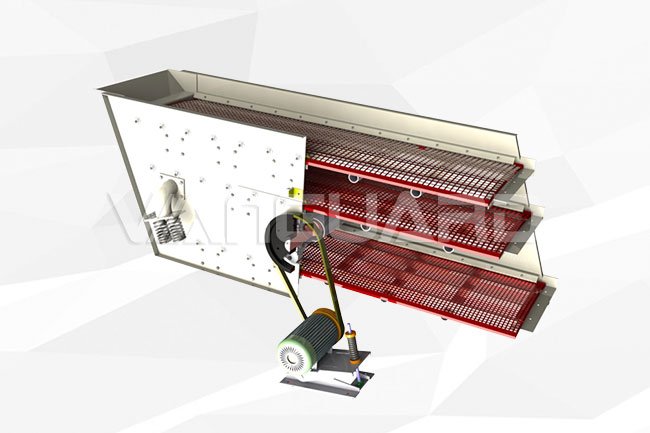

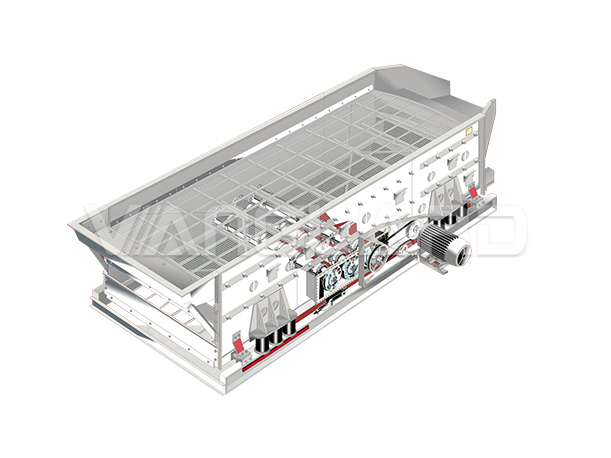

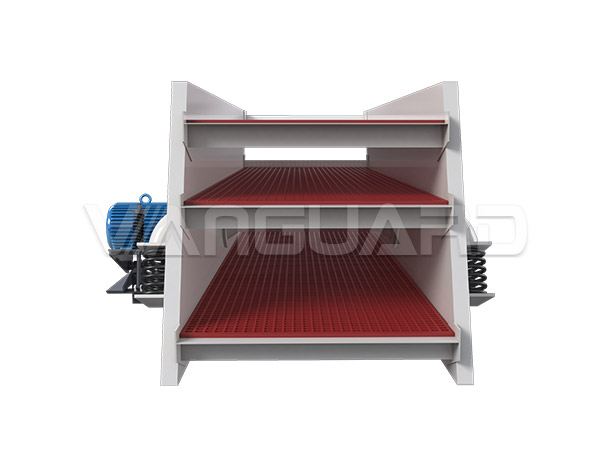

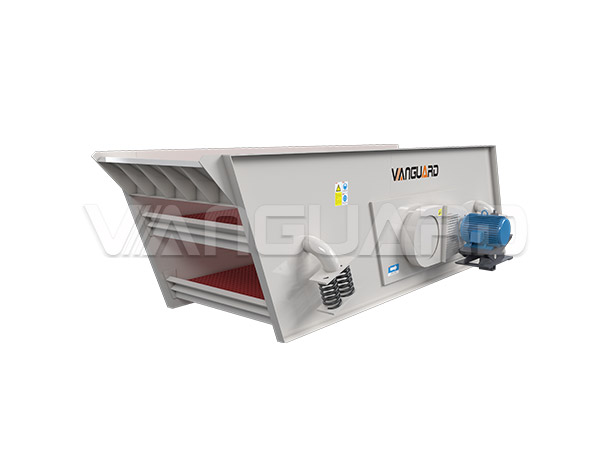

Product introduction:YA Series Vibrating Screen is of multiple layers and vibrating circularly. It is of long screen line correct to screen in all kinds of specification products. Our vibrating screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing.

Technical Features

● YA Vibrating Screen follows classical structural design of screening equipment and its performance is fully guaranteed.
● The vibration source is more stable and the exciting force is more powerful.
● Satisfy various graded operating requirements after the intermediate-coarse crushing and intermediate-fine crushing.
● Users can freely select different numbers of layers and specifications of the screen which can satisfy different production demands through simple screen replacement operation.

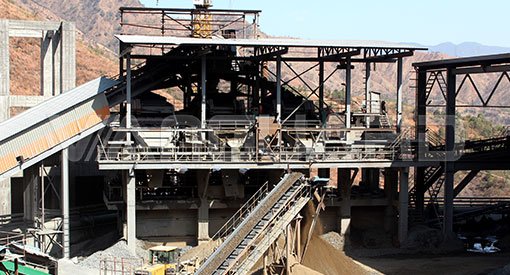

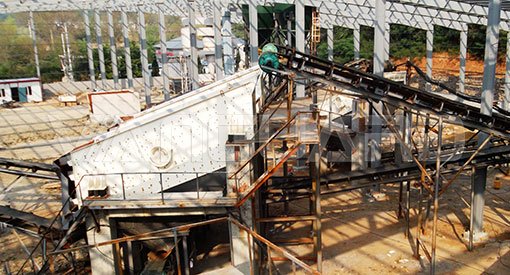

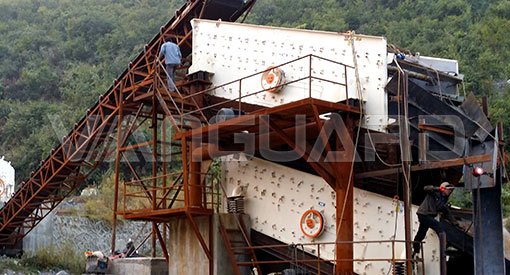

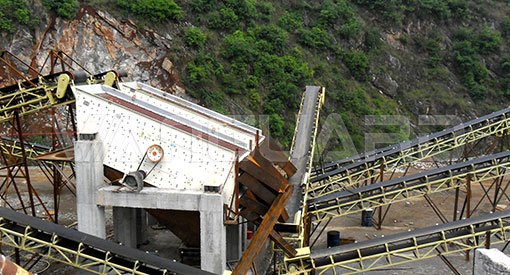

Product Gallery

Performance parameter
Model Layer of Screen Size of  Sieve Pore (mm) Max. Feeding  Size (mm)   Capacity (m³/h) Double Amplitude (mm) Model of Motor Motor Power (kW) Screen Specaification (mm)
2YA1548 2 3~100 300 22~160 8 Y160L-4 15 1500×4800
3YA1548 3 3~100 300 22~160 8 Y160L-4 15 1500×4800
4YA1548 4 3~100 300 22~160 8 Y160L-4 15 1500×4800
2YA1848 2 3~100 300 32~276 8 Y180M-4 18.5 1800×4800
3YA1848 3 3~100 300 32~276 8 Y180M-4 18.5 1800×4800
4YA1848 4 3~100 300 32~276 8 Y180M-4 18.5 1800×4800
2YA1860 2 3~100 300 65~586 8 Y180M-4 22 1800×6000
3YA1860 3 3~100 300 65~586 8 Y180M-4 22 1800×6000
4YA1860 4 3~100 300 65~586 8 Y180M-4 22 1800×6000
2YA2160 2 3~100 300 81~720 8 Y200L-4 30 2100×6000
3YA2160 3 3~100 300 81~720 8 Y200L-4 30 2100×6000
4YA2160 4 3~100 300 81~720 8 Y200L-4 37 2100×6000
2YA2460 2 3~150 300 90~810 8 Y225S-4 37 2400×6000
3YA2460 3 3~150 300 90~810 8 Y225S-4 37 2400×6000
4YA2460 4 3~150 300 90~810 8 Y225S-4 37 2400×6000
3YK3072 3 3~200 300 180~1300 8 Y200L-4 30×2 3000×7200
3YK3072 3 3~200 300 180~1300 8 Y200L-4 30×2 3000×7200
