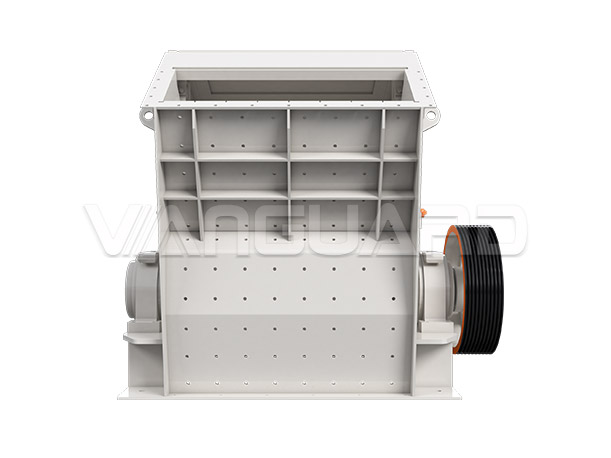

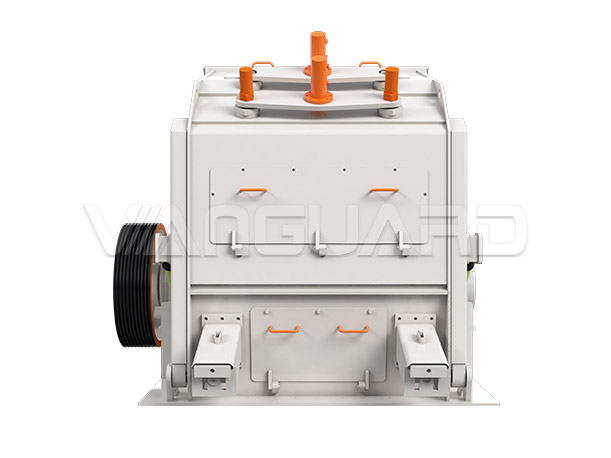

Series Impact Crusher
Feed size
0-700mm
Capacity
15-350t/h
Power
37-250kw
PF/PFVSeries Impact Crusher

Product introduction:

Dealing with the material with the side length below 500mm and anti-pressure strength not more than 250MPa impact crusher can be widely used in crushing  coarse medium and fine material (e.g. granite limestone concrete).

Technical Features
  • High Chromium Plate Hammer
  • Feed Port
  • Hydraulic Push Rod
  • Rotor
  • Sufficient Supply of Spare Parts
  • ● Heavy-duty designed main frame with first class steel. High manganese composite material liner

    ● more hard-wearing. Huge diameter main shaft more sturdy and durable.

  • ● Keyless connection makes maintenance easier and economical.

    ● Machine has strong shock resistance and abrasion resistance and strong impact.

  • ● Big feed port high crushing cavity high resistance againest material.

    ● Less stone powder generated.

  • ● All function of crushing high capacity machine element gets less abrasion high comprehensive benefits.

  • ● VANGUARD whose businesses cover production and salestakes responsibility for every machine produced by ourselves.

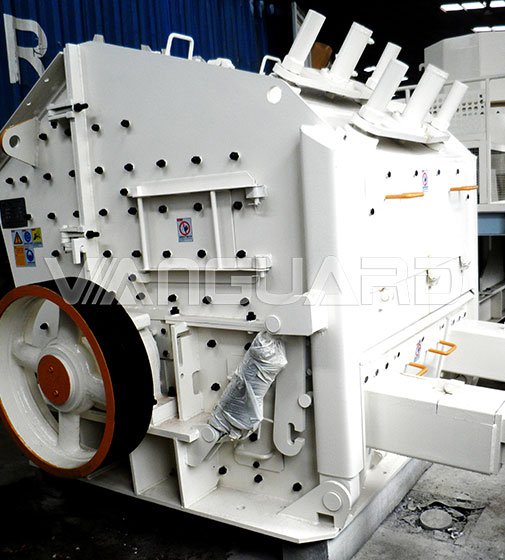

Product Gallery

Performance parameter

Model

Specification

Feeding Port Size (mm)

Max. Processing Size (mm)

Capacity (t/h)

Modelof Motor

Power(kW)

PF-1007

φ1000×700

400×730

≤250

15-60

Y250M-6

37

PF-1010

φ1000×1050

400×1080

≤300

50-90

Y315S-6

75

PF-1210

φ1250×1050

400×1080

≤300

70-130

Y315L1-6

110

PF-1212

φ1250×1200

400×1250

≤300

70-140

Y315L2-6

132

PF-1214

φ1250×1400

400×1430

≤300

90-180

Y315L2-6

132

PF-1315

φ1300×1500

680×1520

≤350

120-250

Y2-355M2-6

200

PF-1320

φ1300×2000

680×1570

≤500

160-350

Y2-355M2-6

280

PFV-1010

φ1000×1050

400×1030

≤200

35-60

Y315S-6

75

PFV-1210

φ1250×1050

570×1030

≤250

70-140

Y315L1-6

110

PFV-1214

φ1250×1400

570×1430

≤250

90-190

Y315L2-6

160

PFV-1315

φ1300×1500

625×1530

≤300

150-280

Y2-355M2-6

200

PFV-1380

φ1300×1800

625×1830

≤300

220-350

Y2-355M2-6

250

PFV-1415

φ1400×1500

800×1530

≤300

280-350

Y2-355M2-6

250
