Belt Conveyor
Feed size
0-300mm
Capacity
60-1427t/h
Power
4-37kw

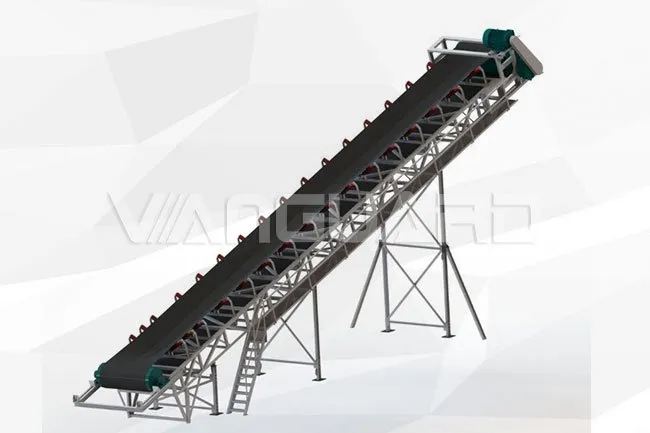

BBelt Conveyor

Product introduction:The belt conveyor produced by our company has the advantages of large conveying capacity simple structure convenient maintenance and standardization of components.

Technical Features

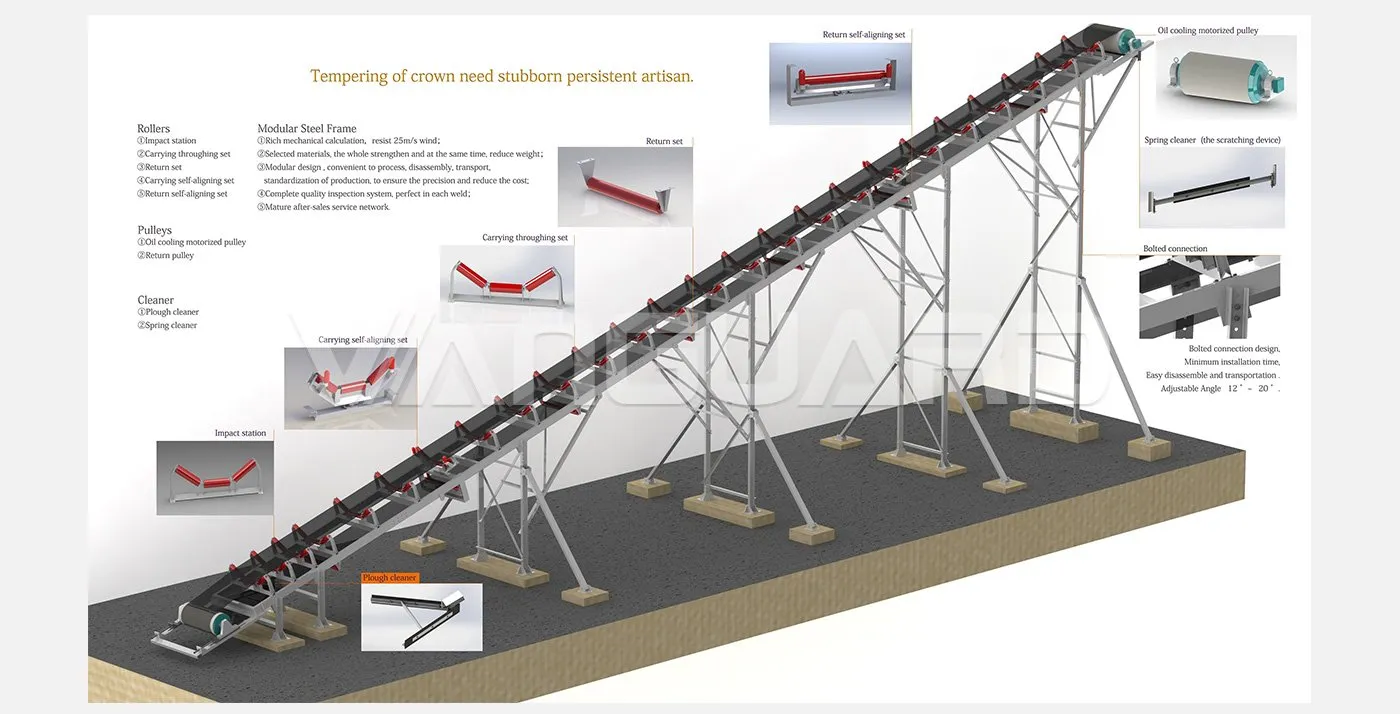

● The structure of B Belt Conveyor is optimized: the main beam adopts C-shaped steel which is lighter in weight but is of higher bending resistance (more secure) compared with channel steel of the same grade;
● the supporting leg is modified as Y-type which makes the supporting more secure and greatly increases the stockpiling space.
● The B Belt Conveyor uses high-efficiency external mounted electric drum and has its installed mode optimized.
● Which is lighter and more convenient compared with the driving mode of common external motor reducing gear

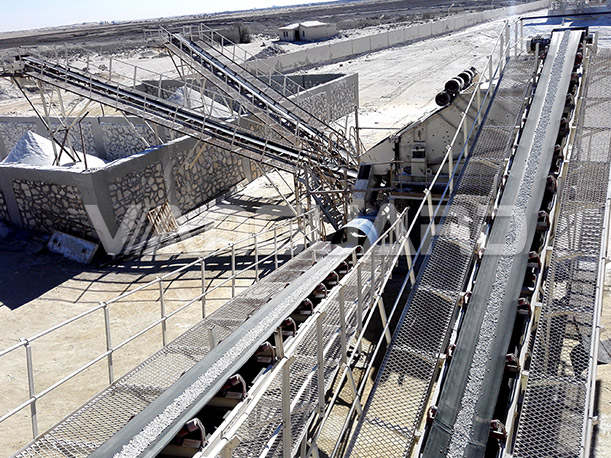

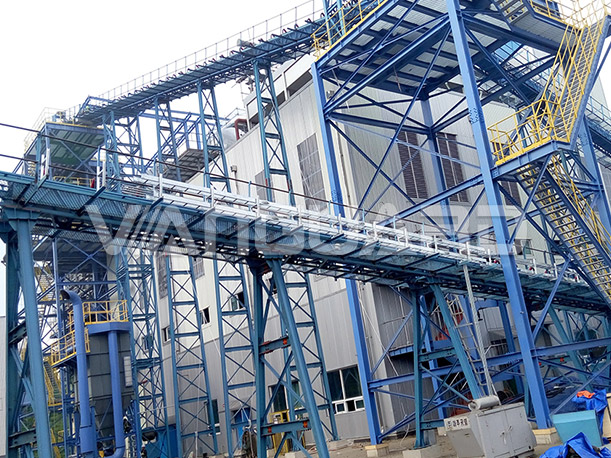

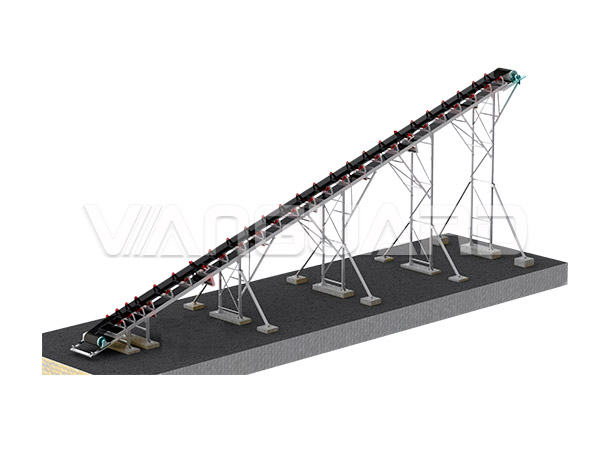

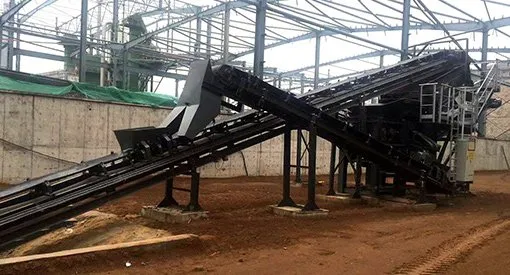

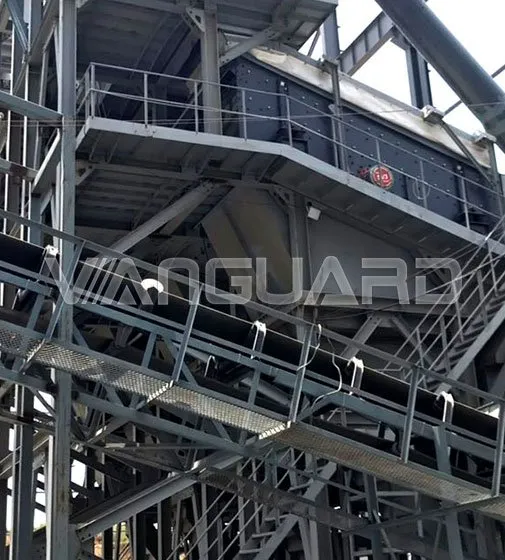

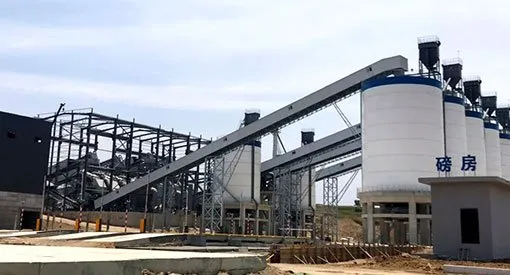

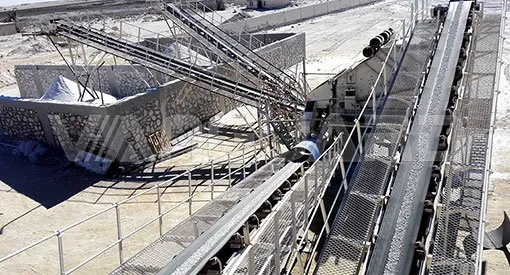

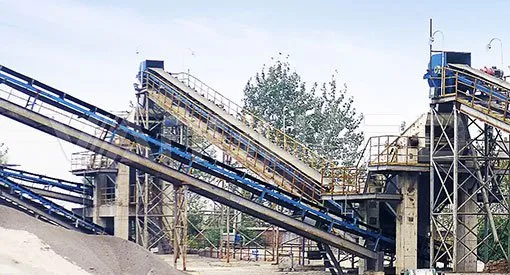

Product Gallery

Performance parameter

Belt Width

Belt Length/Power  (m/kW)

Belt Speed

(m/s)

Capacity(t/h )

500

≤12/4

12-20/5.5

20-30/7.5

1.3-1.6

60-156

650

≤12/4

12-20/5.5

20-30/7.5

1.3-1.6

110-264

800

10-15/7.5

15-20/11

20-30/15-18.5

1.3-1.6

184-445

1000

10-15/11

15-23/15

23-32/22

1.3-2.0

288-696

1200

10-18/15

18-22/18.5

22-30/22-30

1.3-2.0

432-1048

1400

10-18/22

18-22/30

22-30/30-37

1.3-2.0

588-1427
