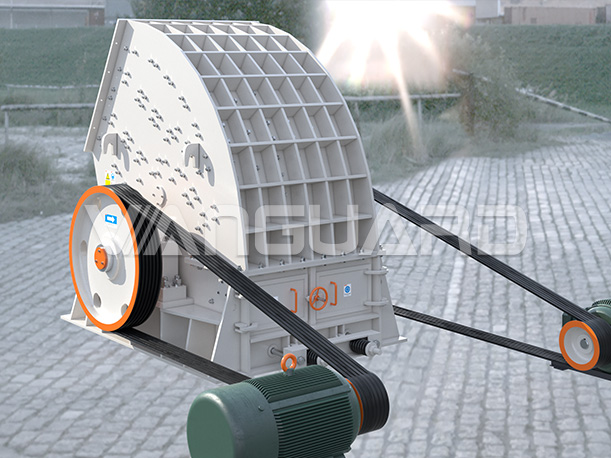

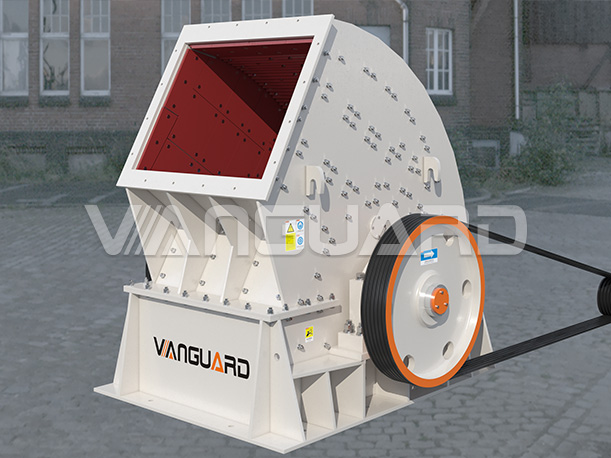

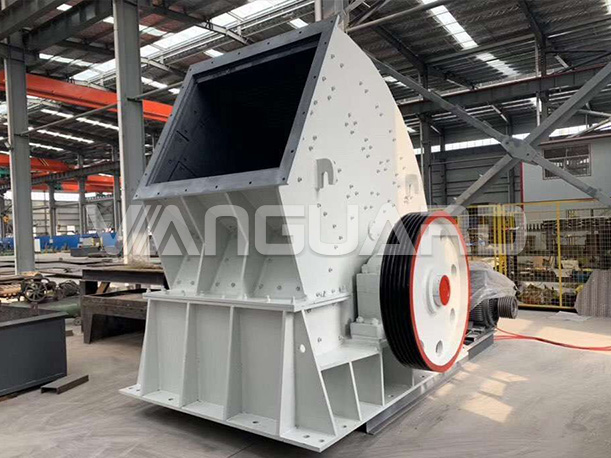

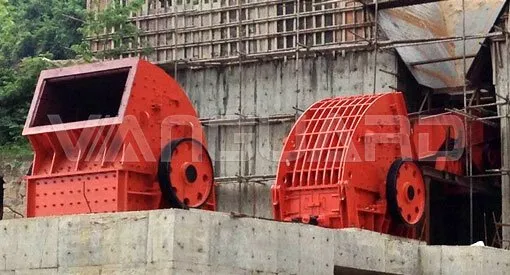

heavy duty hammer crusher
Feed size
≤1200mm
Capacity
100-1200t/h
Power
132-450*2kw
PCZheavy duty hammer crusher

Product introduction:

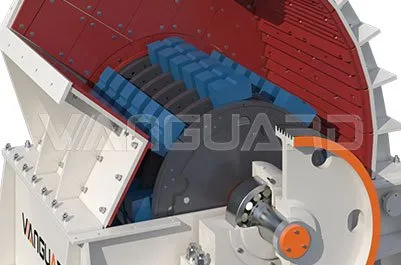

Adopt unique design of no grate bars to control the discharging particle size. After the abrasion width of the discharge port of the equipment is increased the bolts at the discharge port can be directly adjusted which is convenient and quick; Wear resistant retainer added to rotor makes the hammer more durable.

Technical Features
  • High productivity
  • High recovery rate
  • Stable and reliable
  • Energy saving
  • Worriless Operation
  • ● The working hammer adopts new technology for casting so that it is wear resistant and impact resistant.

  • ● The granularity can be adjusted according to the requirement of the customers.

  • ● Hammer crusher has a sealed structure which solves the problems of powder dust pollution in the crushing workshop and ash leakage of the machine.

  • ● This crusher has the advantages of attractive appearance compact structure and few easy-wearing parts and convenient maintenance.

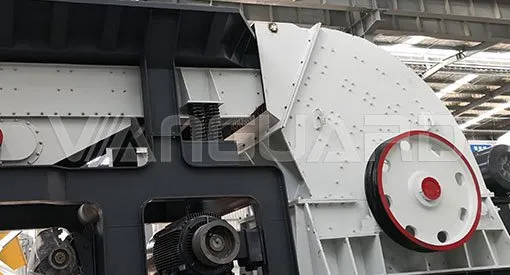

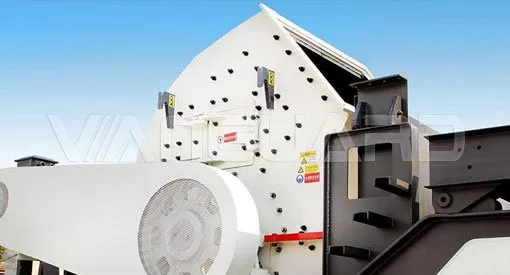

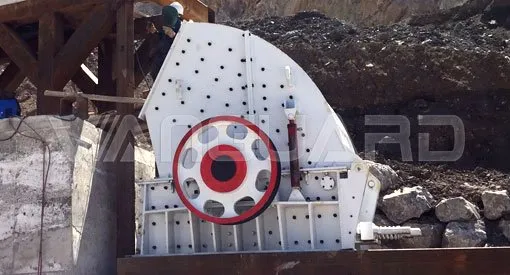

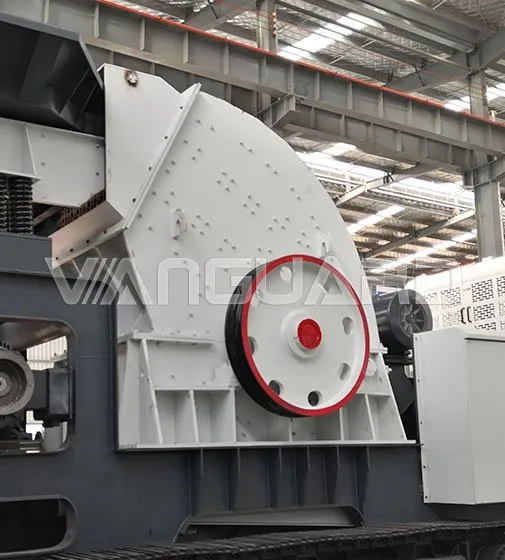

Product Gallery
Performance parameter

Model

Diameter of rotor(mm)

Input opening size(mm)

Feed size(mm)

Capacity (t/h)

Power(kW)

Dimensions(mm)
PCZ1308 1310×790 850×800 ≤600 100-160 132 2818×2100×2390
PCZ1510 1500×900 1000×900 ≤700 160-210 132×2 3260×2414×2750
PCZ1512 1500×1160 1200×900 ≤750 250-320 160×2 3260×2624×2750
PCZ1615 1650×1452 1500×1200 ≤1000 360-420 200×2 3456×2915×3185
PCZ1620 1660×1900 2000×1200 ≤1200 800-1000 315×2 3500×3100×3200
PCZ1820 1800×1964 2000×1200 ≤1200 1000-1200 450×2 3270×3210×3520

Model

Diameter of rotor(mm)

Input opening size(mm)

Feed size(mm)

Capacity (t/h)

Power(kW)

Dimensions(mm)
XPC0706 700×750 618×510 ≤400 50-70 75 1950×1340×1480
XPC0808 800×750 780×610 ≤500 80-100 132 2280×1790×1670
XPC0910 900×1000 1070×750 ≤600 150-200 110×2 2600×2200×1940
XPC1012 1000×1180 1255×810 ≤650 250-300 132×2 2800×2310×2210
XPC1213 1200×1280 1350×900 ≤750 300-350 160×2 2970×2580×2510
XPC1216 1270×1490 1530×920 ≤750 400-500 200×2 3070×2840×2580
XPC1220 1220×1950 2000×920 ≤750 500-600 220×2 3080×3380×2580
