Series Symons Cone Crusher
Feed size
0-178mm
Capacity
18-725t/h
Power
45-315kw

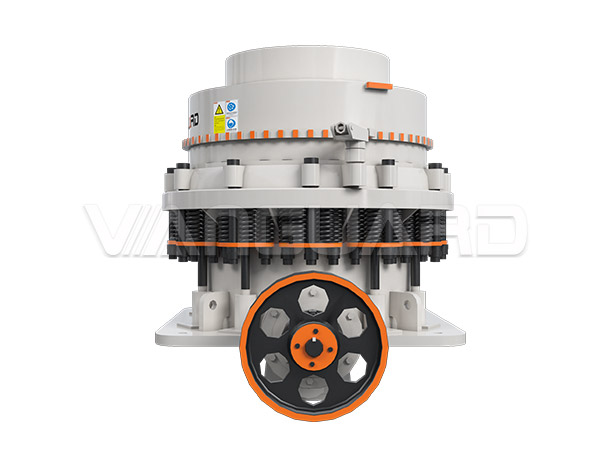

CSVSeries Symons Cone Crusher

Product introduction:The CSV Series Symons Cone Crusher is suitable for crushing all kinds of ores and rocks with medium or above hardness. Compared with PY Series Spring Cone Crusher it has the characteristics of reliable structure high production efficiency and convenient adjustment.

Technical Features

● Vanguard has long term experience and advanced metallurgy technology in crusher liner that can reduce the crusher unit wearing.
● The optional automatic control system help to feed fully and to adjust the liner gap automatically during the crusher running and improved the crusher working efficiency then the unit production cost will be much less.
● This series cone crusher has bigger feeding port size then it is suitable for various crushing plant for best capacity and it is widely used in medium and superfine crushing stationary and mobile crushing plant.

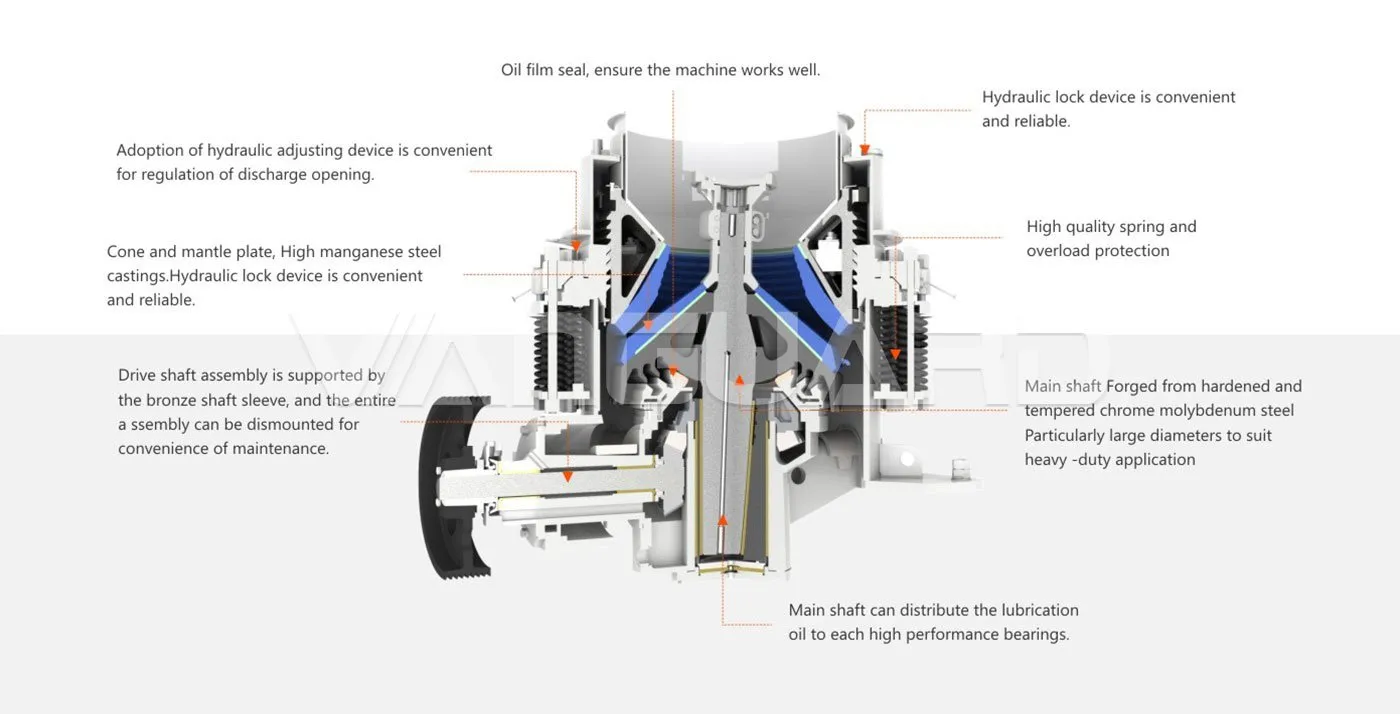

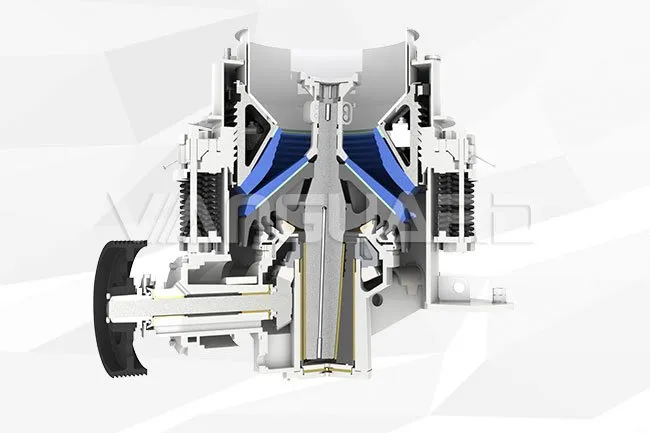

● Improved crushing speed eccentric arm (stroke) and cavity design can bring the higher capacity and better products.

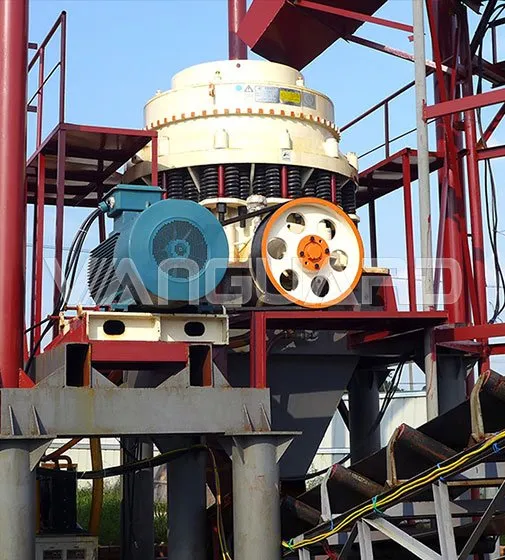

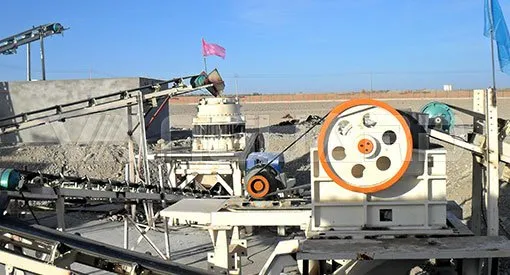

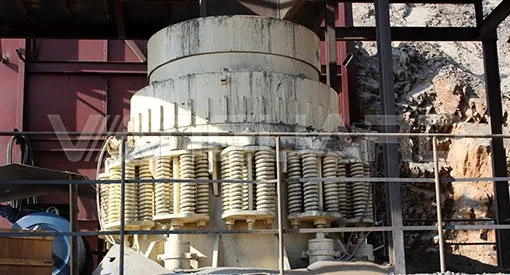

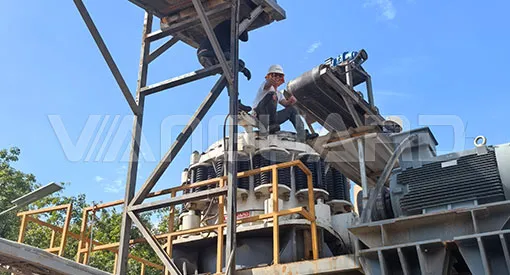

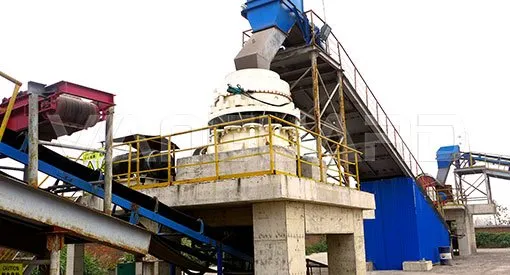

Product Gallery

Performance parameter

Model

Cavity Type

Max. Feeding Size (mm)

Min. Discharging Port  Size(mm)

Motor Power(kw)

Closed Edge Material- discharging Port (mm)
Capacity (t/h )

6

10

13

16

19

22

25

38

51

64

CSV60

C

95

10

45



20

25

30

35

45

50

75



M

72

6

18

20

25

30

35

40

45

60



CSV110

C

160

13

110



80

100

135

150

175

235



M

115

10



65

75

90

120

135

150



F

80

8

50

55

65

70

95



EF

50

6

52

62

72

78

102



CSV132

C

180

13

132



115

135

150

180

200

260



M

130

10



100

110

120

135

165

175



F

90

10



80

105

110

140



EF

60

6

60

74

105

110

130



CSV160

C

200

16

160



150

180

200

230

310

390



M

150

13



115

140

160

190

210



F

102

10



90

115

145

160



EF

70

8



88

110

135

155



CSV200

C

215

19

200



200

220

260

330

420



M

160

16



155

180

200

220



F

115

13



150

190

210

230



EF

76

8



122

148

185

200



CSV250

C

235

22

250



240

265

300

400

510

570

M

175

19



215

240

265

320



F

130

13



180

210

235

255

275



EF

90

10



148

178

220

265



CSV315

C

360

22

315

330

390

525

655

725

M

203

16



230

270

300

330



F

140

13



185

225

265

340



EF

95

10



180

220

260

335

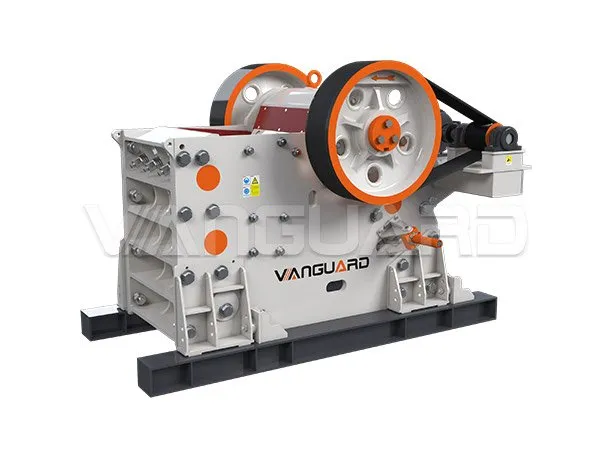

Similar Recommended
