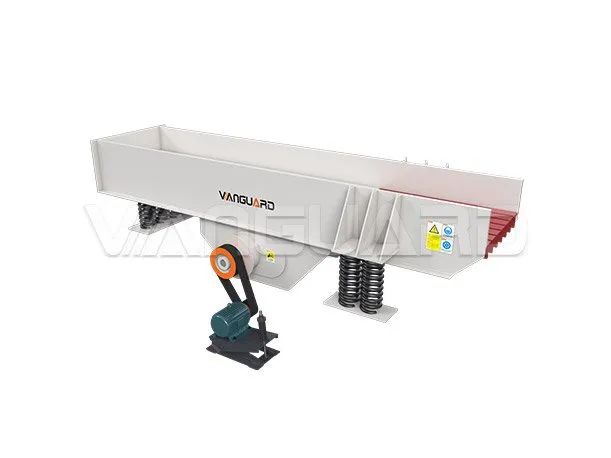

Series Vibrating Feeder
Feed size
0-1000mm
Capacity
90-900t/h
Power
11-37kw

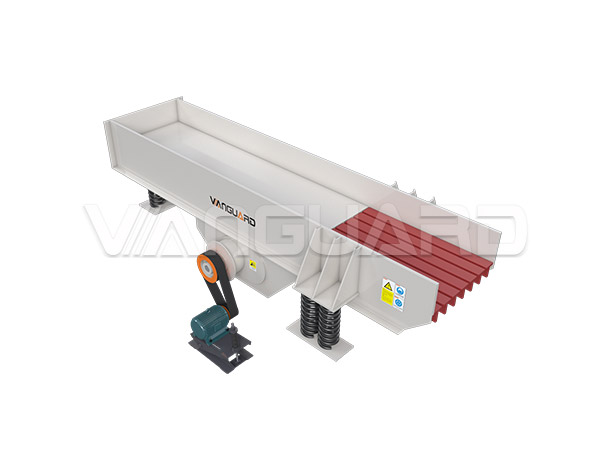

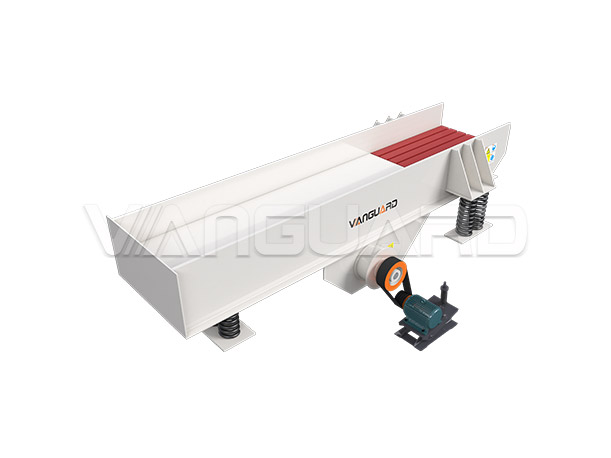

ZSWSeries Vibrating Feeder

Product introduction:During production flow the ZSW Vibrating Feeder makes the granule block of raw material from hopper delivery to various sets evenly timely and continuously. In a sand-stone production line the machine can continuously convey the material to crushers and coarsely screen the materials.

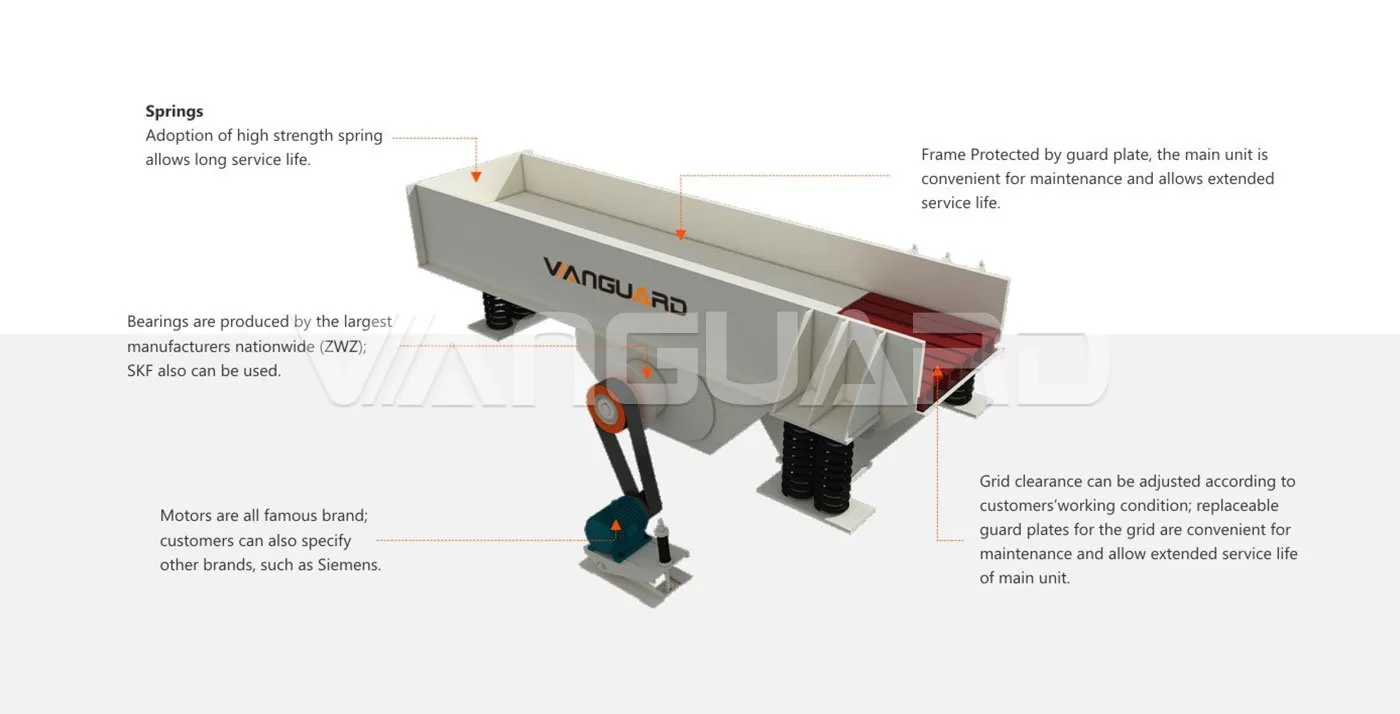

Technical Features

● VANGUARD's ZSW Vibrating Feeder can be used to feed various ores stones river pebbles construction wastes and other lump and granular materials.
● The feed chute is equipped with single layer of grate bars which can simply pre-screen the materials to remove the fine materials and sundries in the raw materials.
● ZSW Vibrating Feeder adopts double eccentric shaft vibration exciter.
● which is of powerful exciting force stable amplitude uniform and continuous feeding and high production efficiency.

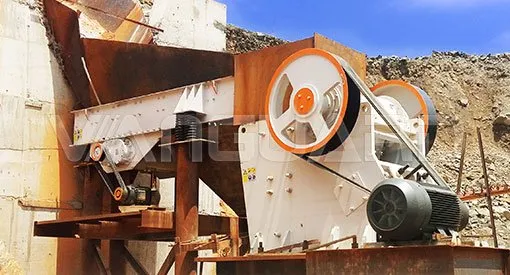

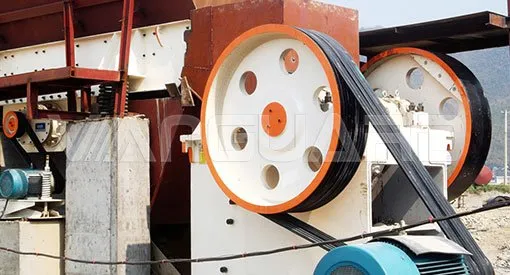

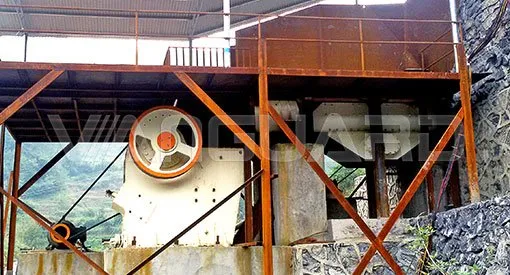

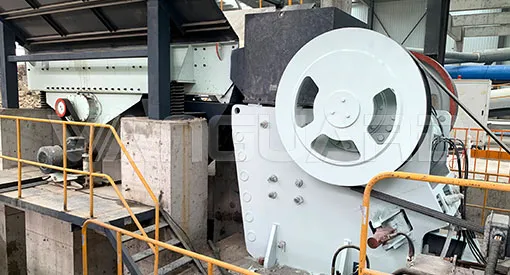

Product Gallery

Performance parameter

Model

Specification (mm)

Max. Feeding Size (mm)

Speed(rpm)

Throughput (t/h)

Power(kW)

Weight (kg)

ZSW3090

900x3000

400

600~850

90-180

11

3450

ZSW3896

960x3800

500

600~850

120-210

15

4450

ZSW4211

1100 x4200

650

600~850

180-400

15

4750

ZSW4911

1100x4900

650

600~850

250-480

22

5350

ZSW4913

1300x4900

750

600~850

340-600

22

6350

ZSW6013

1300x6000

750

600~850

340-600

30

6800

ZSW6015

1500x6000

1000

600~850

400-800

37

7050

ZSW6018

1800x6000

1000

600~850

450-900

37

8669
