Series Self-aligning Damping Vibrating Screen
Feed size
0-200mm
Capacity
10-1600t/h
Power
11-45

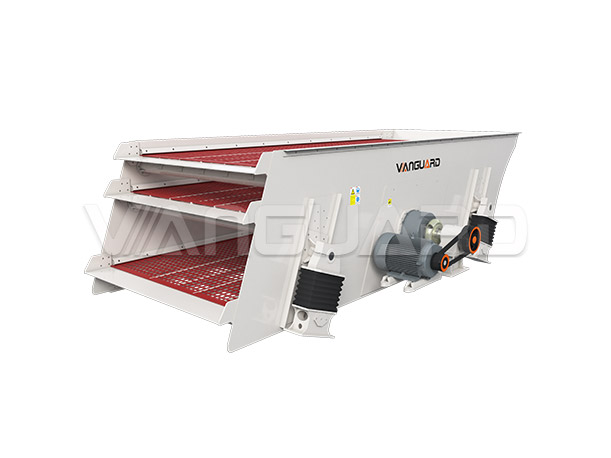

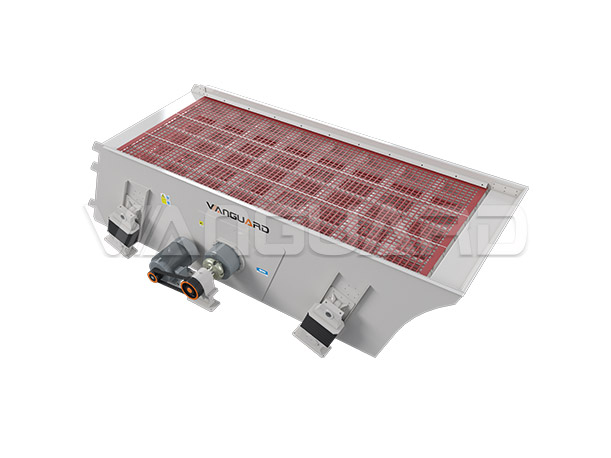

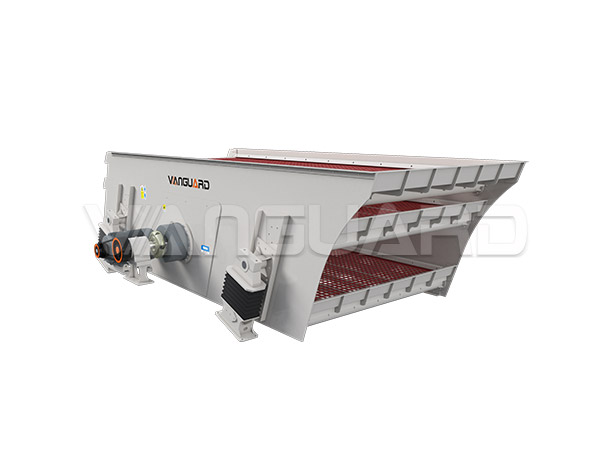

ZYSeries Self-aligning Damping Vibrating Screen

Product introduction:ZY series self-aligning damping vibrating screen is a brand-new vibrating screening equipment developed by Vanguard's scientific research personnel to track the working conditions of YA and YK series vibrating screen on the spot collect widely the suggestions of installation and maintenance technicians.

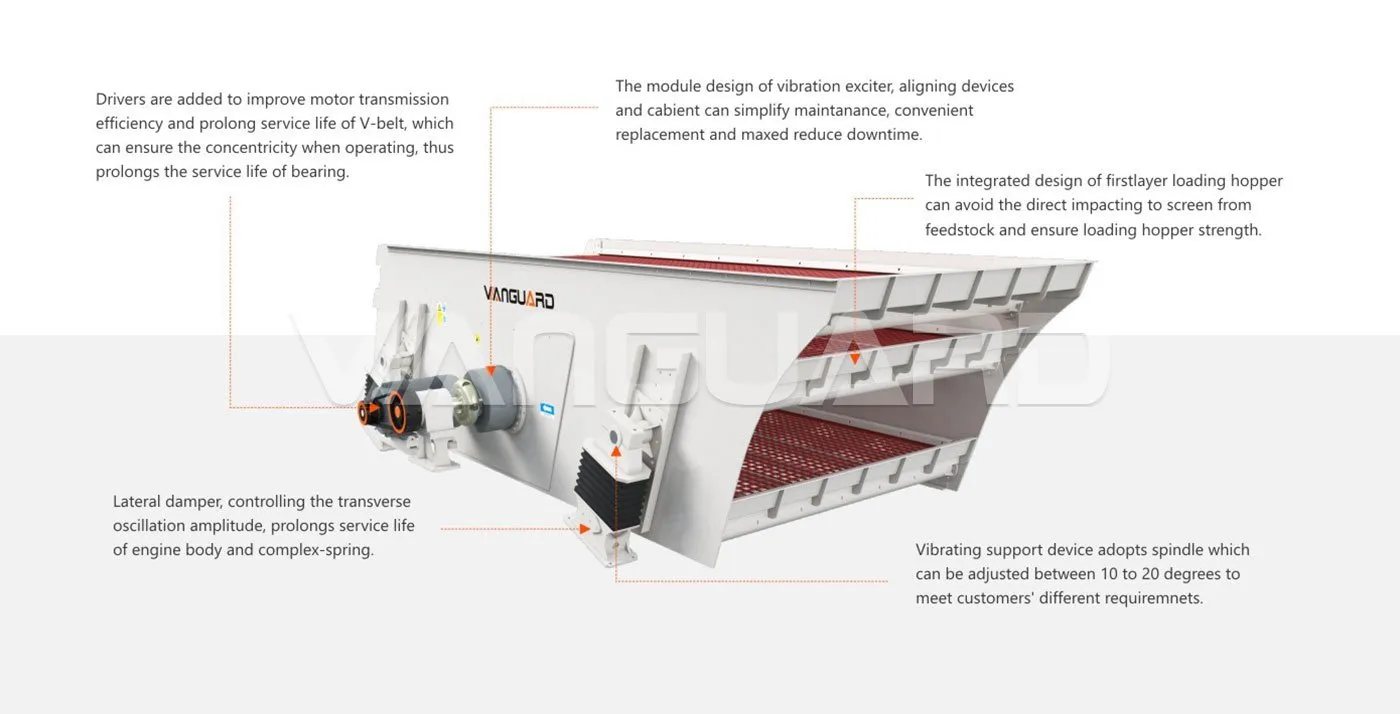

Technical Features

● Vibration exciter Self-aligning device and cabient which adopt split type module design features convenient replacement make maintenance easier and greatly reduce downtime.
● Vibration supporting device adopts spindle which can be adjusted between 10 to 20 degrees to meet reqirements of customers.
● ZY Vibrating Screen adopts flexible drive device which can protect the motor from strong shock and free the torque transmission from the axial force so that the operation of the equipment is more stable.
● Drivers are added to improve the efficiency of motor transmission and prolong service life of the V-belt.

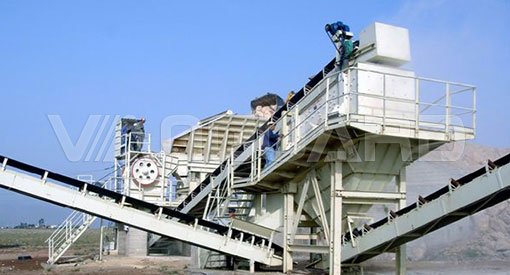

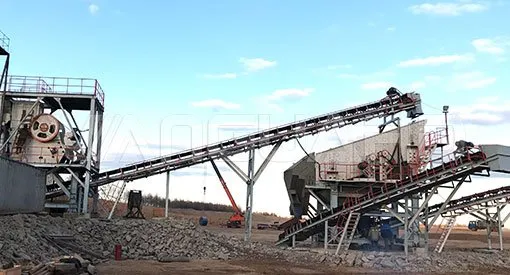

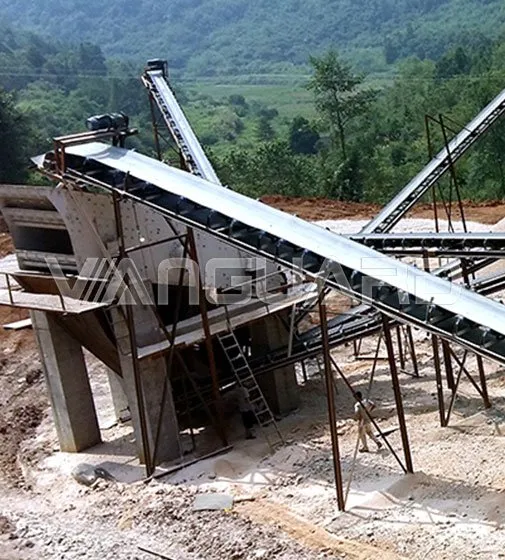

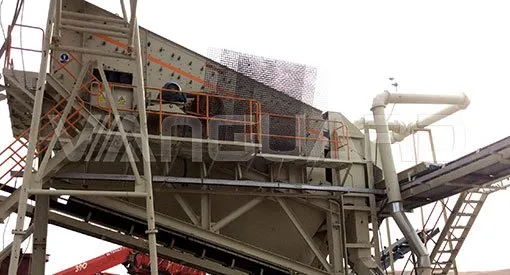

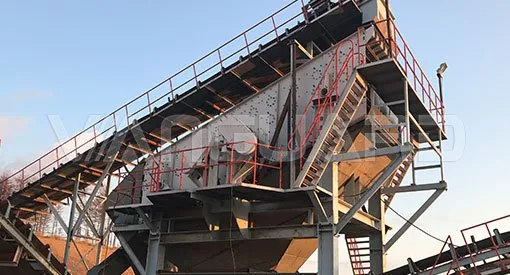

Product Gallery

Performance parameter
Model  Layer of Screen   Size of Sieve Pore(mm) Max. Feed Size (mm) Capicity(t/h)  Double Amplitude (mm) Motor Power (kw) Screen Specification (mm)
2ZY1237 2 3-50 200 10-100 7-10 11 1200×3600
3ZY1237 3 3-50 200 10-100 7-10 11 1200×3600
2ZY1548 2 3-80 300 22-165 7-10 15 1500×4800
3ZY1548 3 3-80 300 22-165 7-10 15 1500×4800
2ZY1848 2 3-80 300 35-275 7-10 18.5 1800×4800
3ZY1848 3 3-80 300 35-275 7-10 18.5 1800×4800
2ZY1860 2 3-80 300 65-590 7-10 22 1800×6000
3ZY1860 3 3-80 300 65-590 7-10 22 1800×6000
4ZY1860 4 3-80 300 65-590 7-10 30 1800×6000
2ZY2070 2 3-100 300 95-700 7-10 30 2000×7000
3ZY2070 3 3-100 300 95-700 7-10 30 2000×7000
4ZY2070 4 3-100 300 95-700 7-10 37 2000×7000
2ZY2160 2 3-100 300 85-750 7-10 30 2100×6000
3ZY2160 3 3-100 300 85-750 7-10 30 2100×6000
4ZY2160 4 3-100 300 85-750 7-10 37 2100×6000
2ZY2460 2 3-120 300 90-850 6-9 37 2400×6000
3ZY2460 3 3-120 300 90-850 6-9 37 2400×6000
4ZY2460 4 3-120 300 90-850 6-9 45 2400×6000
2ZY2860 2 3-120 300 110-1000 6-9 45 2800×6000
3ZY2860 3 3-120 300 110-1000 6-9 45 2800×6000
2ZY3073 2 3-120 300 150-1300 6-9 30×2 3000×7300
3ZY3073 3 3-120 300 150-1300 6-9 30×2 3000×7300
2ZY3673 2 3-120 300 180-1600 6-9 30×2 3600×7300
3ZY3673 3 3-120 300 180-1600 6-9 37×2 3600×7300
