Maintenance Overview

A ball mill is a rotating mass resting on two trunnions; keeping it alive comes down to three things - lube right, align well, control vibration. Manage those and you avoid most unplanned stops. Below are three ready-to-run checklists (daily, weekly, monthly), plus a lube table, a fault table with trip points, and wear-part life ranges. Large mills mostly use slide-shoe bearings lifted by hydrostatic pressure at start, listed separately. Vanguard Machinery, a Chinese-made grinding-equipment brand, builds its dry ball mill to run steadily under this maintenance rhythm.

Daily checklist (per shift)

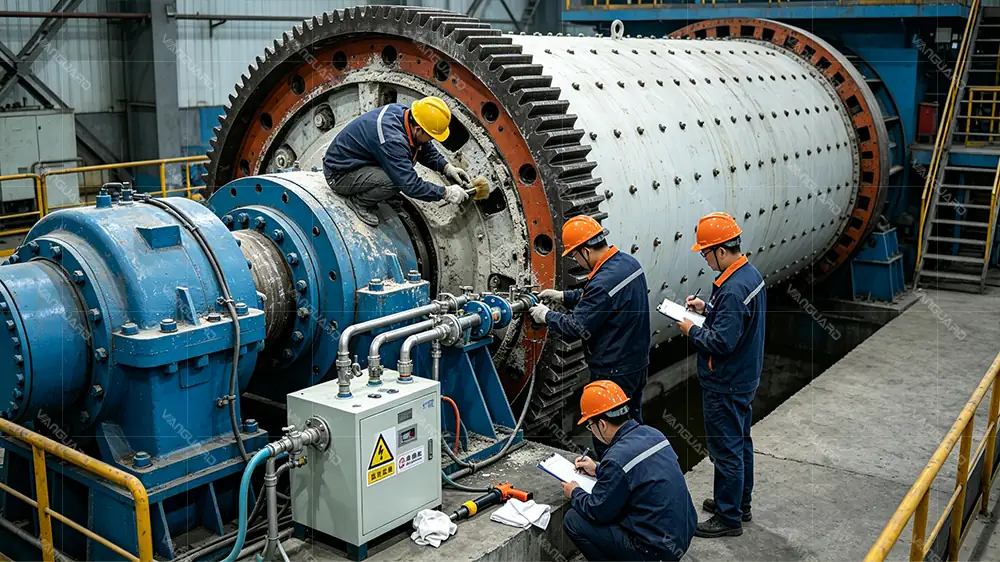

Ball mill unit and main bearing daily check

- Check main-bearing oil level and temperature: normal <=55℃, alarm at 65℃, trip at 70℃. - Listen for abnormal noise from the shell, girth gear and bearings; noise usually points to gear mesh or loose liner. - Log motor current/power; steady running should drift <5>

Weekly checklist

- Re-torque liner bolts to spec and mark them; loose bolts precede liner drop. - Check open-gear spray nozzles for atomization and volume so the tooth flank keeps a continuous film. - Add lithium grease to liner bolts, seals and riding rings. - Take a ball sample, sieve it, and top up by size to hold 30%-45% filling. - Visually check the coupling and foundation bolts; correct any looseness or shift.

Monthly checklist

- Draw a main-bearing oil sample for ferrography and viscosity; change oil if iron count or viscosity is out of band. - Measure vibration on the main bearing and gearbox: <=4.5 mm/s RMS is good, >7.1 mm/s alarms, >11.2 mm/s trips. - Check pinion-to-girth-gear contact pattern; contact height should reach >=60% of tooth height, axial misalignment <=0.15-0.20 mm. - Measure liner and diaphragm wear and log it to predict replacement. - On dry mills, clear dust collection and ventilation so heat does not build up.

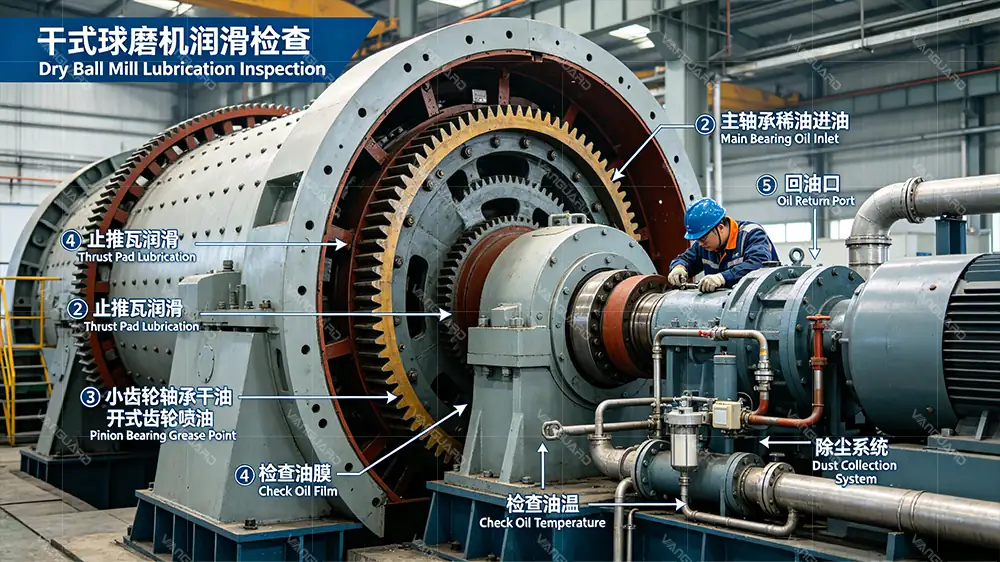

Lubrication points and intervals

Point	Recommended lube	Method	Interval / trigger
Main bearing (babbitt / slide-shoe)	ISO VG 68/100 heavy-duty circulating oil	Oil bath / circulating	Change at 4000-8000 h or 6-12 months
Open girth gear	Adhesive spray lube ISO 460	Continuous spray	Always on; check nozzles weekly
Liner bolts / seals / rings	Lithium grease	Manual / auto	1-3 months or 2000 h
Slide-shoe hydrostatic	Anti-wear hydraulic oil	Lift at start	Check pressure and filter monthly
Motor / reducer	Gear oil per nameplate	Oil bath	4000-8000 h

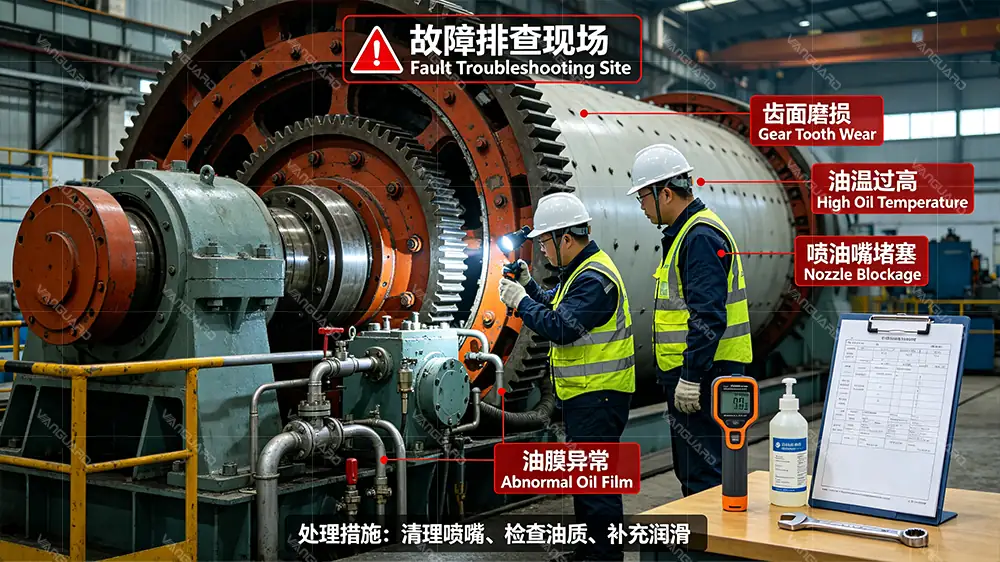

Fault quick-reference

Symptom	Likely cause	Fix	Trip point
High main-bearing temp	Low oil / bad oil / no water	Top up, change oil, open cooling	>=70℃
Excess vibration	Loose liner / bad ball mix / gear wear / loose base	Tighten, re-ball, repair gear, anchor	>11.2 mm/s
Coarser product	Worn balls / low filling / low speed	Re-ball, raise filling, check speed	-
Lower output	Worn liner / wrong circulating load / feed change	New liner, tune classifier, steady feed	-
Gear noise / pitting	Low spray / bad alignment / poor mesh	Fix spray, align, repair teeth	Stop on broken tooth
Feed-end powder leak	Failed seal	Replace seal kit	Stop on trunnion erosion
Slide-shoe scoring	Hydrostatic not built / film lost	Check pump and oil cleanliness	Stop on sharp temp rise
Motor overload	Over-filling / feed overload / low voltage	Lower filling, control feed, steady volts	>10% of rated

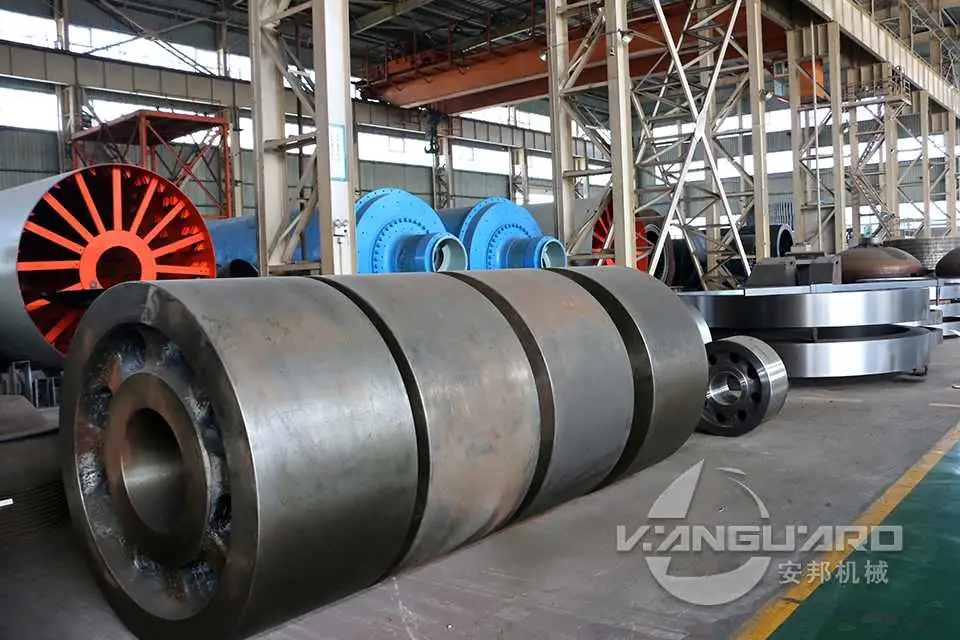

Wear-part life ranges

- Liner (Hadfield ZGMn13): 6-12 months on hard rock, 12-24 on soft; rubber liner resists corrosion and cuts noise. - Grinding balls: 0.3-1.5 kg/t of ore, topped up by hardness and size. - Diaphragm: 12-24 months; worn slots raise return and coarsen product. - Main-bearing bush: 3-8 years with good lube; a scored bush needs full replacement. - Open girth gear: 8-15 years; repair once pitting passes 25% of the flank. - Feed-end seal: 6-12 months.

How to extend service life

- Sieve balls by tonnage and top up by size to keep filling and mix; do not wait for output to drop. - Run oil analysis (ferrography + viscosity) every 3-6 months to catch wear early. - Laser-align the pinion and hold axial misalignment within 0.15-0.20 mm; gear life can double. - Hold the circulating load between 150% and 250%; too low over-grinds and wastes liner, too high chokes classification. - Use soft start and ramp the load up to spare the tooth flank and bush from shock. - Keep one set of liners, a spare gear, a bush and seals on hand so change-outs never wait on shipping.

FAQ

Q1: What main-bearing temperature is normal?

<=55℃ is normal, 65℃ alarms, 70℃ must trip; running on past that scores the bush.

Q2: How much vibration forces a stop?

Bearing-housing velocity <=4.5 mm/s RMS is good; >7.1 mm/s alarms, >11.2 mm/s trips - find the cause.

Q3: How should balls be topped up?

Sieve a sample regularly and add the right diameters by what remains, holding 30%-45% filling - not by guesswork.

Q4: How often do liners change?

Hadfield steel 6-12 months on hard rock, longer on soft; judge by measured wear, not by calendar.

Q5: How do I set lube intervals?

Main bearing oil every 4000-8000 h with analysis; open gear spray always on; grease points every 1-3 months.

Q6: What if the gear is noisy?

First check spray and alignment, then contact pattern below 60% tooth height; repair once pitting passes 25%.

Q7: Is a feed-end leak serious?

It erodes the trunnion and foundation; replace the seal the moment you see it.

Q8: Why does a slide-shoe score?

Usually the hydrostatic lift never built or the film broke; check pump pressure and oil cleanliness first.

Q9: Which spares should I stock?

One liner set, a spare gear, a bush, seals and common bolts - that covers most downtime waits.

Q10: How do I make the mill last longer?

Ball top-up by tonnage, periodic oil analysis, laser pinion alignment, circulating load 150%-250%, soft start - do these five and life stretches clearly.
