fine crusher
Feed size
<5mm
Capacity
20-300t/h
Power
37-315kw

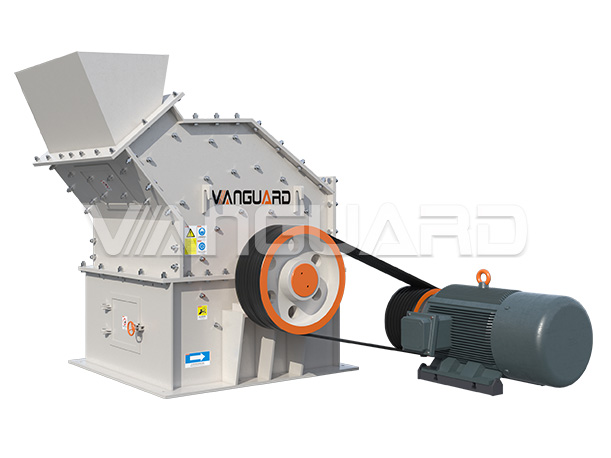

PXJfine crusher

Product introduction:

This series of fine crushers have stable and reliable operating performance simplified process simple structure and convenient maintenance. Large production capacity and long service life of the hammer head. It is widely used for the fine crushing of various minerals such as granite basalt limestone and river pebble.

Technical Features
  • High productivity
  • High recovery rate
  • Stable and reliable
  • Energy saving
  • Worriless Operation
  • ● The equipment has strong production capacity energy saving and high production efficiency compared with traditional fine crusher;

  • ● The operating performance of the equipment is stable and reliable the process is simplified and the structure is simple and reasonable;

  • ● The equipment has high operation rate fast operation speed low power consumption and obvious advantages of power saving and consumption reduction;

  • ● The equipment can control the discharge granularity and the performance is stable to meet the multiple production requirements of customers;

  • ● The wearing parts of the equipment are made of wear-resistant materials which have strong durability and extended service life.And the cost of maintenance spare parts is low convenient maintenance;

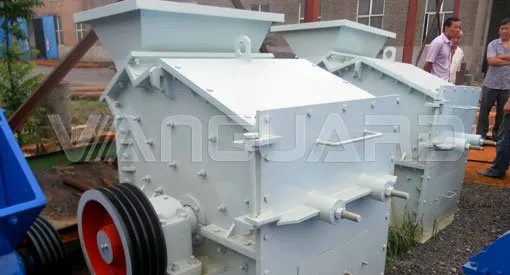

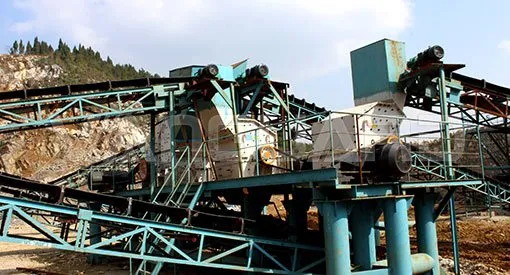

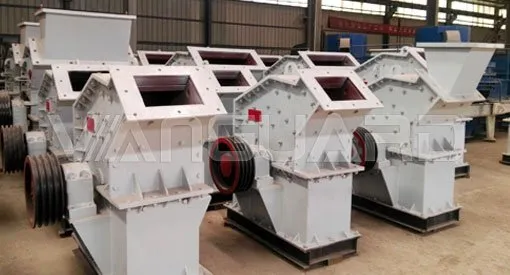

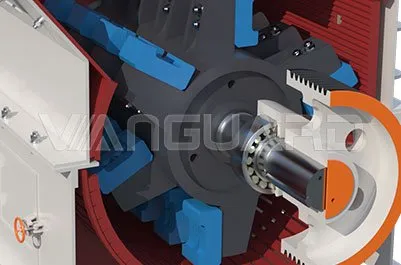

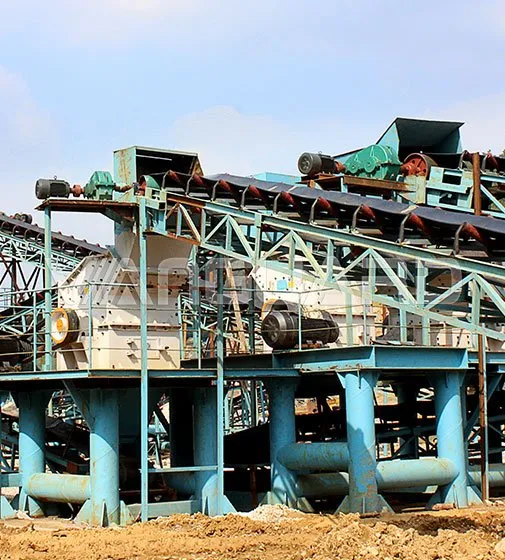

Product Gallery


Performance parameter
Model Input Opening Size(mm) Feeding Size(mm) Output Size(mm) Adjustment Range of Discharging(mm) Capacity(t/h)  Power(kw)
PXJ800*400  400*185 < 120 <5 5-20 20-30 37
PXJ800*600 500*250 <180 <5 5-20 35-40 37
PXJ800*800 550*330 <180 <5 5-20 35-45 45
PXJ1010*1010 1000*350 <180 <5 5-20 45-55 75
PXJ1010*1012 1200*400 <180 <5 5-20 80-110 90
PXJ1200*1200 1200*450 <180 <5 5-20 100-110 132
PXJ1400*1400 1500*500 <190 <5 5-20 100-150 160
PXJ1600*1600 1600*550 <190 <5 5-20 170-210 200
PXJ1800*1800 1800*800 <190 <5 5-20 250-300 315
