CrawlerType Mobile Cone Crushing Plant

Chat Online

+86 13333811995

95-350T/H

Capacity
≤200mm

Feed size
一

Power

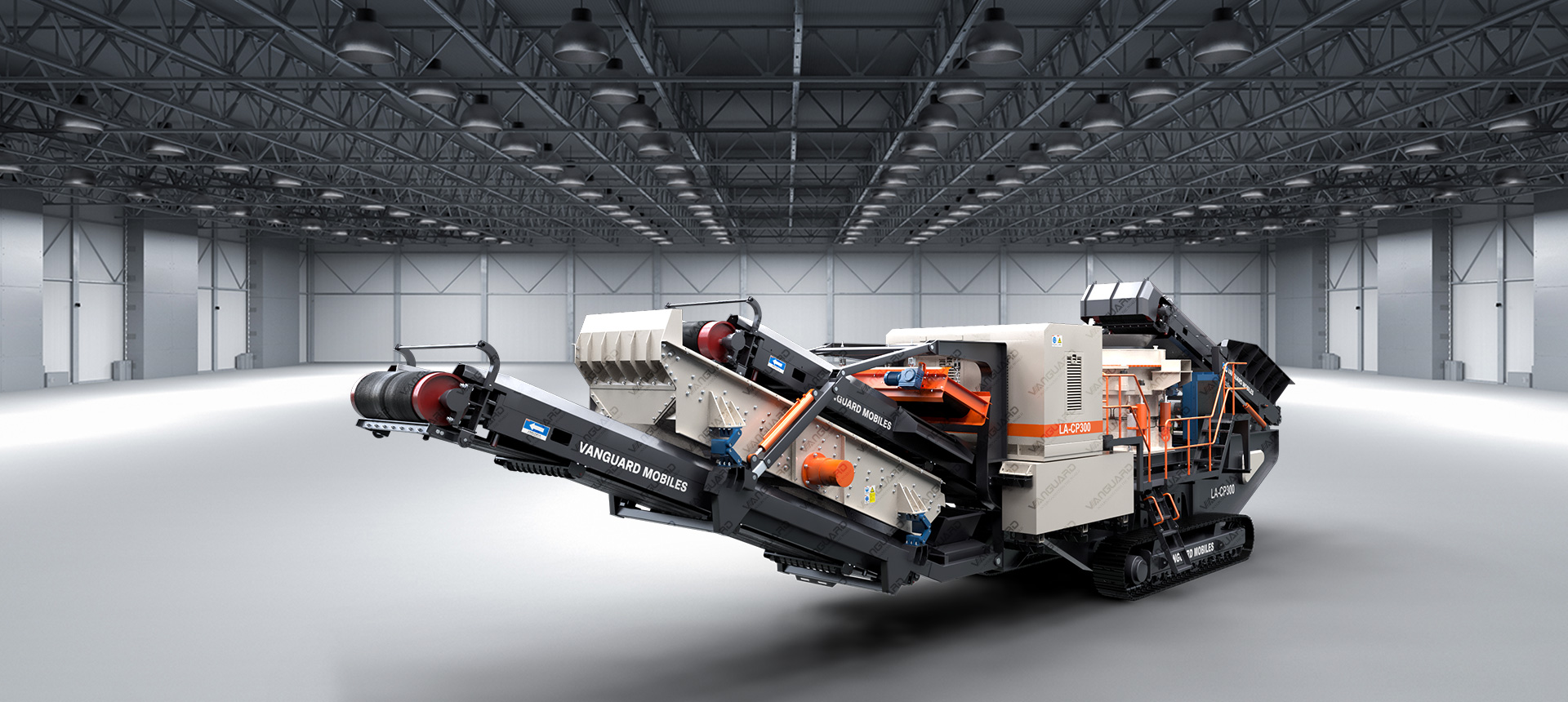

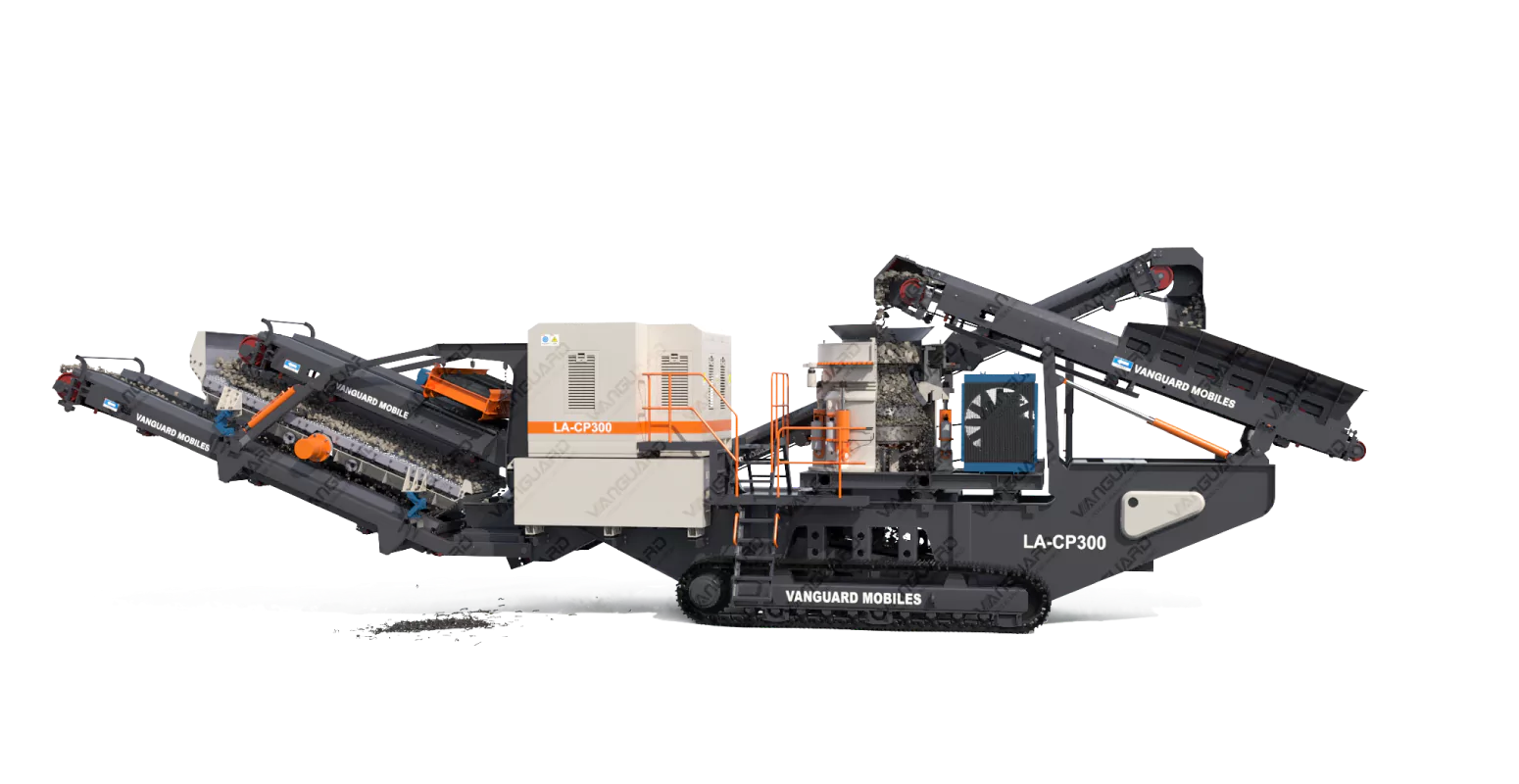

CrawlerType Mobile Cone Crushing Plant

It integrates mechanical, hydraulic, electrical, automation, and other technologies, and it has many advantages such as high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent crushing product size. It is mainly used in secondary and tertiary crushing in metal mines and construction sand and stone processing. It is not afraid of narrow terrain and harsh environments, and it is the latest generation of products in the mining construction industry and metal mining industry.

Technical Features

Crawler mobile crushing station is a series of rock and construction waste crushing equipment, which greatly expands the concept of coarse and fine crushing. Its design concept is to stand on the customer's standpoint and eliminate the obstacles to the crushing operation brought to the customer by the crushing site, environment, complicated basic configuration and complicated logistics as the primary solution.

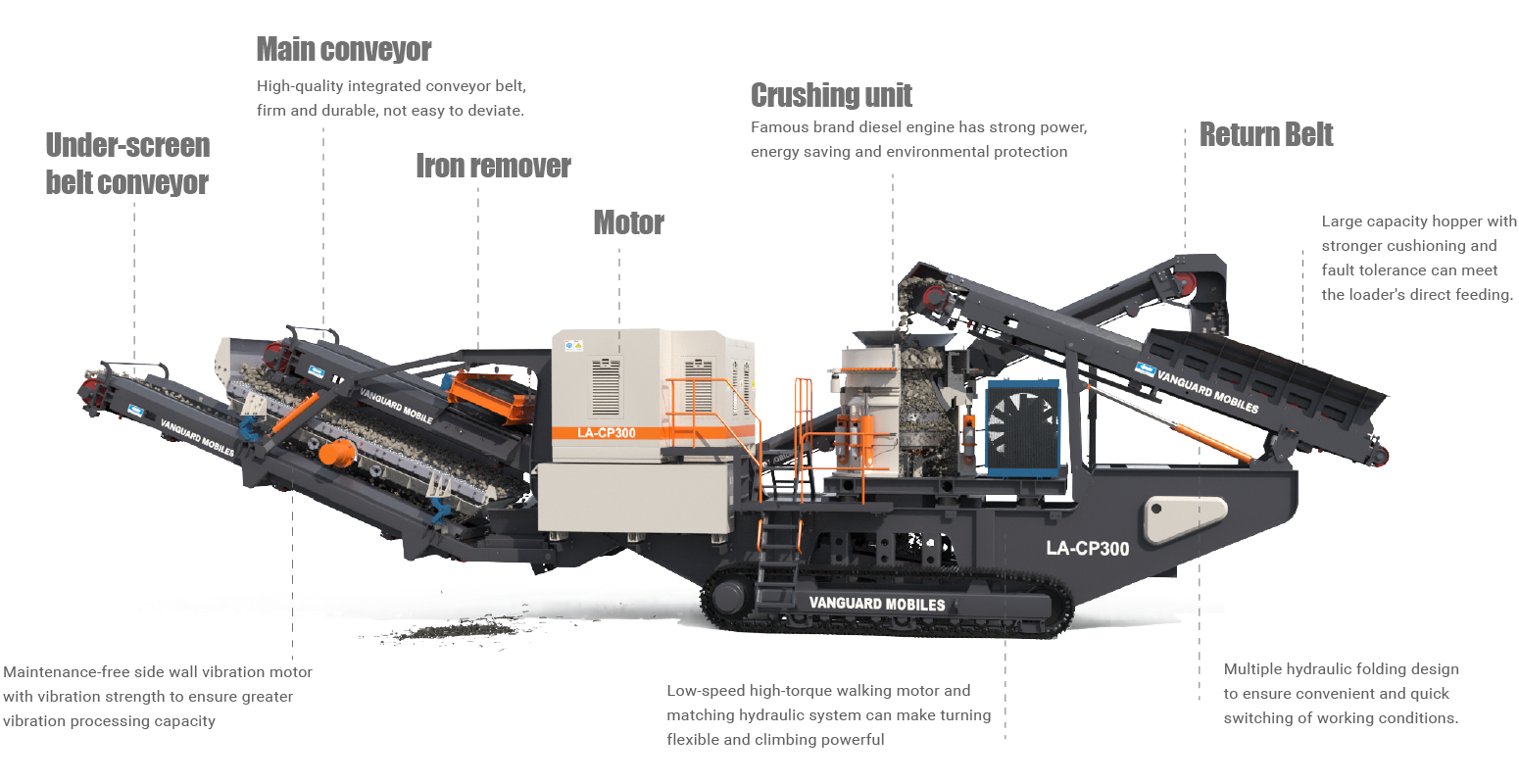

Crushing unit

Famous brand diesel engine has strong power,energy saving and environmental protection

Motor

Return Belt

Iron remover

Low-speed high-torque walking motor and matching hydraulic system can make turning flexible and climbing powerful

Multiple hydraulic folding design to ensure convenient and quick switching of working conditions.

Large capacity hopper with stronger cushioning and fault tolerance can meet the loader's direct feeding.

Maintenance-free side wall vibration motor with vibration strength to ensure greater vibration processing capacity.

Under-screen belt conveyor

Main conveyor

High-quality integrated conveyor belt, firm and durable, not easy to deviate.

Precision Crushing

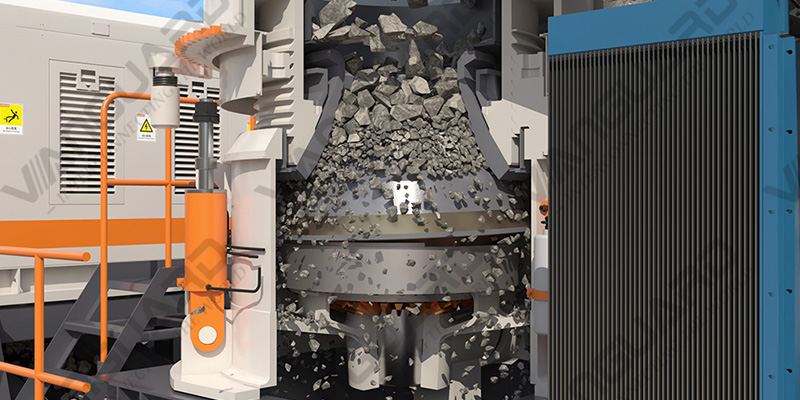

Equipped with a cone crusher with excellent performance suitable for medium and fine crushing, special crushing wall and concave design, supplemented by curved cavity and hydraulic cavity clearing system, improve the crushing efficiency and effectively reduce the easy operation loss.

Chat Online

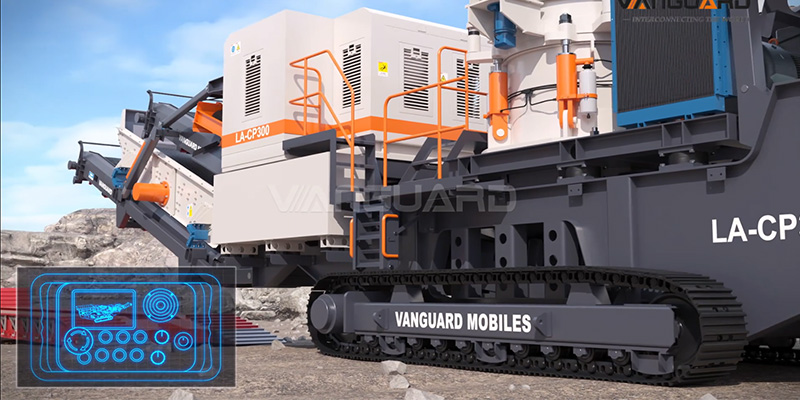

Intelligent Overload Protection‌

It adopts a fully automatic crushing control system, which quickly responds to iron (overload) and automatically releases reset protection to ensure continuous, stable, and efficient production.

Chat Online

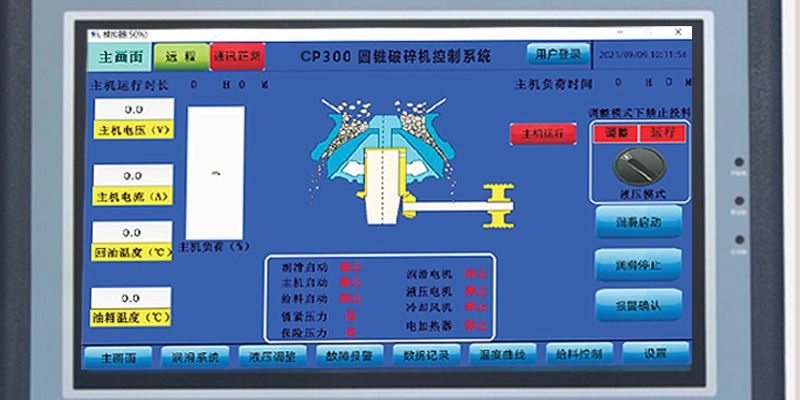

Intelligent Cavity Control‌

It is equipped with a PLC control system to keep full cavity continuous feeding, reasonable configuration, a smooth process, high production efficiency, good product shape, and the final product is a high-quality cube.

Chat Online

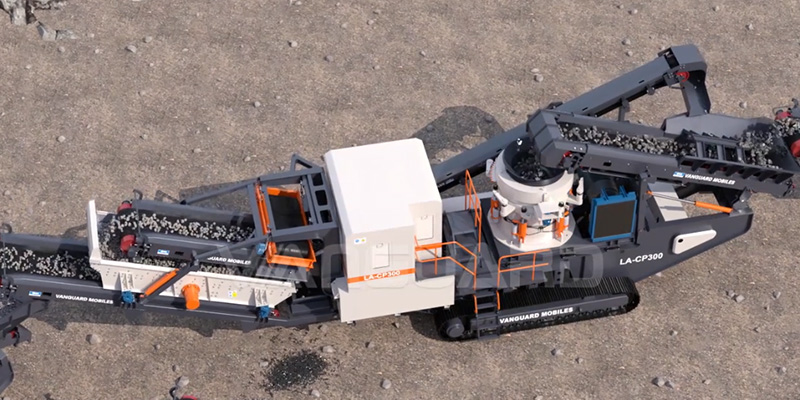

High-Performance Crushing‌

Large eccentricity, high swing frequency, and layer compression crushing make the equipment has a high capacity, large reduction ratio, and a good grain shape.

Chat Online

Product Exhibition

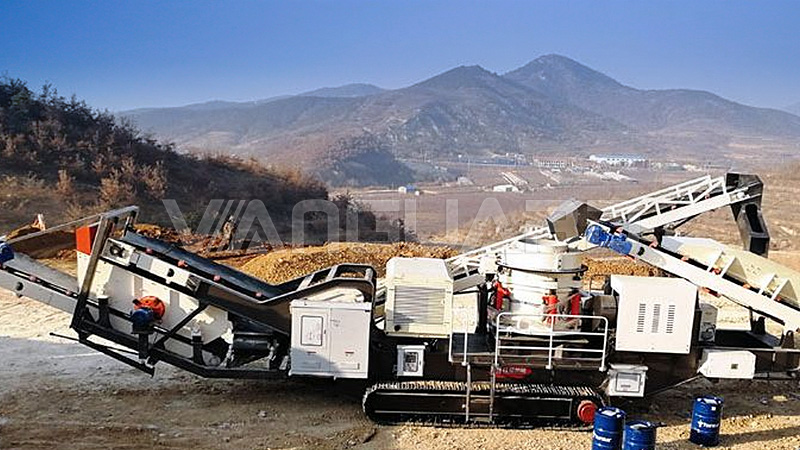

200 T/H three-combination crawler-type mobile crushing plant production line in Malaysia

Capacity:200 t/h

Max. Input size: ≤625mm

Output size: 05-20-31.5 mm

Processing materials： granite

Project advantages： Because of a small project site, Vanguard Machinery's engineers adopt a three-combination integrated design and multi-stage crushing process. The finished material has good particle shape and excellent grading, which can meet the demand for high-quality materials.

Learn more

Get a quotation

Performance parameter

Crawler type mobile cone crushing plant		CP200 crawler type mobile cone crushing plant			CP300 crawler type mobile cone crushing plant			CP400 crawler type mobile cone crushing plant
Model		Items and specifications	power (kw)	Quantity(set)	Items and specifications	Power (kw)	Quantity(set)	Items and specifications	Power (kw)	Quantity(set)
Crushing equipment	Equipment Model	CP200	/	1	CP300	/	1	CP400	/	1
	Triangle belt	Standard	/	1	25N-5100	/	7	Standard	/
	Motor	Standard	160	1	Y355M2-4	220	1	Standard	315	1
Return screen	Equipment	1536	/	1	1542	/	1	1542	/	1
Return screen	Vibration motor	Standard	3.06	2	Standard	3.7	2	Standard	3.06	2
Frame	Hydraulic crawler chassis	Standard	/	1	Standard	/	1	Standard	/	1
Frame	Boat frame		/	1	plate thickness=12-20mm	/	1		/	1
Upper sieve conveyor	Specification	B1000*6m	7.5	1	B1000*6m	7.5	1	B1200*6.5m	7.5	1
Upper sieve conveyor	Drive method	Electric drum drive	/	1	Electric drum drive	/	1	Electric drum drive	/	1
Main conveyor	Specification	B1000*9m	11	1	B1000*10.5m	11	1	B1200*10m	11	1
Main conveyor	Drive method	Electric drum drive	/	1	Electric drum drive	/	1	Electric drum drive	/	1
Under the screen conveyor	Specification	B1000*6m	7.5	1	B1200*6.2m	7.5	1	B1200*6.2m	7.5	1
Under the screen conveyor	Drive method	Electric drum drive	/	1	Electric drum drive	/	1	Electric drum drive	/	1
Transfer conveyor	Specification	B650*2m	3	1	B650*2m	3	1	B650*2m	3	1
Transfer conveyor	Drive method	Electric drum drive	/	1	Electric drum drive	/	1	Electric drum drive	/	1
Return conveyor	Specification	B500*9m	5.5	1	B500*11m	5.5	1	B500*11m	7.5	1
Return conveyor	Drive method	Electric drum drive	/	1	Electric drum drive	/	1	Electric drum drive	/	1
Single power system	Walking engine	Yuchai diesel engine	106	1	Yuchai diesel engine	80	1	Yuchai diesel engine	145	1
Dual power system	Generator set	Yuchai diesel engine	300	1	Yuchai diesel engine	400	1
Electrical System	Electric control cabinet	Host soft-start, CHINT electrical components.	/	1	Host soft-start, CHINT electrical components.	/	1	Host soft-start	/	1
Matching		Belt Conveyor Folding Cylinder		1	Belt Conveyor Folding Cylinder		1	Belt Conveyor Folding Cylinder		1
Matching		Hydraulic pumps, valves, stations and tubing accessories		1	Hydraulic pumps, valves, stations and tubing accessories		1	Hydraulic pumps, valves, stations and tubing accessories		1
Dimensions(m)L×W×H		Working size174.84.1	Transport size173.33.6		Working size18.545.1	Transport size19.83.64		Working size19.55.14.9	Transport size19.53.73.9
Weight (t)		Single-power model:≈45t,Dual-power models:≈47t			Single-power model:≈55t,Dual-power models:≈57t			≈65t
Power (kw)		Single-power model: 200.62kw(not including walking engine power),Dual-power models: 200.32kw(not including generator set power)			Single-power model: 264.1kw(not including walking engine power),Dual-power models: 264.1kw(not including generator set power)			357.62kw(not including generator set power)
