DL1 Long Hole Mining jumbo
DL1 Long Hole Mining jumbo

Product introduction:DL1 (CYTC76) is a compact and flexible electro-hydraulic mining drill rig for medium and deep hole operations in underground mine production. It adopts a compact design and is specially developed for medium and deep hole rock drilling in small tunnel mining. Flexible universal cantilever drill The arm can work in various deep hole arrangements such as vertical, inclined, parallel and fan-shaped.

Technical Features
  • Automatic Rod bank
  • Hydraulic drilling boom
  • Hydraulic Propeller beam
  • Chassis
  • control system
  • ● This boom is a horizontal rocker arm structure. It is a professional medium and deep hole rock drilling boom. It cannot be interchanged with the tunneling propelling boom to drill parallel holes.

  • ● The pallet-type drill boom is used for rock drilling with stable and accurate positioning rotated 360°.

    ● It can be used for medium and deep holes and also for tunneling. It can drill holes at any angle in the top, side and face of the rock.

  • ● Aluminum alloy heavy-duty propulsion beam, with character of high bending and torsion strength, and long service life.

    The surface of the propelling beam is covered with stainless steel, and the moving parts are made of PTFE wear-resistant liners.

  • Sturdy articulated heavy-duty chassis, diesel engine four-wheel drive, fast traveling speed and flexible transition characteristics, improve work efficiency; adopt power steering; chassis equipped with centralized lubrication system; the whole vehicle is equipped with four hydraulic outriggers for high stability when working.

  • It adopts a direct control rock drilling system with excellent automatic anti-block rod function. Its impact, rotation and propulsion use their own hydraulic pumps, and independent control loops ensure stable power output.

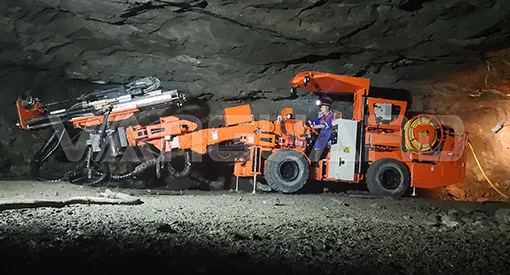

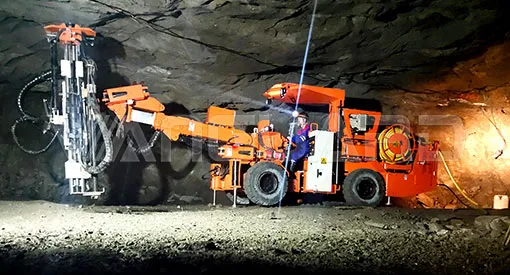

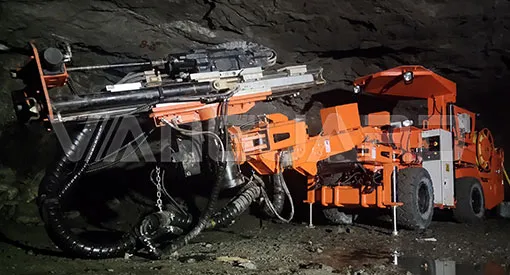

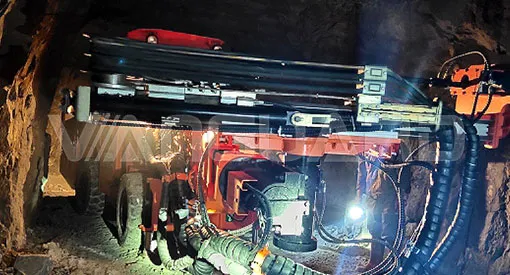

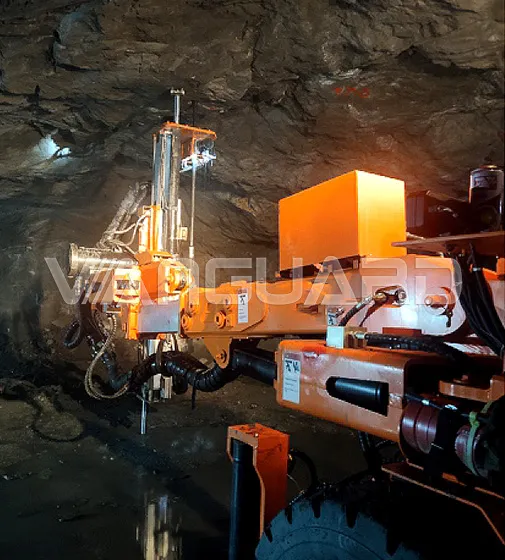

Product Gallery

Performance parameter


Component Item Data

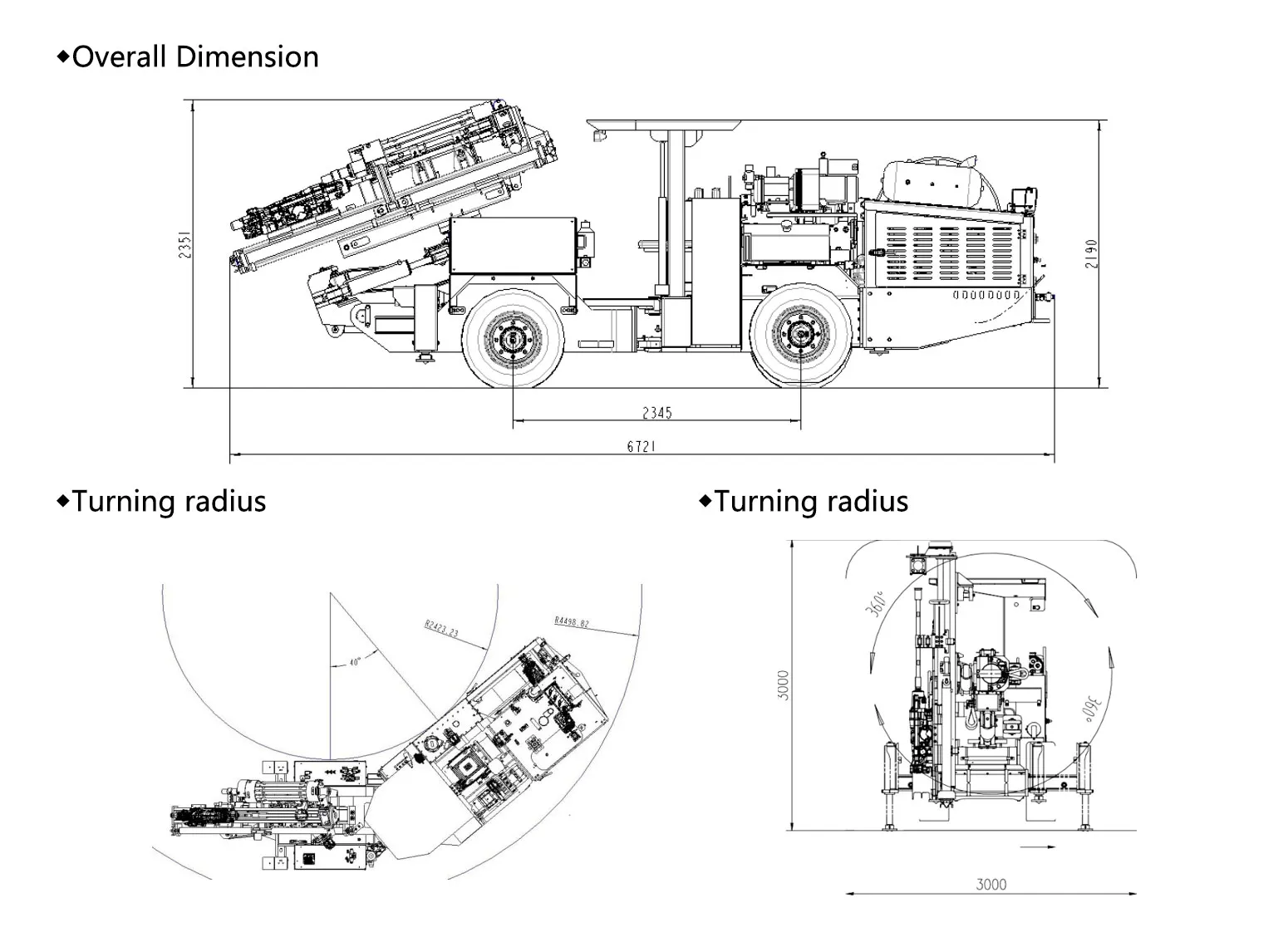

Wholemachine Overall dimension mm 8475*1580* 2080/ 2669
Adopted tunnel (WxH)mm 3000×3000-4300x4300(according to the length of the drill rod)
Drilling diameter mm φ64~φ76
Drillingholedepth m <20
Drilling speed m/min 0.8-2
Electrical motor power KW 55
Hydraulic oil tank volume L 200
Whole weight kg 11000
Drilling boom Drifter HC95 Epiroc RD18U(1838ME produced in China)
Impact power KW 20 18
Impact frequency Hz 54-62 57
rotating 360
Propellerup/down° ±90
Parallel hole range mm 800
Propeller compensation mm 500
Chasiss Diesel power KW 53kW@2200rpm
Carrier articulation° ±40°
Tyre 10.00-15
Rear axle angle° ±6°
Approach/departure angle° Approach20°departure15°
Min. Turning radius m inner>2.5、outer>4.5
Traveling speed km/h 10
Adaptive tunnel slope ≥14°
Min. Ground clearance mm 275
Diesel tank volume L 60
Air supply System Flowm3/min 0.7
Working air pressure Mpa 0.8
Water supplysystem Flow L/min 80
Working water pressure Mpa 1.2
Electrical system General power KW 55+4+3
Voltage V 380
Battery V/Ah 120Ah
Running light W 56Wx3
Working light W 56Wx2
