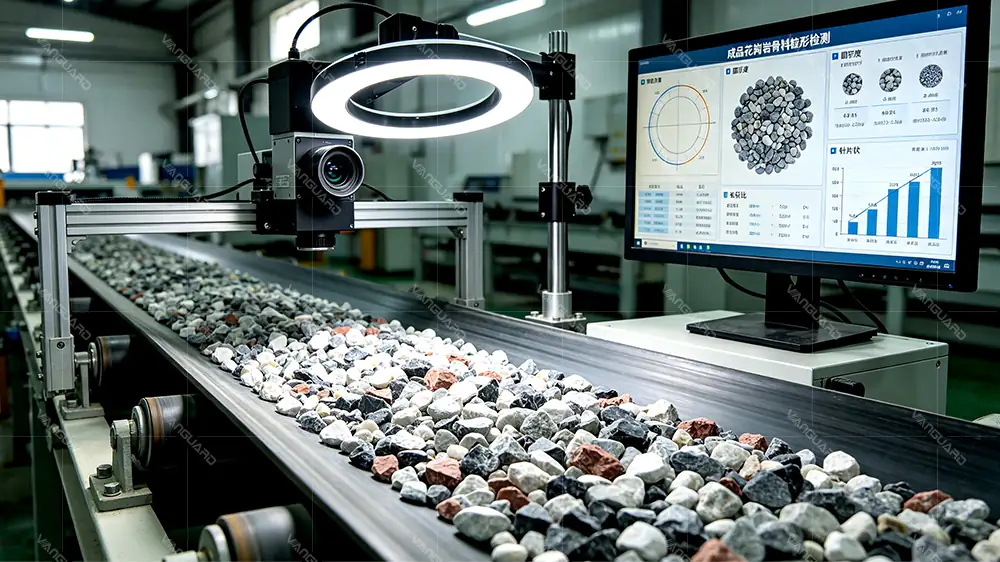

Executive Summary

- Granite is hard but brittle with developed cleavage; a single jaw stage tends to squeeze out slabby, elongated particles that fail premium specs. - Cubical shape is controlled in three layers: the jaw drops the top size, the cone sets shape through chamber and CSS, and the VSI shapes the final product. - Closed-circuit screening sends oversize and returns back to be re-crushed — the last insurance for shape and gradation.

Why Granite Tends to Flake

- High compressive strength but brittle, granite splits along cleavage planes; pure compression yields platy, needle-like grains. - A jaw crusher strokes back and forth; its output naturally carries more elongated pieces — fine for primary, wrong for shaping. - Only when reduction ratio, chamber and CSS work together do particles tumble and load multiple times, trending cubical.

What Controls Particle Shape

- Reduction ratio: crushing too hard in one stage lets stone split before it tumbles; staged reduction is steadier for cubes. - Closed-side setting (CSS): too tight improves shape but kills tonnage; too open throws flakes. Find the sweet spot. - Chamber: from coarse to fine chambers the nip angle and parallel zone differ; fine chambers define shape better. - Loading mode: rock-on-rock beats steel-wall compression for rounder, cubical grains.

Primary Jaw Setup

- Primary only breaks big rock into even medium feed; do not run CSS to the limit — leave room for the secondary.- Keep feed gradation steady; returned fines re-entering the jaw clog the chamber and worsen shape.- A deep-chamber unit such as the 6CX jaw crusher takes large feed with a stable stroke, a sound base for granite primary.

Parameter	Toward shape	Toward tonnage	Trade-off
Tight CSS	Better cubes	Loses output	Pair with cone shaping
High ratio	Flakes risk	One stage simpler	Stage for stability
Higher speed	More loading	Wear faster	Watch chamber

Cone Secondary Chamber Tuning

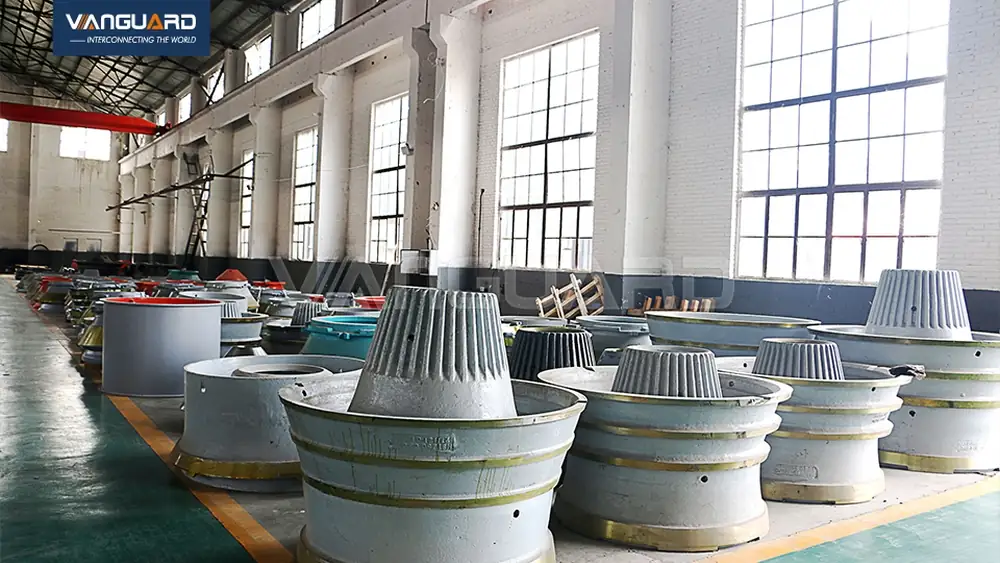

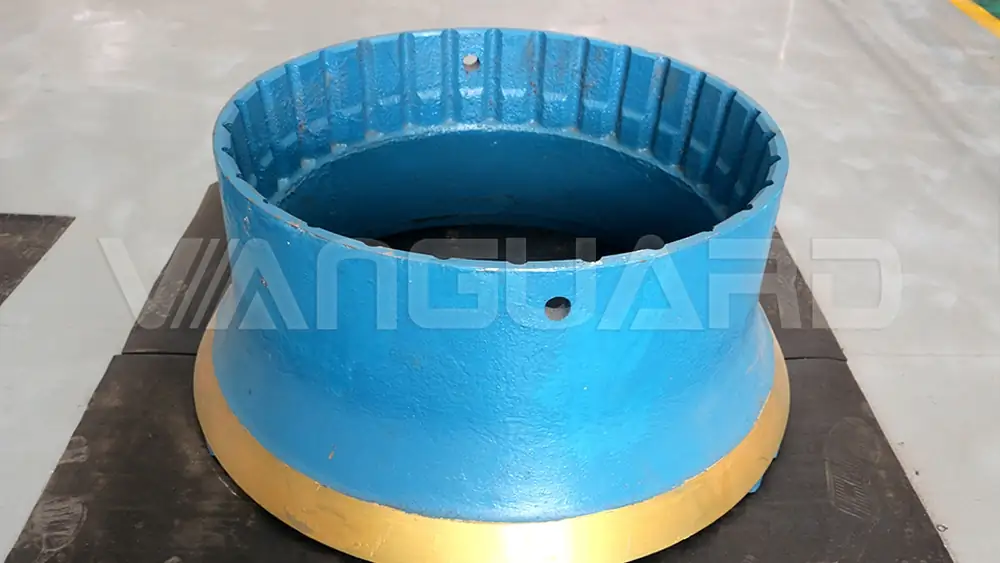

- The cone compresses material repeatedly between mantle and bowl liner; it is the main shaping stage. Granite runs from medium to fine chamber. - The eccentric shaft spins the mantle around; large throw gives tonnage but coarser shape, small throw finer and rounder. - Hydraulic CSS adjustment beats shims for speed, and swapping liners shifts coarse to fine chamber for different products. - As liners wear, CSS drifts; recalibrate regularly or both shape and output fall.

Chamber	Use	Shape result
Coarse EC	Big secondary feed	Tonnage first
Medium MC	Transition	Balanced
Fine C	Pre-final	Good cubes

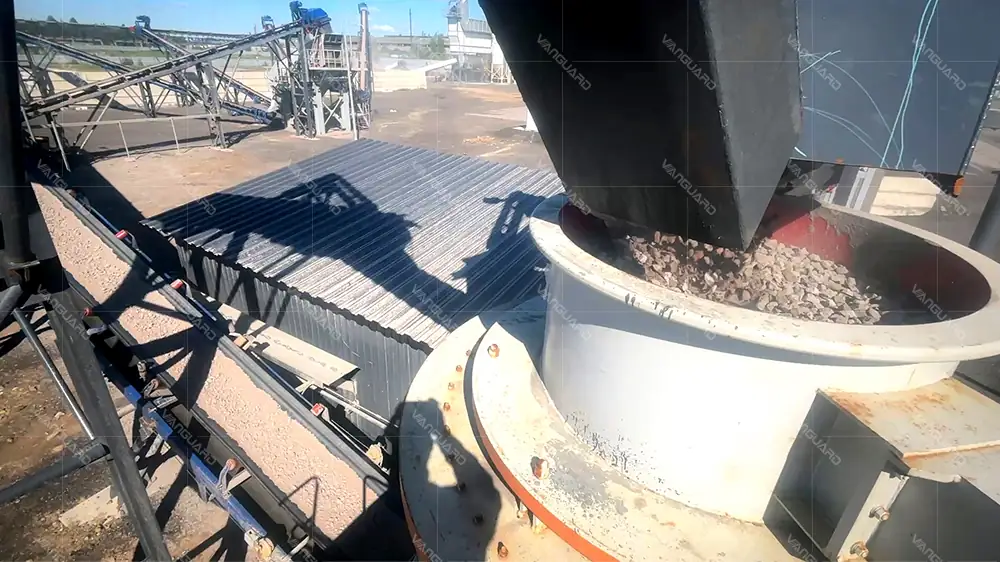

VSI Shaping Stage

- Before final sizing, a 5X vertical-shaft impact crusher uses rock-on-rock to round edges; flakiness drops sharply.- It does not replace cone tonnage; it re-shapes cone output, aimed at premium aggregate and sand.- Feed must be clean and low-moisture; a closed return stays stable, otherwise bridging hurts shaping.

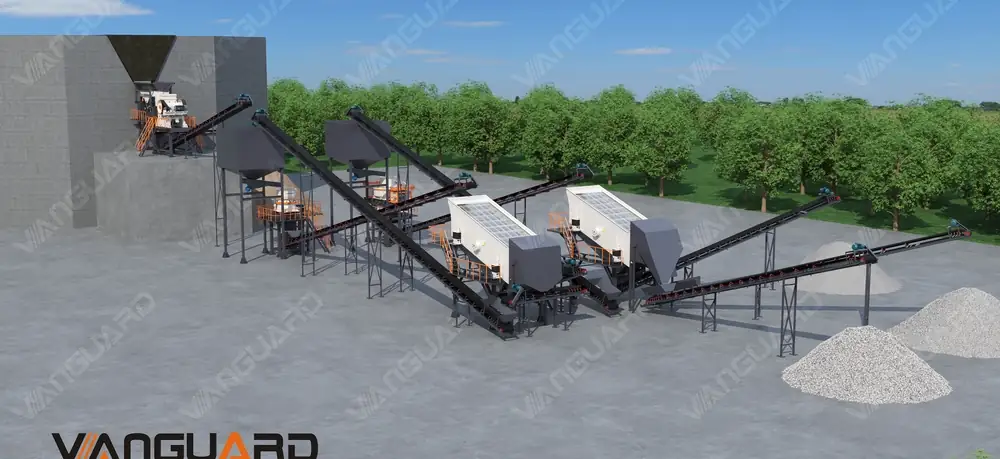

Closed-Circuit Screening

- The circuit screens oversize back to cone or VSI, guaranteeing only in-spec sizes ship. - Mesh size and deck count set the fractions; granite is hard, so screens wear fast — keep a spare cycle. - Hold the return ratio in a sane band; too high means upstream chamber or CSS is off, not the screen.

Common Shape Mistakes

- Mistake one: shaping with the jaw. The jaw only primes; shaping belongs to cone plus VSI. - Mistake two: CSS as tight as possible. Output collapses and wear spikes; shape gains diminish. - Mistake three: ignoring the return ratio. High returns mean check chamber and feed, not add screens. - Mistake four: impact crusher on hard granite. Wear and flake control are both poor; the cone is steadier.
