Sand Production Line
Sand Production Line

Product introduction:Sand production line usually consists of vibrating feeder jaw crusher sand making machine (vertical shaft impact crusher) vibrating screen sand washing machine belt conveyor centralized electric control box and other equipment. The designed capacity is generally 50-500 T/H. After years of development and research our company has designed a complete sand production line which is popular with users.

Capacity:50-500 T/H

Output size:0-5mm 5-10mm 10-20mm and various specifications

Application:Highway railway building concrete mixing plant water conservancy airport runway etc.

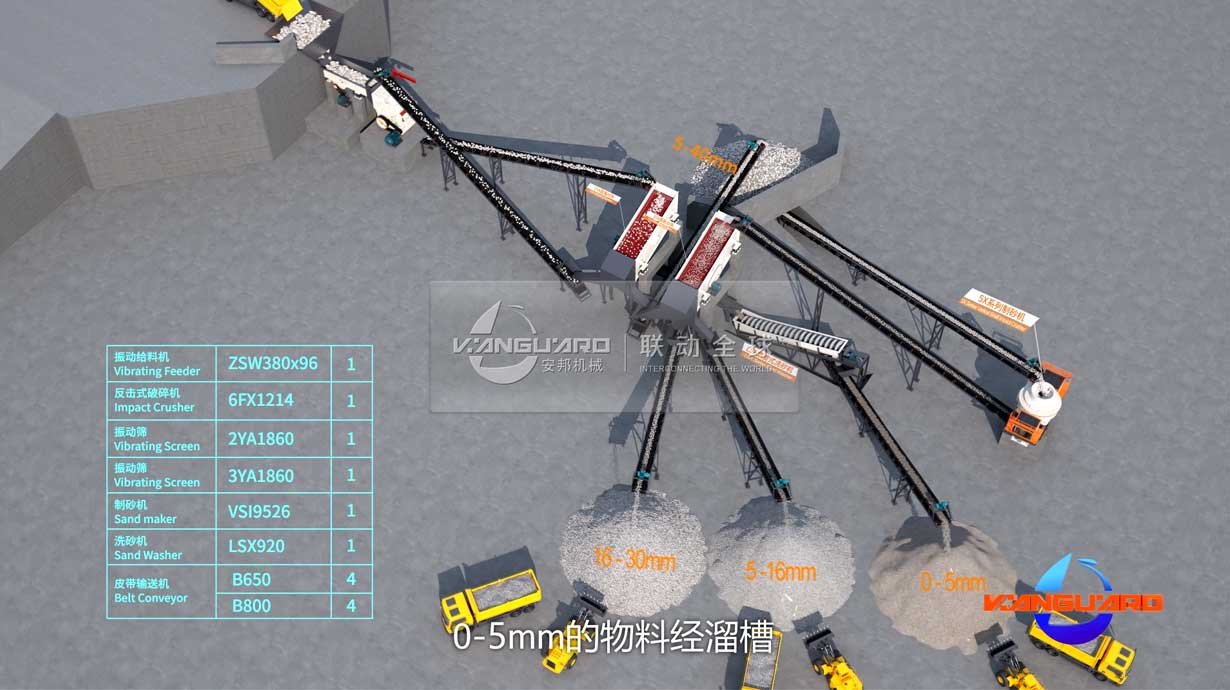

Sand Production Line Process flow

Our company has been engaged in the research of sand and gravel crushing for many years. The sand production line designed and manufactured according to the actual situation of our country has the following characteristics:

1. The investment is only 1/3 to 1/5 of the conventional production line with same capacity.

2. The cost of sand and gravel per ton is only 1/3 to 1/4 of that of conventional production line.

3. High automation with less than 3 workers per shift.

4. Short payback investment. Generally the investment can be recovered within three months.

5. High automation low cost high crushing rate energy saving large capacity less pollution and easy maintenance. The manufactured sand meets the national building sand standard with uniform particle size good grain shape and grade coordination.

Performance parameter

150-200 T/H Granite Crushing Production Line

Configuration List
Equipment Model Qty
Vibrating Feeder ZSW420×110 1
Jaw Crusher 6CX110 1
Cone Crusher CP300 1
Sand Making Machine 5X8522 1
Sand Making Machine 5X1145 1
Vibrating Screen 2YA2160 1
Vibrating Screen 2YA2460 1
Sand Washer LSX920 1

200-250 T/H Granite Crushing Production Line

Configuration List
Equipment Model Qty
Vibrating Feeder ZSW490×130 1
Jaw Crusher 6CX110 1
Cone Crusher CSV200 1
Cone Crusher CSV110 1
Vibrating Screen 3YA1860 2
Sand Making Machine 5X1263 1
Vibrating Screen 2YA3075 1
Sand Washer 2LSX920 1

300-350 T/H Granite Crushing Production Line

Configuration List
Equipment Model Qty
Vibrating Feeder ZSW420×110 1
Jaw Crusher 6CX125 1
Cone Crusher CS840 1
Cone Crusher CP300 1
Vibrating Screen 3YA2160 2
Sand Making Machine 5X1145 2
Vibrating Screen 2YA2460 2
Sand Washer LSX1120 2
