Best Grinding Mill for Calcite (2026 Guide): How to Choose the Right Mill Based on Fineness

Quick Answer

Calcite is the natural crystalline form of calcium carbonate, soft (Mohs ~3) — wear is not the main issue, the real test is how fine you grind and how accurate the classification is. For 80–325 mesh base filler, a YGM high-pressure mill does the job; for 200–400 mesh at volume, an LM vertical roller mill; for 325–2500 mesh ultrafine, an HGM three-ring mill; for high-end ultrafine above 1250 mesh, an LUM ultrafine vertical mill saves more power. Pre-crush lumps below 20 mm with a jaw crusher (6CX/PE), dry-grind with a classifier setting the fineness, and add surface coating for plastic grade. Vanguard Machinery covers all four types — need a plan? Contact Vanguard Machinery for free material analysis and tailored selection.

Key Takeaways

- ✔ With calcite, fineness — not hardness — decides the mill type - ✔ 80–325 mesh: YGM; 200–400 mesh high volume: LM; 325–2500 mesh ultrafine: HGM; high-end ultrafine: LUM - ✔ Pre-crush with a jaw crusher below 20 mm, dry grinding, classifier decides pass/fail - ✔ Plastic-grade calcite needs surface modification (stearic acid / coupling agent coating) for compatibility - ✔ This covers natural calcite (GCC) grinding; PCC is chemically precipitated, a different process

Fineness Decides Where the Powder Goes

Grinding calcite is not the same as crushing ore — ore crushing feeds a mill or flotation, calcite grinding delivers the product straight. The mesh count decides who buys it.

PVC pipe, rubber, ordinary paint, paper base stock. High volume, not fussy on fineness — a YGM high-pressure mill supplies it steadily.

Premium paint, sealant, artificial stone. Needs tighter particle size and stable whiteness — a vertical mill or three-ring mill fits.

Engineering plastics and premium coatings care about dispersion and reinforcement. This is the home of the HGM three-ring mill, with LUM more economical at the very top.

Mohs 3 means the rollers and rings wear slowly. What really separates a good line from a poor one is how precisely the classifier picks out qualified powder — miss it and the powder runs coarse or fine, whiteness and flow both drop.

How the Four Main Mills Split

Vanguard Machinery covers the full line from coarse to ultrafine; match the mill to the mesh.

A classic suspended-roller design, low investment, easy upkeep — the go-to for small-to-mid volume base filler.

Grinds, dries and classifies in one unit, low power draw, big single-machine capacity — built for scaled calcite filler plants.

Medium-speed three-ring grinding with multi-stage classification, aimed at ultrafine; handles both plastic and coating grades.

Pushes ultrafine classification to the limit on a vertical mill; above 1250 mesh it is more power-efficient and finer — the tool for high-end ultrafine.

How to Pick by Fineness

Fix the target mesh and the mill is basically fixed.

Process Points for Calcite Powder

Choosing the right mill is only step one; calcite powder has checkpoints ore crushing never sees.

Run large calcite lumps through a jaw crusher (6CX/PE) down to below 20 mm before the mill — protects the mill and lifts output.

Most calcite is dry-ground. The classifier blows qualified fine powder up and sends coarse powder back to re-grind — classification precision directly sets whiteness, flow and customer acceptance.

Calcite for engineering plastics must be coated with stearic acid or a coupling agent (modifier) — without it the powder won't mix with resin and tends to agglomerate. A step a crushing line simply does not have.

Calcite is physically ground limestone/marble; PCC is chemically precipitated, its fineness set by reaction, not a mill. This article covers the calcite GCC grinding line.

Typical Vanguard Machinery Calcite Mills

Match the series to fineness and volume.

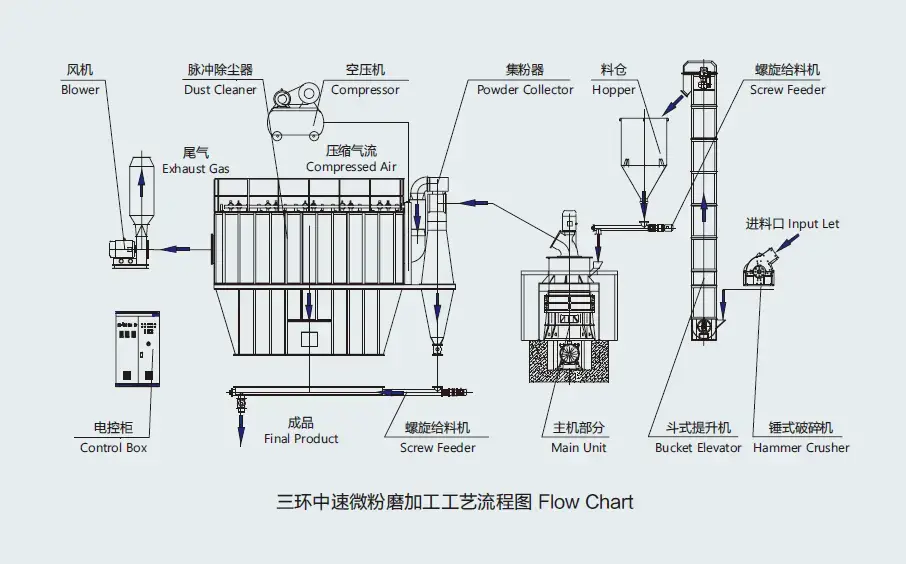

Typical Process Flow

The dry calcite line and the ultrafine modified line run differently.

Raw ore → jaw crusher (6CX/PE, below 20 mm) → bucket elevator → storage bin → feeder → grinding mill (YGM/LM/HGM/LUM) → classifier → qualified powder (cyclone collection) → pulse dust removal → collection bin → packing.

Raw ore → jaw crusher → grinding mill (HGM/LUM) → classifier → qualified ultrafine powder → surface modifier (stearic acid coating) → collection → packing. Modification comes after grinding; the finer the powder, the more even the coating must be.

Field Experience

What actually makes or breaks a calcite line comes from the plants we have supported.

Set fineness first, mill second. Many customers ask "which mill is best" before fixing target mesh and volume — change the mesh and the model can jump from YGM to LUM. Get the order wrong and you rework everything.

The classifier is the linchpin. We have seen the same mill, poorly tuned classifier, put out powder that runs coarse then fine, whiteness drifting, rejected by the customer; lock the classification precision and airflow and the product stabilises at once.

Do not skip modification. Plastic-grade calcite left uncoated clumps in the extruder and loses strength. Matching the modifier to the mill is a pitfall we have helped customers clear.

Selection Checklist and Common Mistakes

Break selection into a five-minute pass.

1. Target mesh? → 80–325 mesh YGM; 200–400 mesh LM; 325–2500 mesh HGM; high-end ultrafine LUM. 2. What volume? → high volume goes LM, small-to-mid goes YGM/HGM. 3. Dry or wet? → calcite is mostly dry; depends on whether the customer wants powder or slurry. 4. Plastic grade? → add a surface modifier. 5. Feed size to mill? → jaw crusher (6CX/PE) first, below 20 mm.

Mistake one: buy a mill before fixing mesh — wrong model, full rework. Mistake two: watch the host, ignore the classifier — fineness drifts, whiteness drops. Mistake three: skip coating for plastic grade — powder won't mix with resin, strength fails.

FAQ

No "best", only "most suitable". Fix the mesh first: 80–325 mesh YGM, 200–400 mesh high volume LM, 325–2500 mesh ultrafine HGM, high-end ultrafine LUM.

200–325 mesh YGM; 800 mesh HGM; 1250 mesh HGM or LUM (more efficient); high-volume mid-coarse LM.

For value, small-to-mid volume, mid-coarse powder pick YGM; for single-machine high volume, scaled calcite filler pick LM.

Either works. HGM covers 325–2500 mesh; LUM is more power-efficient and finer above 1250 mesh, so for the high end pick LUM.

Yes. Large calcite lumps go through a jaw crusher (6CX/PE) down to below 20 mm to protect the mill and raise output.

Calcite is mostly dry-ground to powder; wet only if the customer wants calcium slurry (e.g. paper make-up). This article focuses on dry.

Stearic acid / coupling-agent coating makes the powder compatible with resin and stops agglomeration, giving engineering plastics their strength and look; skip it and strength fails.

No. Calcite is physically ground (the line here); PCC is chemically precipitated, fineness set by reaction, not a mill.

On the same mill, finer mesh means lower output. Want both fine and high volume — go bigger or pick an efficient ultrafine mill like LUM.

Both are GCC. Calcite ore usually runs higher whiteness and purity, better for high-end filler; limestone is more common and lower cost. The grinding logic is the same.

It sets the cut size of qualified powder — precise classification means stable whiteness, good flow, customer acceptance; drifting classification means rejections.

First the target mesh and annual volume, then dry/wet and whether to modify, last the model (YGM/LM/HGM/LUM).

Conclusion

Calcite grinding is not held back by hardness — mesh count is the conductor. Base filler goes YGM, scaled filler LM, ultrafine HGM, high-end ultrafine LUM; pre-crush with a jaw crusher, dry-grind with the classifier setting fineness, and add surface modification for plastic grade. This logic holds across calcite GCC lines. Need a tailored plan? Contact Vanguard Machinery for free material analysis and selection.
