Energy-saving Ball Mill
Energy-saving Ball Mill

Product introduction：Energy-saving ball mill is the key equipment for crushing materials after being crushed. It is widely used in the production industries of ferrous and non-ferrous metal beneficiation cement silicate products new building materials refractory materials fertilizers and glass ceramics.

Application field：
Get a free quote
info@vanguardtec.com
Technical Features
  • Simple Structure
  • Environmental Protection
  • Easy To Maintain
  • Optional Discharge Method
  • Large Processing Capacity

  • ● Simple structure reliable running and easy operation;

  • ● It mechanically classifies through the mechanism of different sedimentation speed of solid particle in liquid due to different size and different specific gravity;

  • ● It can classify the ground material powder from the grinder spiral the coarse grain into material inlet of grinder through the spiral chip and discharge the classified fine grain from overflow surface;

  • ● Its base is made from channel steel and its body is welded from steel plate;

    ball mill manufacturer

  • ● The lower support of spiral bearing is of the engine-bearing structure of good wear-resistance and durability;


Product Gallery

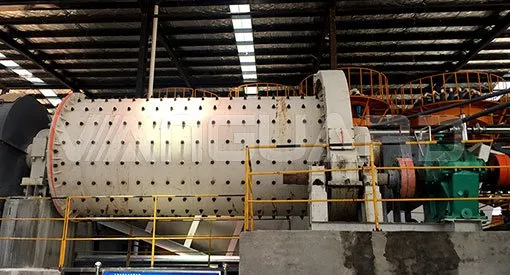

Energy-saving ball mill

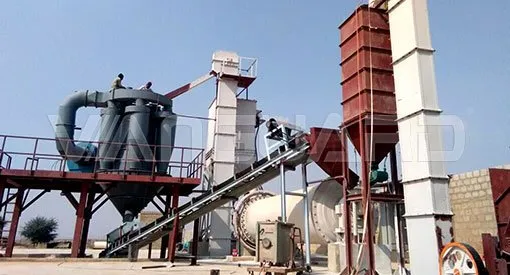

Energy-saving ball mill

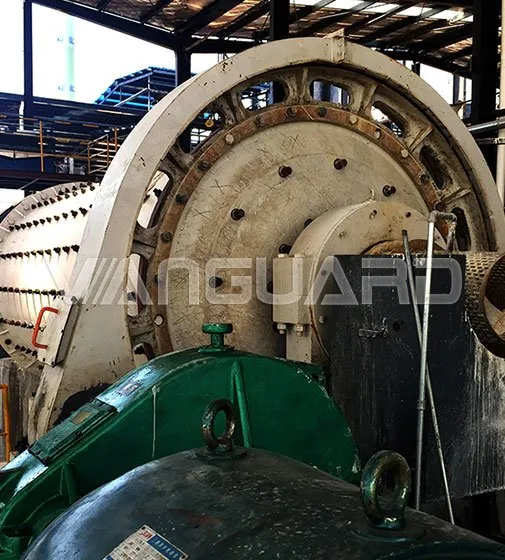

Energy-saving ball mill

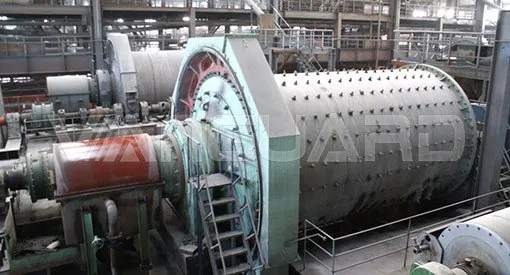

Energy-saving ball mill

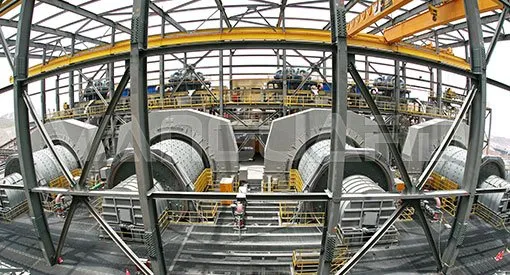

Energy-saving ball mill

Performance parameter
Model Cylinder Rotating Speed（r/min） Ball Load(t) Feeding Size(mm) Discharge Size(mm) Capacity(t/h) Power(kw) Weight(t)
Ф900×1200 36 1.0 ≤20 0.074-0.4 0.5-1.5 15 4
Ф900×1800 36 1.5 ≤20 0.074-0.4 1.1-3.5 18.5 4.8
Ф900×2100 36 1.7 ≤20 0.074-0.4 0.7-3.5 18.5 3.9
Ф900×3000 36 2.6 ≤20 0.074-0.4 1.5-4.8 30 6
Ф1200×2400 31 3.5 ≤25 0.074-0.4 1.6-5 30 9.5
Ф1200×2800 31 6.8 ≤25 0.074-0.4 1.5-5 37 13
Ф1200×4500 32 5.5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 33.8 6.8 ≤25 0.074-0.4 3-9 110 19
Ф1500×4500 27 10.5 ≤25 0.074-0.4 3.5-8 110 21
Ф1500×5700 25 13 ≤25 0.074-0.4 3.6-11 130 24
Ф1830×3000 23.8 10 ≤25 0.074-0.4 4-11 130 25
Ф1830×3600 23.8 12 ≤25 0.074-0.4 4.3-12 155 32
Ф1830×4500 26.5 17 ≤25 0.074-0.4 5.5-20 185 35
Ф1830×6400 25 21 ≤25 0.074-0.4 6-17 210 38
Ф1830×7000 22.5 23 ≤25 0.074-0.4 6.5-18 210 43
Ф2100×3000 23 13 ≤25 0.074-0.4 5-15 180 42
Ф2100×3600 23.8 16 ≤25 0.074-0.4 6-17 210 45.8
Ф2100×4500 23 20 ≤25 0.074-0.4 7-21 245 52.6
Ф2100×7000 23 31 ≤25 0.074-0.4 8-25 280 65
Ф2200×3600 21.7 17.5 ≤25 0.074-0.4 8-21 245 42.8
Ф2200×4500 23.7 22 ≤25 0.074-0.4 9-25 280 46.5
Ф2200×5500 21 30 ≤25 0.074-0.4 10-20 245 48.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 52.8
Ф2200×7500 21 33 ≤25 0.074-0.4 16-30 380 56
Ф2200×9000 21.5 44 ≤25 0.074-0.4 9-25 280 61.8
Ф2400×3000 20.6 30 ≤25 0.075-0.4 15-50 245 59
Ф2400×3600 21 21 ≤25 0.074-0.4 9-25 280 61.8
Ф2400×4500 21 26 ≤25 0.074-0.4 15-60 380 65
Ф2400×6500 21 38 ≤25 0.074-0.4 14-42 475 76.7
Ф2400×7000 21 41 ≤25 0.074-0.4 14-42 475 76.7
Ф2400×7500 21 44 ≤25 0.074-0.4 15-45 475 78.9
Ф2400×10000 21 58 ≤25 0.074-0.4 18-55 680 94.5
Ф2400×11000 21 64 ≤25 0.074-0.4 19-58 680 99.2
Ф2400×13000 21 75 ≤25 0.074-0.4 25-60 800 115.2
Ф2700×3600 20.7 26 ≤25 0.074-0.4 12-35 380 82
Ф2700×4000 20.7 29 ≤25 0.074-0.4 15-36 380 85
Ф2700×4500 20.7 33 ≤25 0.074-0.4 15-40 430 97
Ф3000×9000 19 109 ≤25 0.074-0.4 22-80 680 168.6
Ф3000×12000 19 134 ≤25 0.074-0.4 25-85 800 196.3
Ф3200×4500 18 65 ≤25 0.074-0.4 According to process conditions 800 137
Ф3600×4500 17 90 ≤25 0.074-0.4 According to process conditions 850 158
Ф3600×6000 17 110 ≤25 0.074-0.4 According to process conditions 1250 175
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
Ф4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
Ф4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525
