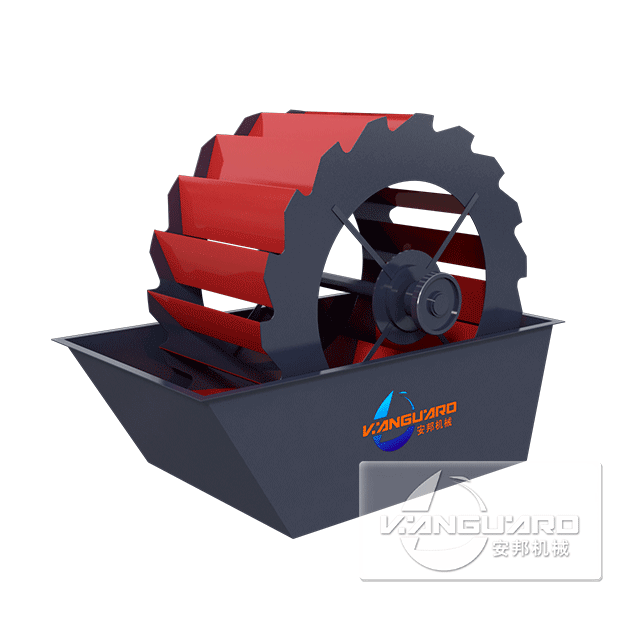

XSD Series Sand Washer

XSD Series Sand Washer

Capacity:20-150T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Washing and selection of construction sites, sand and stone works, concrete dam dites of hydropower stations, metallurgy, building materials, hydropower and other industries

Applicable Material

Limestone, river pebble, hillstone, lapis, cobblestone, weathered sand, basalt, granite, quartz, diabase

Overview

The transmission part of XSD Sand Washing Machine is separated from water and sand, and the failure rate is much lower than other sand washing machines. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It has the characteristics of reasonable structure, large capacity and low power consumption. It is an ideal sand washing equipment in sand and stone industry. XSD Series Sand Washing Machine produced by our company is a wheel-bucket type washing equipment, which can clean and separate the stone powder and clay in the sand and stone. It is an efficient sand washing equipment used with sand making machine.

Features

Impeller

Impeller design is reasonable, with the characteristics of high cleaning degree, reasonable structure, large quantity, and low consumption.

Unique Transmission Gear

Entire transmission (including bearings) is isolated from water and raw material to avoid bearing damage due to soaking, sand and pollutants.

High Quality Screen

Using high quality screen made of wear-resistant materials, effectively extending the service life of sand washer; and except the screen, generally do not need to equip other wearing parts.

High Quality Bearing

Using the bearing products of brands ZWZ and SKF, which are the largest bearing manufacturers in China.

Learn More About XSD Series Sand Washer

When the sand washing machine is working, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand and stone feed trough enters the washing trough, rolls under the impeller's drive, and grinds each other to remove the impurities covering the sand and stone surface, and destroys the water vapor layer of the sand to facilitate dehydration. Strong water flow, timely impurities and small proportion of foreign bodies to take away, and from the overflow outlet flume discharge, to complete the cleaning effect. Clean sand and stone are taken away by the blade, and finally the sand and stone are poured into the discharge trough from the rotating impeller to complete the sand and stone cleaning.

Product Album

Specifications - Technical Data

Model

XSD2610

XSD2816

XSD3016

XSD3620

Impeller of Diameter(mm)

2600

2800

3000

3600

Feeding Size(mm)

≤10

≤10

≤10

≤10

Capacity(t/h)

20~50

30~60

70~120

60~150

Model of Motor

Y160L-8

Y180L-8

Y200L-8

Y225S-8

Power(kW)

7.5

11

15

18.5

Water Requirement(t/h)

10-30

10-40

10-60

20-110

Weight(t)

2.7

5.5

6.1

9.7

Dimension(L×W×H)(mm)

3254×2060×2622

3810×2820×2883

3810×2820×3083

4456×2479×3688



Related Products

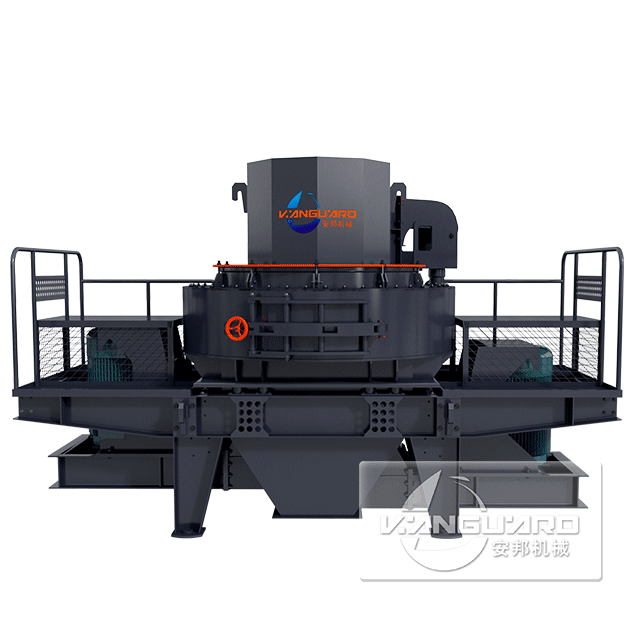

VSI Series Vertical Shaft Impact Crusher
VSI Series Vertical S

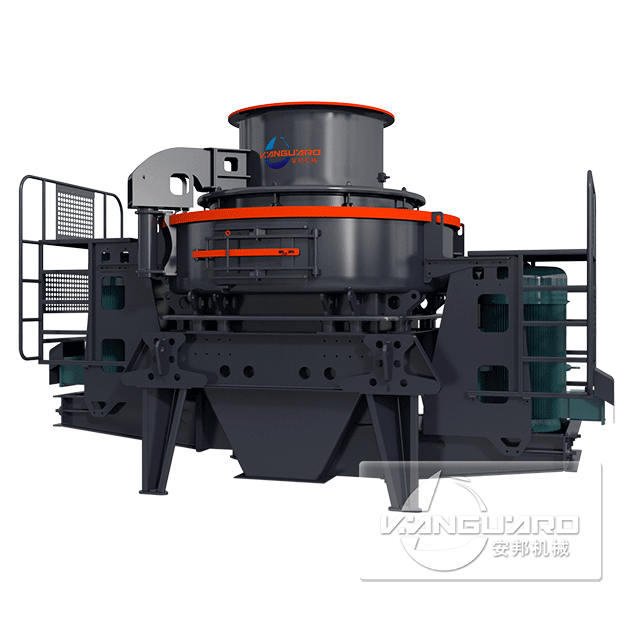

5X Series Vertical Shaft Impact Crusher
5X Series Vertical Sh

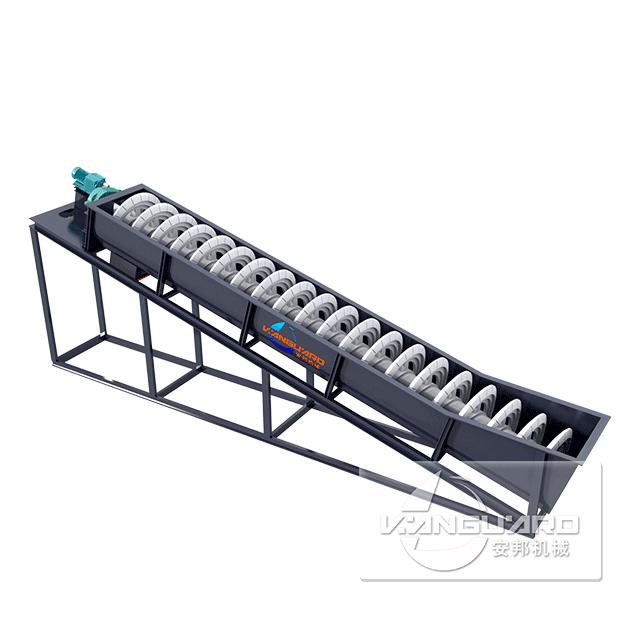

LSX Series Sand Washer
LSX Series Sand Washe

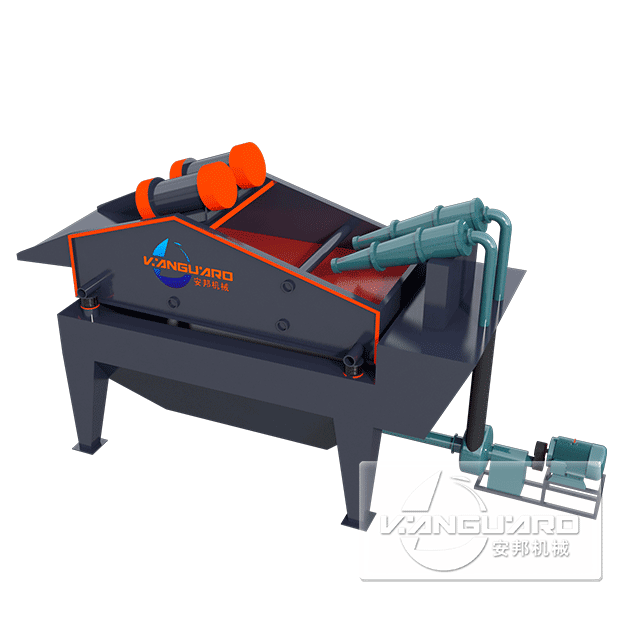

WS Series Fine Sand Recycling Machine
